Product Parameters:
Output amplitude: 2.5VVPP
Output impedance: 330 ohms, power supply

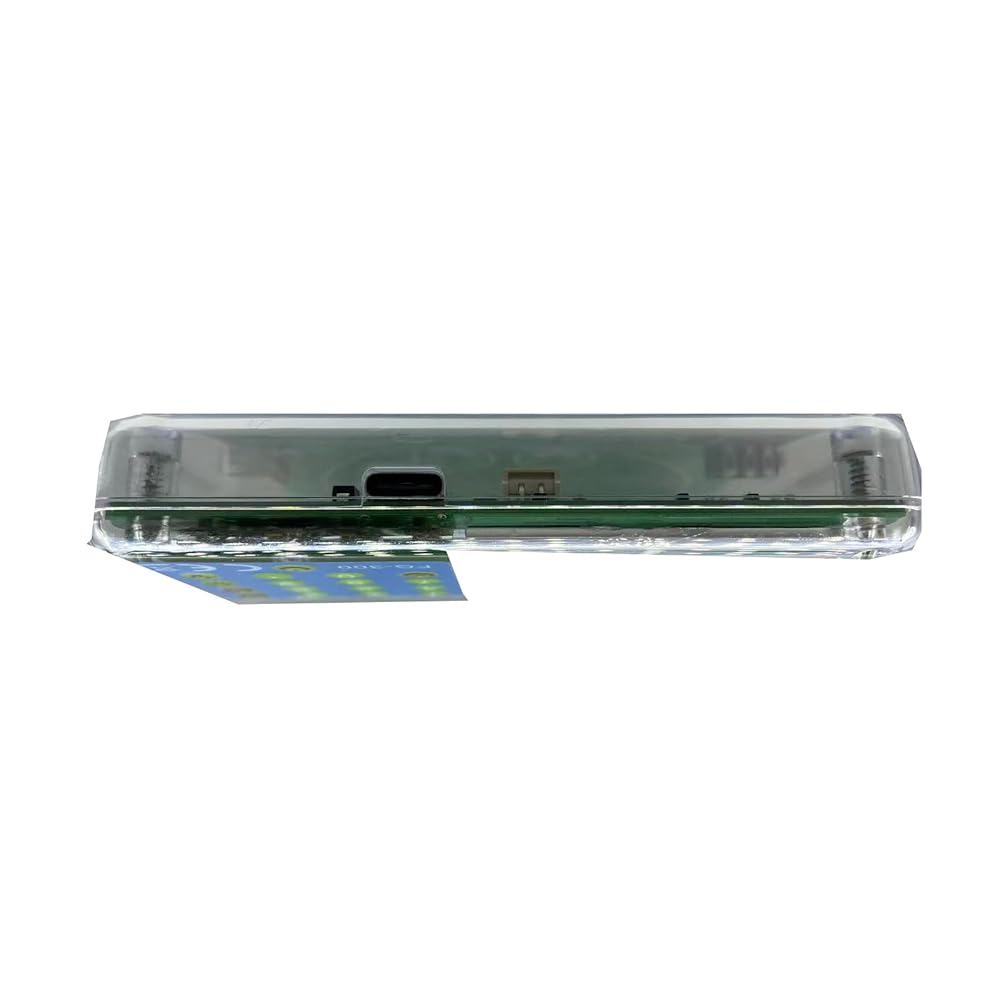

Voltage: USB-TYPE C 5V

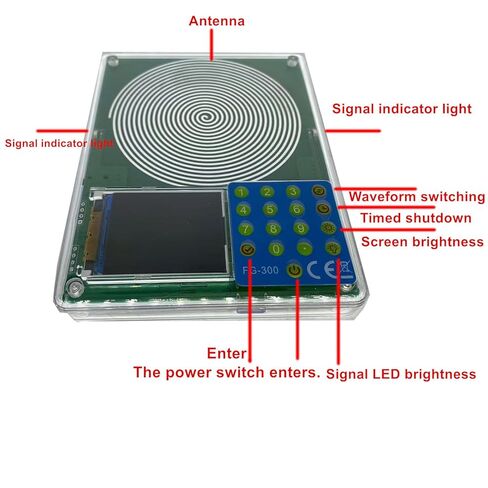

Color 1.8TFT LCD display, direct frequency input via the numeric keypad, convenient operation
2. It adopts low-temperature drift crystal oscillators and high-precision DDS frequency synthesis, featuring high frequency stability with a resolution of up to 0.001HZ. At low frequencies, the accuracy can reach 0.001HZ. It can output up to 13 types of waveforms to meet different requirements. The 13 types of waveforms are: Sine wave, square wave, triangular wave, forward sawtooth wave, reverse sawtooth wave, electrocardiogram, half wave, Lorenz, Gauss, Singer, exponential rise, exponential fall, and 7.83HZ Schumann wave
3. All setting parameters can be automatically saved, and there is no need to set them again when starting up next time. It has the functions of timed shutdown, signal light and screen backlight brightness adjustment
4. It can be applied to electronic research and development, production testing, education and teaching, maintenance and repair, audio testing, etc

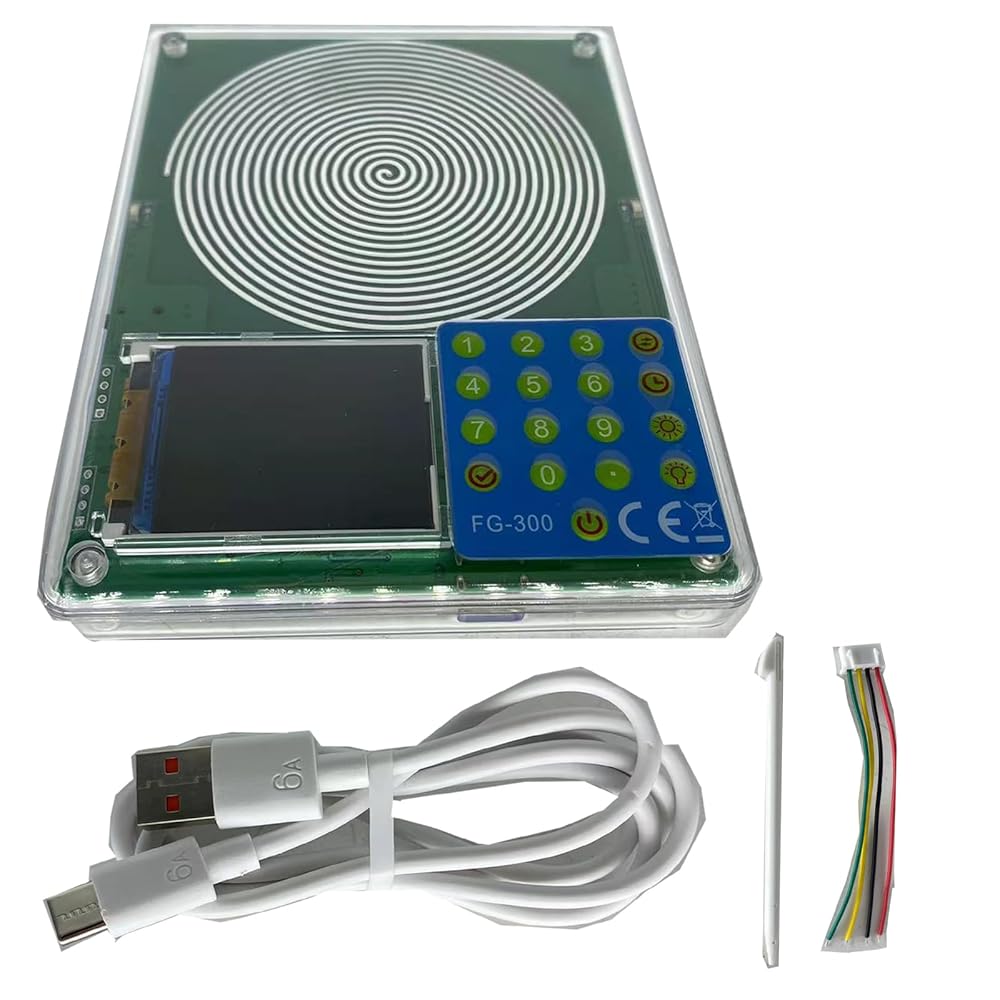

Package Included:

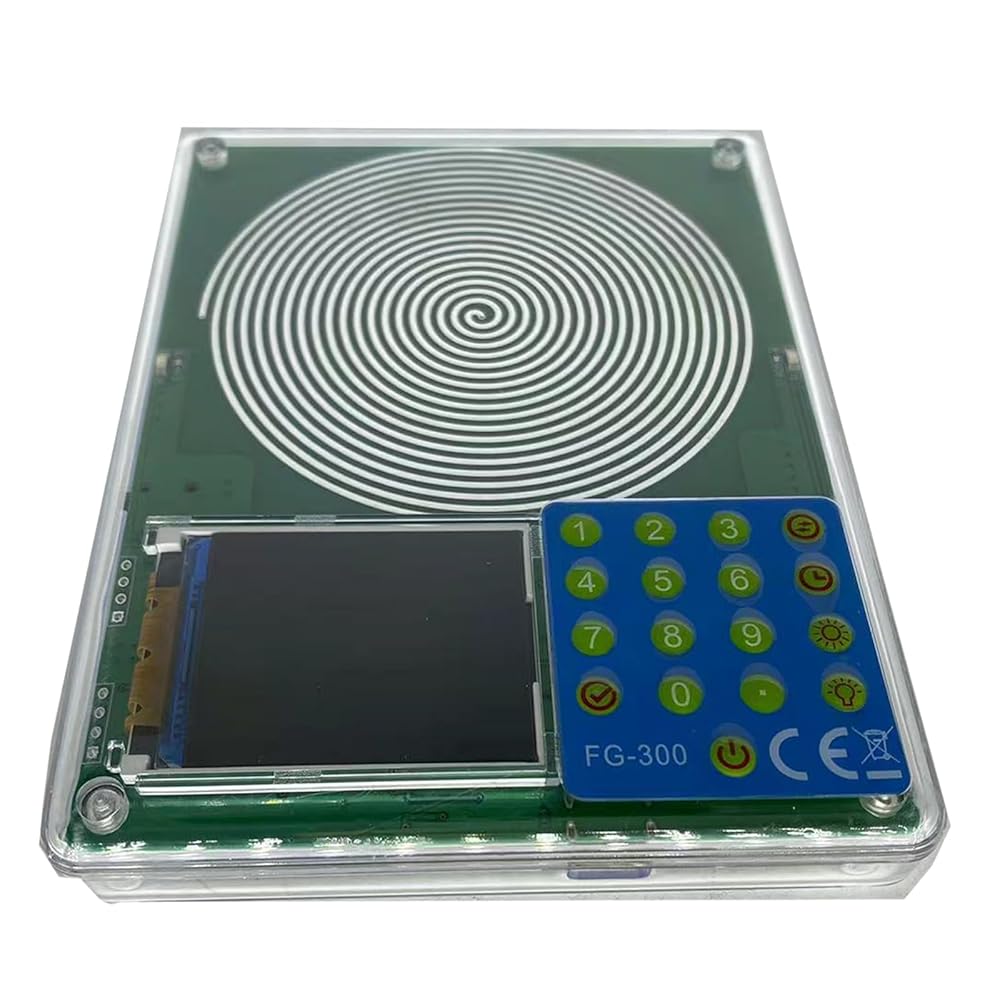

1*FG-300 5V Function Signal Generator
1*Type-C Power Supply Cable
1*4-Pin Signal Output Line
1*Stylus
