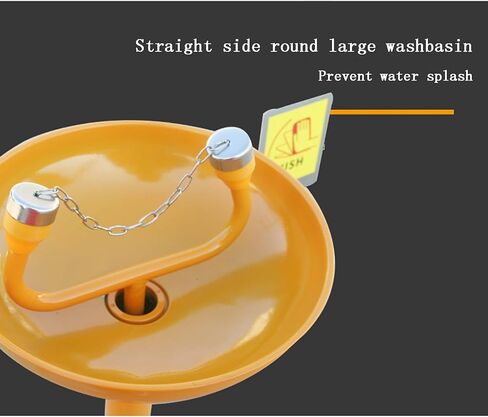

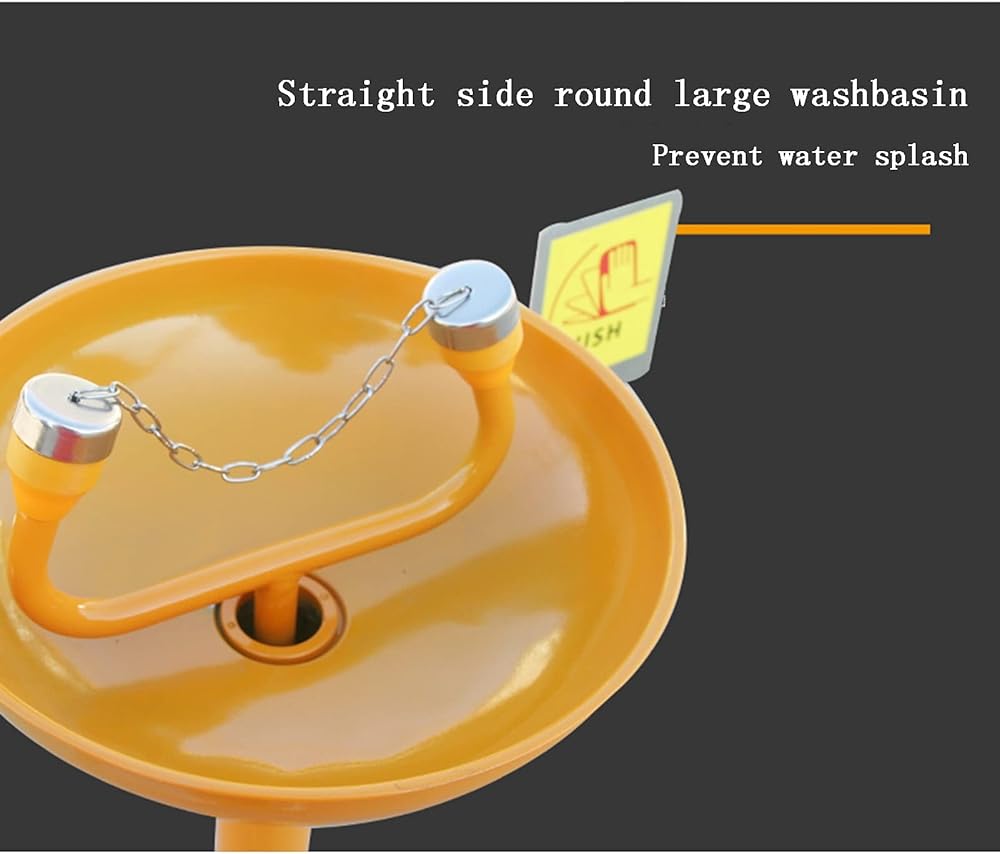

Eyewash clamshell basin
The use of 1MM thick stainless steel eyewash basin and basin cover, with a diameter of 12 inches, can effectively ensure that the eyewash wastewater does not overflow after 15 minutes of continuous use. The reasonable structure design increases the strength of the eyewash basin and effectively improves the service life of the product. The eyewash basin cover can prevent dust from the eyewash nozzle and the entire eyewash basin, effectively ensuring the cleanliness of the eyewash nozzle and the inside of the eyewash basin.
Eyewash switch mode: hand and foot linkage, only need to opens the eyewash basin cover or step on the foot pedal during use, clean water is sprayed from the eyewash nozzle, close the eyewash basin cover after use, the eyewash switch is automatically closed, and the foot pedal automatically resets. After the eyewash switch is turned on, it is not manually operated and will not be turned off automatically.
Product Details

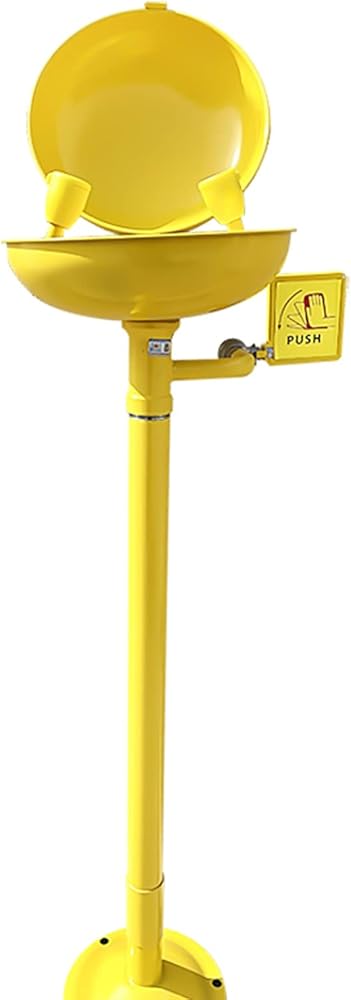

Product name: Vertical eye wash

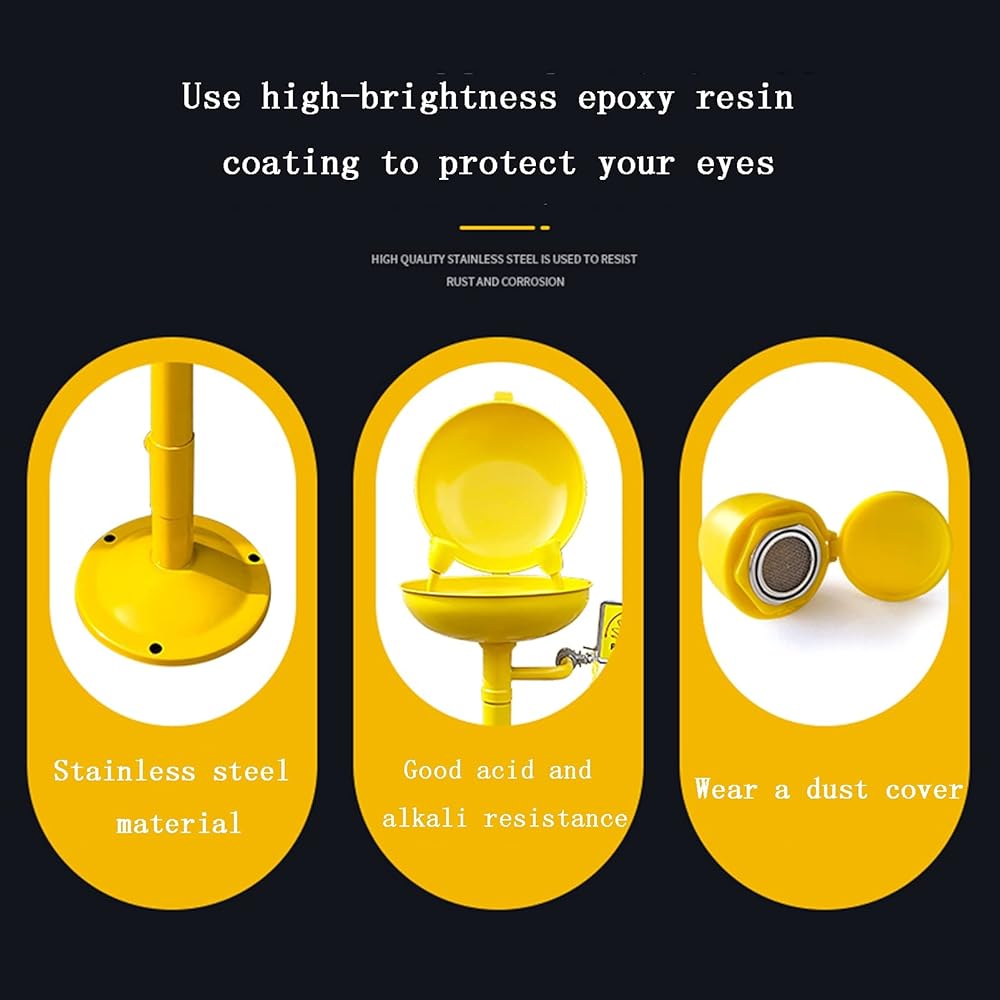

Main body material: SS304+ ABS Coating
Function: Eye washing
Working environment temperature: 0~50℃
Applicable medium:Normal temperature drinking water or water that meets hygienic standards
Nominal pressure: 1.0Mpa
Working pressure: 0.2Mpa-0.4Mpa
Eye Wash flow: ≥11.4L/min
Size: 750mm*300mm*250mm
Installation and commissioning
*The installation location should be within 15 meters of the accident-prone place, and the flushing place can be reached within 10 seconds of running speed.
*Assemble the components as shown in the figure. The joints of the components need to be wrapped with sealing tape (such as PTFE tape), and the water pipes are connected according to the diameter of the water inlet and outlet respectively.
*After connecting the inlet and drain pipes, check whether the ball valve switch is in place flexibly and whether there is jamming.
