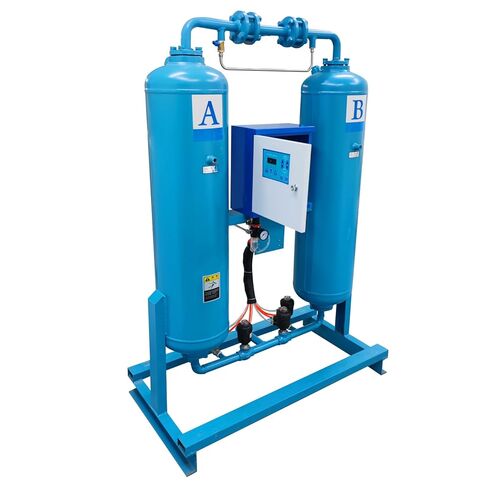

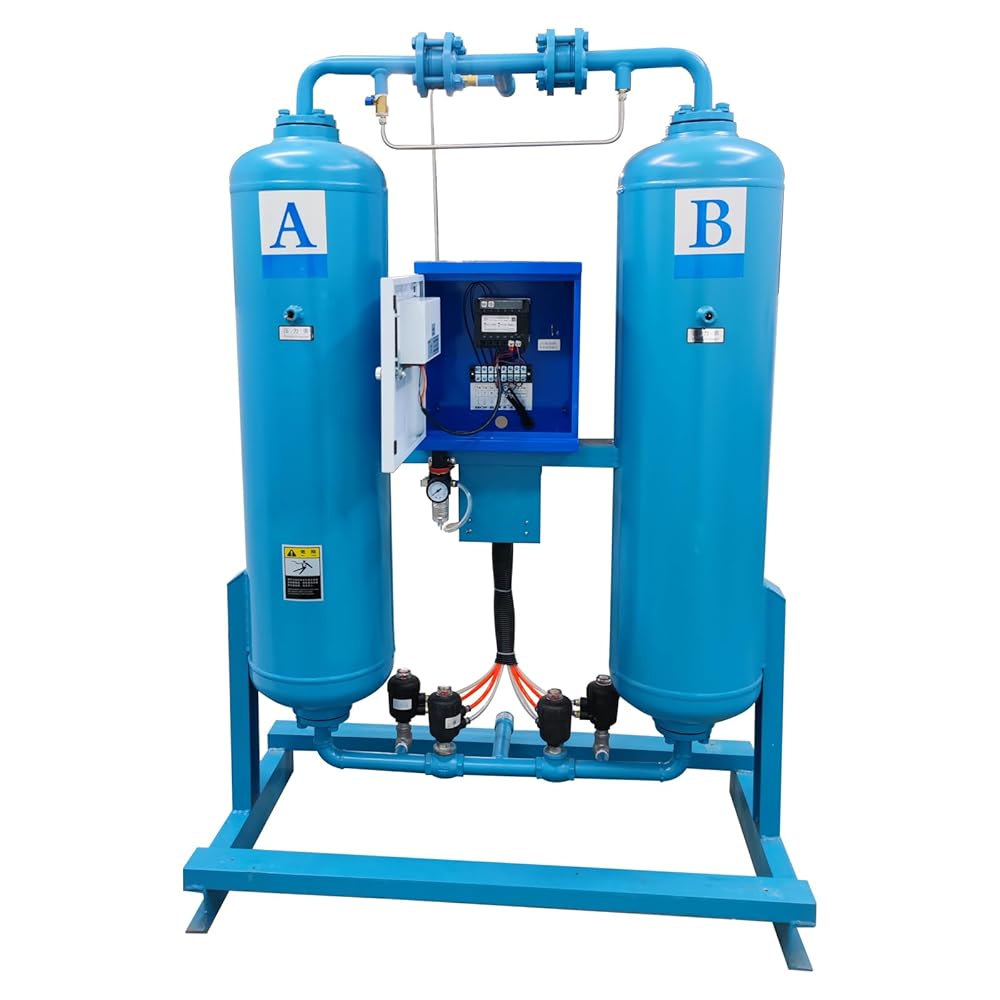

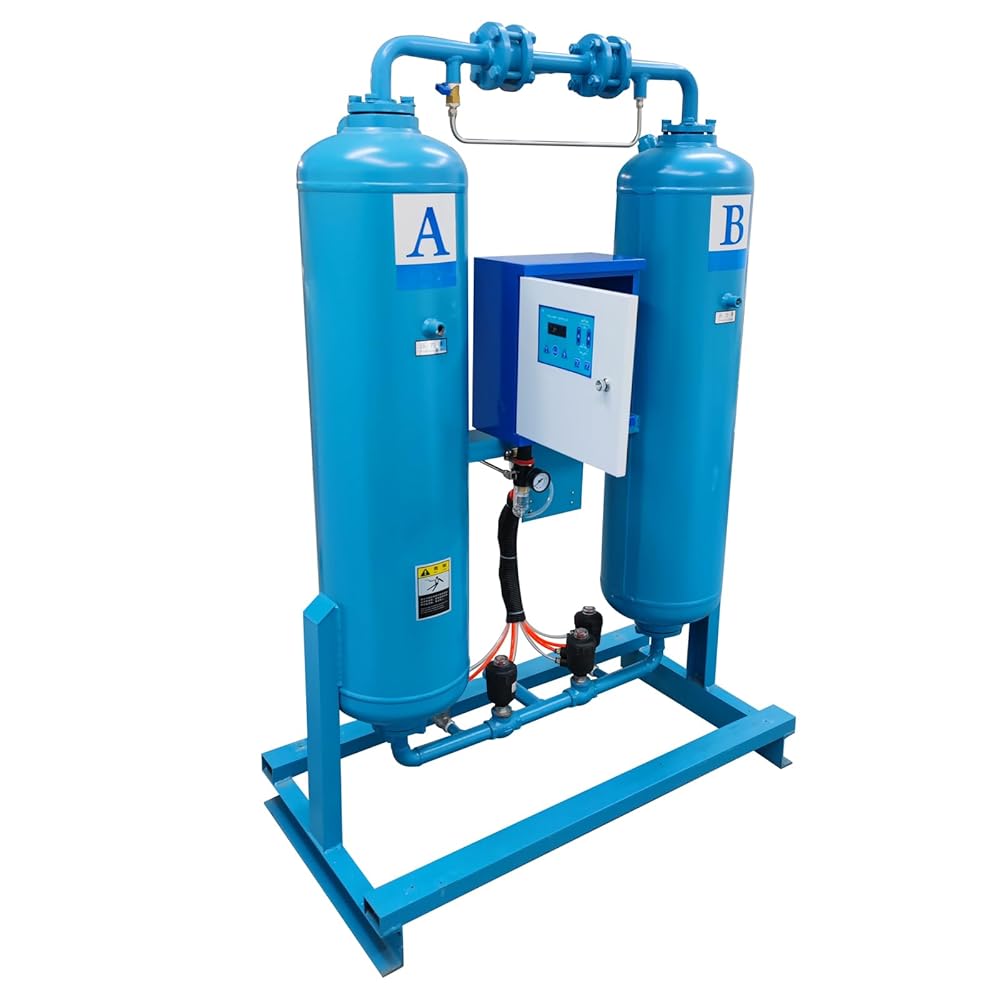

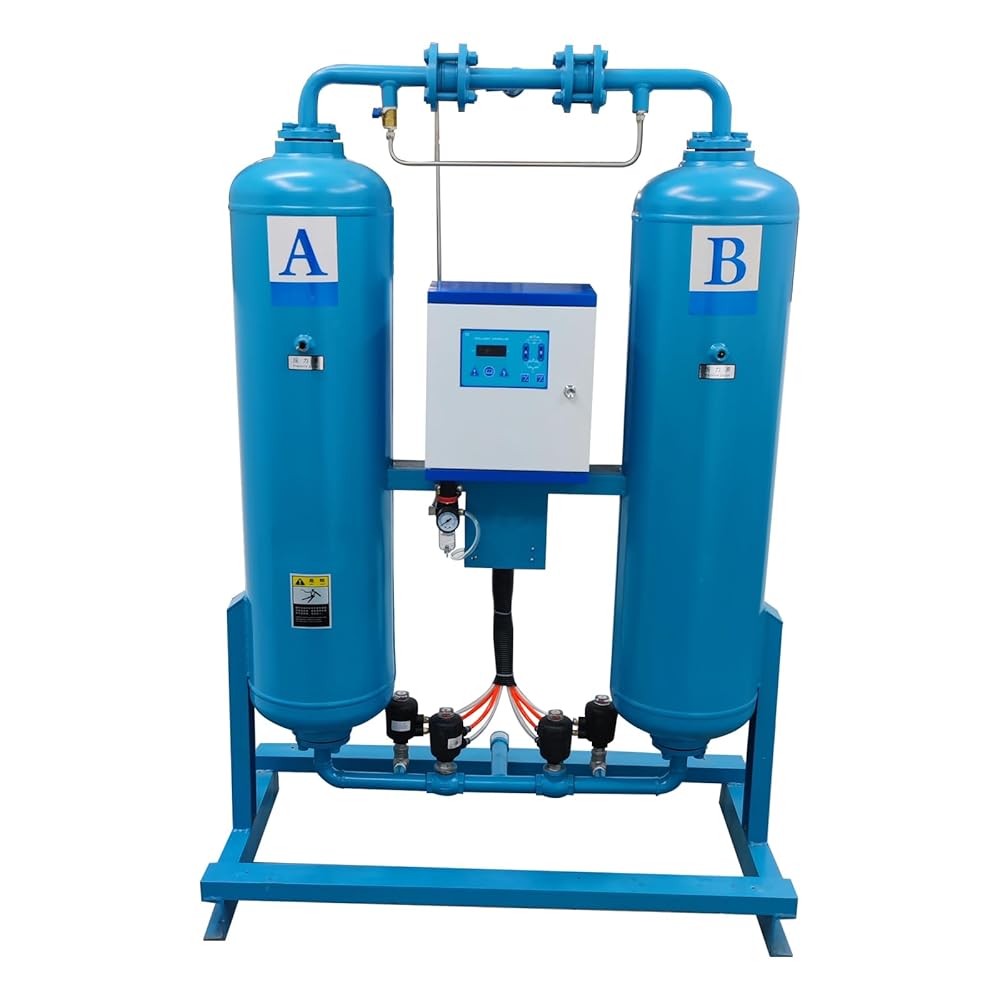

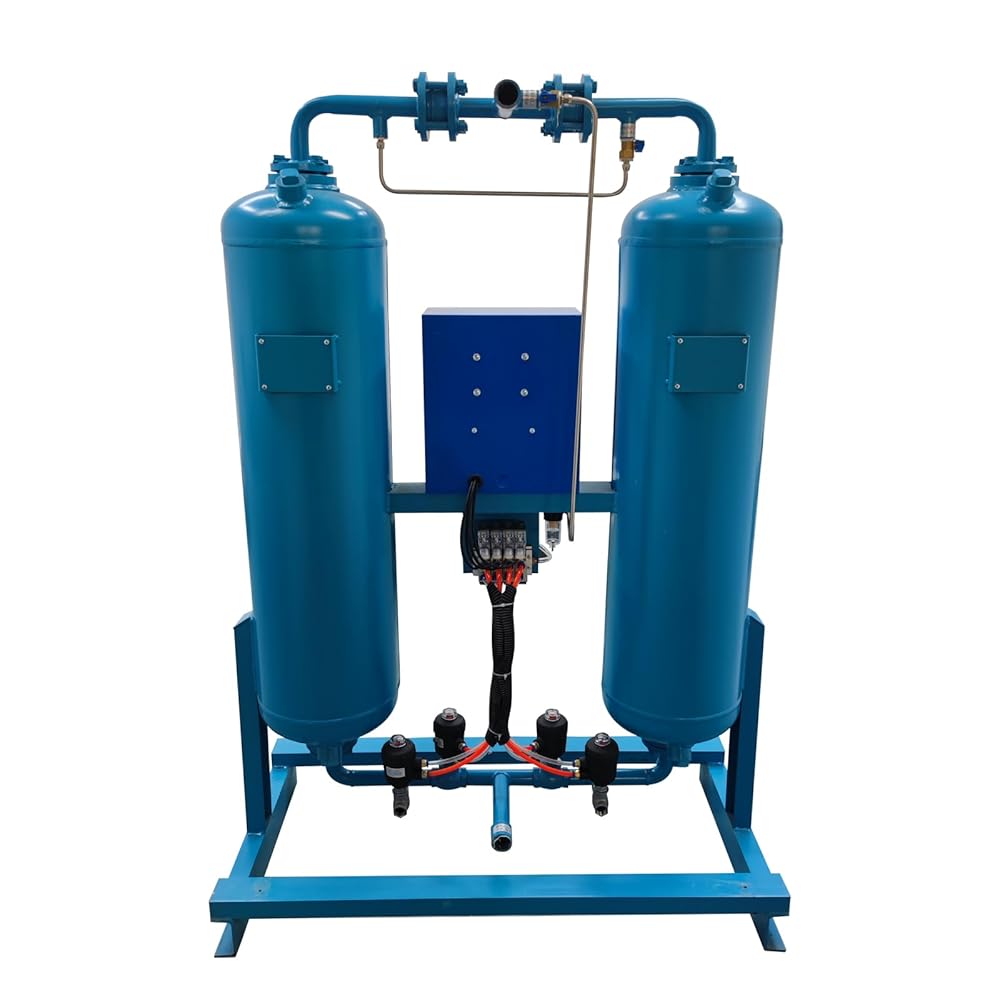

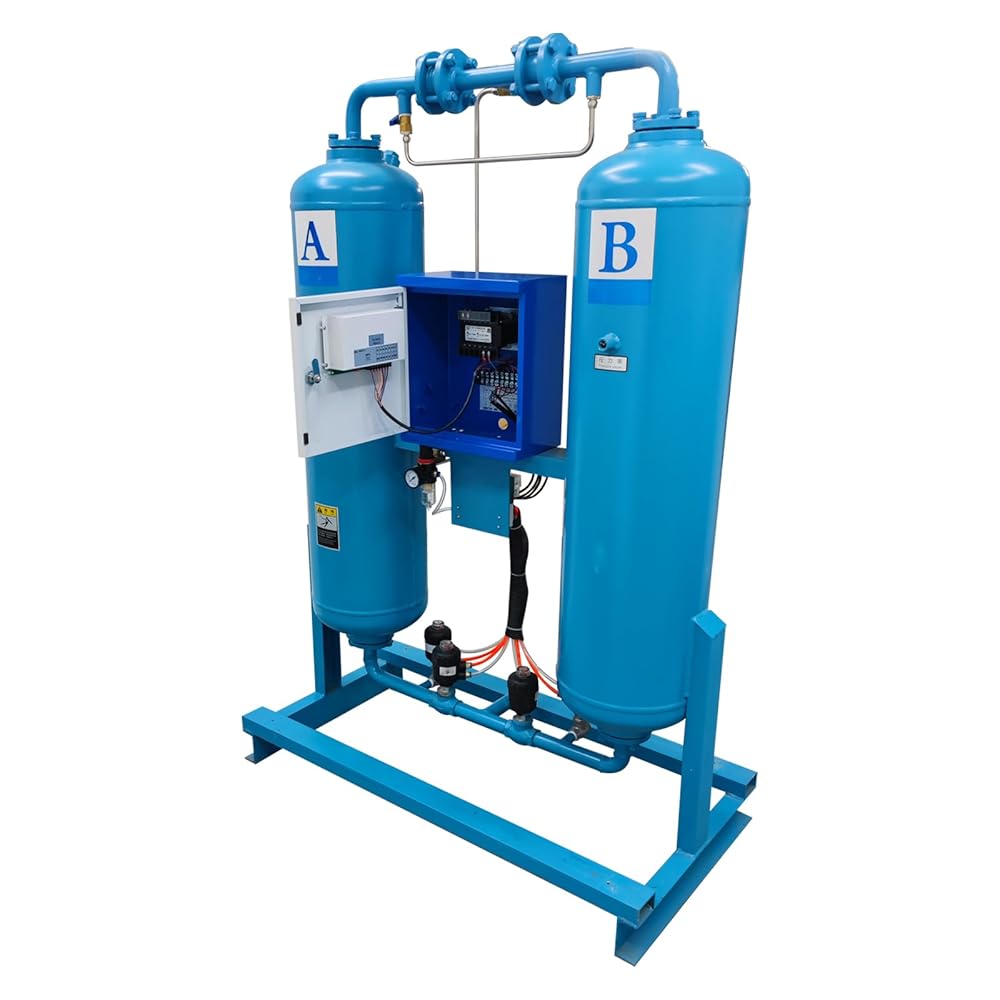

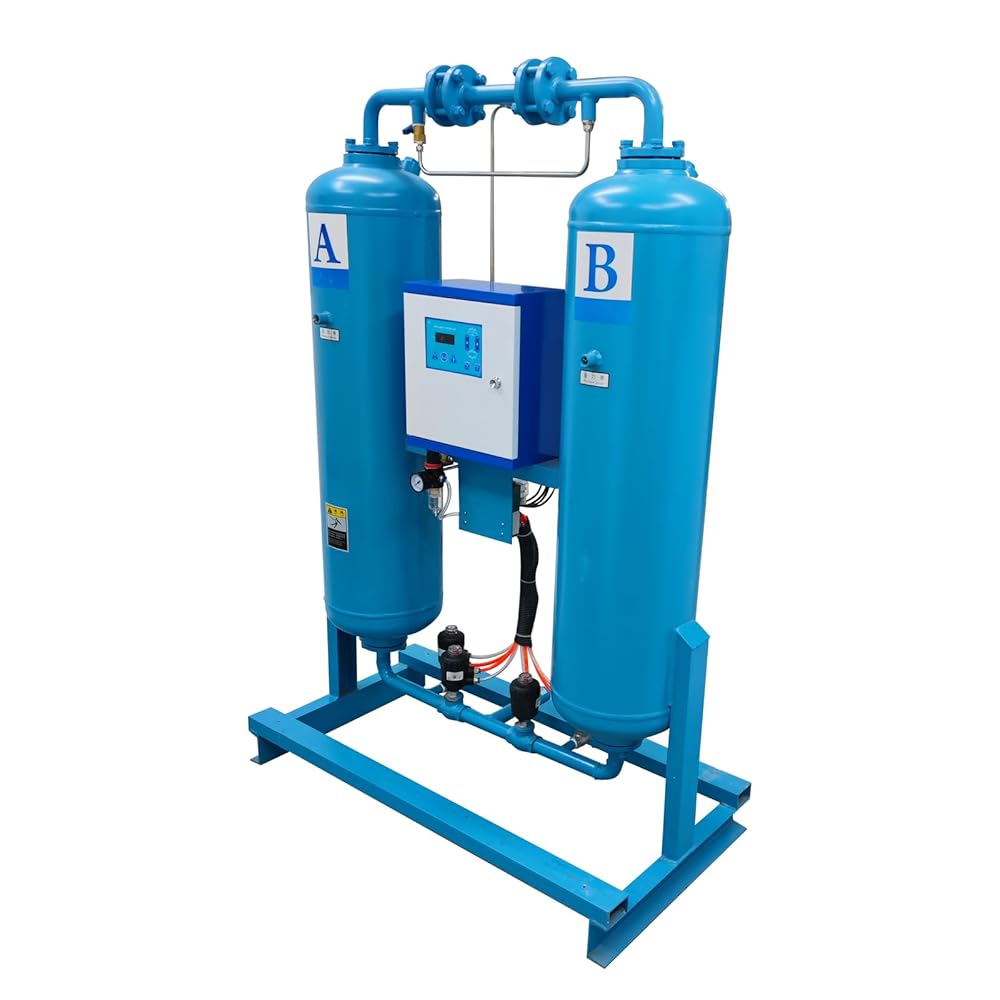

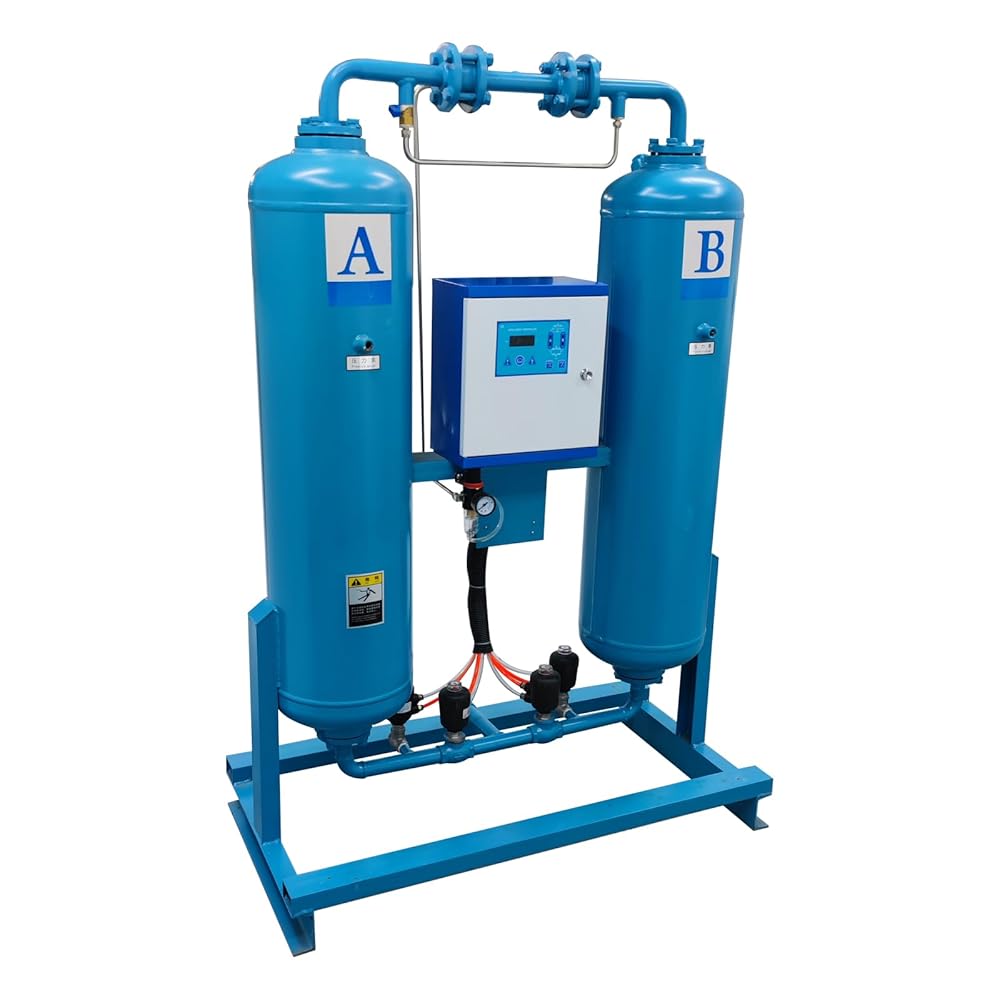

Thermal-free adsorption compressed air dryer is a kind of equipment for drying compressed air according to the principle of pressure change adsorption. The air drying process is automatically controlled by the YX intelligent controller using advanced microcomputer technology to improve the air purification efficiency and reduce the power loss.
This series of dryers is widely used in electronics, food, metallurgy, electric power, chemical industry, petroleum, medicine, light textile, instrument, automatic control and other industries.

Product parameter:
Treated air volume: 3.8 m3/min
Inlet and outlet dimensions: 1 inch threaded pipe

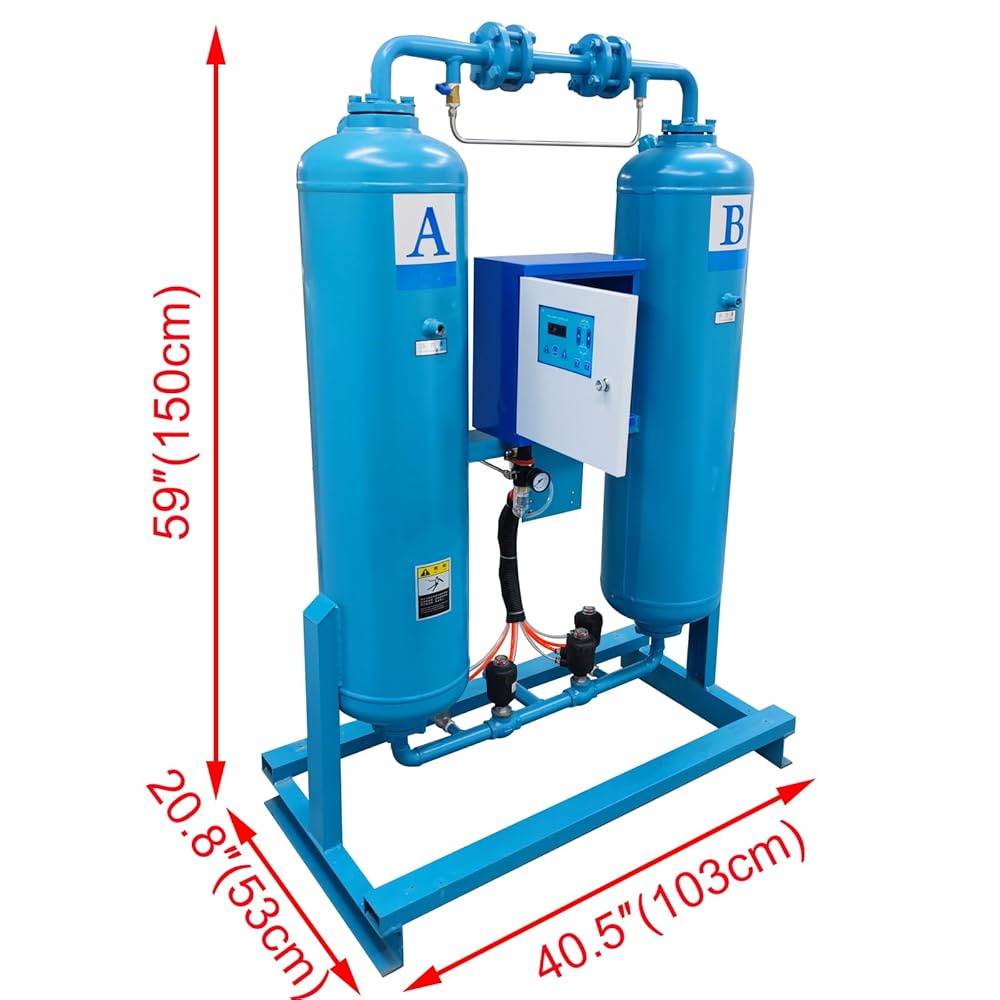

Bobbin size: 273mm*850mm
Individual barrel volume: 0.053m³
Power: 1000W
No thermal gross weight: 405LBS (184KG)
Adsorbent weight: 165LBS (75KG)
Air consumption: ≈8％
Voltage: 110V
Withstand voltage: 1.0Mpa
Working pressure: 0.4-1.0Mpa
System pressure drop: ≤0.03Mpa
Adsorbent: Aluminium oxide（3-5mm）
Dew point temperature: -20℃ to -40℃
Switching cycle: 60Min（adjustable）
Control mode: PLC
Intake temperature: ≤45℃
Intake oil content: ≤0.1PPM
Suppressor: 2PCS of XY-05
Diffuser: 4PCS of DN25
Normally open valve: Pneumatic valve of DN25
Normally closed valve: Pneumatic valve of DN15

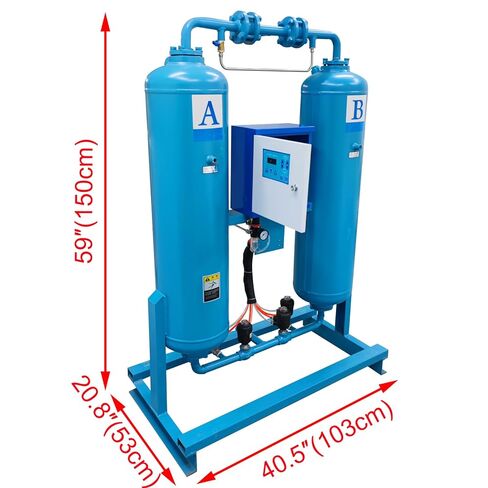

1* 30FW Adsorption dryer Air Compressor Dryer 110V (033277)
