Radio Frequency Attenuators

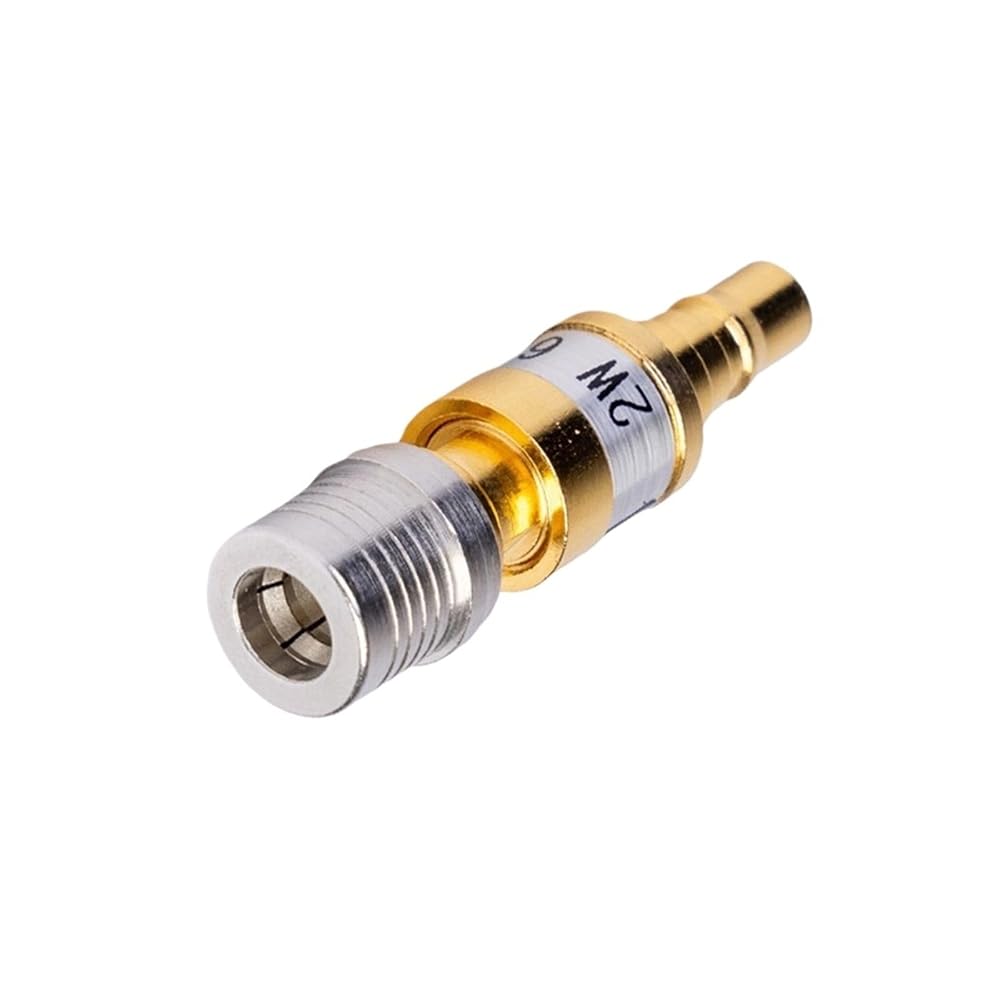

Applications: DC to 6GHz, QMA male to female 2W coaxial fixed attenuator
Technical Specifications:
Normal impedance 50 ohms
Frequency range: DC to 6GHz
Standing wave ratio less than 1.25
Rated power 2W
Attenuation values are selectable: 1, 2.3, 5.6, 10, 15, 20, 25dB, 30, 40dB
5W N-Type coaxial Fixed attenuator DC to 4GHz, 50 ohms(30db,3G)
KWD 33.500
2W SMA Connector Termination 50 ohms, DC -13GHz(SMA-K)
KWD 39
2W DC-6GHz SMA-JK Male-to-Female attenuator, Attenuation Range: 1-30dB(2W DC-6G 10DB)
KWD 18.500
One high-Frequency DC-18GHz 2W SMA coaxial attenuator(40DB 18G)
KWD 62.500
