Specification:
Power: 2.2KW
Voltage: 110V
Frequency: 60HZ
Speed: 2900 r/min
Flow range: 0-3m3/h
N-d: φ4-16mm

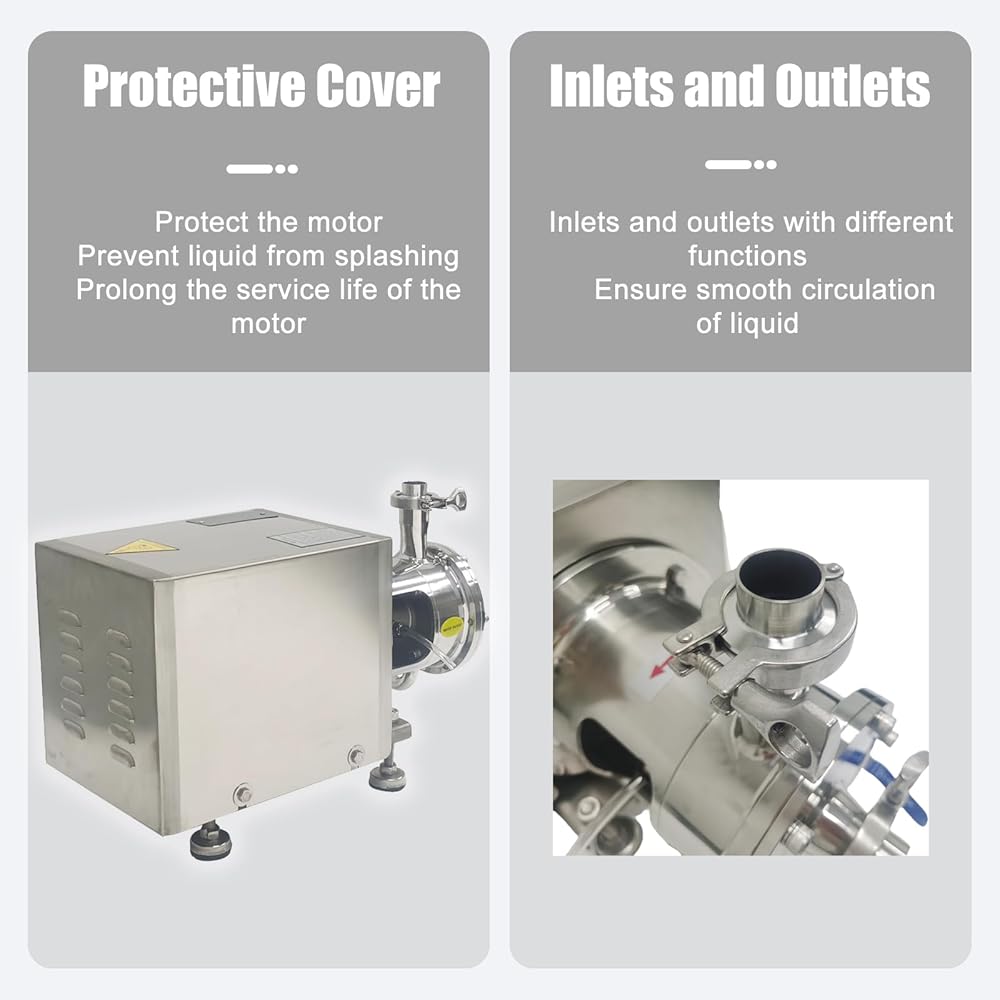

Inlet Size: 38mm(1.5inch)
Exit Size: 32mm(1.26inch)

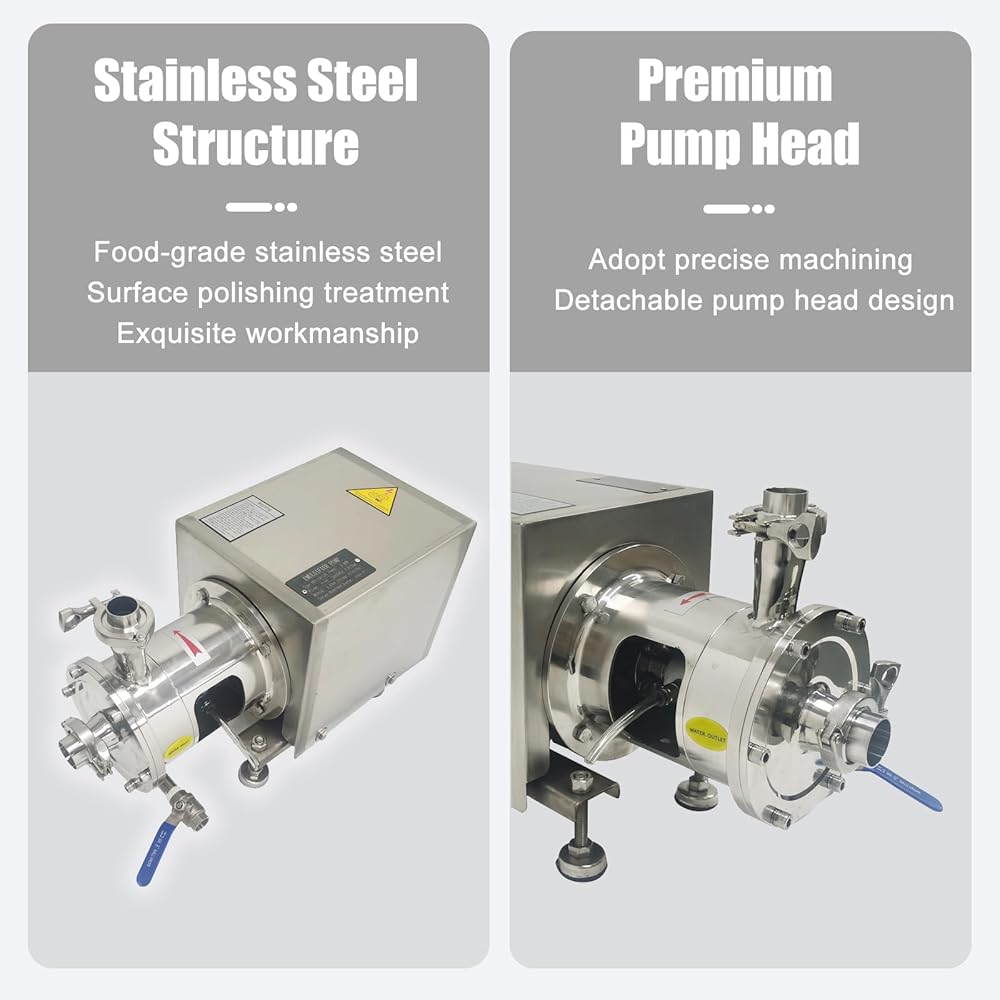

Material: stainless steel 304

Package included: 1set 110V 2.2KW Pipeline Emulsion pump High Shear Emulsifying Pump for Industry Chemical(022709)

Pay Attention

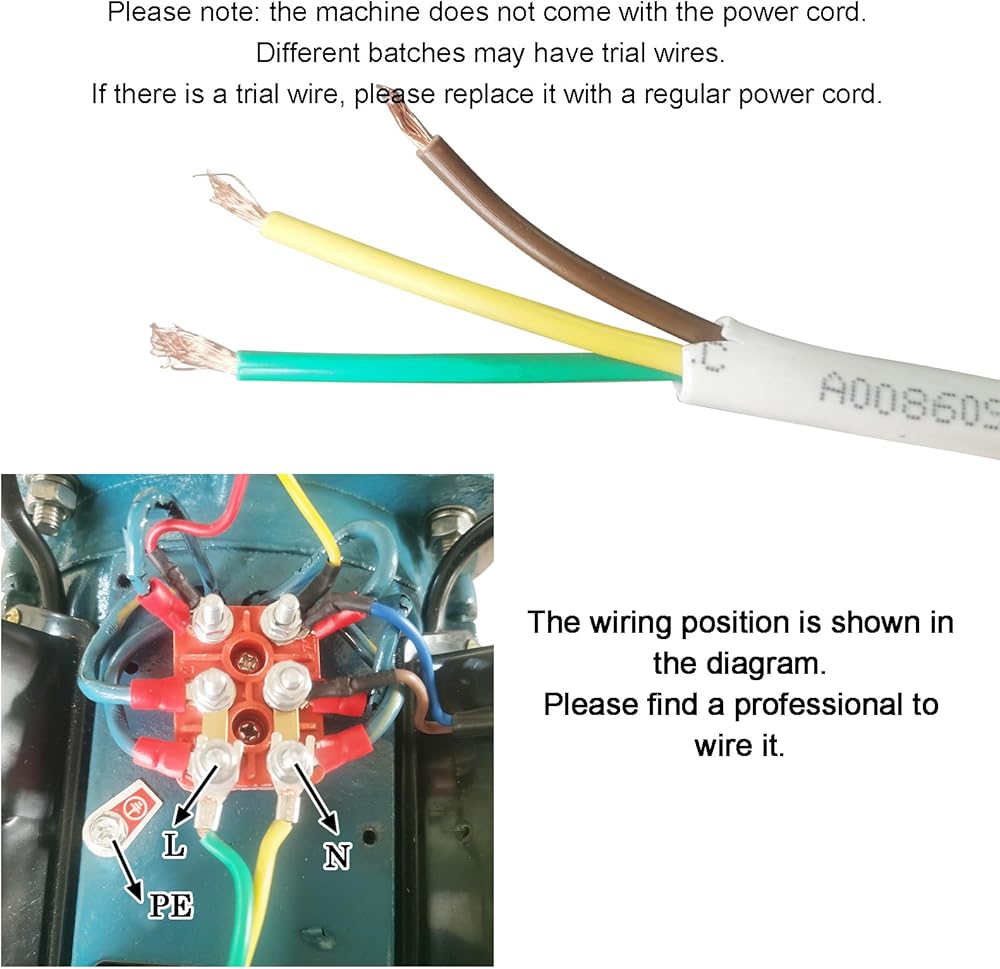

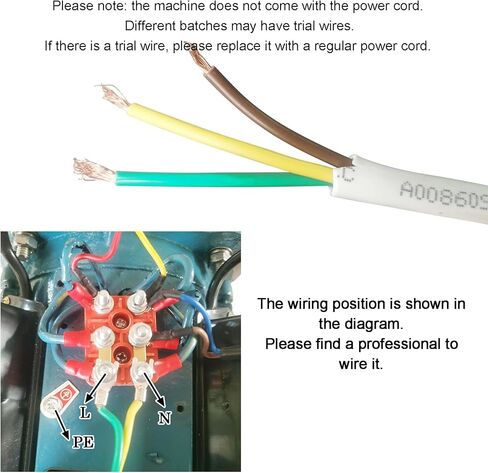

Please note that the machine does not come with a power cord.
When using it, please contact a professional to connect a regular power cord.
Different batches may have trial wires. If there is a trial wire, please replace it with a regular power cord.

Attention and maintain

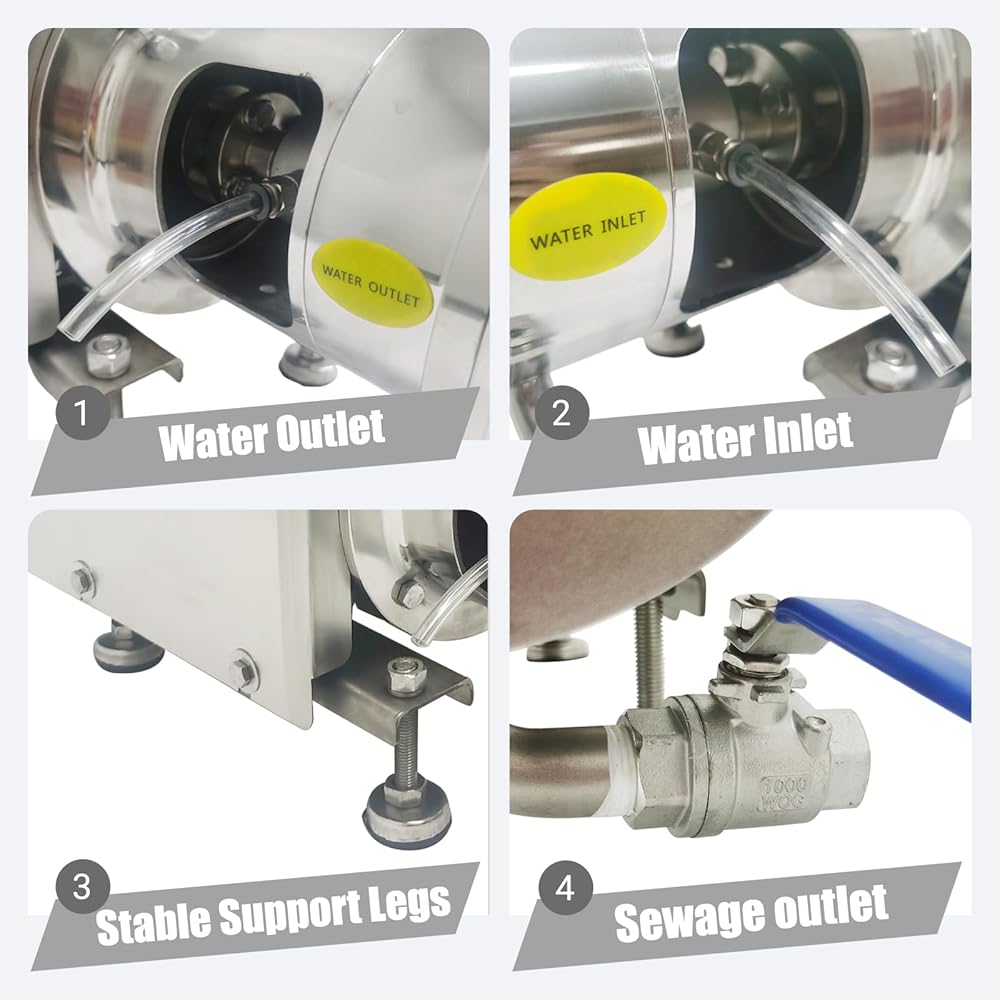

1. The cooling water is usually connected before the machine is opened, and the cooling water is shut down first and then the cooling water can be used.
2.The cooling water pressure is less than 0.2Mpa.
3.The material must enter the working chamber, and it can be switched on. It is also necessary to ensure that it does not run in the condition of material failure, so as to avoid idling and cause mechanical seals (machinAdd a current protector when wiring the emulsion pump.burn out or affect service life.
4. Add a current protector when wiring the emulsion pump.

Important:
After confirming the sealing of the cooling water, the motor is started, and the motor steering should be operated with the steering sign of the main shaft, and the reversal is strictly prohibited!
It can not be Idle and Reversal
