uxcell 100mm Effective Stroke Length Manual Sliding Table, Double Optical Axis Slide Rail, Acme Thread TR12X5, 12mm Diameter 4mm Pitch, 1 Start, Moved 4mm/Cycle, for CNC Machine

KWD 25.500
Brand
uxcell
Weight
1.4 kg
– 1 +

Special Features

  • Size and Package: 1 Pcs x Linear Stage Actuator with Hardware; Effective Travel Length: 100mm; Type: Acme Thread TR12X4,12mm Diameter 4mm Pitch, 1 Starts, 4mm Lead (the lead screw can move 4mm in one turn). Note: For optimal performance, avoid exceeding the travel range or applying uneven loads.
  • Material: The linear rail cross sliding stage is made of Aluminum Alloy with a Honeycomb-Inspired Coating, featuring fine workmanship, high temperature and corrosion resistance, durability, and high work efficiency.
  • Effective Travel: 50 mm Effective Travel. The linear guide features a dual optical axis guide rail design, enabling ultra-smooth, high-precision linear motion. This design ensures stable operation, high speed, reliability, and repeatability.
  • Installation: When using, fix the included wrench on a flat base, ensuring the two optical axes are parallel. Turn the black rotary wheel, which engages the ball screw drive, and the slide will move smoothly along the two optical axes. The position can be manually fine-tuned, suitable for precise positioning of small equipment, sample adjustment, and other applications. Avoid excessive travel and uneven loading.
  • Wide Application: Linear stage actuator ball screws are suitable for a variety of precision small displacement scenarios and can be applied to cutting machines, CNC engraving machines, laser printers, small CNC machine tools, precision measuring equipment in optical laboratories, etc.

Description

Description:
Material: The linear rail cross sliding stage is made of Aluminum Alloy with a Honeycomb-Inspired Coating, featuring fine workmanship, high temperature and corrosion resistance, durability, and high work efficiency.
Effective Travel: 100 mm Effective Travel. The linear guide features a dual optical axis guide rail design, enabling ultra-smooth, high-precision linear motion. This design ensures stable operation, high speed, reliability, and repeatability.
Installation: Simply secure the included wrench on a flat surface to align the dual optical axes. Turn the black control knob to activate the ball screw drive, moving the slide smoothly for precise adjustment. Suitable for the precise positioning of small equipment, sample adjustment.
Wide Application: Linear stage actuator ball screws are suitable for a variety of precision small displacement scenarios and can be applied to cutting machines, CNC engraving machines, laser printers, small CNC machine tools, precision measuring equipment in optical laboratories, etc.

Specification:

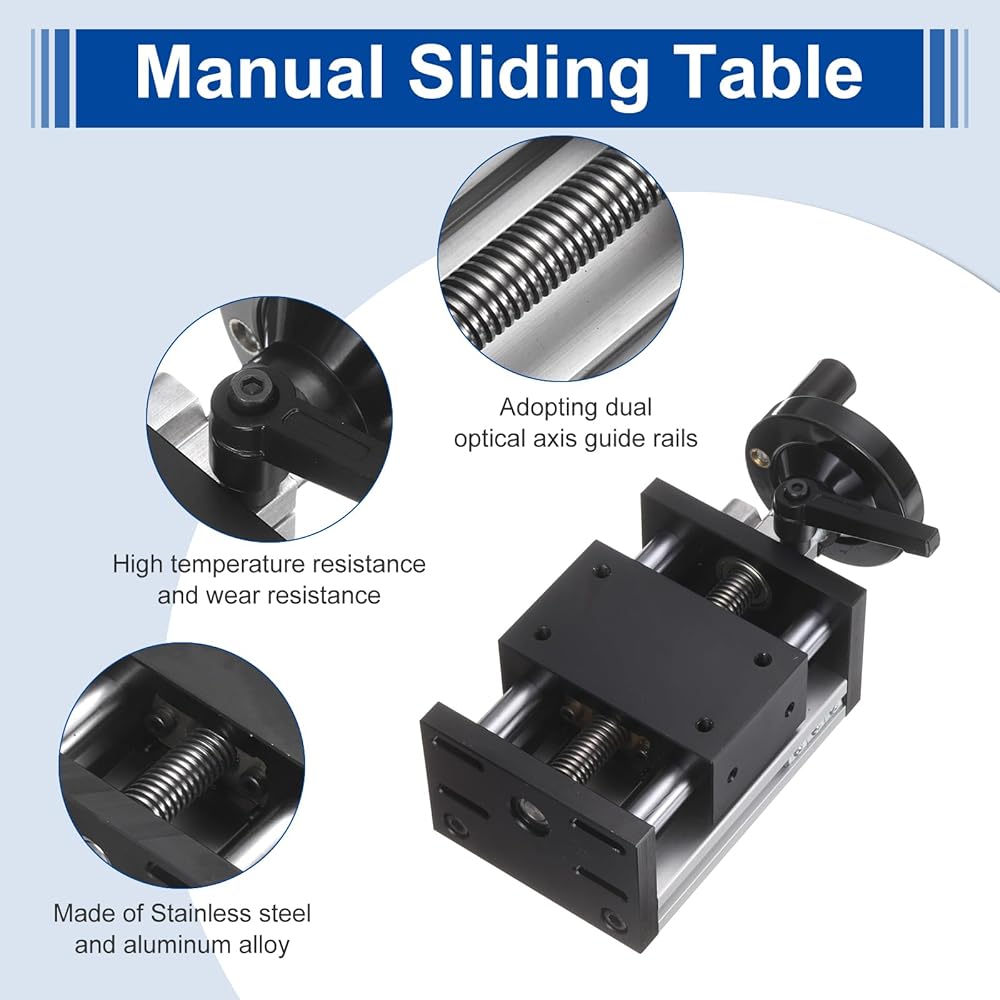

Material: Stainless steel and aluminum alloy
Screw type: Acme Thread TR12X4
Diameter:12 mm / 0.47 inch
Pitch: 4 mm

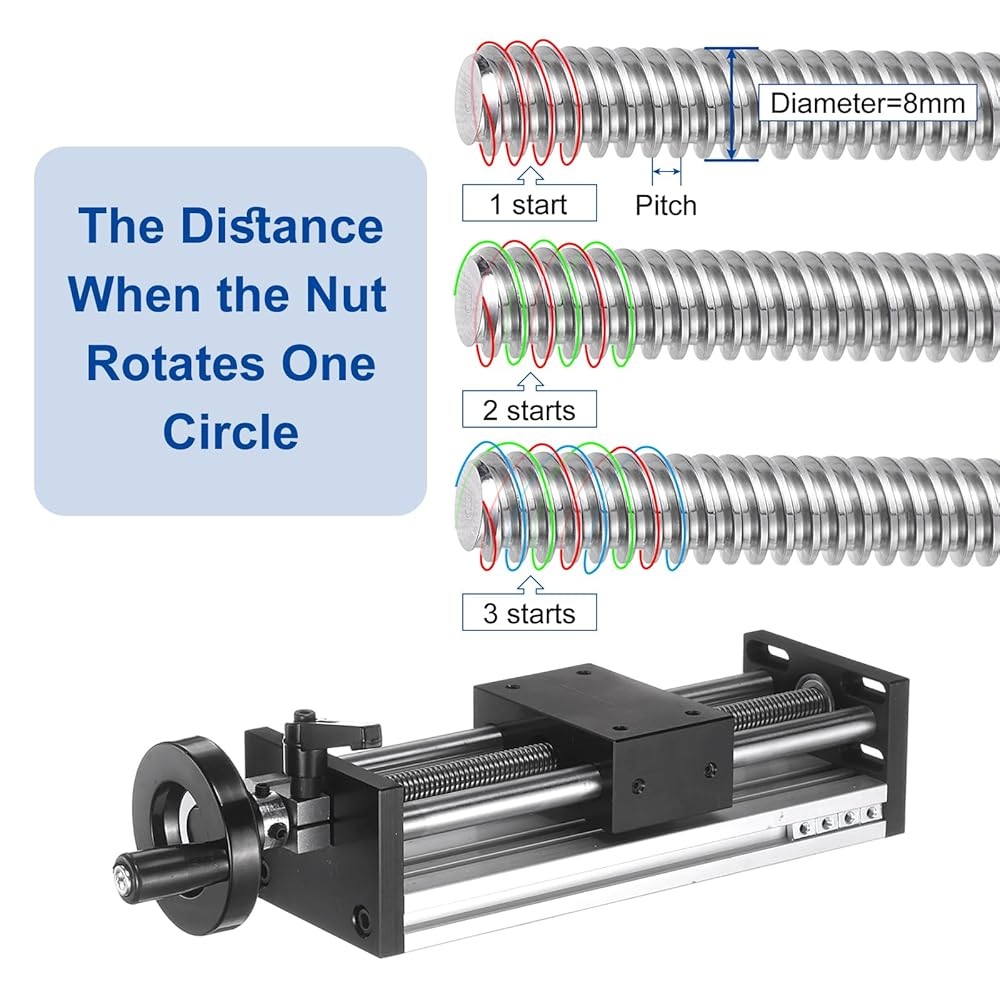

Lead: 4 mm (the lead screw can move 4mm in one turn)
Effective Travel Length: 100 mm / 3.94 inch

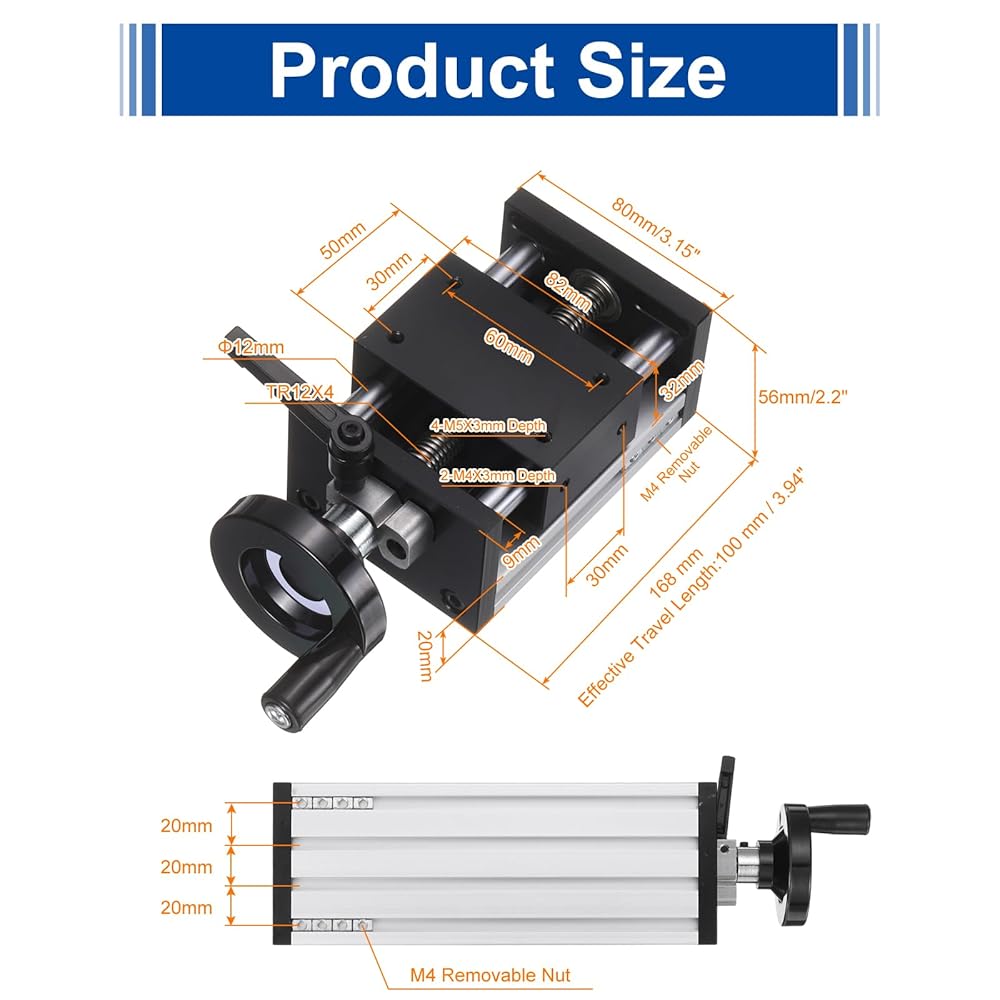

Size: 195 x 80 x 56 mm / 7.68 x 3.15 x 2.2 inch (L x W x T)

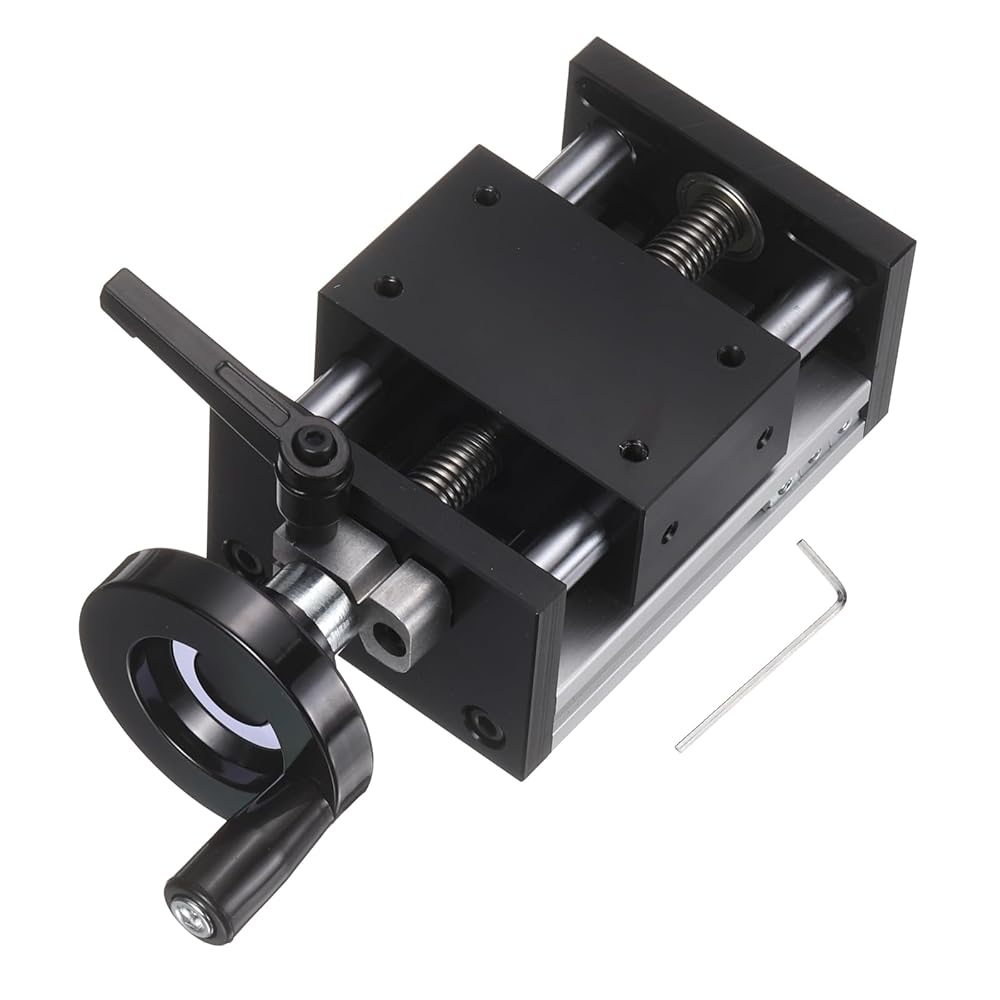

Package Content: 1 Pcs x Linear Stage Actuator with 2 x Machine screws, 1 x wrench, 1 x hand crank, 2 x locking device
