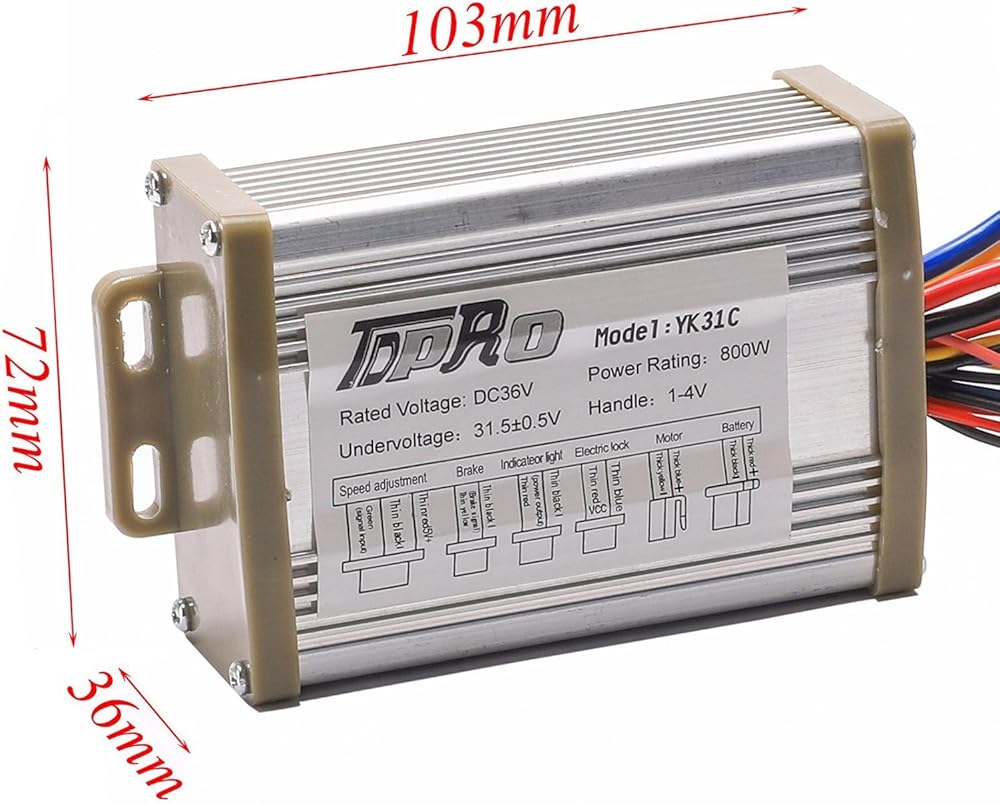

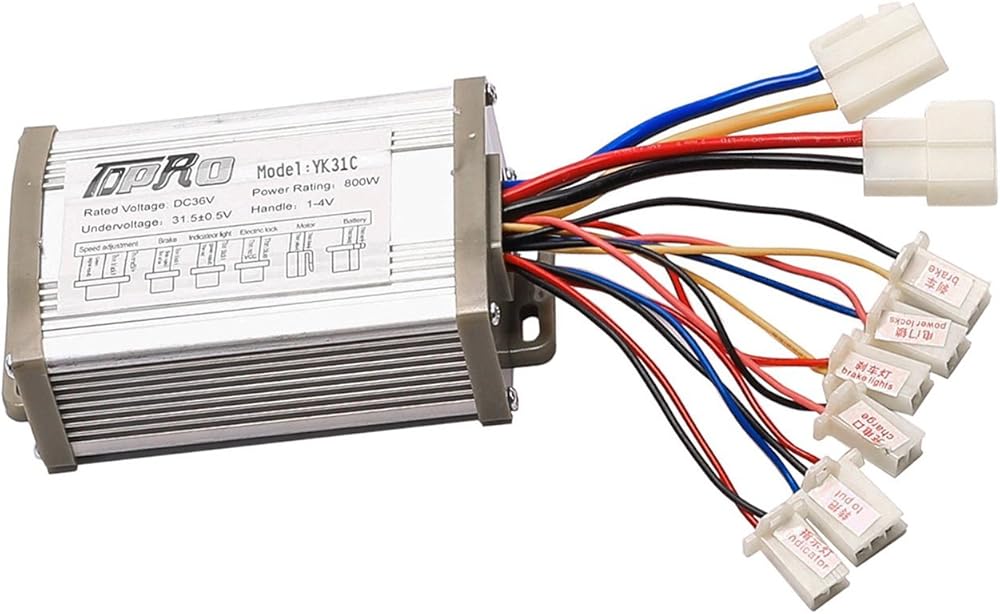

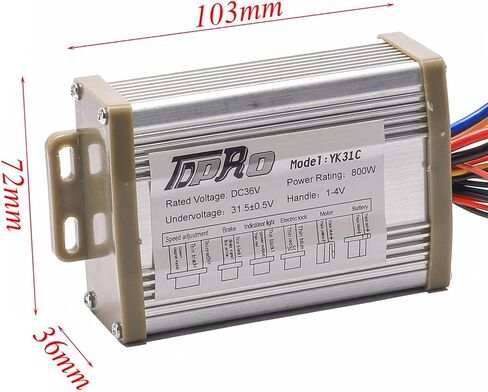

36V 800W Brush Speed Motor Controller for Electric Scooter Bicycle e Bike Tricycle

KWD 12.500
Brand
JCMOTO
Weight
205 g
– 1 +

Special Features

  • √ Quality universal 36v 800w brushed controller
  • √ Fit for 36v 800w brushed motor
  • √ Controller adaptors waterproof design
  • √ Suitable for electric scooter, e-bike, tricycle, mini bike, pocket bike, go kart, atv, moped
  • √ Refer to picture and below "Product Description" for wiring instruction and specifications

Description

Specifications:
Rated voltage: 36 V DC
Match motor: 36V 800 W

Conversion efficency: 95%
Under Voltage Protection: 31.5±0.5V
Speed regulator (throttle): 1-4 V

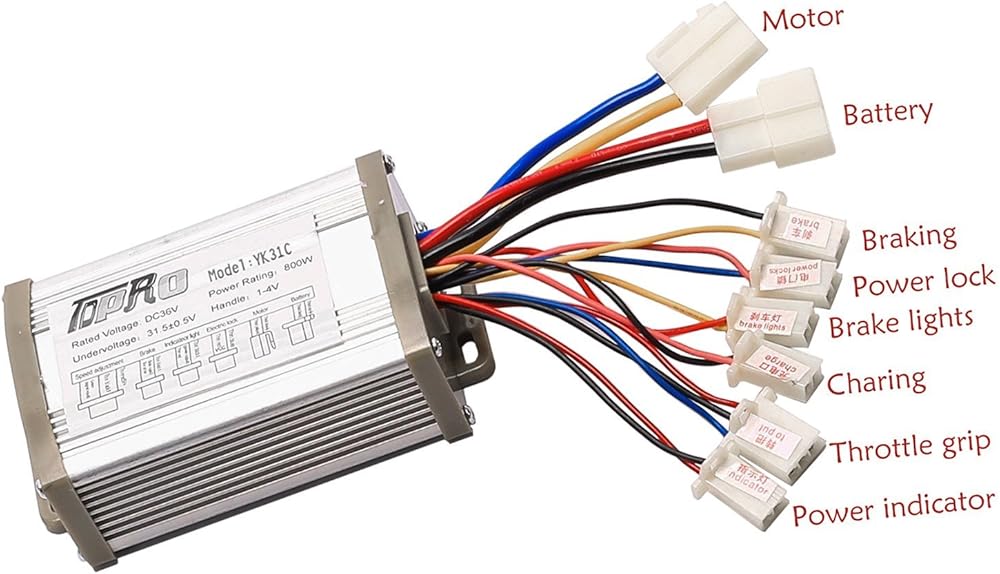

Wiring:

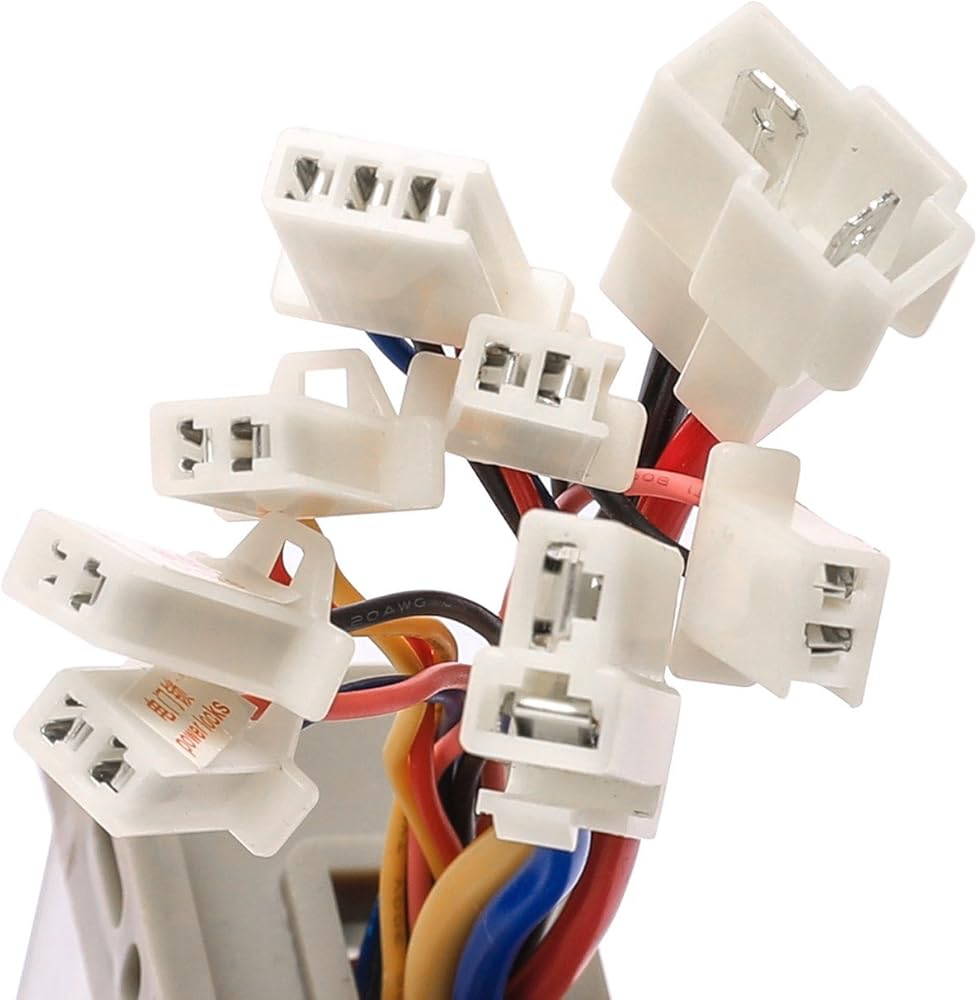

This controller has 8 connectors, compatible with many 36V bikes with up to 800W motors
1. Battery / 2. Motor / 3. Brake / 4. Brake light / 5. Indicator light / 6. Ignition lock / 7. Charger port / 8. Derailleur (throttle)
These controllers have 4 groups neccessary cables: Battery, Motor, Ignition lock, Derailleur (throttle), when hook up these 4 groups cables, the E-bike can run normally. Besides, this controller have other optional functions, you can hook them up according to your applications.

Available Model (SPEC):
24v 250w / 24v 350w / 24v 500w / 36v 350w / 36v 500w / 36v 800w / 48v 100w
