5L Glass Reactor, Lab Single-Layer Chemical Reaction Vessel with Digital Display, Jacketed Reactor for Reaction Distillation, Adjustable Speed 0-600 RPM, Withstand -120℃ to 300℃ in Kuwait 5L Glass Reactor, Lab Single-Layer Chemical Reaction Vessel with Digital Display, Jacketed Reactor for Reaction Distillation, Adjustable Speed 0-600 RPM, Withstand -120℃ to 300℃ in Kuwait 5L Glass Reactor, Lab Single-Layer Chemical Reaction Vessel with Digital Display, Jacketed Reactor for Reaction Distillation, Adjustable Speed 0-600 RPM, Withstand -120℃ to 300℃ in Kuwait 5L Glass Reactor, Lab Single-Layer Chemical Reaction Vessel with Digital Display, Jacketed Reactor for Reaction Distillation, Adjustable Speed 0-600 RPM, Withstand -120℃ to 300℃ in Kuwait 5L Glass Reactor, Lab Single-Layer Chemical Reaction Vessel with Digital Display, Jacketed Reactor for Reaction Distillation, Adjustable Speed 0-600 RPM, Withstand -120℃ to 300℃ in Kuwait 5L Glass Reactor, Lab Single-Layer Chemical Reaction Vessel with Digital Display, Jacketed Reactor for Reaction Distillation, Adjustable Speed 0-600 RPM, Withstand -120℃ to 300℃ in Kuwait

5L Glass Reactor, Lab Single-Layer Chemical Reaction Vessel with Digital Display, Jacketed Reactor for Reaction Distillation, Adjustable Speed 0-600 RPM, Withstand -120℃ to 300℃

KWD 401.500
Brand
JARYANNIX
Weight
27.7 kg
– 1 +

Special Features

  • Excellent Chemical and Physical Properties: The main body of the laboratory jacketed reactor is made of GG-17 borosilicate glass, which features stable chemical properties, high strength and hardness, and can withstand a variety of different solvents
  • Good Sealing Performance and High Safety: The 5L glass reactor adopts an integrated jacketed reaction flask design with excellent sealing performance. It can maintain a vacuum degree of -0.1MPa, ensuring leak-free reaction operation and guaranteeing the safety and accuracy of experiments.

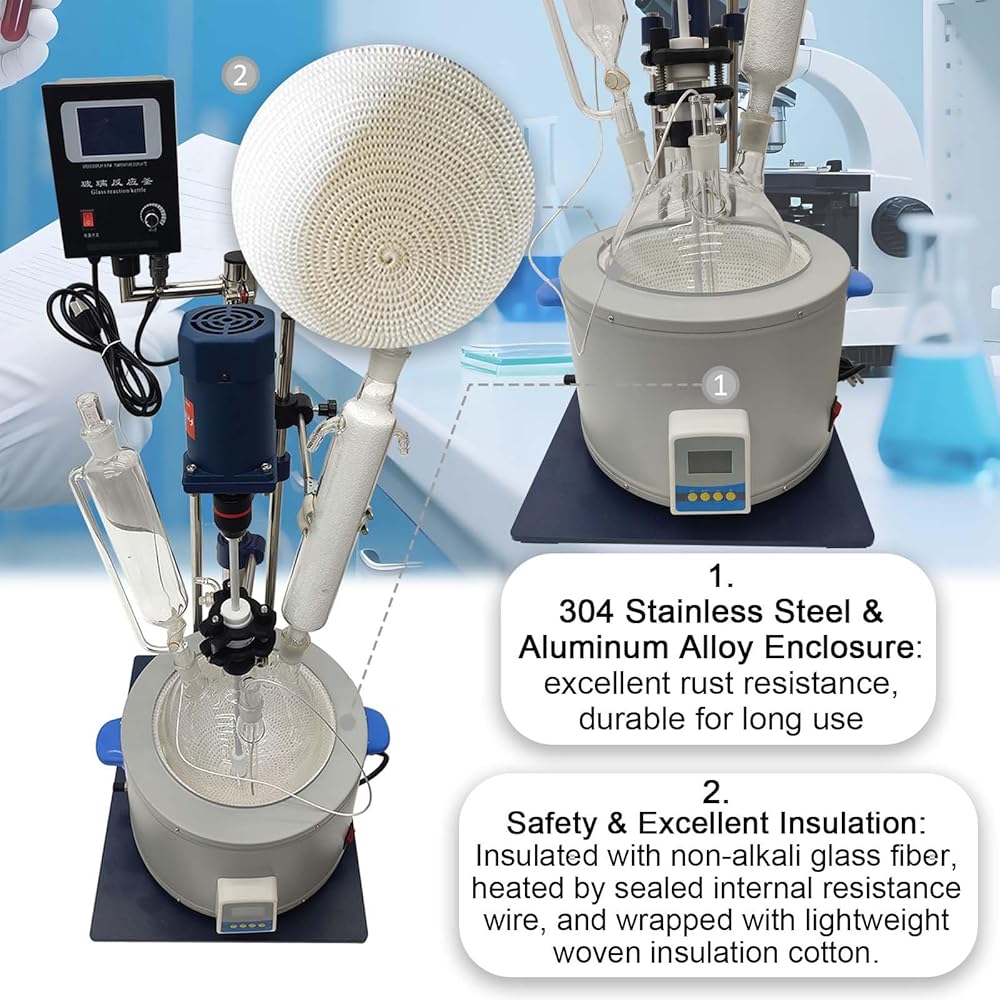

  • Well-Thought-Out Details: The reactor body, built with a high-quality stainless steel frame and aluminum alloy, is sturdy and durable. It comes with an intelligent constant-temperature electric heating jacket that ensures precise, stable temperatures during experiments, plus easy cleaning and no wear.

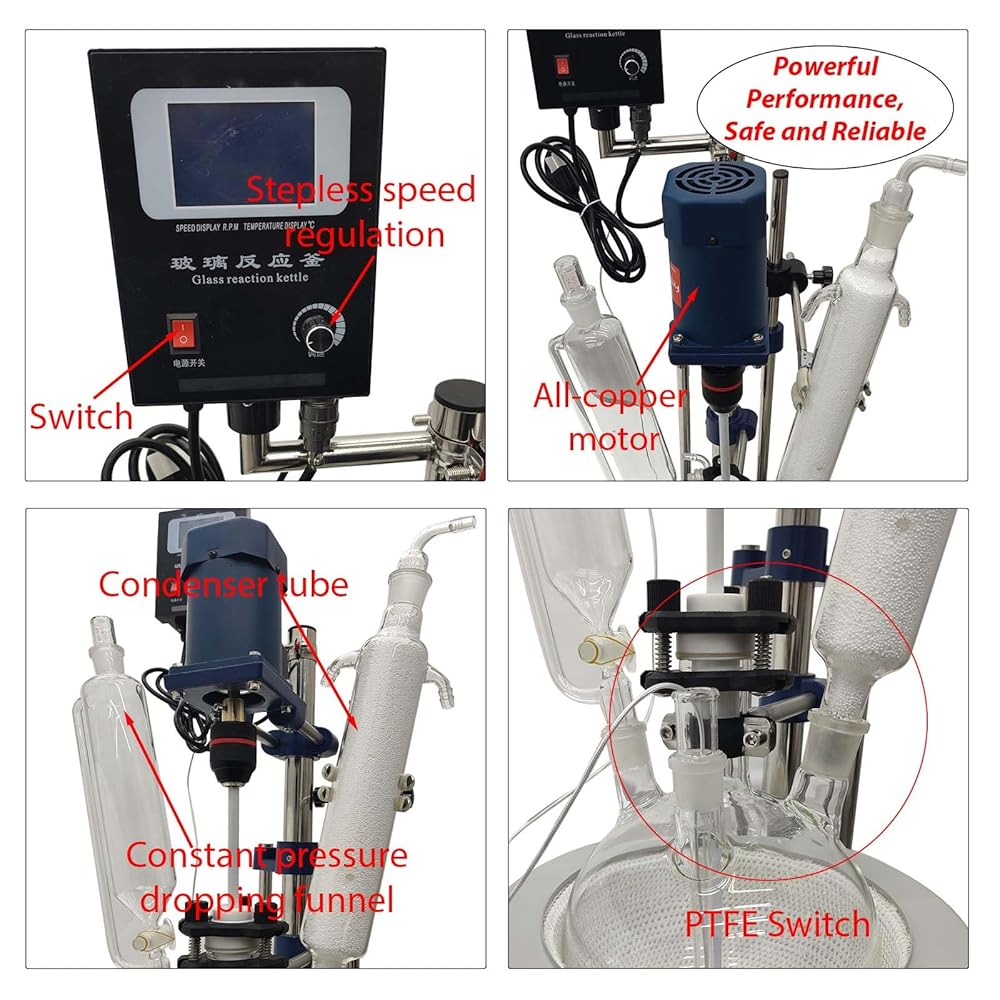

  • Flexible Stirring and Speed Adjustment: The stainless steel stirring paddle coated with Teflon is suitable for stirring various solvents. Meanwhile, the laboratory reaction vessel is equipped with a digital speed controller, which can realize stepless speed regulation from 0 to 600 RPM, ensuring stable progress of the reaction process.
  • Precise Temperature Control and Wide Applications: The glass reactor's jacketed design tolerates -120℃ to 300℃ for precise solvent cooling/heating. It fits experiments, pilot tests and production in chemistry, new material synthesis, etc., and supports stirring, reflux, distillation and more.

Description

High quality high borosilicate (GG-17) material, high quality 304 stainless steel material for the vertical rod and the fixed frame, with the advantages of corrosion resistance, rust resistance, resistance to various solvents.

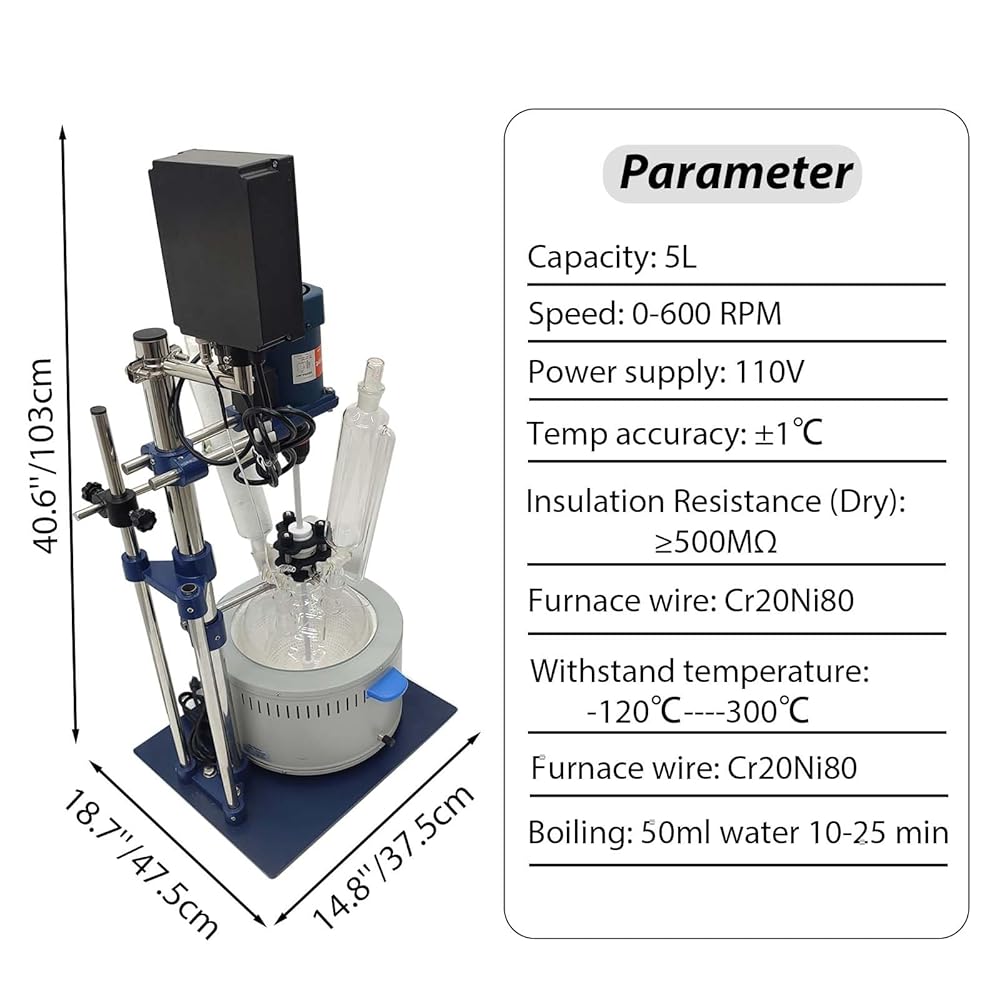

Type: single layer spherical

Capacity: 5L

Motor power: 90W

Speed: electronic speed regulation 0-600 RPM

Power supply: 110V

The reactor can withstand temperature and working pressure: withstand temperature: -120℃----300℃ (the temperature can be digitally displayed on the controller) Withstand temperature difference: +/-40℃, withstand working pressure: normal pressure and negative pressure (-0.1MPa) The reactor is equipped with a solid feeding port, the solution at the bottom is stirred without dead corners, no liquid accumulation.

Electric heating sleeve technical parameters

Power supply: 110V

Capacity: 5000ml

Power: 1100W

Temperature control accuracy: ±1℃,

Temperature control mode: intelligent digital display, thyristor control, internal and external sensor temperature measurement

Heating temperature: maximum surface temperature 380℃

Boiling: 50ml water 10-25 minutes

Furnace wire: Cr20Ni80

Extreme edge layer: no alkali glass fiber, can withstand temperature 450 degrees

Insulation factor: Dry ≥500 megabytes

Thermal insulation layer: exclusive use of aluminum silicate cotton vacuum filter type environmental insulation body
