HIGH-FLOW FIRE MONITOR – Seamless 2-1/2" waterway delivers up to 750 GPM, ideal for industrial and firefighting water delivery
4" FLANGE INLET x 2-1/2" NST OUTLET – Features 150 lb ASA raised face 4" flange inlet with 2-1/2" male NST (NH) discharge
FULL RANGE OF MOTION – Provides 360° horizontal rotation and 140° vertical travel for precise stream positioning
HEAVY-DUTY CARBON STEEL BODY – Built for demanding fire protection and industrial water applications
STAINLESS STEEL INTERNAL COMPONENTS – Includes stainless steel discharge tip and ball bearings for smooth operation
FIREPRO MONITOR DESIGN – Seamless construction engineered for reliable, continuous service
RED EPOXY FINISH – High-visibility finish standard for fire protection equipment
COMPACT FOOTPRINT – Overall size 22" x 13" for fixed installation on platforms or piping systems
Description

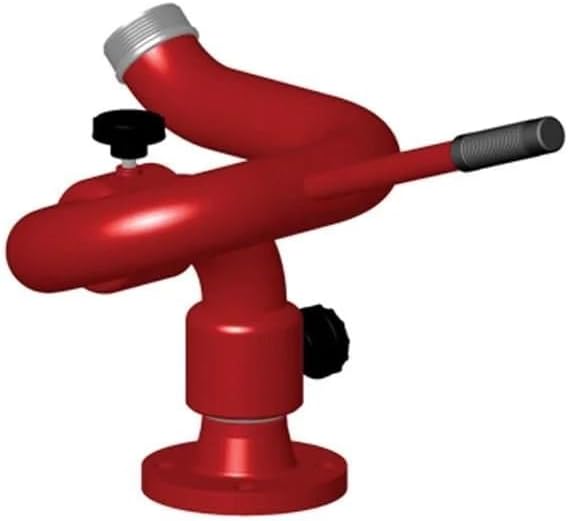

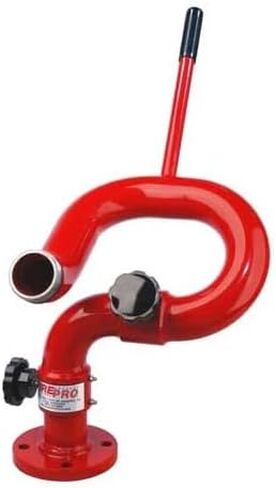

The Dixon FirePro FP475S Fire Monitor is a high-capacity, fixed fire nozzle designed for industrial fire protection and water control applications. Featuring a seamless 2-1/2" waterway, this monitor delivers flows up to 750 GPM, providing dependable performance in critical response situations. The unit is equipped with a 4" 150-lb ASA raised face flange inlet and a 2-1/2" male NST (NH) outlet, making it compatible with standard firefighting connections. Its design allows 360 degrees of horizontal rotation and 140 degrees of vertical movement, giving operators excellent control and coverage. Constructed with a carbon steel body and fitted with a stainless steel discharge tip and ball bearings, the FP475S is built for long-term, consistent operation. Finished in standard red epoxy, this FirePro monitor is well-suited for industrial facilities, fire suppression systems, and fixed water delivery installations.
