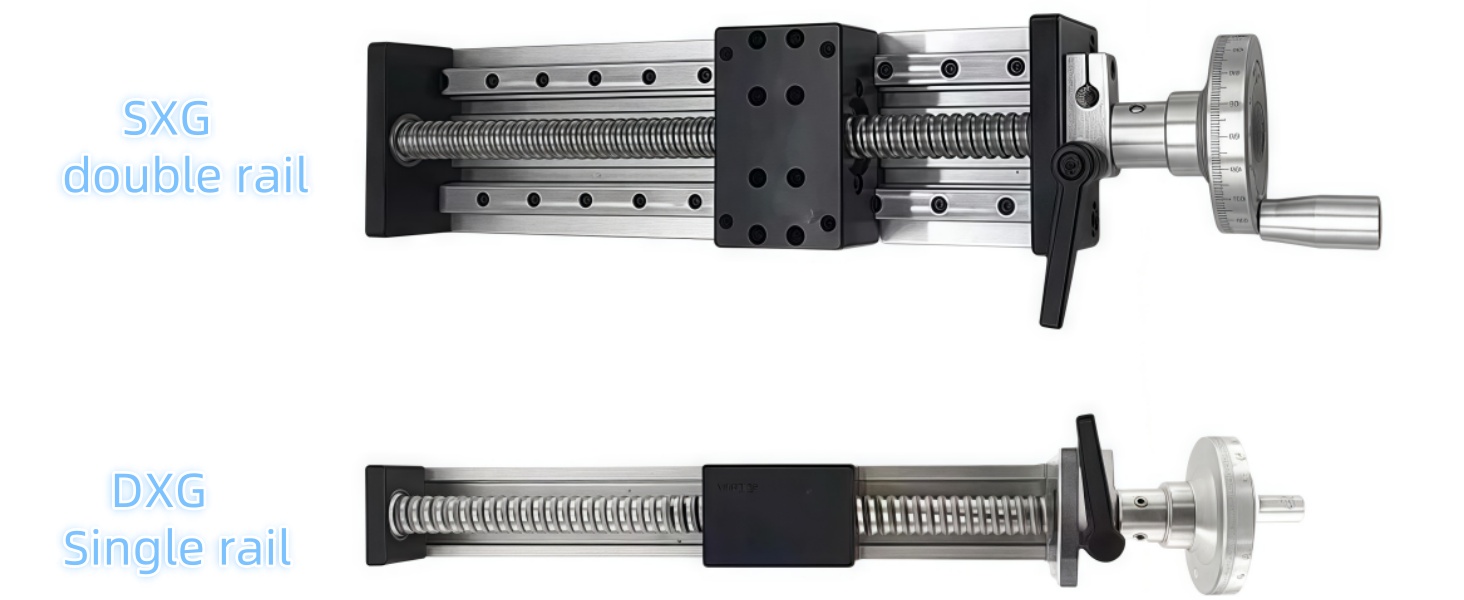

Guide Type: 2*MGN12R, Slider Type: 2*MGN12H, mobile panel size: 2*3 inch/50*80mm. Dual guides provide smooth linear motion, enhancing the table's stability and efficiency.
High Accuracy: Heavy load resistance SFU1605; C7 level, Accuracy is 0.1mm; Repeat positioning accuracy is ±0.03mm; Load: Maximum horizontal load capacity: 110 lb (50kg); Maximum vertical load capacity: 45lb (20kg).

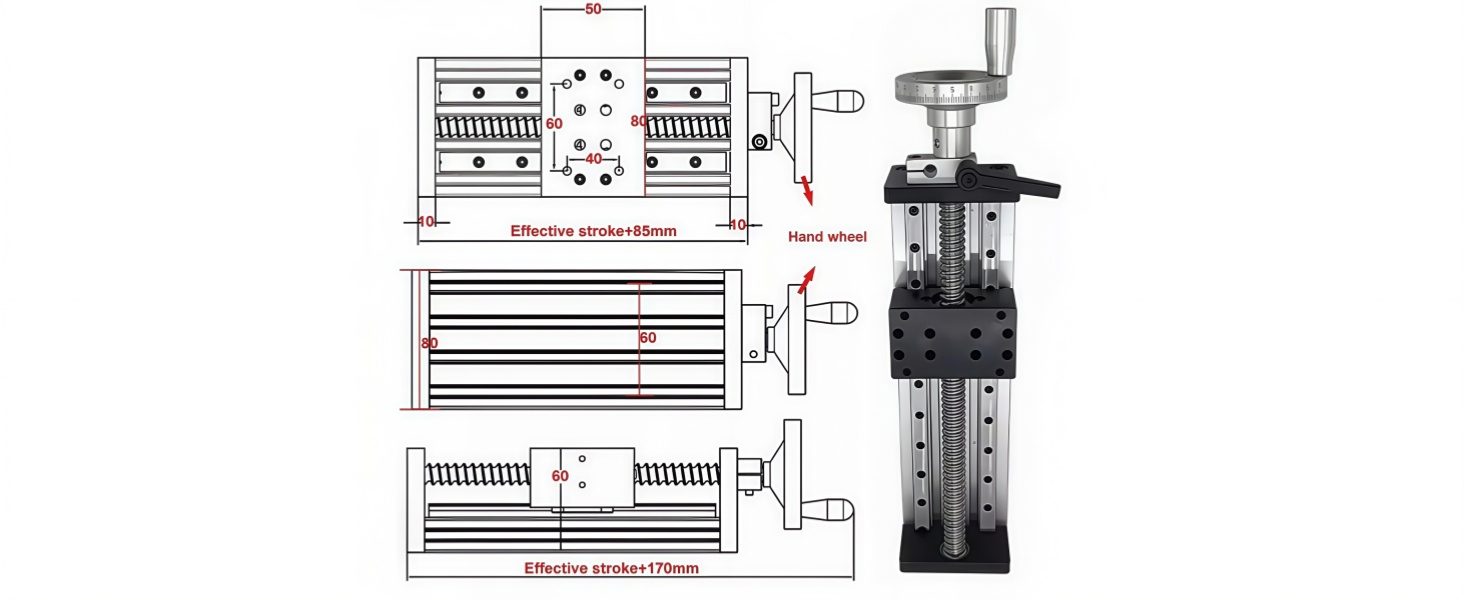

Effective Stroke: 200mm/ 8inch effective stroke, total length: 11.4 inch = Effective stroke (8 inch/200mm) + 3.4 inch/85mm, Lead: 5mm ( lead screw can moves 5mm in one turn)；Move: Hand Crank.
High quality linear sliding table, 2*3 inch/50*80mm table size. Aluminum Profile Material for this manual linear stage,high strength, wear resistance and good corrosion resistant.
Linear Guide Applications: Precise posiioning, dispensing, spray painting, visual inspection, moving,grabbing, cutting and welding, automatic assembly, automatic locking screws, palletizing,etc. It is suitable for CNC machine, placement equipment, laser cutting equipment, spraying equipment, medical equipment and other industrial automation fields.
Manual Linear Stage Motion Sliding Table Self-Lock Digital Display Linear Module Double Rail Z Axis Stage Horizontal Max Load 220lb 100kg 8 '' 200mm Stroke for CNC,DIY
KWD 66

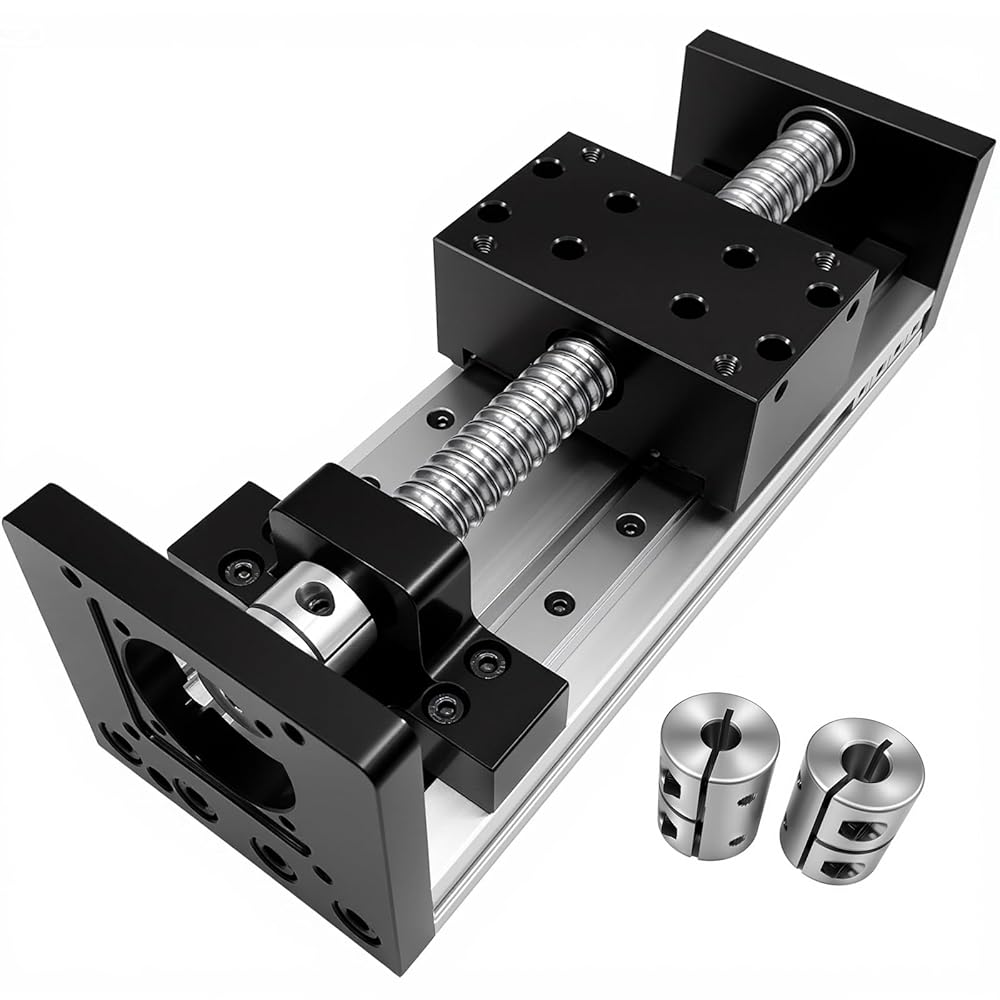

CNC Linear Rail Guide Heavy Duty Sliding Stage 150mm Wide 2005 Ballscrew Double Guide 4 Slide Horizontal Load Max 550 lb 250KG C7 Linear Table with Nema23 NEMA34 Motor Bracket Couplings for DIY
