Products Description

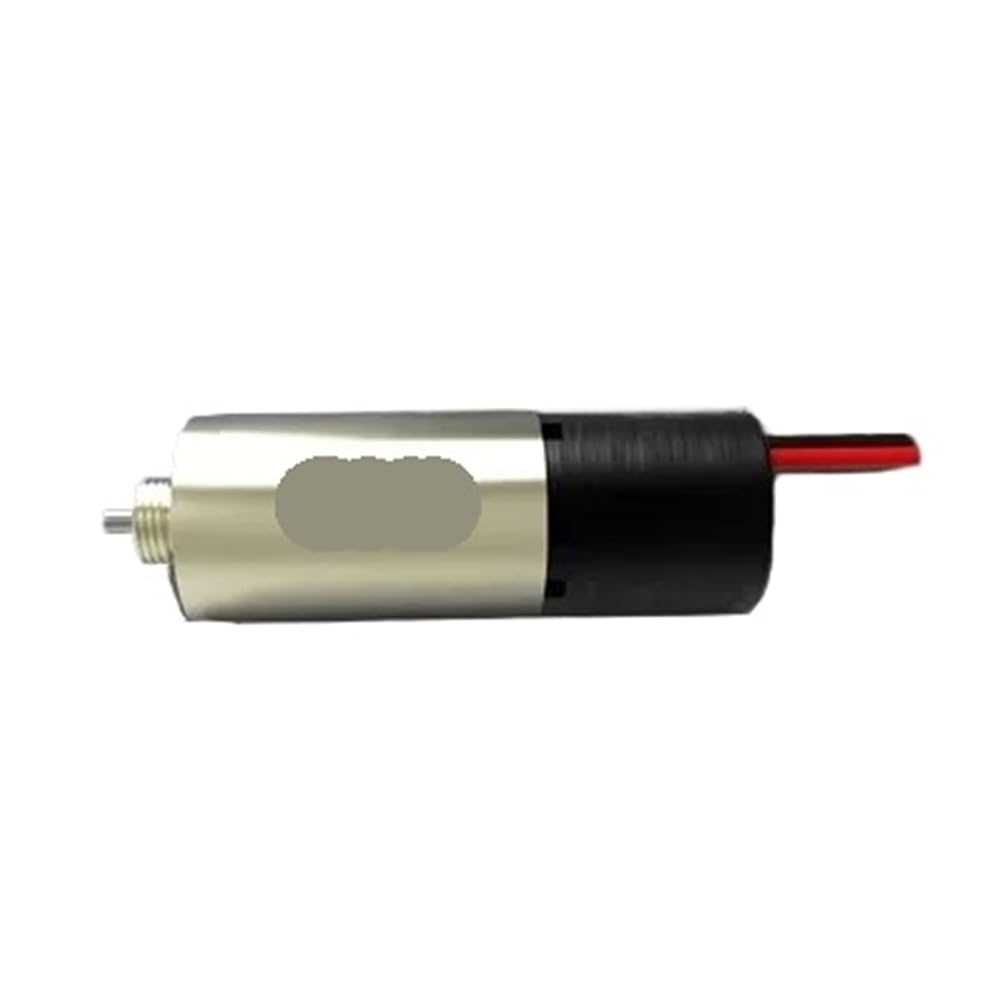

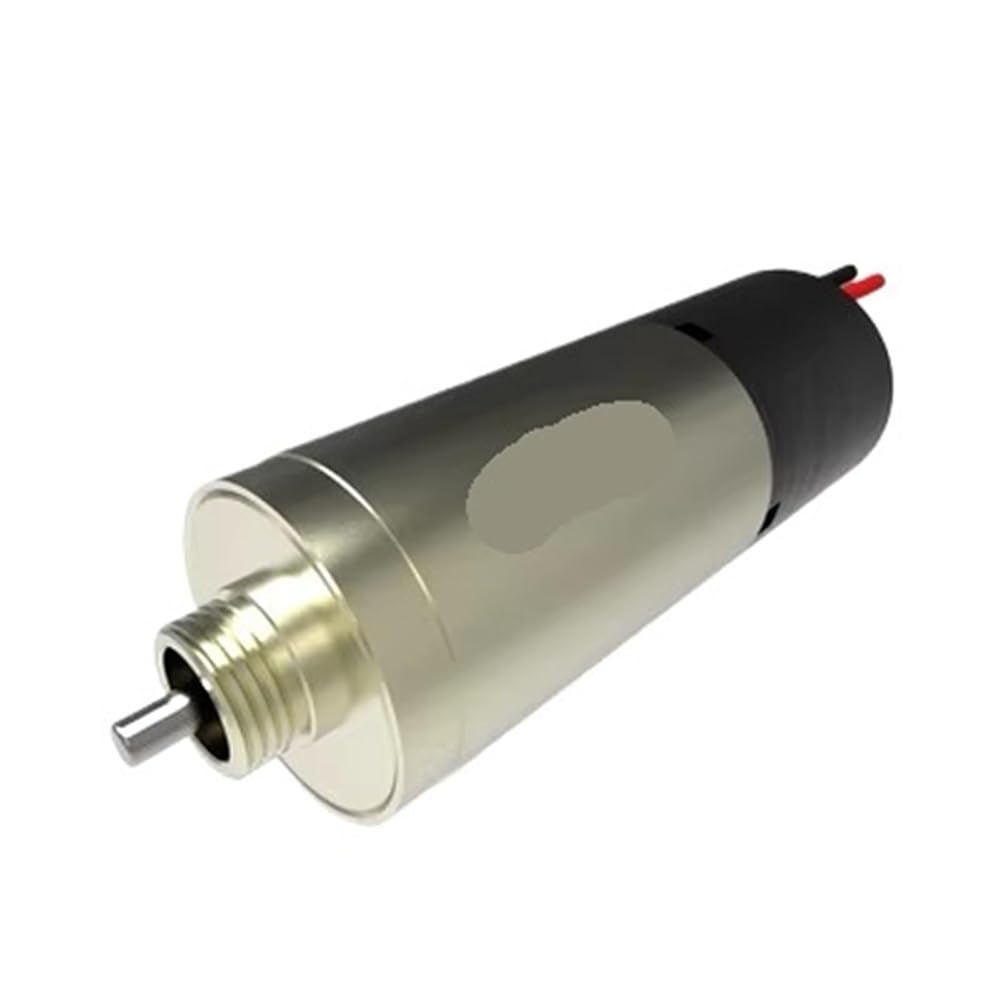

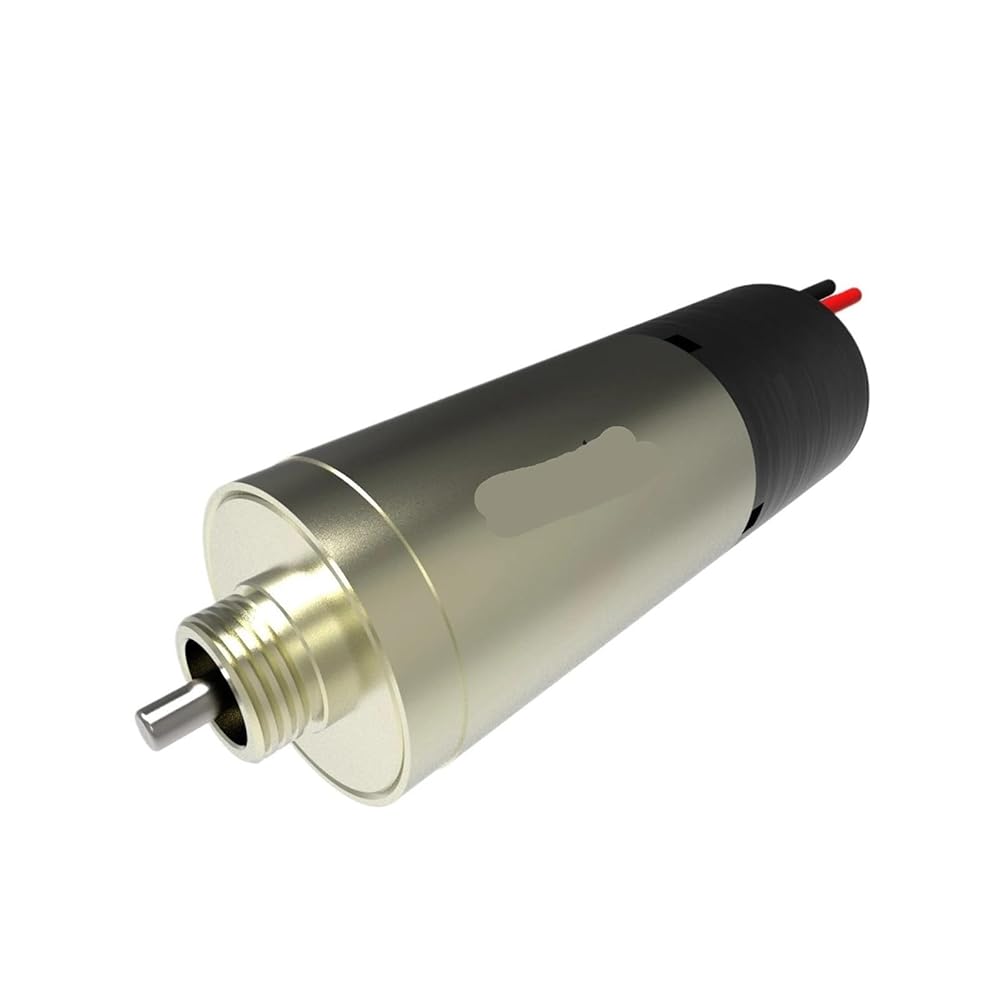

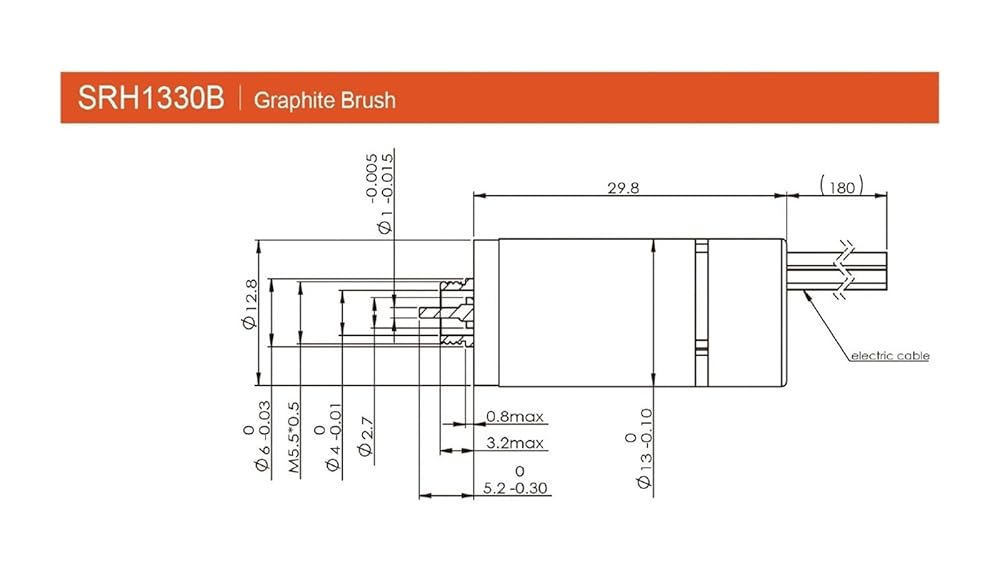

SRH1330B series: Dia 13mm & L 298mm
Ironless brushed DC servo motor Compared with SR series based on the condition of the same volume the comprehensive output power of SRH series motors are increases very much and the efficiency of the motor is improved
Magner Encoder 3 Channels 1000CPT
Motor model
SRH133012B
Nominal voltage
V
V
12
No load speed
rpm
Wnl
8900
No load current
mA
InI
44
Nominal speed
rpm
Wc
4000
Nominal torque
mNm
Tc
188
Nominal current
A
Ic
015
Output power
W
Pc
08
Stall torque
mNm
Tmax
34
Stall current
A
Imax
0.27
Max. efficiency
%
max
45
Terminal resistance
Rt
44.3
Torque constant
mNm / A
Kt
12.6
Speed constant
rpm / V
Kn
753
Speed torque gradient
rpm / mNm
n / T
2558
Exhibition
Application
DIY Supplies : ELECTRICAL
Model Number : SRH133012B
Use : Electric Bicycle
Type : servo motor
Torque : 1.88mNm
Construction : Permanent Magnet
Commutation : Brush
Speed(RPM) : 4000rpm
Continuous Current(A) : 0.15A
Efficiency : IE 1
Frame : 13mm
Rated voltage : 12V
Rated Power : 0.8W
Motor Mounting Type : flange mount
Speed Rpm : 4000RPM
brush type : brushes
stall torque : 3.4mNm
diameter : 13mm
length : 30mm
