SKYRC Mini HeatVision iTV500 Pocket Thermal Imager - 32x24 FIR, 1.83" Touchscreen, Adjustable Emissivity, USB-C Rechargeable, -20°C to 300°C, ±2°C Accuracy, 8 FPS, 55x35° FOV (SK-500047) in Kuwait SKYRC Mini HeatVision iTV500 Pocket Thermal Imager - 32x24 FIR, 1.83" Touchscreen, Adjustable Emissivity, USB-C Rechargeable, -20°C to 300°C, ±2°C Accuracy, 8 FPS, 55x35° FOV (SK-500047) in Kuwait

SKYRC Mini HeatVision iTV500 Pocket Thermal Imager - 32x24 FIR, 1.83" Touchscreen, Adjustable Emissivity, USB-C Rechargeable, -20°C to 300°C, ±2°C Accuracy, 8 FPS, 55x35° FOV (SK-500047)

KWD 38.500
Brand
SKYRC
Weight
59 g
– 1 +

Special Features

  • SEE HEAT, FIND PROBLEMS FAST (RC + REAL LIFE): Non-contact thermal imaging helps you spot hotspots/cold spots early - great for RC motors/ESCs/battery packs/connectors, and also for everyday troubleshooting like electronics, chargers, outlets, appliances, and DIY checks.
  • WIDE TEMP RANGE + SIMPLE UNITS: Measures surface temperature from -20°C to 300°C (-4°F to 572°F) and supports °C / °F / K unit switching.
  • TAP-TO-MEASURE + HOT/COLD MARKERS: 1.83" capacitive touchscreen with tap-anywhere spot temperature plus Max/Min temperature markers (and a selectable spot marker) for quick diagnosis.
  • CLEAR THERMAL VIEW MODES: Choose palette modes like White Hot / Ironbow / Rainbow, with adjustable settings (brightness/emissivity options) to improve usefulness across plastics, rubber, carbon, and metal surfaces.

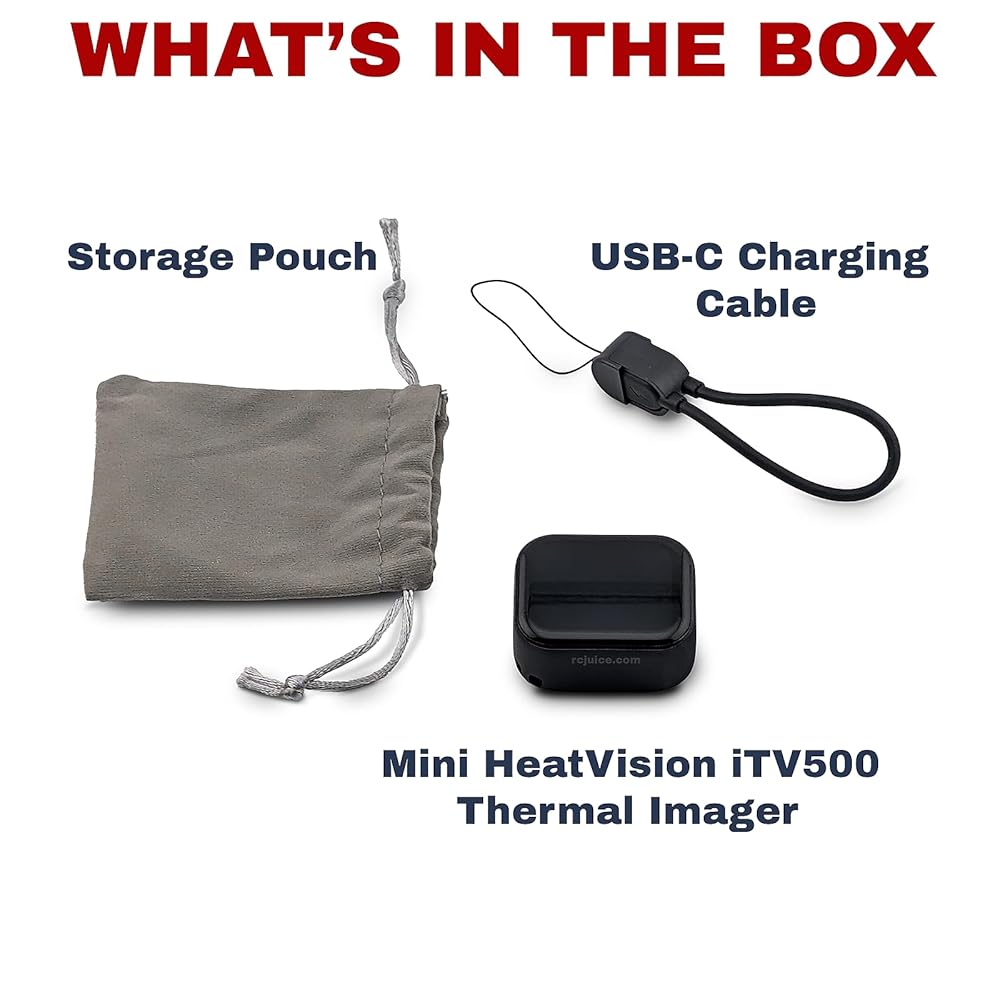

  • POCKET SIZE, RECHARGEABLE, BUILT-IN STORAGE: Ultra-compact 46x38x20.1mm, about 38g, 600mAh rechargeable battery with USB-C (DC 5V) charging, and storage for up to 100 photos. For best accuracy, measure close - within 20cm.

Description

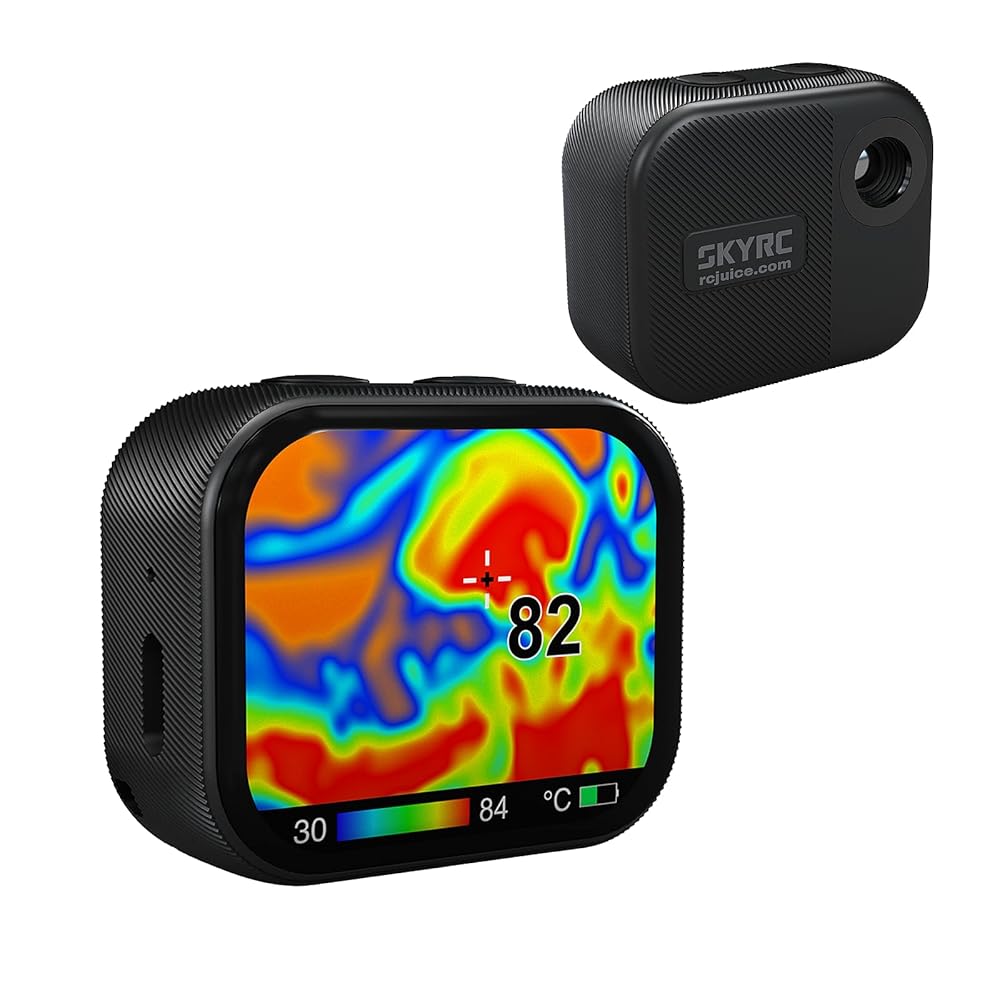

See heat before it becomes a failure. The iTV500 Mini HeatVision from SKYRC is a pocket thermal imager built for RC diagnosis and tuning. Its FIR sensor renders a live thermal map so you can spot hot MOSFETs, slipping belts, weak solder joints, stressed bearings, or an over-geared motor - all without contact. A bright 1.83" capacitive touchscreen shows hot/cold markers and lets you tap any point for an instant reading; switch °C/°F/K, tweak brightness, and fine-tune emissivity (0.01-1.00) for accurate temps on metals, plastics, carbon, and rubber.
Despite weighing only about 38 g, the iTV500 packs serious capability:
-20 °C to 300 °C (-4-572 °F) measurement range
±2 °C accuracy,
8 FPS refresh, and a 55x35° field of view for quick scans of motors, ESCs, connectors, tires, and LiPo packs.
Power comes from a 600 mAh rechargeable battery with USB-C charging.
Firmware updates use simple UF2 drag-and-drop.
Choose Rainbow, Ironbow, or White Hot palettes; the six-language UI (EN/CN/FR/DE/ES/JP) and auto power-off make it pit-friendly.
For highest accuracy, measure within
SKYRC part number SK-500047
