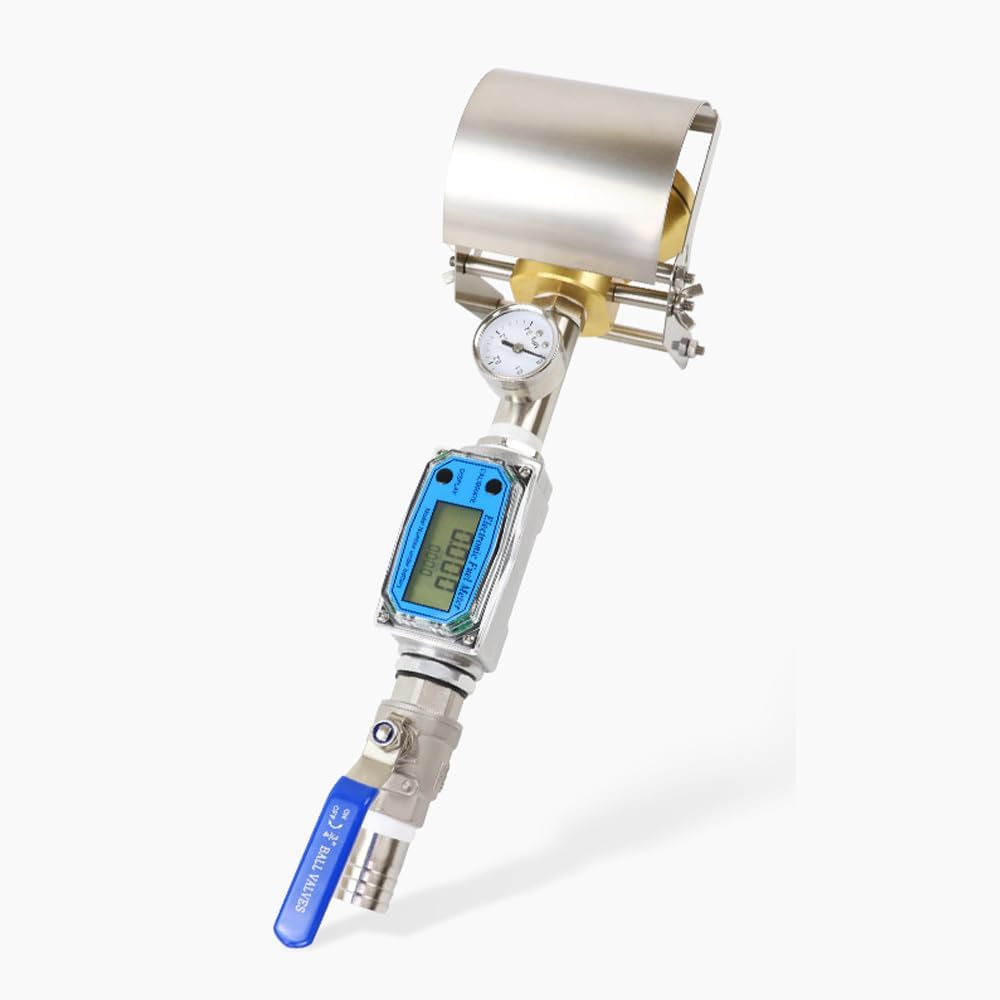

IPX3 IPX4 Rainproof Water Splash Test Device, Handheld Shower Nozzle Waterproof Testing Equipment for Product Quality Check

Test Method:
Ipx3: This Test Should Install a Baffle with a Balancing Weight
Ipx4: Remove the Baffle with a Balancing Weight from the Nozzle so That the Shell Is Splashed in All Possible Directions

Specification:
Nozzle Outer Diameter: φ102mm
Nozzle Inner Diameter: φ100mm
Nozzle Surface Curvature: 780
Nozzle Aperture: 0.5mm 121 Holes
Water Spray Volume: 10+5l/Min
Water Spray Range: +180° from the Vertical Direction
Function: Used to Test the Waterproof Performance of Appliances or Electrical Appliances with Rainproof Function

Features:
1. Equipped with a Digital Flow Meter, Intuitively Display the Water Flow Size, Clear at a Glance, And Easily Grasp the Water Flow Information
2. Brass Shower Head, Stainless Steel Shell, Rust and Corrosion-Resistant
3. Adjustable Valve, Switch Closure to Control Water Output
4. Pressure Gauge, Stainless Steel Shell, Real-Time Display of Pressure Size5
5.Digital flow meter, visual display of inflow water flow

Package included:
1 x Rainproof Test Device
