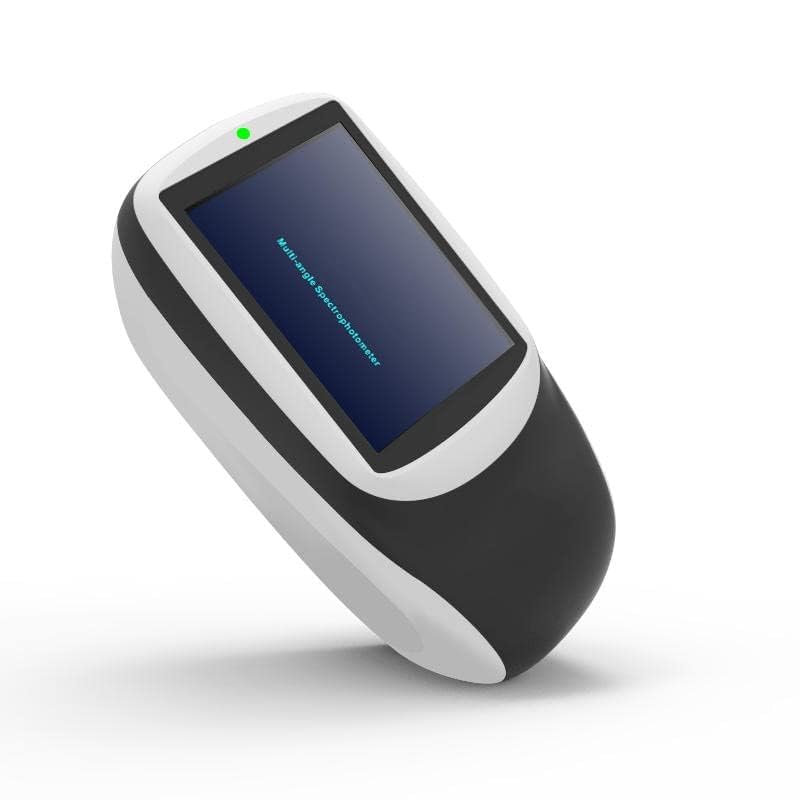

Product Description.
Multi-angle spectrophotometer is used to evaluate the surface appearance of effect finishes affected by different viewing angles and viewing conditions, providing accurate and consistent color measurement of metallic, pearlescent and other complex special effect color products.
The multi-angle spectrophotometer is equipped with an industrial-grade MCU and 3 measurement angles. With the support of a superior optical measurement system, the multi-angle spectrophotometer has excellent performance when performing multi-angle color difference measurements, even on curved surfaces, with high measurement accuracy and stability.
Technical characteristics:
1、Multi-angle measurement
Using 3 light sources 1 receiver, can measure 3 angles at the same time
2, display more intuitive
Touch screen can display the measurement results of all angles, more intuitive to view comprehensive data.
3、256 pixel dual array CMOS image sensor
Higher optical resolution to ensure the measurement speed, accuracy, stability and consistency of the instrument, mastering the core technology, the same platform with international standards, to achieve complete compatibility.
4、With blue light enhanced full-spectrum LED light source
Blue enhanced full-spectrum LED light source ensures sufficient spectral distribution in the visible range, avoiding the spectral deficiency of LEDs in specific wavelength bands, ensuring the accuracy of instrument measurement results and low-cost maintenance.
5、Concave grating spectroscopy technology
The use of concave grating spectroscopy technology, with higher resolution, allowing more accurate color measurement.
6、Professional grade white board with high surface hardness and stable optical performance
7、Higher quality
Adopt industrial grade real-time processing MCU, Bluetooth 5.0 transmission is more stable and reliable.
8、New and fashionable appearance design based on ergonomics
The shape of the instrument is designed for easy operation, the hand grip area and the position of the measurement buttons are carefully designed to meet different grip habits, and the smooth and fine surface is derived from the high-precision appearance treatment process.

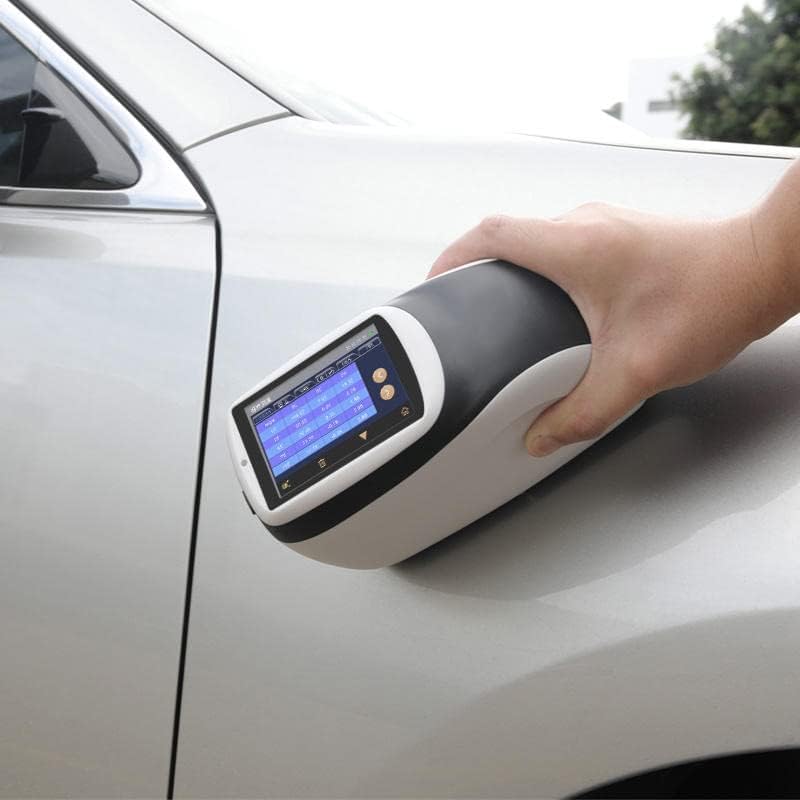

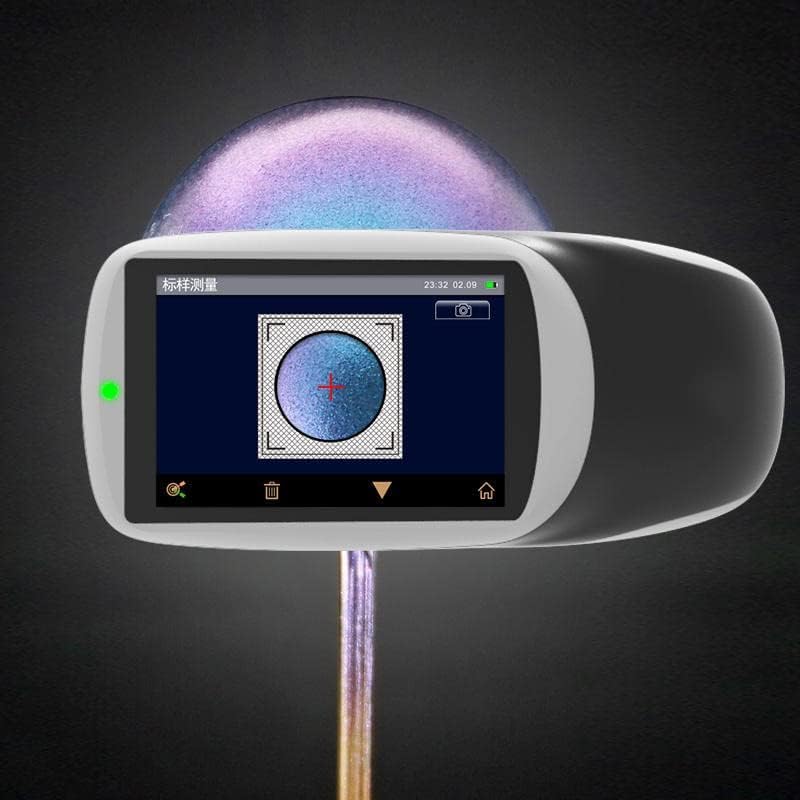

9、Color camera preview, can clearly observe the measured area
Built-in color camera framing positioning, can accurately determine the measured part of the object, improve the measurement efficiency and accuracy.
10、Multi-color measurement space, a variety of observation light source
Provide CIE LAB, XYZ, Yxy, LCh, βxy, DIN Lab99 color space, and D65, A, C, D50, D55, D75, F1, F2 (CWF), F3, F4, F5, F6, F7 (DLF), F8, F9, F10 (TPL5), F11 (TL84), F12 (TL83/U30) A variety of observation light sources can meet the special measurement needs under different measurement conditions.
11、Easy analysis of data
The screen can intuitively display the spectral graph/data, sample chromaticity value, color difference value/chart, qualified/unqualified results, color simulation and other data, which is convenient to view and also greatly improves the user's work efficiency.
Technical characteristics:
1、Multi-angle measurement
Using 3 light sources 1 receiver, can measure 3 angles at the same time
2, display more intuitive
Touch screen can display the measurement results of all angles, more intuitive to view comprehensive data.
3、256 pixel dual array CMOS image sensor
Higher optical resolution to ensure the measurement speed, accuracy, stability and consistency of the instrument, mastering the core technology, the same platform with international standards, to achieve complete compatibility.
4、With blue light enhanced full-spectrum LED light source
Blue enhanced full-spectrum LED light source ensures sufficient spectral distribution in the visible range, avoiding the spectral deficiency of LEDs in specific wavelength bands, ensuring the accuracy of instrument measurement results and low-cost maintenance.
5、Concave grating spectroscopy technology
The use of concave grating spectroscopy technology, with higher resolution, allowing more accurate color measurement.
6、Professional grade white board with high surface hardness and stable optical performance
7、Higher quality
Adopt industrial grade real-time processing MCU, Bluetooth 5.0 transmission is more stable and reliable.
8、New and fashionable appearance design based on ergonomics
The shape of the instrument is designed for easy operation, the hand grip area and the position of the measurement buttons are carefully designed to meet different grip habits, and the smooth and fine surface is derived from the high-precision appearance treatment process.
9、Color camera preview, can clearly observe the measured area
Built-in color camera framing positioning, can accurately determine the measured part of the object, improve the measurement efficiency and accuracy.
10、Multi-color measurement space, a variety of observation light source
Provide CIE LAB, XYZ, Yxy, LCh, βxy, DIN Lab99 color space, and D65, A, C, D50, D55, D75, F1, F2 (CWF), F3, F4, F5, F6, F7 (DLF), F8, F9, F10 (TPL5), F11 (TL84), F12 (TL83/U30) A variety of observation light sources can meet the special measurement needs under different measurement conditions.
11、Easy analysis of data
The screen can intuitively display the spectral graph/data, sample chromaticity value, color difference value/chart, qualified/unqualified results, color simulation and other data, which is convenient to view and also greatly improves the user's work efficiency.
Technical parameters:
Measurement geometry: 3 measurement angles (3 light sources, 1 receiver)
Color measuring angle :45° receiver: 45as25°,45as45°,45as110°
Standard: ASTM D 2244,E 308,E 1164,E 2194,E2539,DIN 5033,5036,6174,6175-1,6175-2;ISO 7724, 11664-4 SAE J 1545
Features: Provides accurate and consistent color measurement for metallic, pearlescent and other complex special effect color products.
Illumination source: Blue enhanced full spectrum LED
Illumination light source life: 5 years 3 million measurements
Spectral method: concave grating
Detector: 256 pixel dual array CMOS image sensor
Measurement wavelength range: 400nm-700nm
Wavelength interval: 10nm
Measurement range: 0~600%
Half bandwidth: 10nm
Measuring aperture: Φ12mm
Color space: CIE LAB,XYZ,Yxy,LCh,βxy,DIN Lab99
Color difference formula: ΔE*ab,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE DIN6175
Other chromaticity index: Flop Index
Observer angle : 2°/10°
Observation light source: D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30)
Display : Spectral graph/data, sample chromaticity value, color difference value/graph, pass/fail result, color simulation
Measurement time: 1s for single angle measurement, 3s for all angles
Color repeatability
Spectral reflectance: within 0.08% of standard deviation
Chromaticity value: 0.04ΔE*ab (average of 30 measurements of white board at 5s interval after instrument warm-up and calibration)
Color reproducibility:
ΔE*
ΔE*
Inter-instrument variation: 0.2ΔE*00 (average of 12 color plates measured by BCRA series II)
Effect parameters : /
Effect measurement: /
Effect Repeatability /
Effect reproducibility: /
Trigger method: Pressure-sensitive trigger, key trigger, software trigger
Measurement method: Single measurement, average measurement (1~99 times), continuous measurement (1~99 times)
Positioning method: color camera preview
Size: LxWxH=195X83X128mm
Weight: about 1Kg
Battery power: lithium battery, 3.7V, 3200mAh, fully charged within 8 hours of continuous testing 6000 times
Display: TFT true color 3.5inch, capacitive touch screen
Interface: USB
Storage data: 1000 standard samples, 4000 specimens.
Language: Chinese (Simplified, Traditional) English
Operating temperature range: 10 ℃ to 50 ℃, humidity does not exceed 85%, non-condensing
Storage temperature range: -20 ℃ to 50 ℃, humidity does not exceed 85%, non-condensing

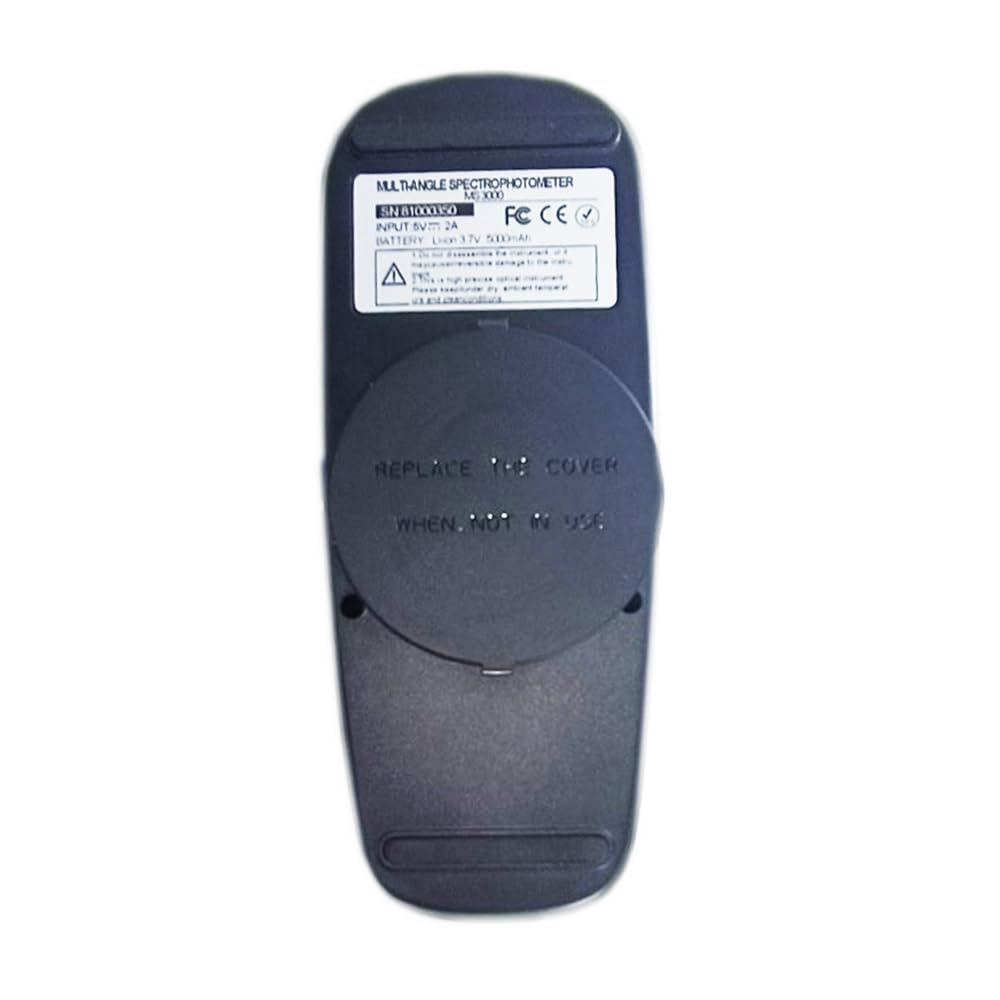

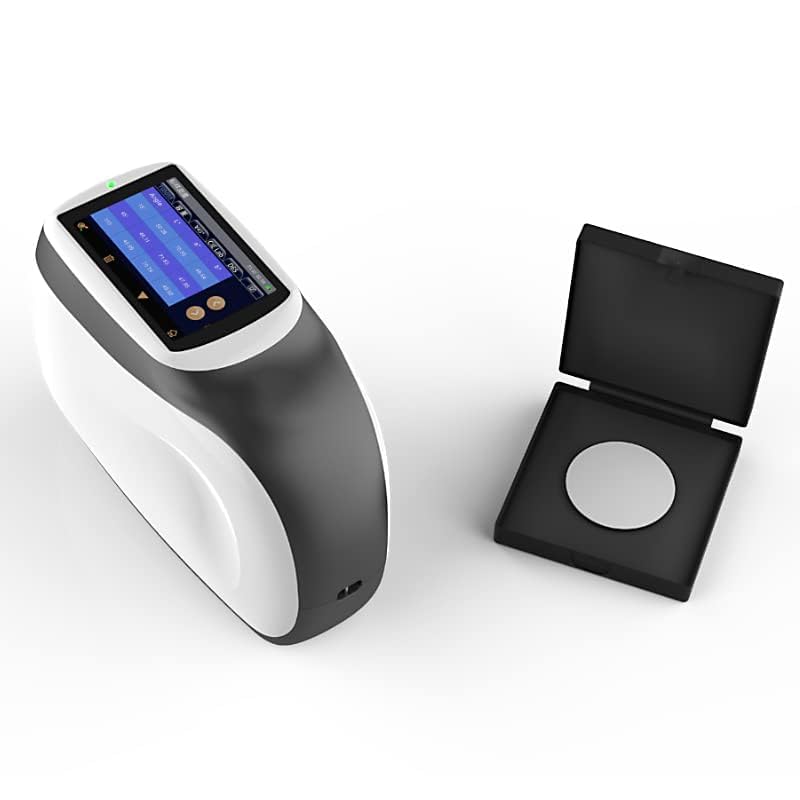

Calibration: built-in whiteboard parameters, external whiteboard, black light trap
Calibration interval: 4 hours, 8 hours, 24 hours, power on calibration

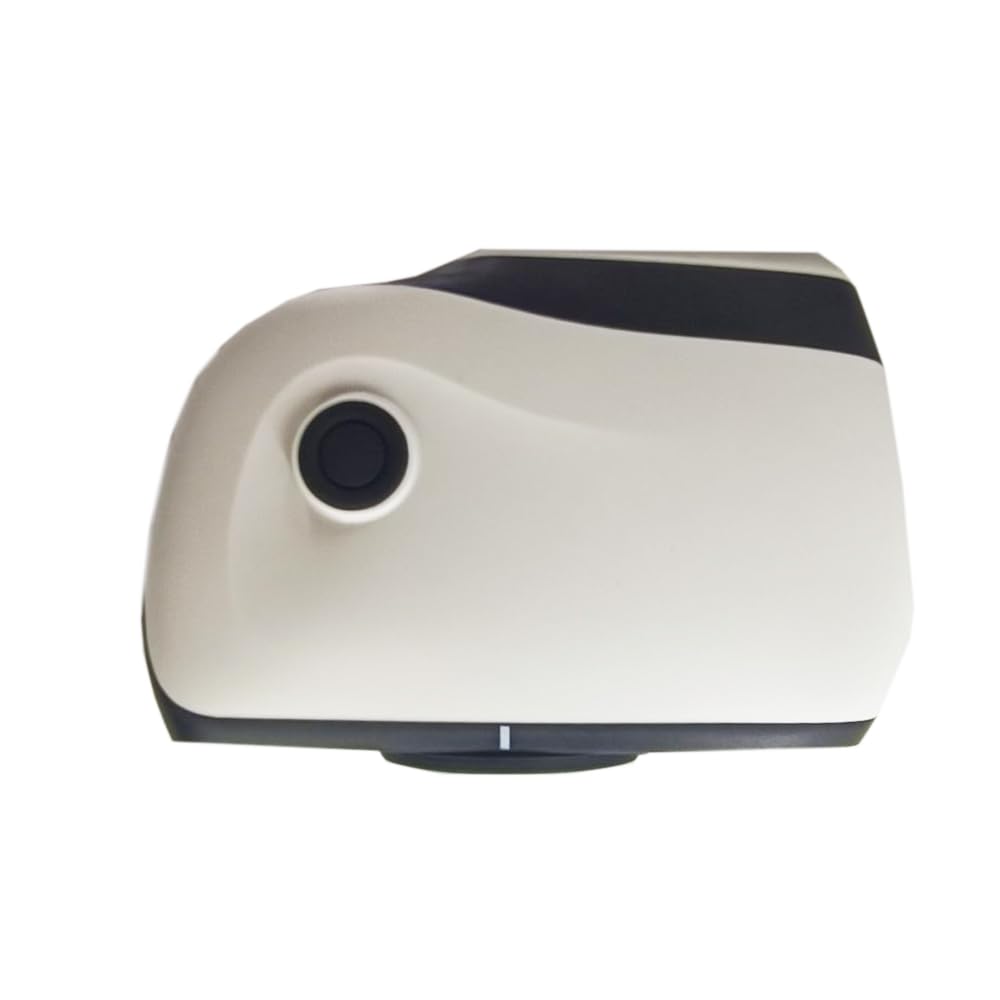

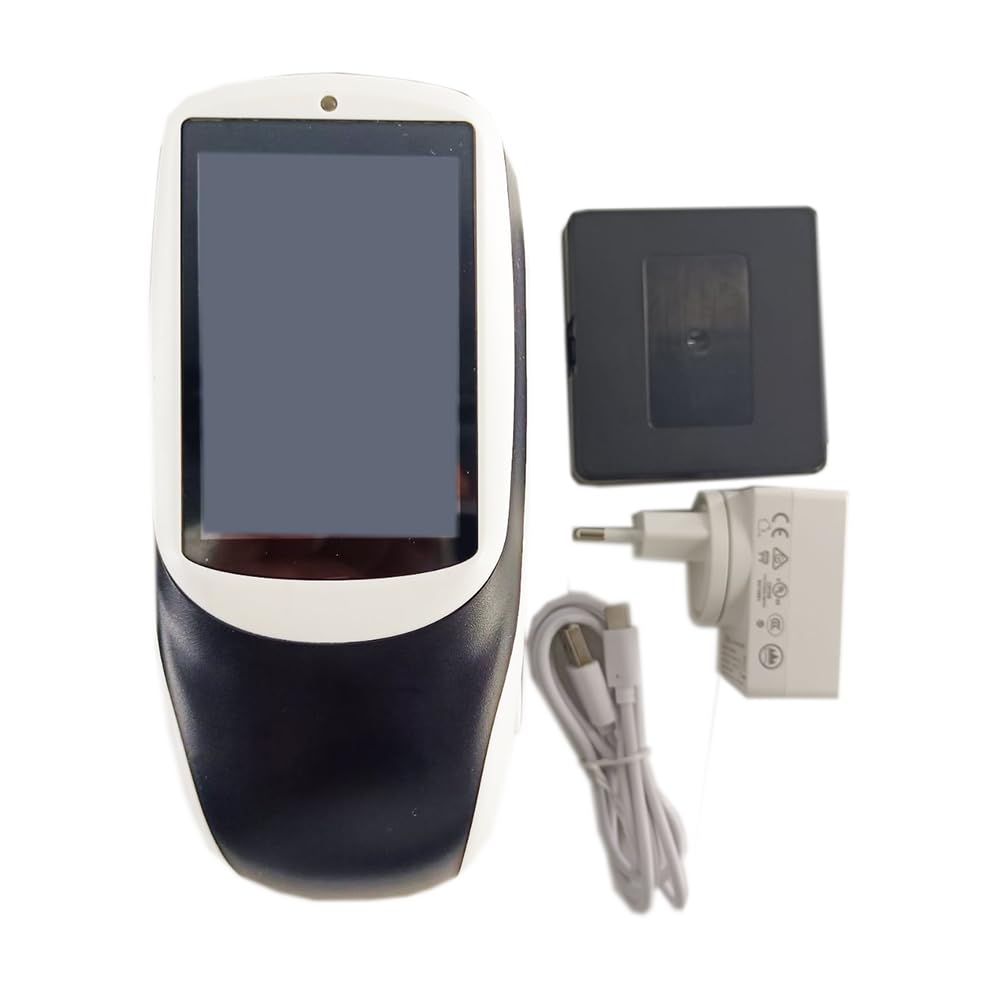

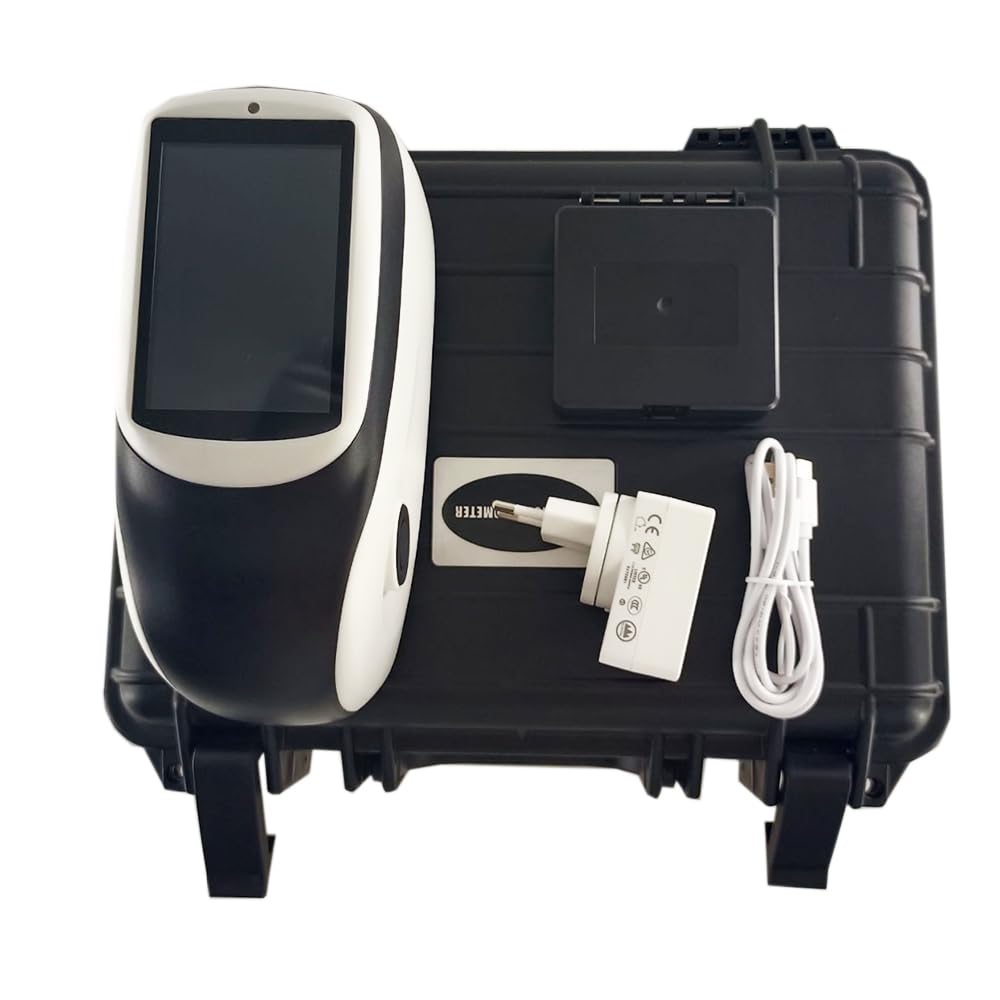

Standard accessories: power adapter, data cable, manual, quality management software (download from the official website), calibration box, black light trap, protective cover, wrist strap
