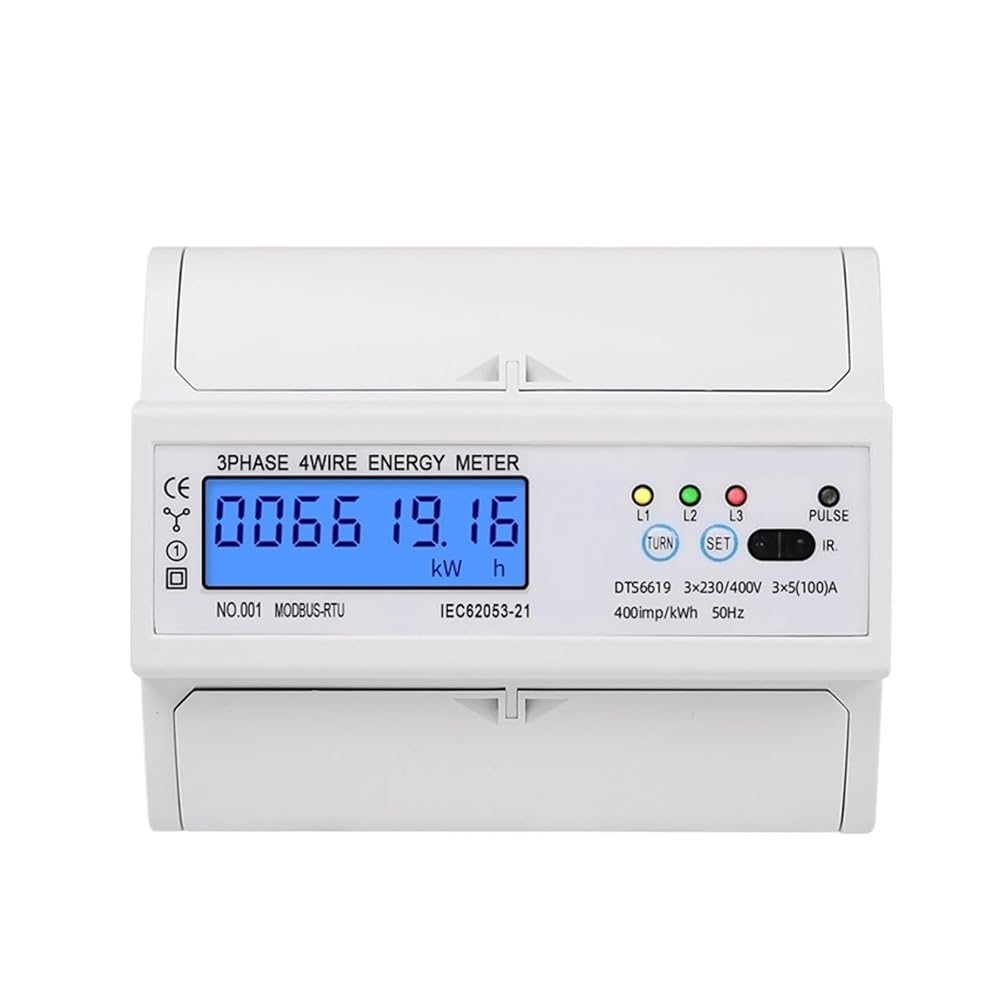

Din Rail Electric Three Phase Energy Meter RS485 kWh Consumption Power Voltage Current Wattmeter Monitor Modbus RTU 380V 400V
Features:
Power: three phase 3*230V/400V 50Hz
Maximum current: 100A
RS485 function with protocol Modbus RTU
Pulse: 400imp / kwh
LCD display with Backlight
Pulse LED indicates working of meter.
35mm din rail installation
The model DDS6619-017 is multifunctional display Active Energy kWh, Reactive Energy kV Arh, each phase Voltage, each phase Current, each phase Power, each phase Power Factor, automatically. DDS6619-016 display only kWh
NOTE: The two models are with RS485 Modbus RTU
Package included:
1 piece Energy meter RS485
1 English instructions
Other Items from our
Dimensions : 123*100*65mm
Operating Temperature : -10 to 50'C
Output Voltage : 380V AC
Accuracy Class : 1
Measuring Energy Range : 999999.99
Phase : Three Phase
Model Number : DTS6619-017
Max Operating Current : 80A - 99A
Rated Voltage : 380V
Power Supply : AC
Display Type : LCD
DIY Supplies : Electrical
Model : DTS6619-017
Origin : Mainland China
Display 1 : Active Energy kWh
Display 2 : Reactive Energy kV Arh
Display 3 : each phase L1 L2 L3 Voltage
Display 4 : each phase L1 L2 L3 Current
Display 5 : each phase L1 L2 L3 Power kW
Display 6 : each phase Reactive Energy kV Ar
Display 7 : each phase Power Factor cos
Display : Blacklight
Max. Rated Current : max 100A
Function 1 : Energy Meter RS485
Function 2 : Power Meter RS485
Protocol : RS485 Modbus RTU
