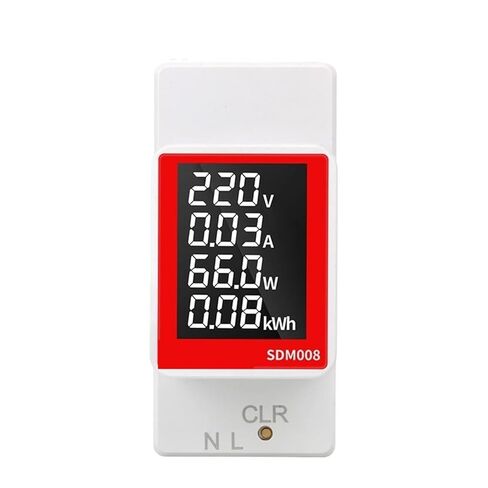

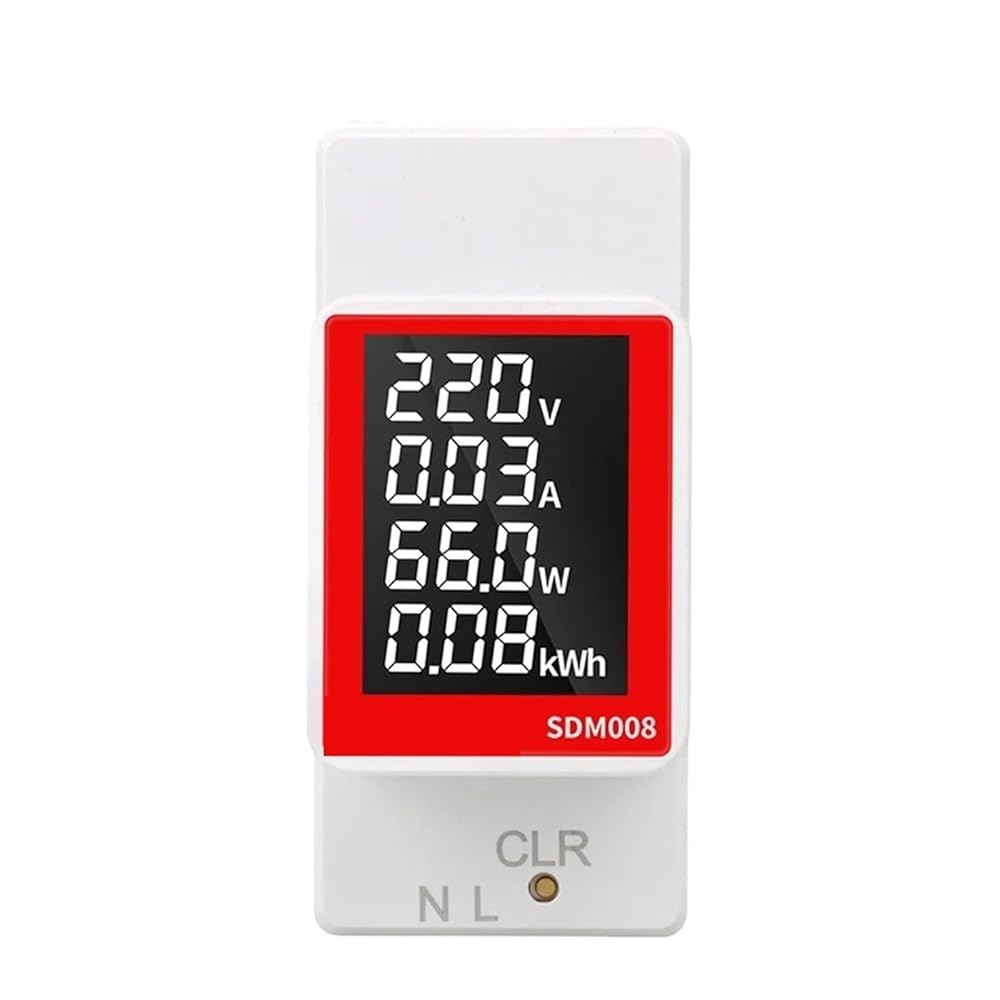

Main Function:
Measure and LCD displayACPowerVoltage, Current, Active Power, Energy kWh.
Parameters:
1. Voltage
measurement range: AC 50-300V , starting test voltage: 50V , accuracy: +/- 1%
2. Current
measurement range: 0-100A , starting test current: 0.02A
accuracy: +/- 1%
3.Active power
measurement range: 0-30kw
>=10000w display such as: 30.kw
starting test power: 0.5w
accuracy: +/- 1%
4. Energy
measurent range: 0-1999kwh
over the test range will maintain the data, otherwise you reset it
accuracy: +/- 1%

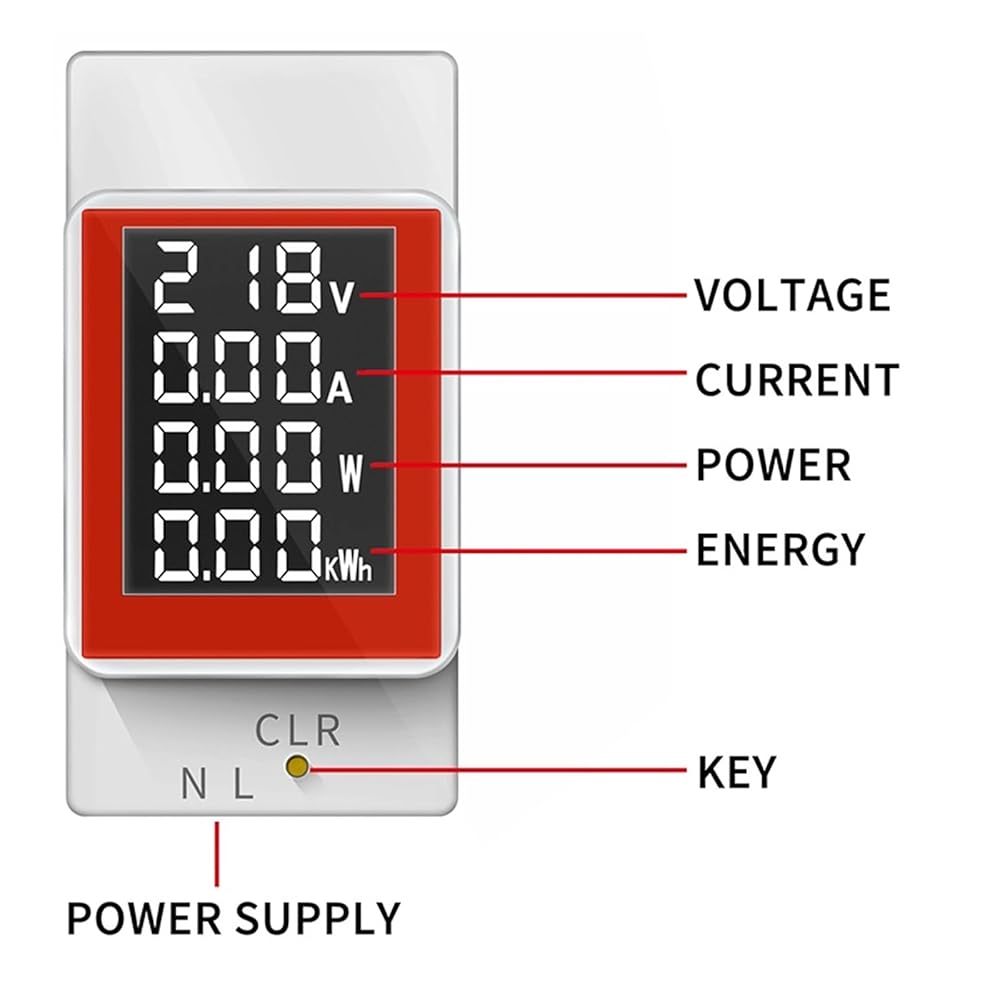

Other Function:
1. Backlight control
the backlight can be turned on or off by short press the key
2. Reset energy
long press the key over 3 seconds until the energy data flash, then release the key, short press the key again to reset the energy
3. Data storage
when the power off, the energy data and backlight status can be saved

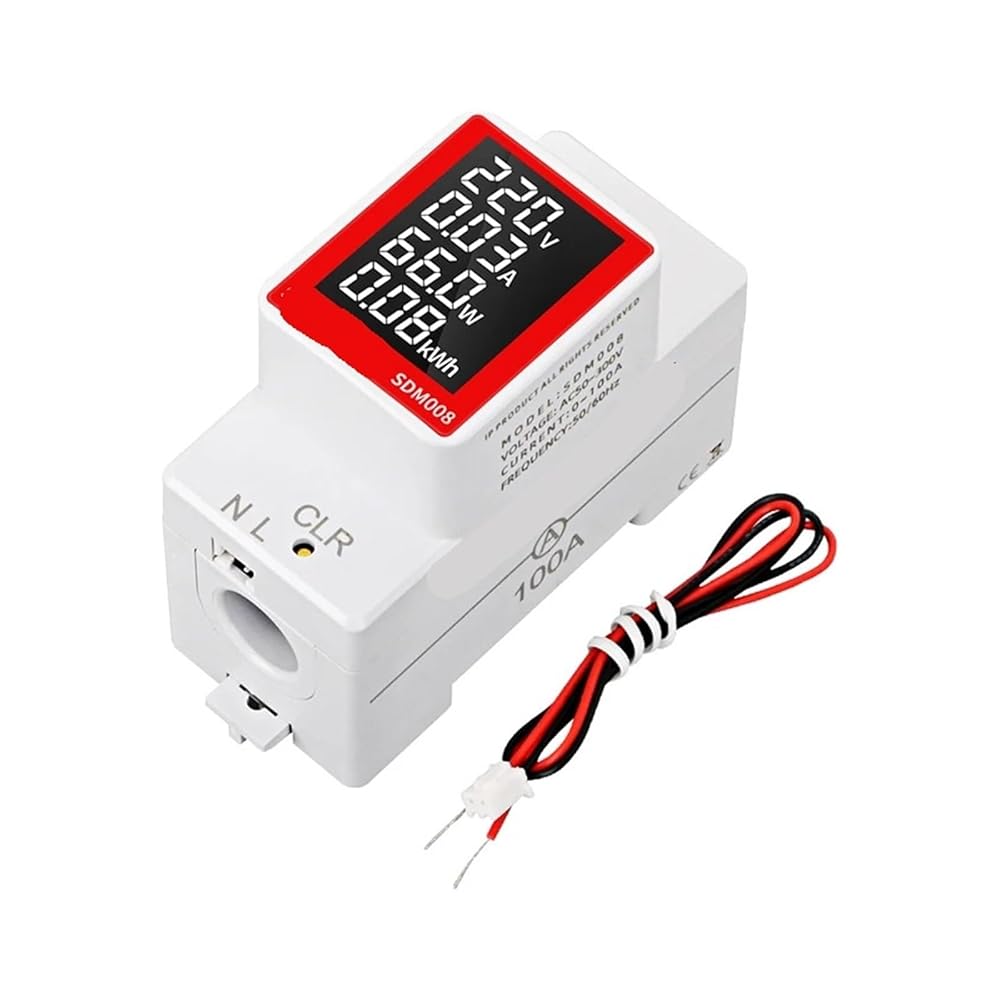

Package includes:
1 * AC Din Rail MultifunctionalMeter
1 * 2-pin Cable
1 * Manual

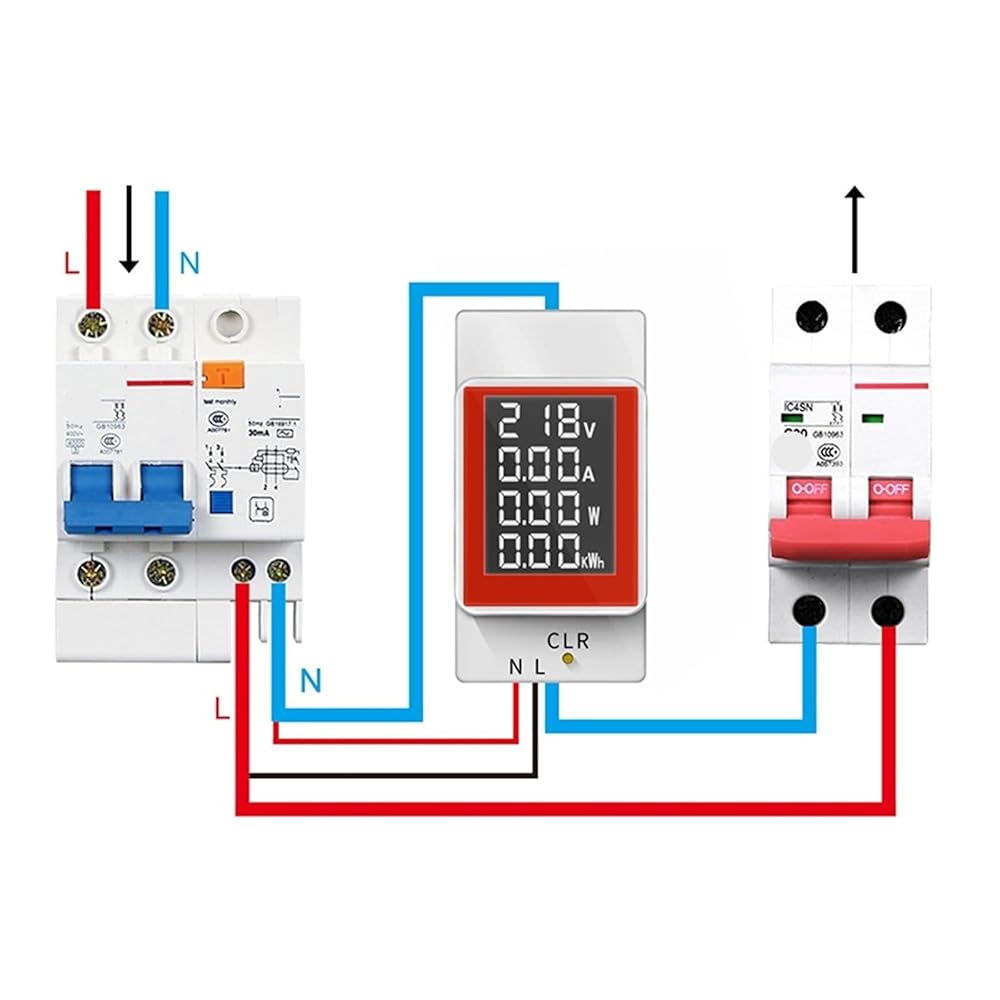

Wiring Diagram

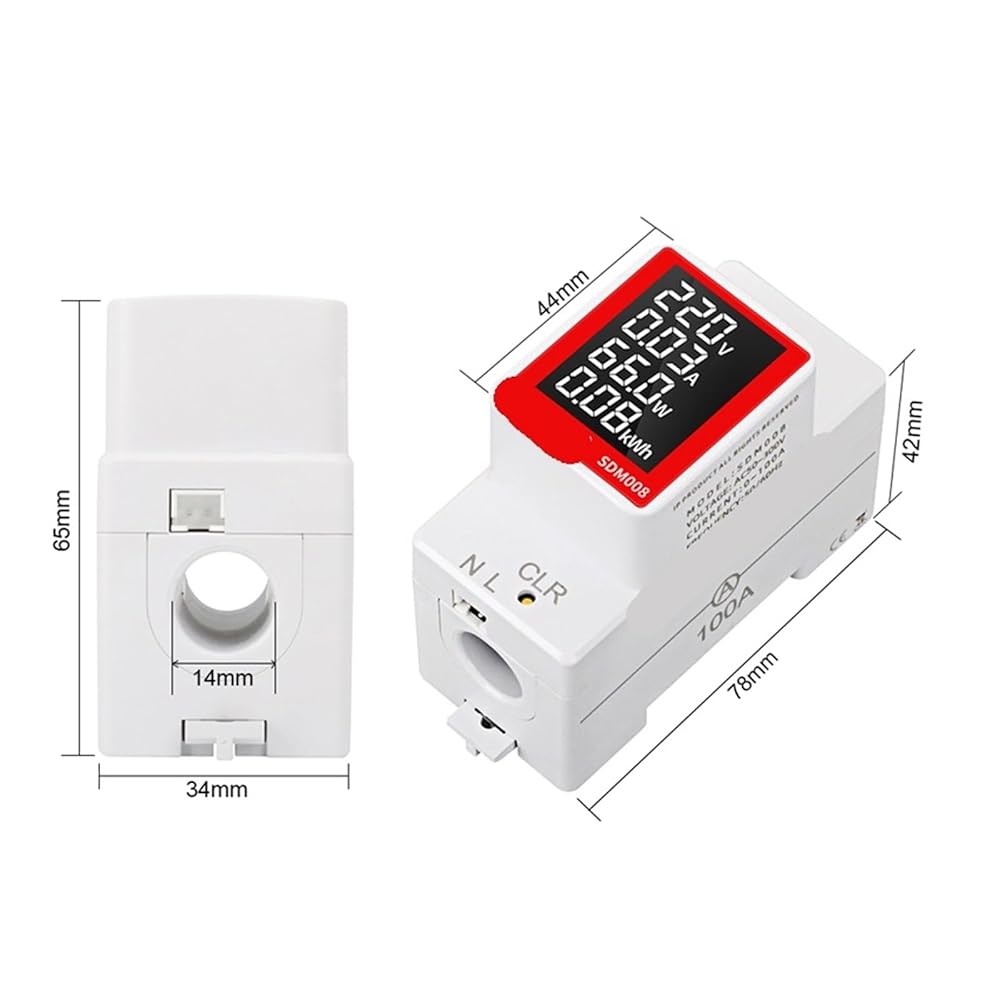

Dimensions : 78*34*65 mm
Operating Temperature : -20-50'C
Output Voltage : AC50~300V
Accuracy Class : 1%
Measuring Energy Range : 0~1999kWh
Phase : single phase
Model Number : SDM008
Max Operating Current : 80A - 99A
Rated Voltage : 220V
Power Supply : AC
Display Type : Digital Only
DIY Supplies : Electrical
Model : SDM008
Origin : Mainland China
Product name : Single Phase Electronic KWh Meter
Feature : DIN Rail Mounting Energy Meter
Power range : 0-30kW 45-65Hz
kWh : available Reset
