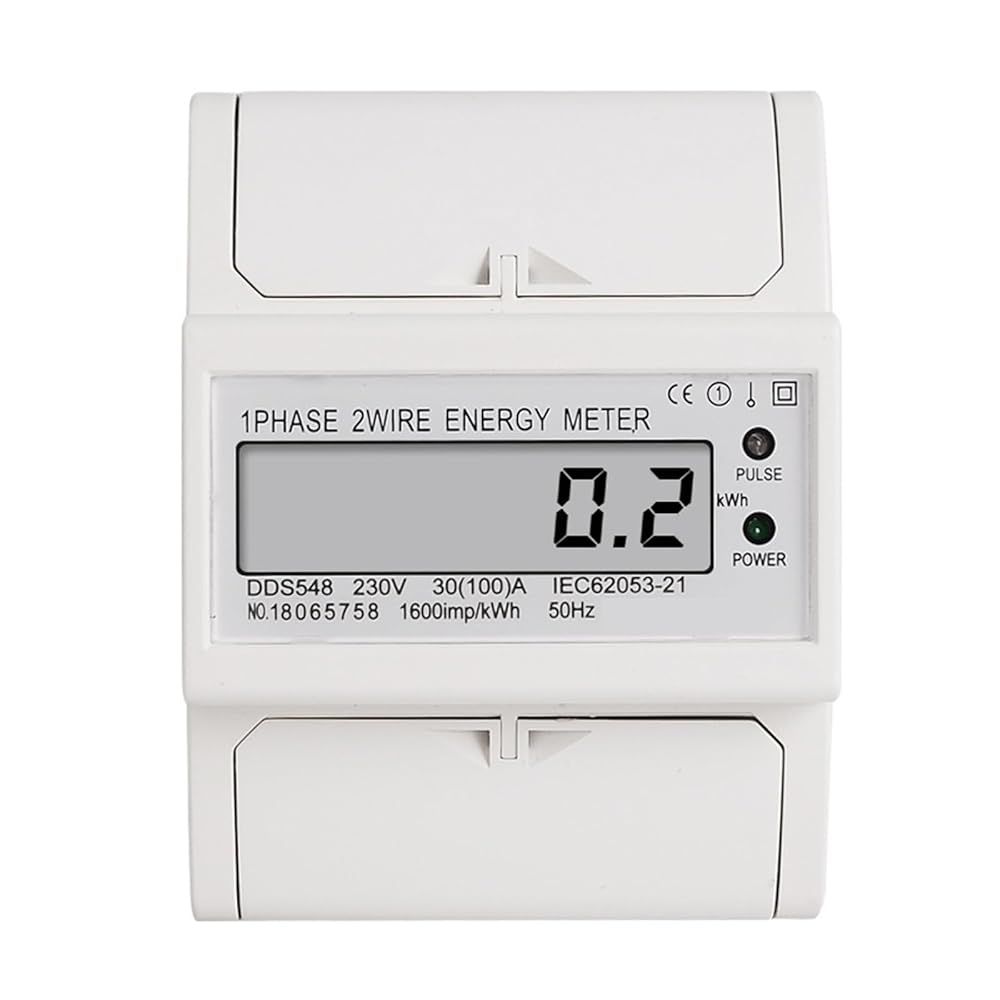

Single 1 Phase 2 Wire LCD Display Power Consumption Energy Meter kWh Wattmeter 230V AC 50Hz 100A Electric Din Rail Mount
Features:
Rated current: 30A
Maximum current: 100A
Pulse: 1600imp / kwh
Pulse LED indicates working of meter. Pulse output with optical coupling isolation
35mm din rail installation
Product advantages
1. The traditional maximum current meter is 4 times the rated current, the product is smart meters, overload capacity
Up to 12 times the base reference current
2. This product is measured by LCD digital power, no reset button, to avoid human tampering with the data!
Package will include:
1 pcs Energy meterDDS548
Dimensions : 100*76*65mm
Operating Temperature : -10 to 50'C
Output Voltage : 230V AC
Accuracy Class : 1
Measuring Energy Range : 999999.9
Phase : single phase
Model Number : DDS548
Max Operating Current : 80A - 99A
Rated Voltage : 230V
Power Supply : AC
Display Type : LCD
DIY Supplies : Electrical
Model : DDS548
Origin : Mainland China
Display : Energy KWH
Load Max Current : 100A
