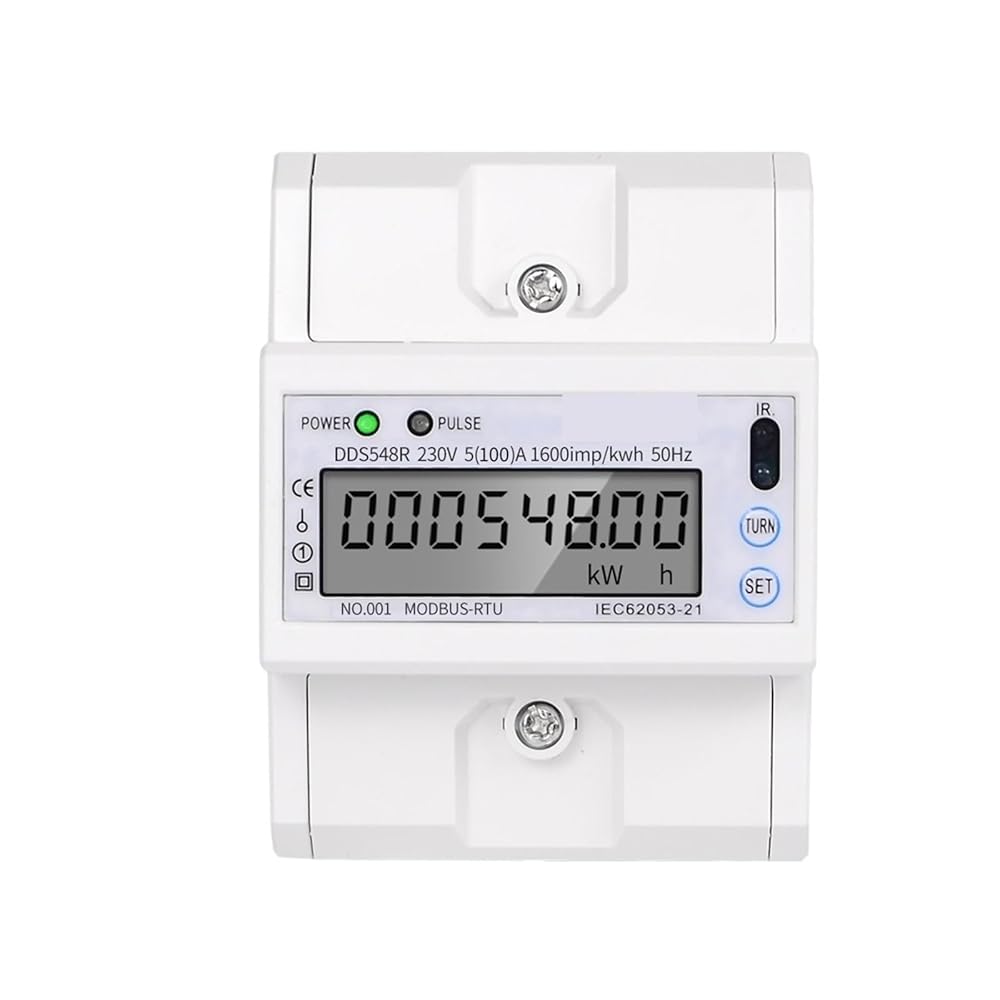

AC 230V 100A Single Phase Electricity Energy Meter KWH RS485 Modbus RTU Communication Pulse Output Power Consumption Din Rail
Parameters:
Rated current: 5A
Maximum current: 100A
LCD display
Pulse : 1600imp / kwh
Pulse LED indicates working of meter. Pulse output with optical coupling isolation
35mm din rail installation
The model DDS548MR is multifunctional rotation display Energy KWh , Voltage , Current , Power, and Power Factor. Another model DDS548R display only KWH
Package will include:
1 pcs Energy meter
1 pcs English operation manual
Dimensions : 100*65*76 mm
Operating Temperature : -10 to 50 'C
Output Voltage : 230V AC
Accuracy Class : 1
Measuring Energy Range : 999999.9
Phase : single phase
Model Number : DDS548MR
Max Operating Current : 80A - 99A
Rated Voltage : 220V
Power Supply : AC
Display Type : Digital Only
DIY Supplies : Electrical
Model : DDS548MR
Origin : Mainland China
Display : KWh,Voltage,Current,Power,Power factor
Function : Single Phase Energy Meter RS485
Protocol : RS485 Modbus RTU Communication Protocol
