XYR Axis 40mm Micrometer Manual Trimming Platform Translation Table and Rotary Table Cross Rail LSP40-LM in Kuwait XYR Axis 40mm Micrometer Manual Trimming Platform Translation Table and Rotary Table Cross Rail LSP40-LM in Kuwait XYR Axis 40mm Micrometer Manual Trimming Platform Translation Table and Rotary Table Cross Rail LSP40-LM in Kuwait XYR Axis 40mm Micrometer Manual Trimming Platform Translation Table and Rotary Table Cross Rail LSP40-LM in Kuwait

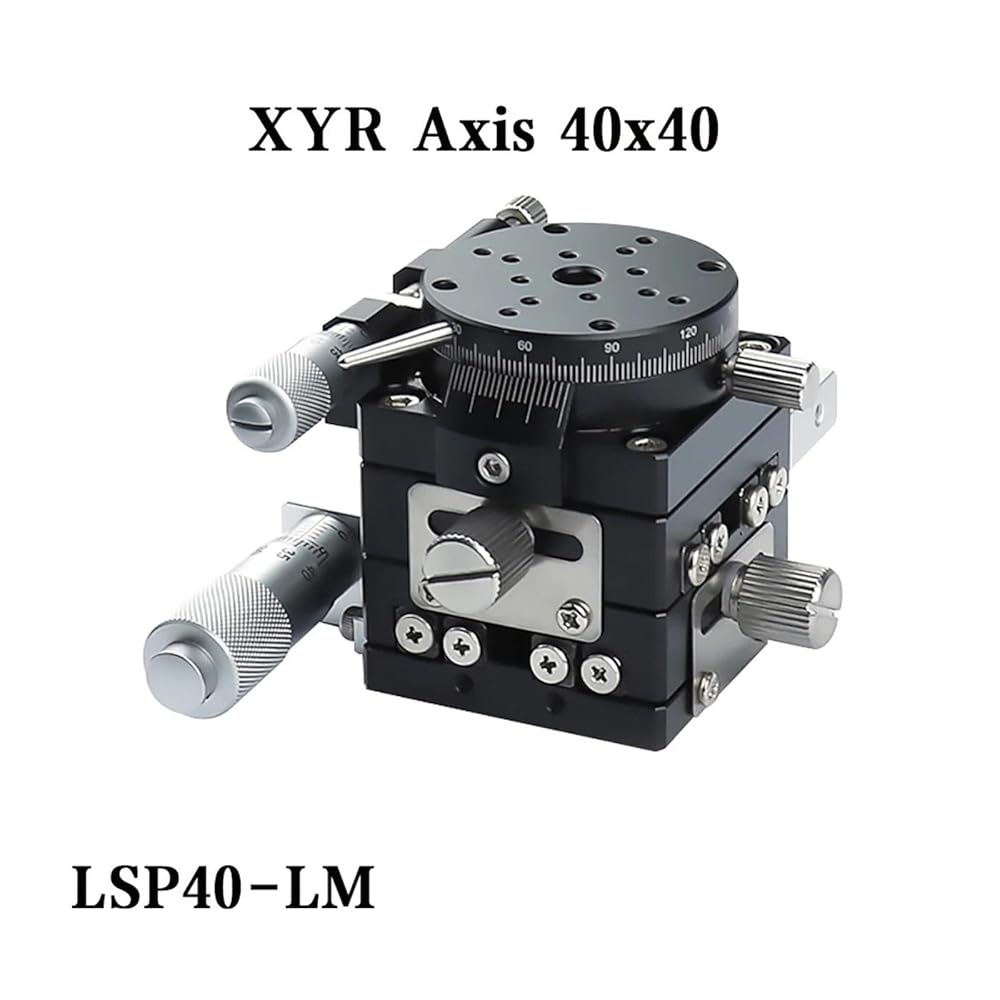

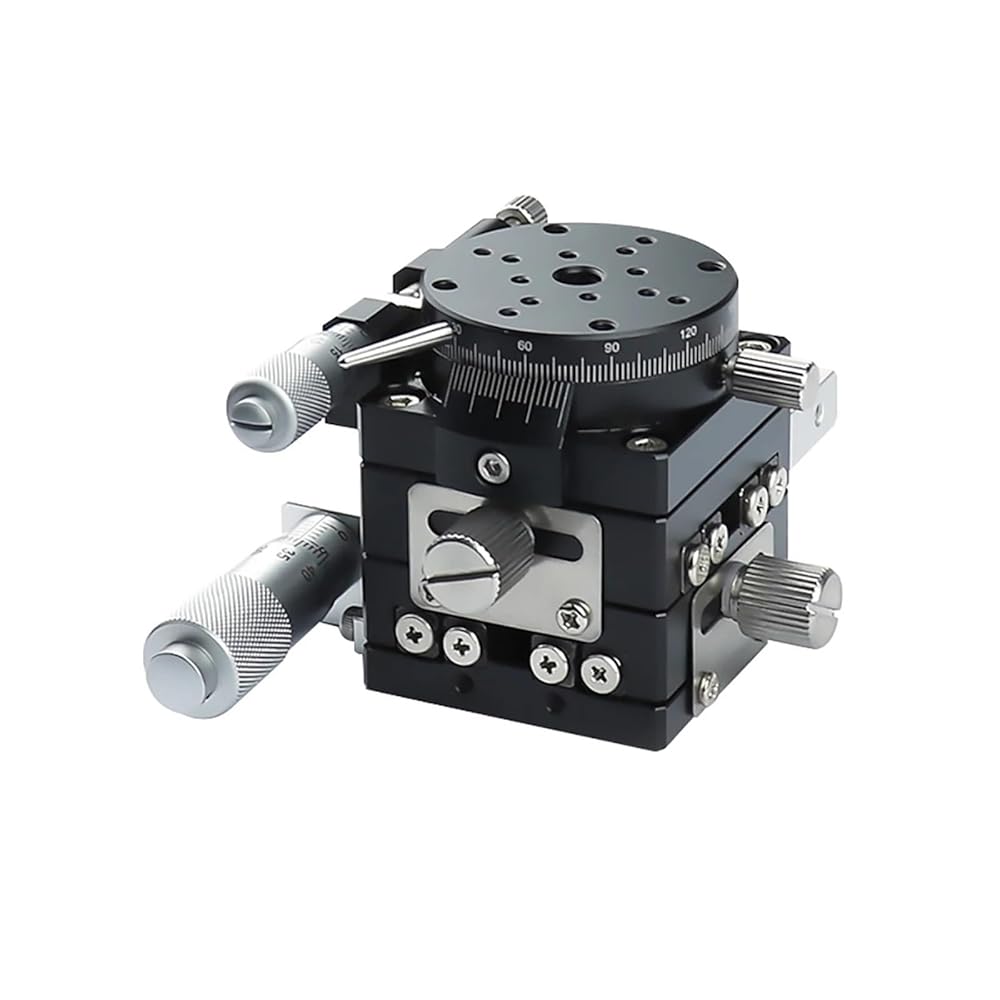

XYR Axis 40mm Micrometer Manual Trimming Platform Translation Table and Rotary Table Cross Rail LSP40-LM

KWD 127.500
Brand
HROEROPKTK
Weight
0.8 kg
ColorLSP40-LM
– 1 +

Special Features

  • Easy use: large stroke and easy to use
  • Stable: machining and stable performance
  • Portable: With small size; easy to carry and store; convenient to use
  • Material: Made of aluminium alloy material it is durable
  • Scope of Application: Widely used in production machinery; testing equipment; optical measurement and fine-tuning displacement; etc

Description

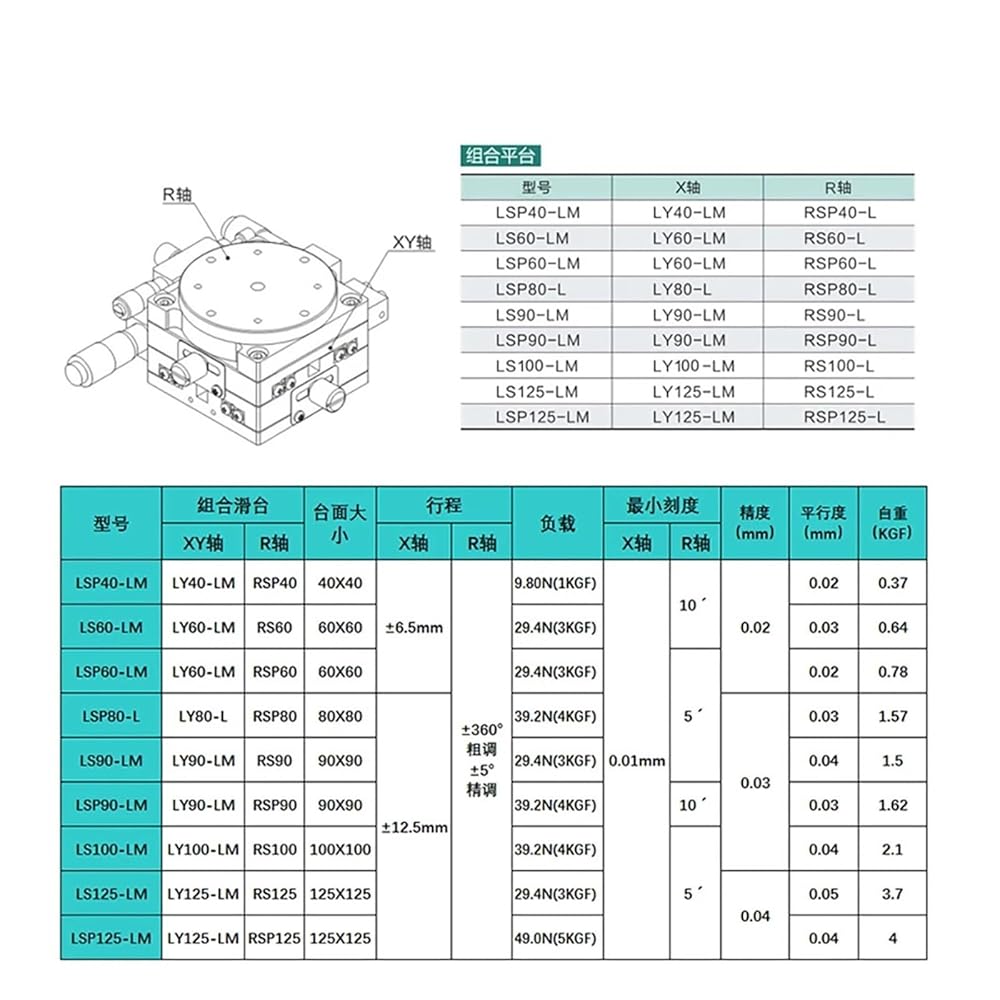

Parameter:
1.The direction of movement: XY and RAxis
2. Material: Aluminum

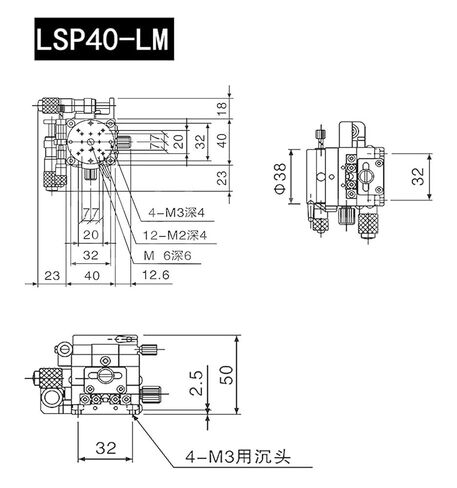

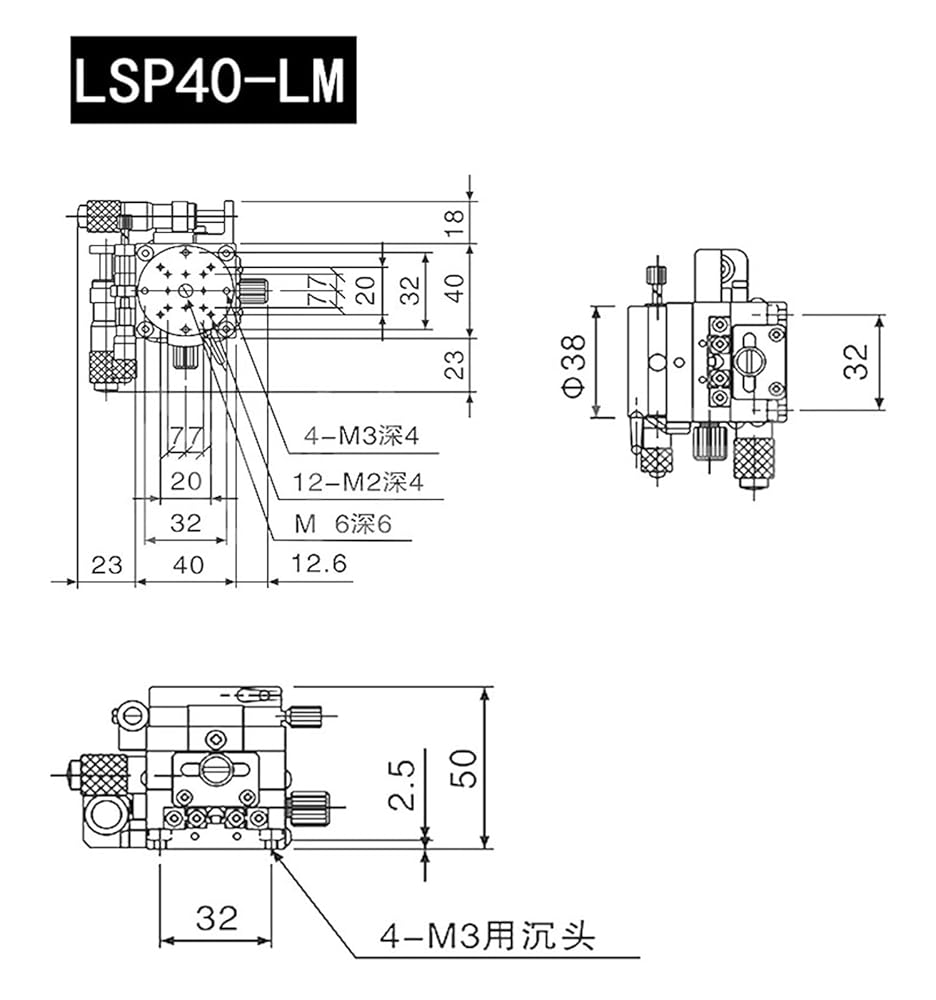

3. The table size: 40*40mm
4. Rail Type: V-rail (Cross Roller Guide)
5. Travel:XY:±6.5mm RAxis:360° ±5° fine tuning
6. Load: 8.8N (1kgf)
7. Straightness: 0.01mm
8. Weight: 0.37kg
Model Number : LSP40-LM
Guide Width or Diameter : 40MM
