Manual Sliding Table R Axis 125mm RS125-L 360Degree Rotation Displacement Angle Adjustment Platform Optical Micrometer in Kuwait Manual Sliding Table R Axis 125mm RS125-L 360Degree Rotation Displacement Angle Adjustment Platform Optical Micrometer in Kuwait Manual Sliding Table R Axis 125mm RS125-L 360Degree Rotation Displacement Angle Adjustment Platform Optical Micrometer in Kuwait

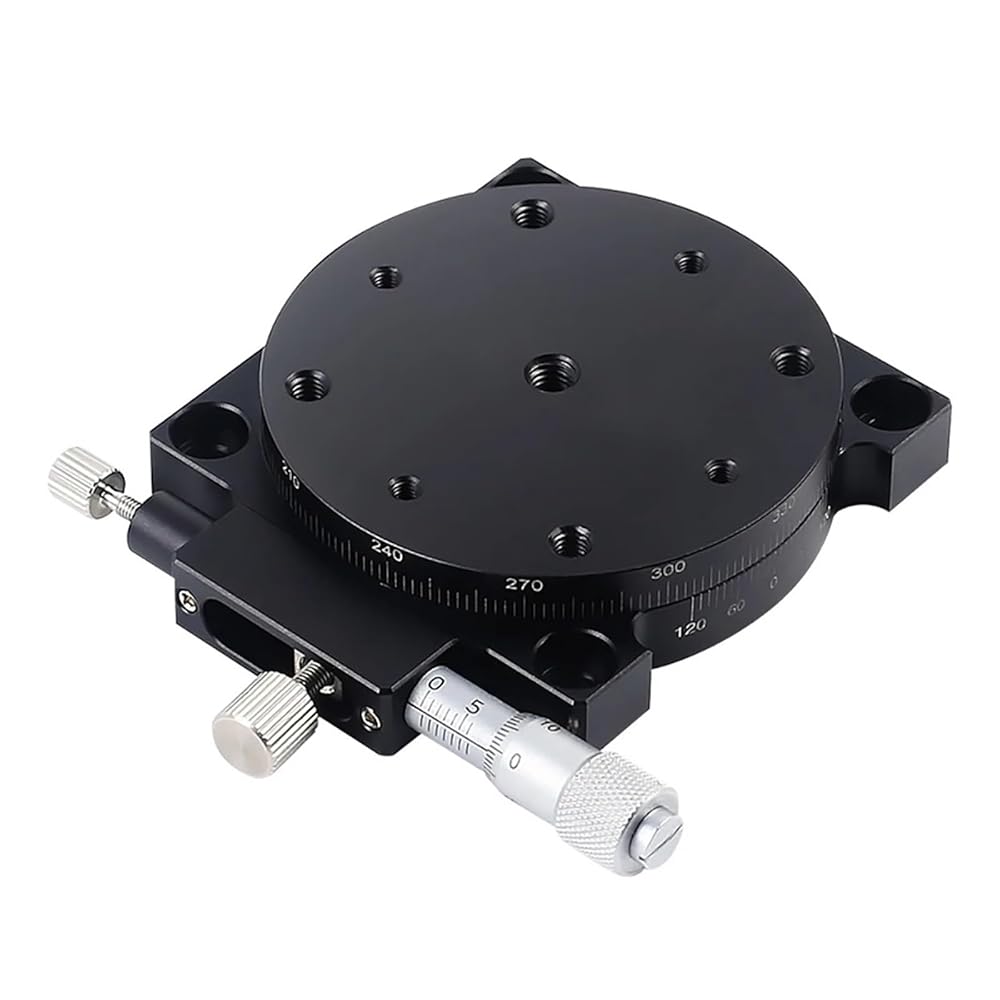

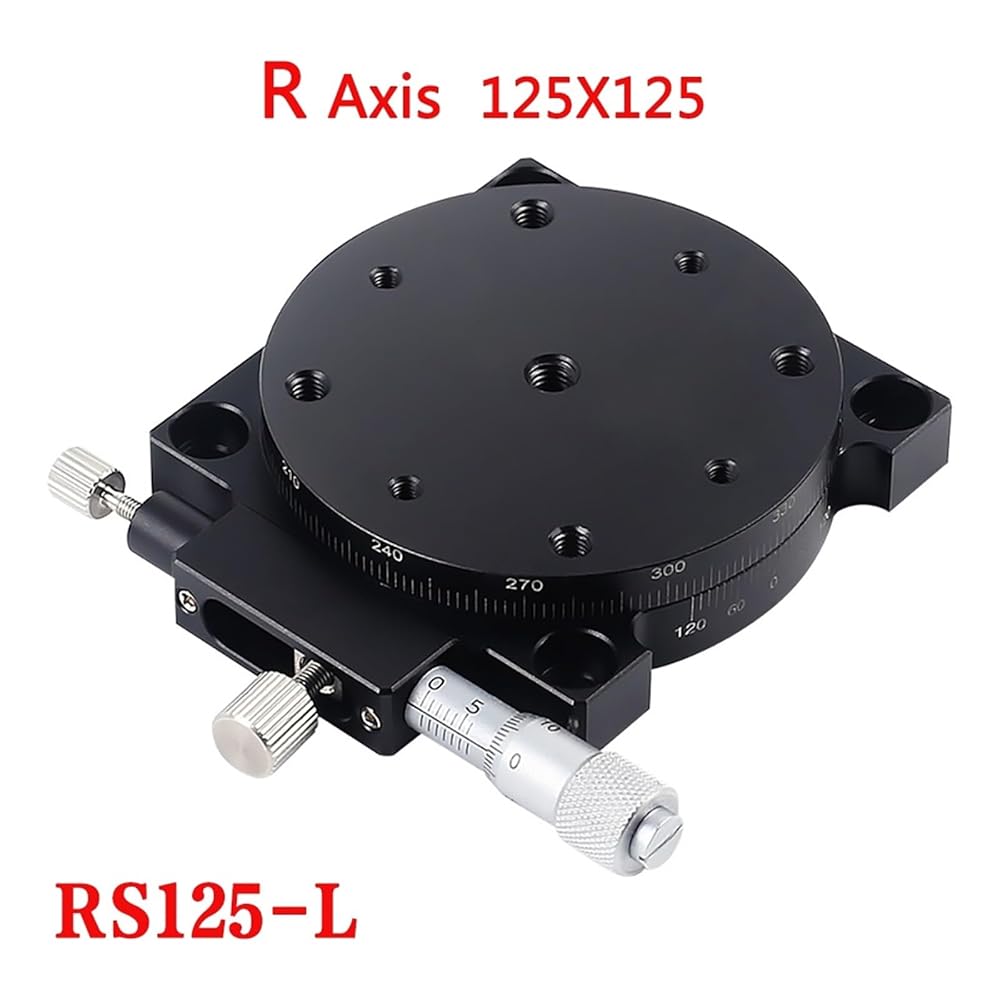

Manual Sliding Table R Axis 125mm RS125-L 360Degree Rotation Displacement Angle Adjustment Platform Optical Micrometer

KWD 84.500
Brand
HROEROPKTK
Weight
0.8 kg
ColorRS125-L
– 1 +

Special Features

  • Easy use: large stroke and easy to use
  • Stable: machining and stable performance
  • Portable: With small size; easy to carry and store; convenient to use
  • Material: Made of aluminium alloy material it is durable
  • Scope of Application: Widely used in production machinery; testing equipment; optical measurement and fine-tuning displacement; etc

Description

Parameter:
RS100-L (standard type):
1.Directionofrotation:Raxisofrotation
2.Material:Aluminum
3.Tablesize: 125mm
4.Stroke:360°(coarse),±5°(fine-tuning)
5.Load:29.4N(3kgf)
6.Minimumscale: 5'
7.Roundness:0.03mm
8.Parallelism:0.04mm
9.Weight:0.9kg

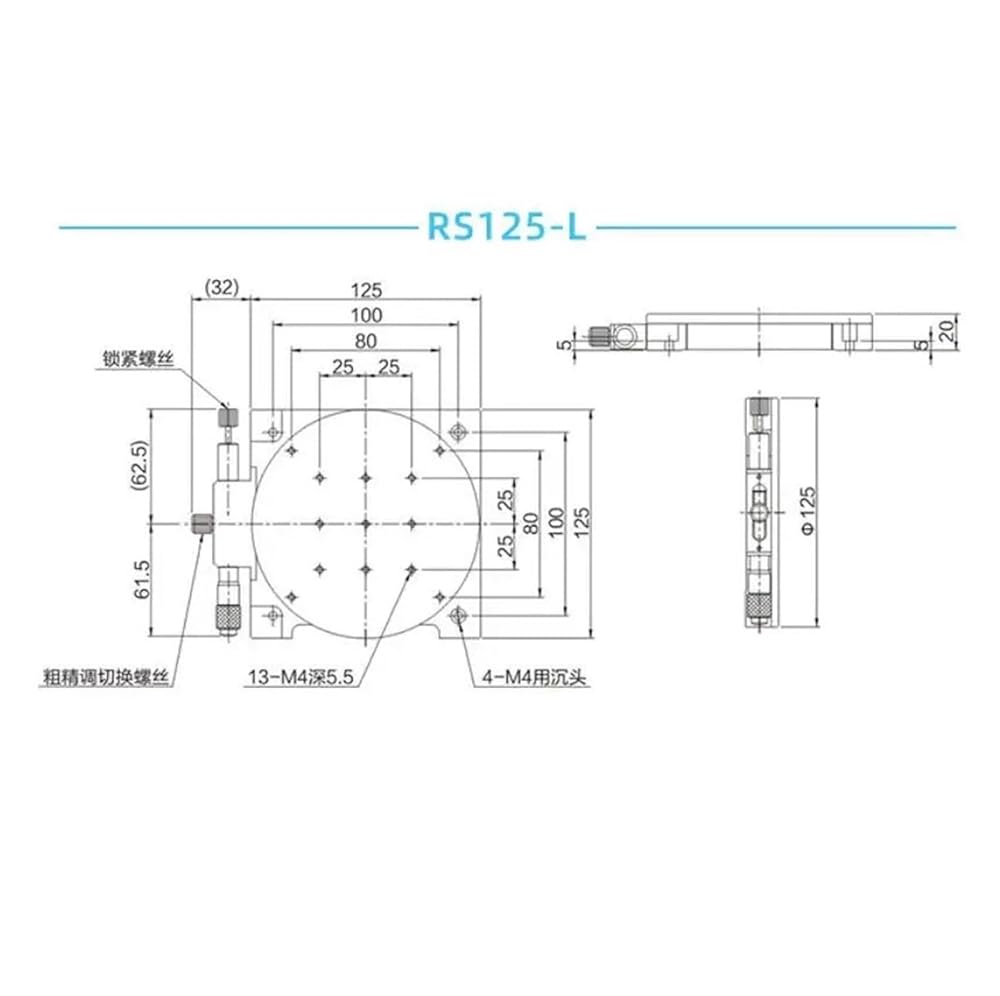

Model Number : RS125-L
material : Aluminum alloy
drive mode : Differential head
Table size : 125*125
load : 29.4N(3kgf)
Minimum scale : 5
Roundness : 0.03mm
Parallelism : 0.04mm
Weight : 0.9KG
