360 Degree Rotating Slide Table R Axis 90mm RSP90-L Manual Angle Adjustment Platform Optical Micrometer in Kuwait 360 Degree Rotating Slide Table R Axis 90mm RSP90-L Manual Angle Adjustment Platform Optical Micrometer in Kuwait 360 Degree Rotating Slide Table R Axis 90mm RSP90-L Manual Angle Adjustment Platform Optical Micrometer in Kuwait 360 Degree Rotating Slide Table R Axis 90mm RSP90-L Manual Angle Adjustment Platform Optical Micrometer in Kuwait

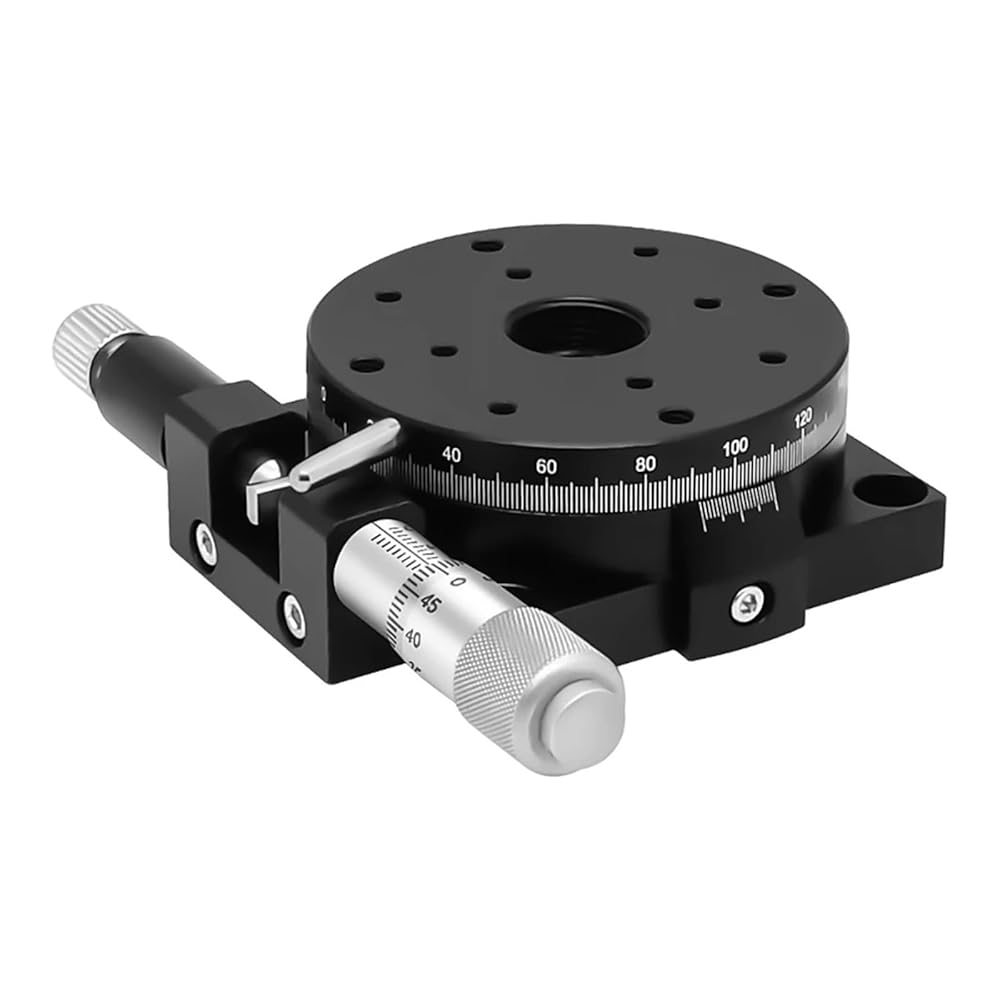

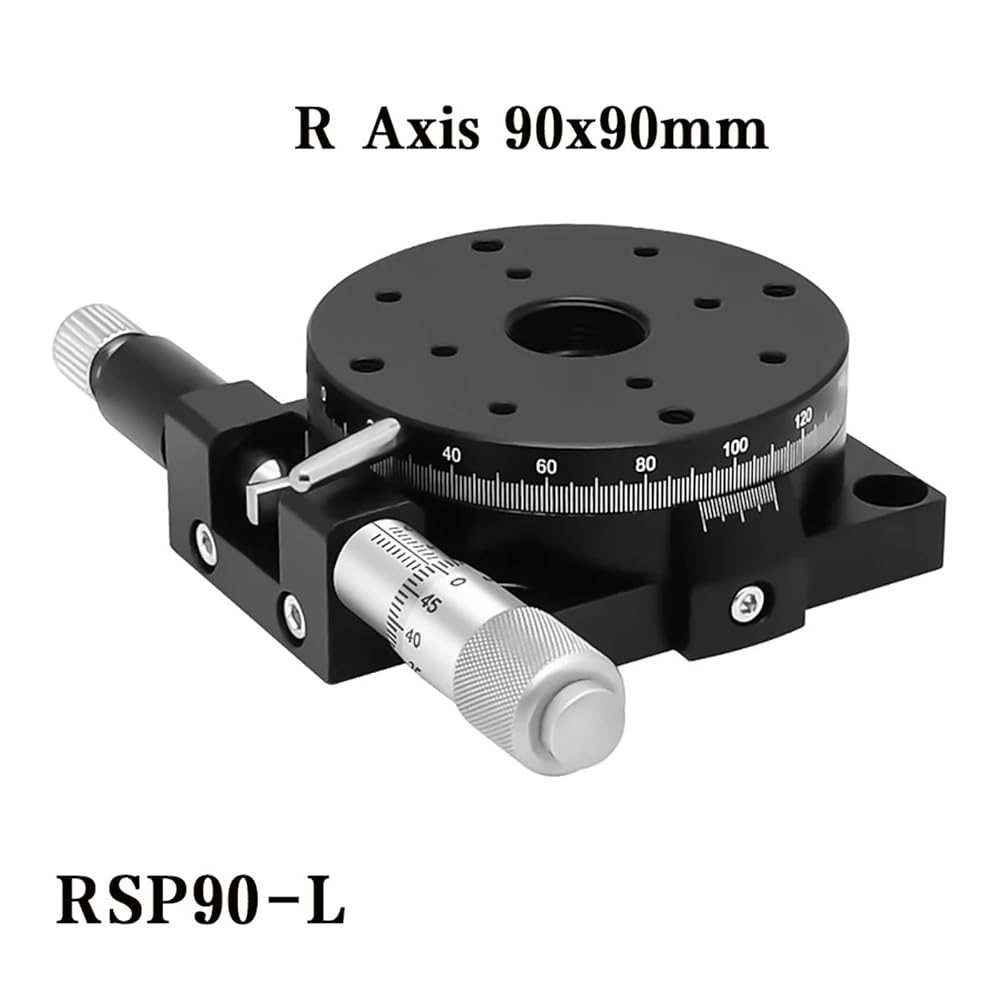

360 Degree Rotating Slide Table R Axis 90mm RSP90-L Manual Angle Adjustment Platform Optical Micrometer

KWD 89.500
Brand
HROEROPKTK
Weight
0.8 kg
ColorRSP90-L
– 1 +

Special Features

  • Easy use: large stroke and easy to use
  • Stable: machining and stable performance
  • Portable: With small size; easy to carry and store; convenient to use
  • Material: Made of aluminium alloy material it is durable
  • Scope of Application: Widely used in production machinery; testing equipment; optical measurement and fine-tuning displacement; etc

Description

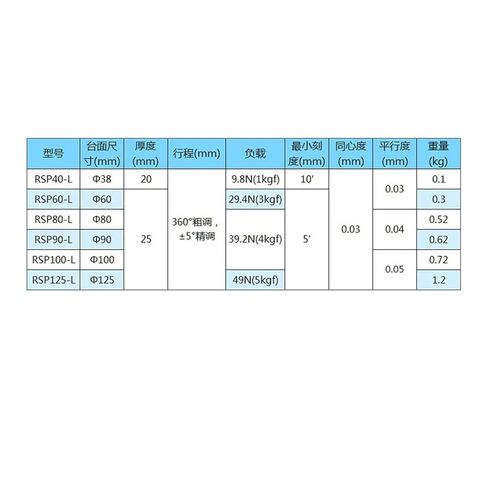

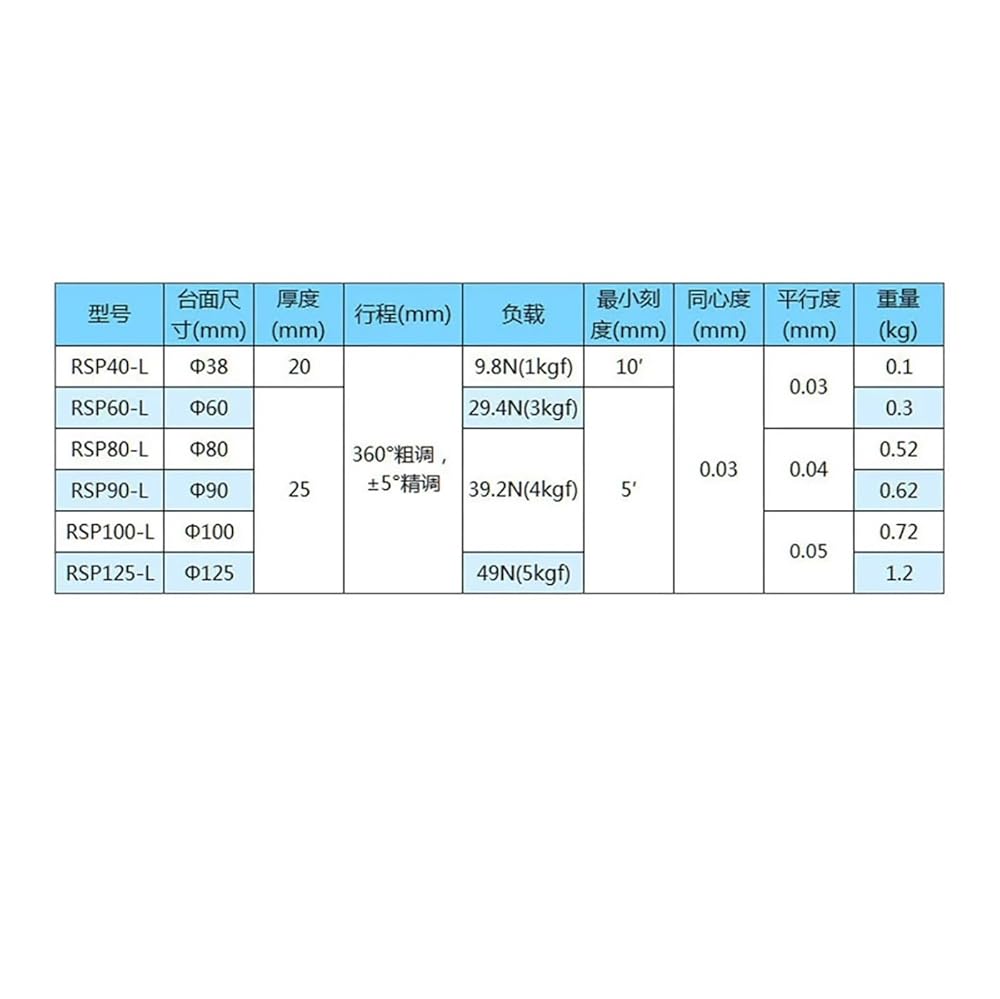

Parameter:
1.Directionofrotation:Raxisofrotation
2.Material:Aluminum
3.Tablesize: 90mm
4.Stroke:360°(coarse),±5°(fine-tuning)
5.Load: 39.2N(4kgf)
6.Minimumscale: 5'
7.Roundness:0.03mm
8.Parallelism:0.03mm
9.Weight:0.62kg
10.Package: 1pcs RSP90-L slide table
Model Number : RSP90-L
Guide Width or Diameter : 90MM
material : Aluminum alloy
drive mode : Differential head
load : 39.2N(4KGf)
