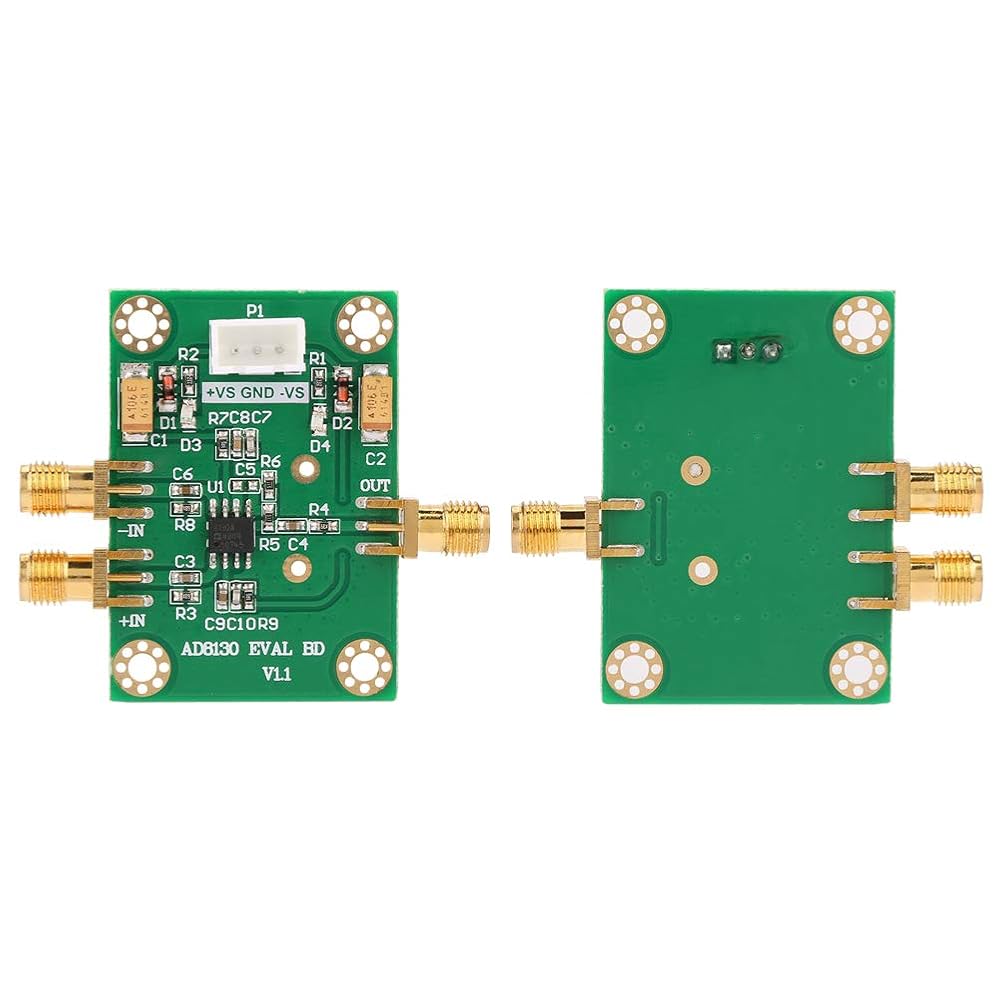

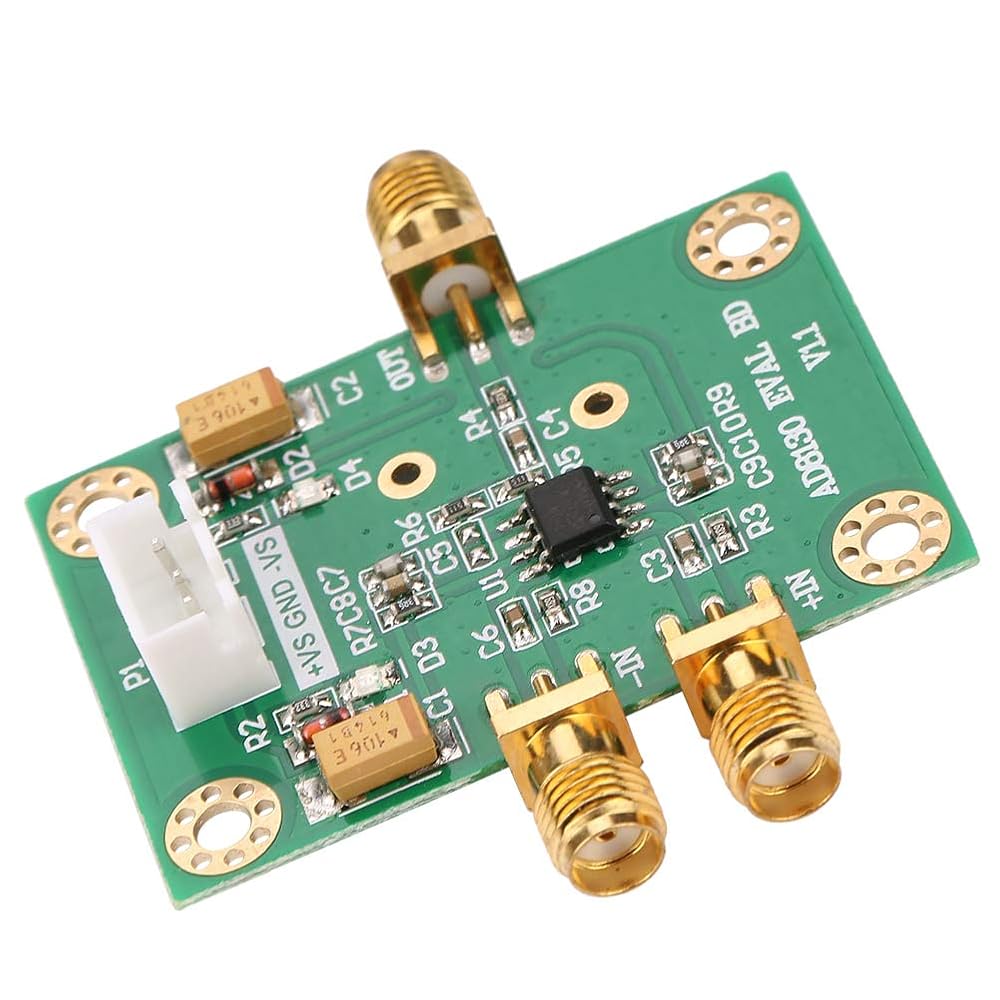

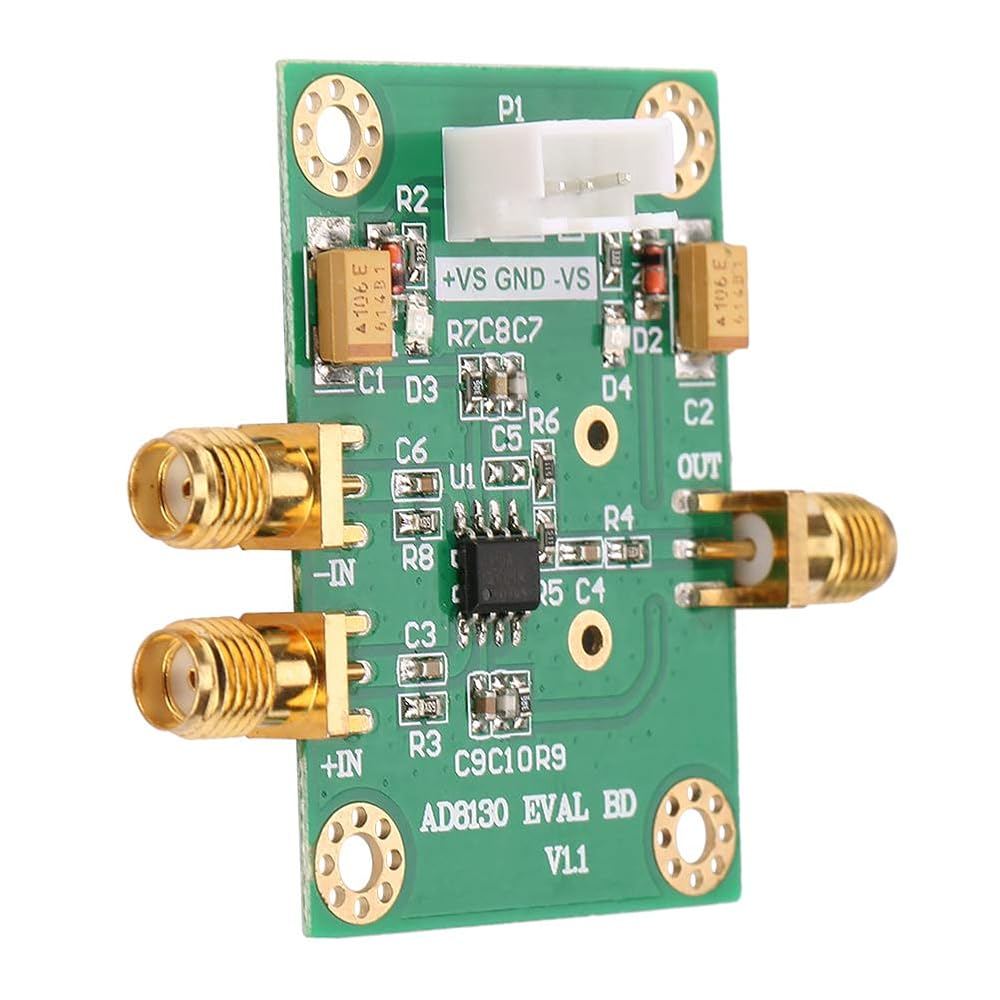

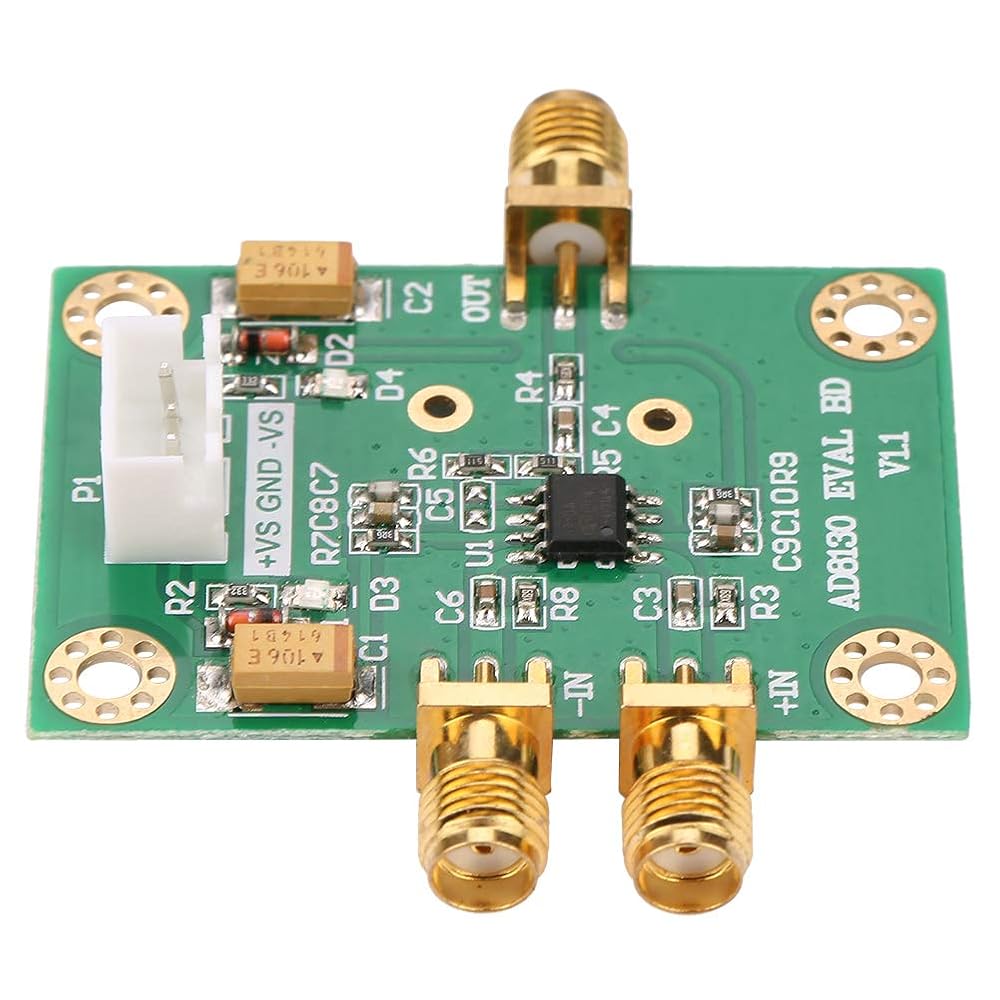

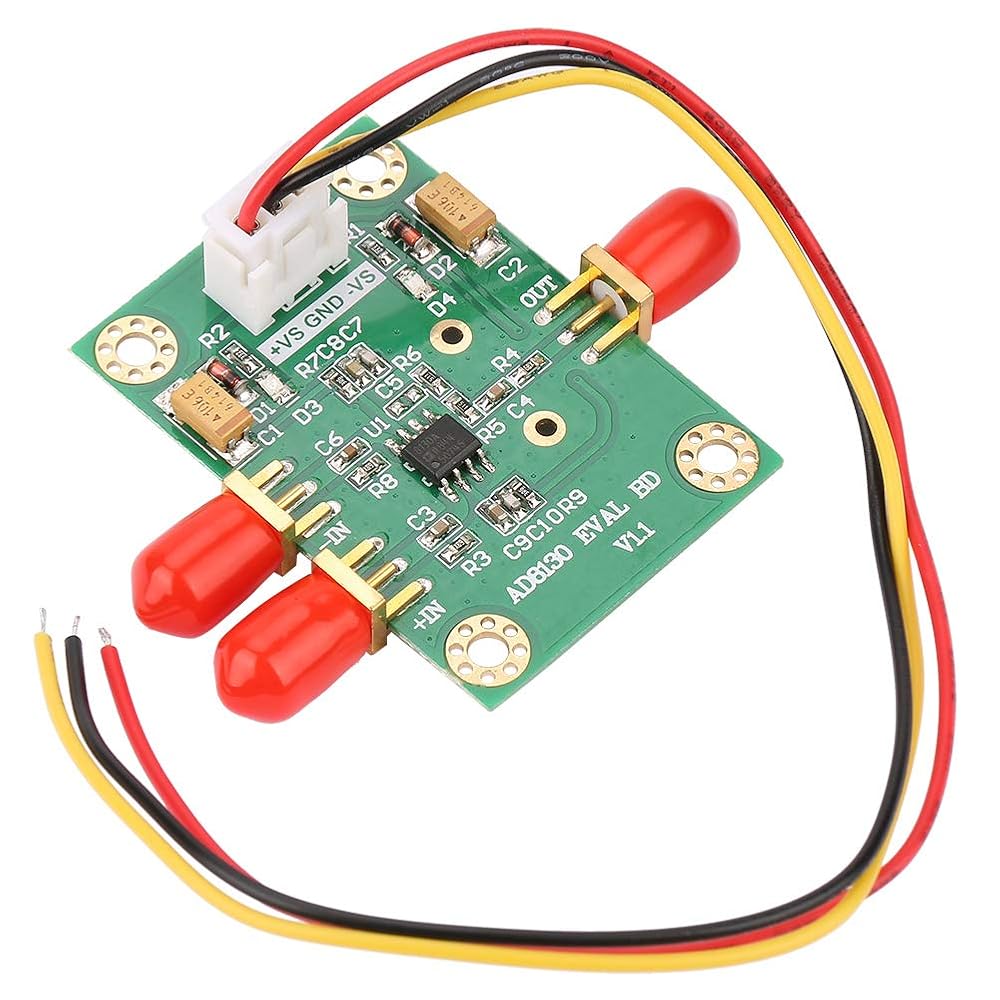

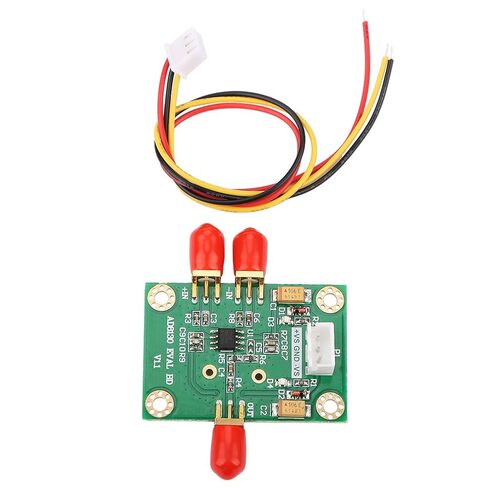

AD8130 High Speed Differential Amplifier Module ADC Driver Board with Adjustable Gain Low Noise High CMMR for Signal Processing Data Acquisition Systems

KWD 11
– 1 +

Special Features

  • [PROFESSIONAL GRADE COMPONENTS] Engineered for precision performance, this AD8130 module features premium quality construction with components that ensure reliable operation in demanding environments. The robust design delivers consistent results for laboratory, industrial and professional applications.
  • [SUPERIOR SIGNAL INTEGRITY] With an exceptional 94dB common mode rejection ratio and ultra-low 12.5nV/Hz noise floor, this amplifier maintains signal purity even in electrically noisy environments. The high-speed 270MHz bandwidth ensures accurate signal reproduction for critical measurements.
  • [FLEXIBLE CONFIGURATION] Offering adjustable amplification gain without requiring external components, this versatile module adapts to various signal conditioning needs. The wide ±10.5V common-mode input range accommodates diverse signal sources with ease.
  • [POWER EFFICIENT DESIGN] The built-in power saving mode intelligently manages energy consumption while maintaining performance. Operating from +4.5V to ±12.6V power supplies, it delivers optimal efficiency for both portable and stationary applications.
  • [COMPLETE SOLUTION PACKAGE] Each unit comes ready-to-use with all necessary components including a high-quality connection cable. The compact 12g design integrates easily into existing systems while providing professional-grade signal conditioning capabilities.

Description

Features:
1. 100% brand and high quality.
2. High CMMR(common-mode rejection ratio).

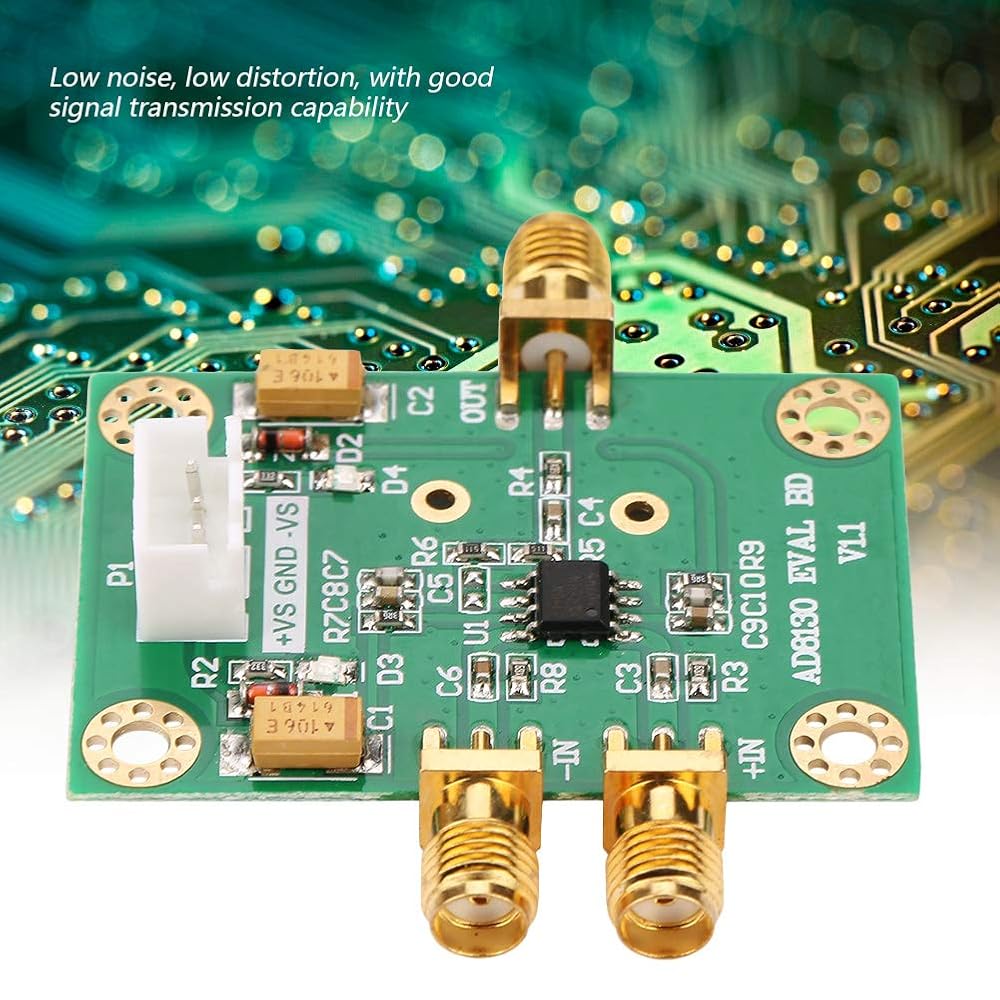

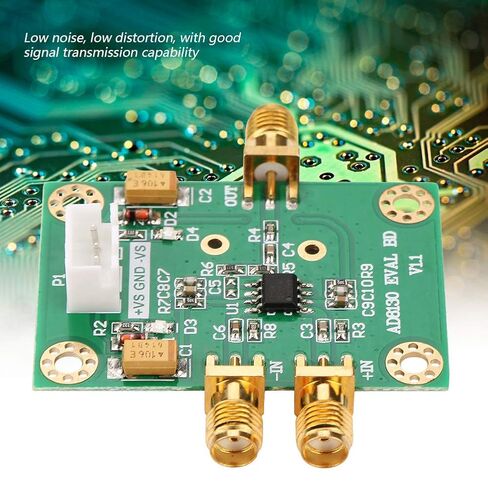

3. Low noise, low distortion, with good signal transmission capability.
4. Adjustable amplification gain.

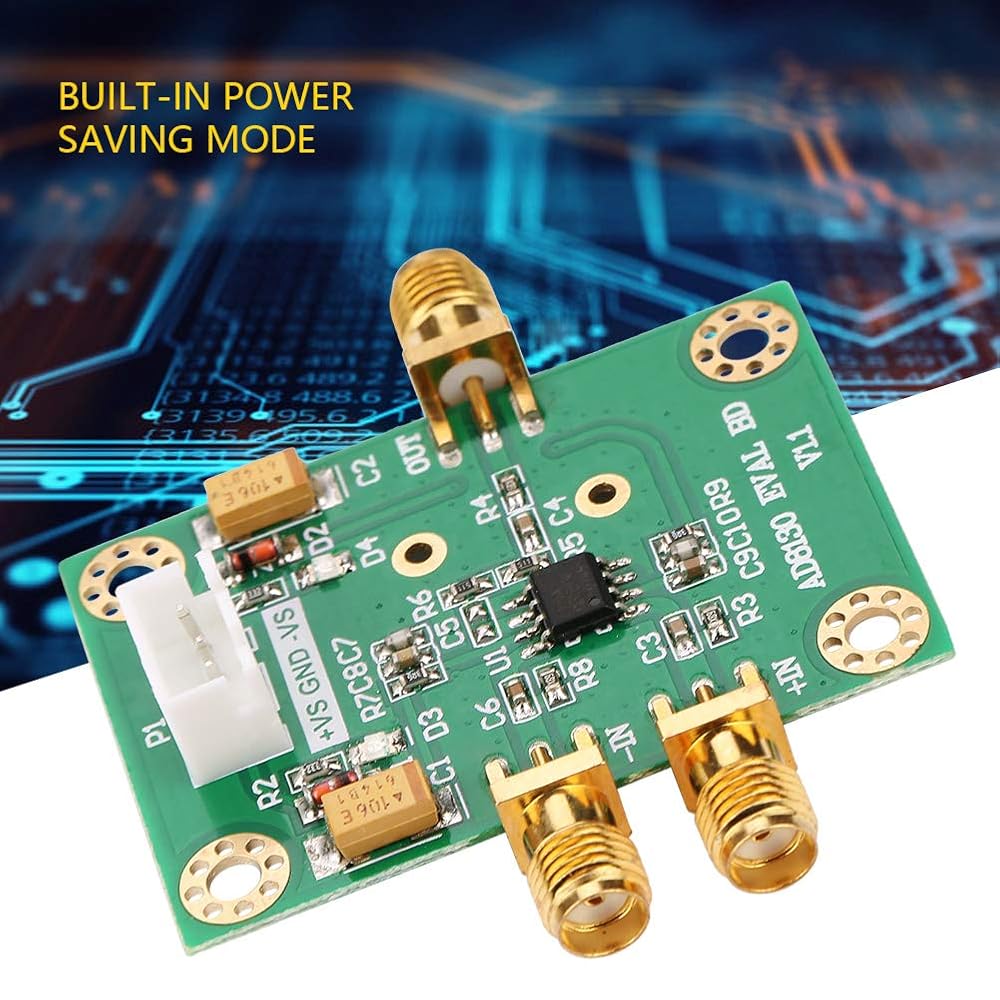

5. Built-in power saving mode.

Specification:
High Speed: 270MHz, 1090V/us (G=+1)
CMMR: 94dB(MIN, DC to 100kHz), 80d(MIN, 2MHz), 70dB(10MHz)
Input Impedance: 1MΩ difference
Noise: 12.5 nV/Hz
Common-Mode Input Range: ±10.5 V
Distortion, 1Vpp(5MHz): -79dBc(worst harmonic, 5MHz)
Gain: G = +1, no external components required
Power Supply: +4.5V - ±12.6 V
Weight: Approx. 12g

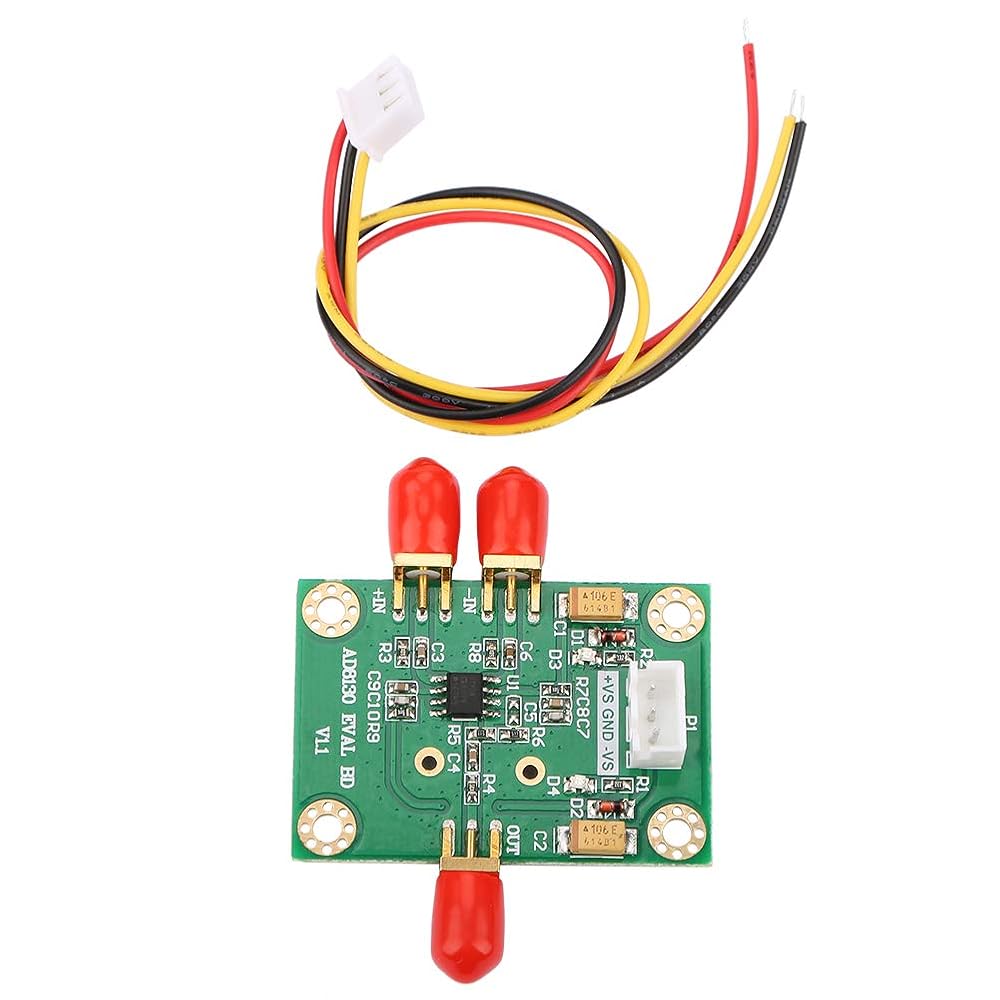

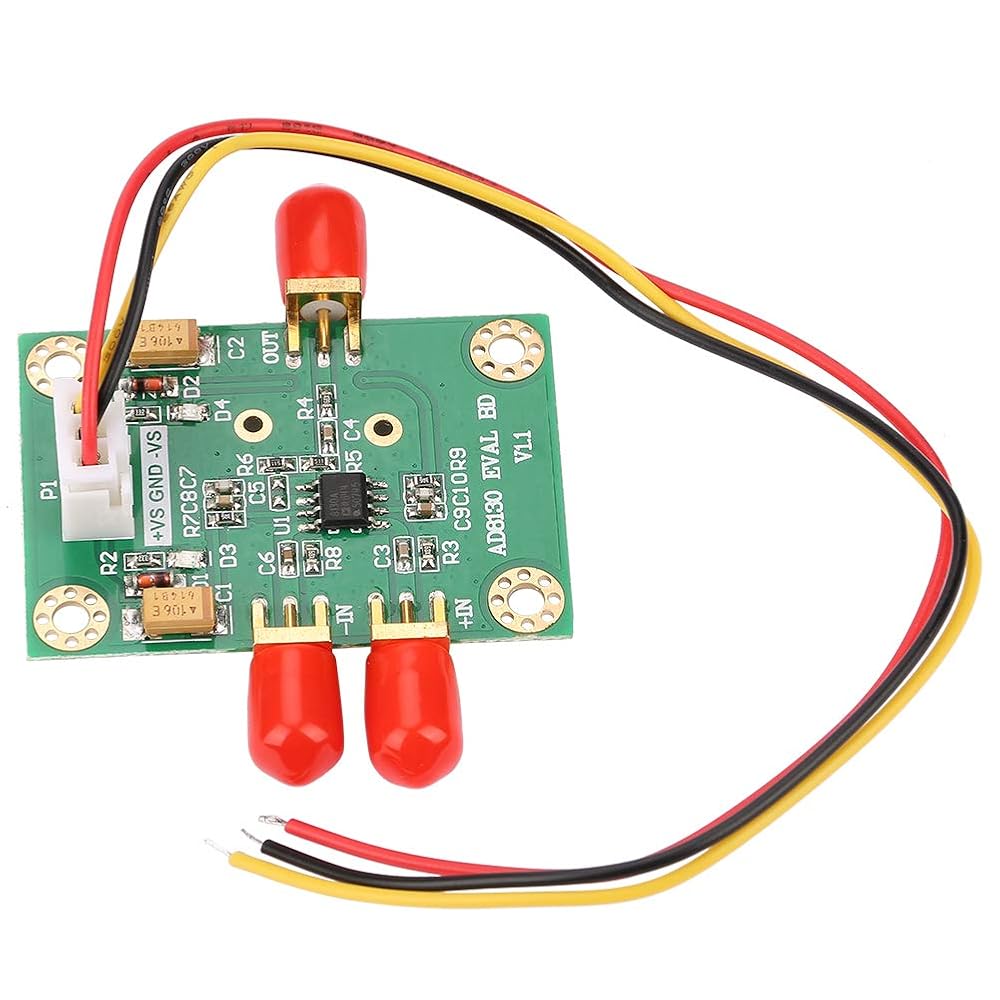

Package List:
1 * ADC Driver
1 * Cable
