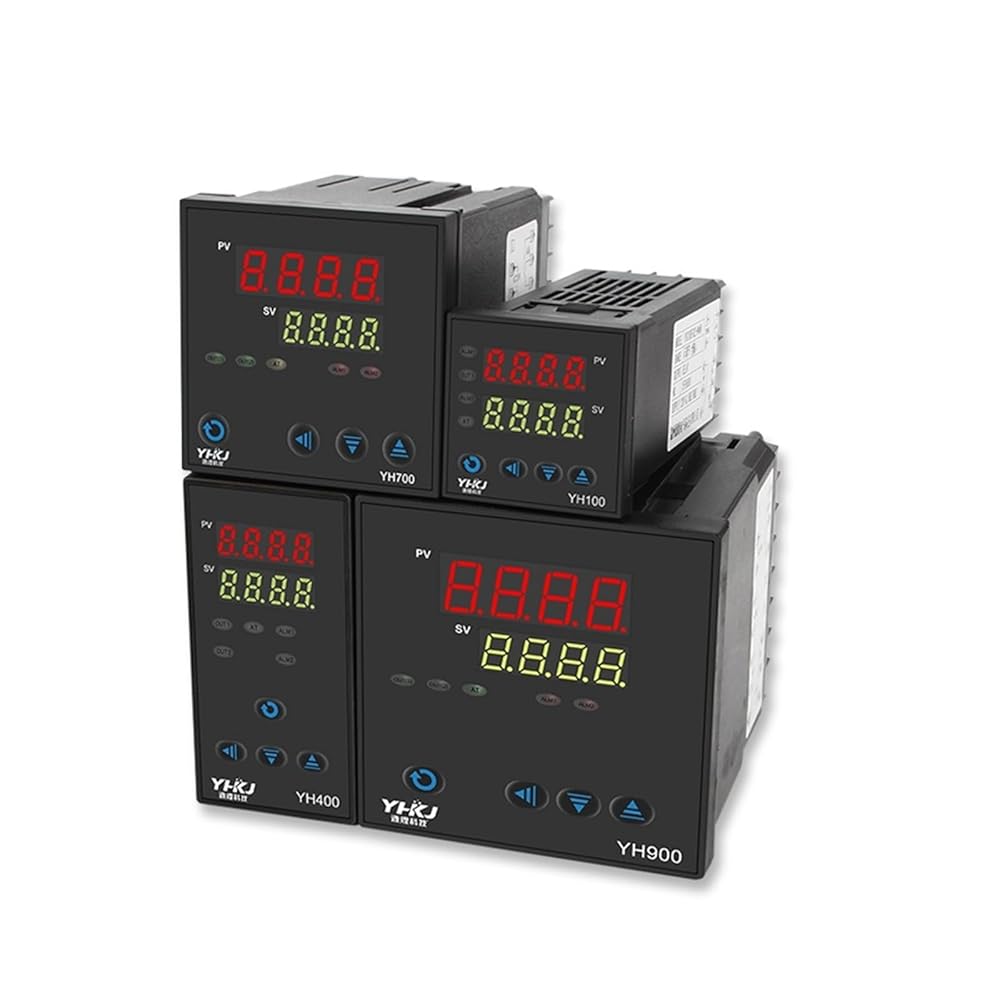

Model number andparameters
Model number
External dimensions
Perforation dimensions
YH-100
48x48x75 mm
450.50x450.50mm
YH-400
48x96x75mm
450.50x920.50mm
YH-700
72x72x75mm
680.50x680.50mm
YH-900
96x96x75mm
920.50x920.50mm
General
Model number
YH series
Accuracy
±0.5%FS±1°C
Supply voltage
220V 50/60HZ
Input types
Thermocouple: K, J, R, S, B, E, N, T, W5Re/W26Re, PLII
RTD: Pt100, JPt100
Voltage: 0-5V, 1-5V
Current: 0-20mA, 4-20mA
Output types
Electromagnetic relay + SSR
Power consumption
AC220V: under 10VA; AC24V: under 5VA; DC24V: under 160mA
Control method
PID, or ON/OFF
Setting method
Touch switch
Indication method
8-segment 4-digital display and LED indication
Alarms
1. Alarm quantity: Default is 1pcs, if 2pcs, need to be customized
2. Alarm form: N: No alarm
A: Deviation low
B: Deviation high
C: Deviation high/low
D: Band
E: Deviation high with hold action
F: Deviation low with hold action
G: Deviation high/low with hold action
H: Process high
J: Process low
K: Process high with hold action
L: Process low with hold action
Operating temperature
0 to 50 °C (32 to 122 °F)
Operating humidity
30-85% RH max, non-condensing
Alias name
CHB series pid temperature controller, intelligent temperature controller
==========
Included : No
High-concerned chemical : None
Type : K
Theory : Temperature Controller
Display Type : DIGITAL
Power Type : None
Certification : CE
Model Number : YH100
Origin : Mainland China
Max Measuring Temperature : 120°C & Above
Style : Standing and Wall Hanging
Use : Industrial
