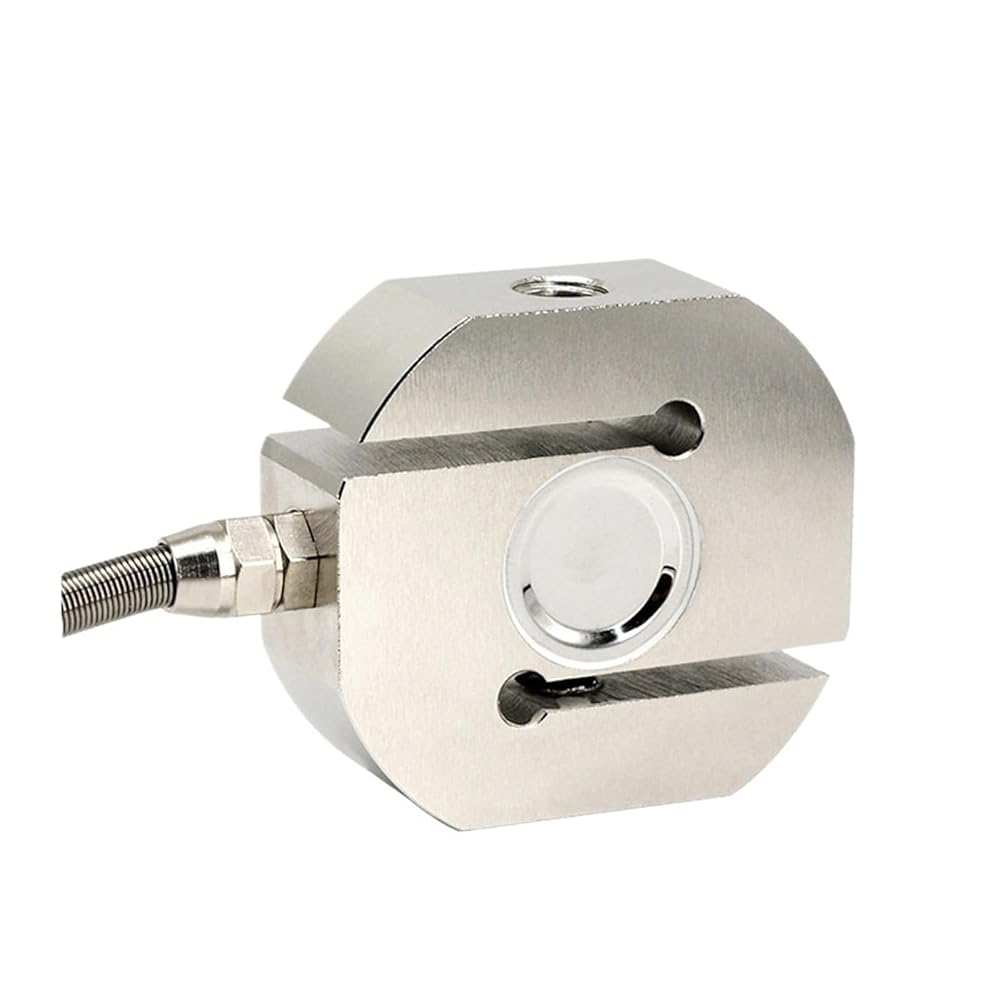

S-Type Load Cell Pull Tension and Compression Pressure Transducer for Electronic Weighing Hook/Batching Scales High Sensitivity(0-50KG) in Kuwait

Silver 0-5KG

KWD 25.500
Brand
YHMMYSHX
ColorSilver
Size0-5KG
– 1 +

Special Features

  • 1. The S-type Load Cell provides exceptional accuracy with a rated load range of 5kg to 500kg
  • 2. Constructed from alloy steel and stainless steel, this S-type Load Cell is designed to withstand harsh environments
  • 3. With a working temperature range of -20°C to +70°C, the S-type Load Cell maintains precise measurements under different conditions
  • 4. This Load Cell boasts an output sensitivity of 2.0±0.05 mV/V and minimal non-linearity of ±0.03~±0.05 %F S
  • 5. The S-type Load Cell is equipped with IP65/IP66 protection class, ensuring its reliability against dust and water ingress

Description

Specifications:
Rated load : 5kg~500kg
Output sensitivity : 2.0±0.05 mV/V
Non-linearity : ±0.03~±0.05 %F S
Lag error : ±0.03 %F S
Repeatability : ±0.03 %F S
Creep : ±0.03 %F S
Zero temperature coefficient : ±0.05 %F S/10
Sensitivity temperature coefficient : ±0.05 %F S/10
Input resistance : 380±30,350±5
Working temperature : -20~+70
Safe overload : 150 %F S
Insulation resistance : 2000M
Incentive voltage : 5V~12V
Protection class : IP65 IP66
Material : Alloy steel,stainless steel
Cable : 5x3M
