12V Heavy Duty Linear Actuator - 6 Inch Stroke, 660lbs/3000N, 0.2"/s Speed, IP65 Waterproof with Mounting Brackets, for Cabinet, Window/Door Opener, Solar Tracker, Marine & RV Equipment

KWD 21.500
Brand
JQDML
Weight
1.3 kg
– 1 +

Special Features

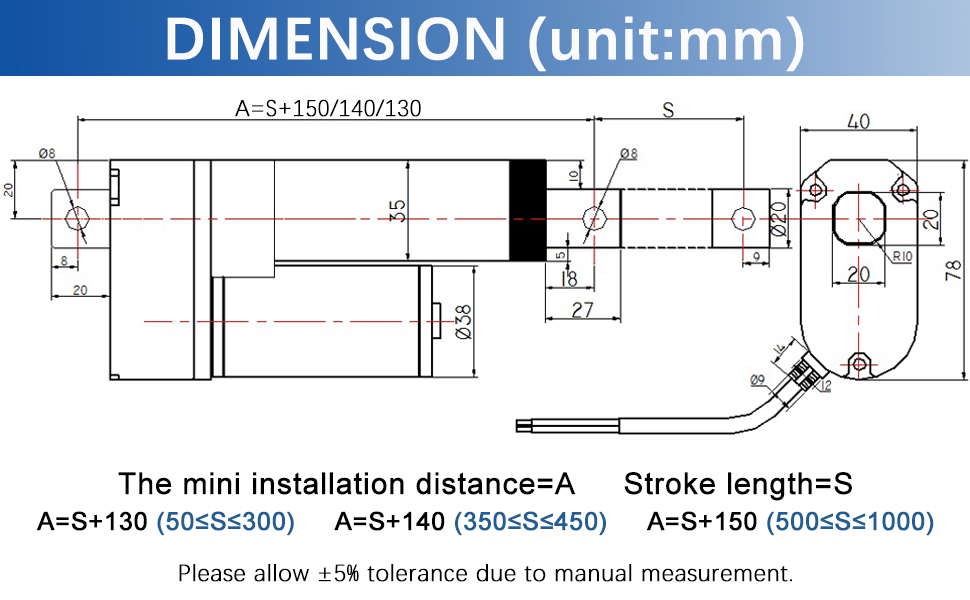

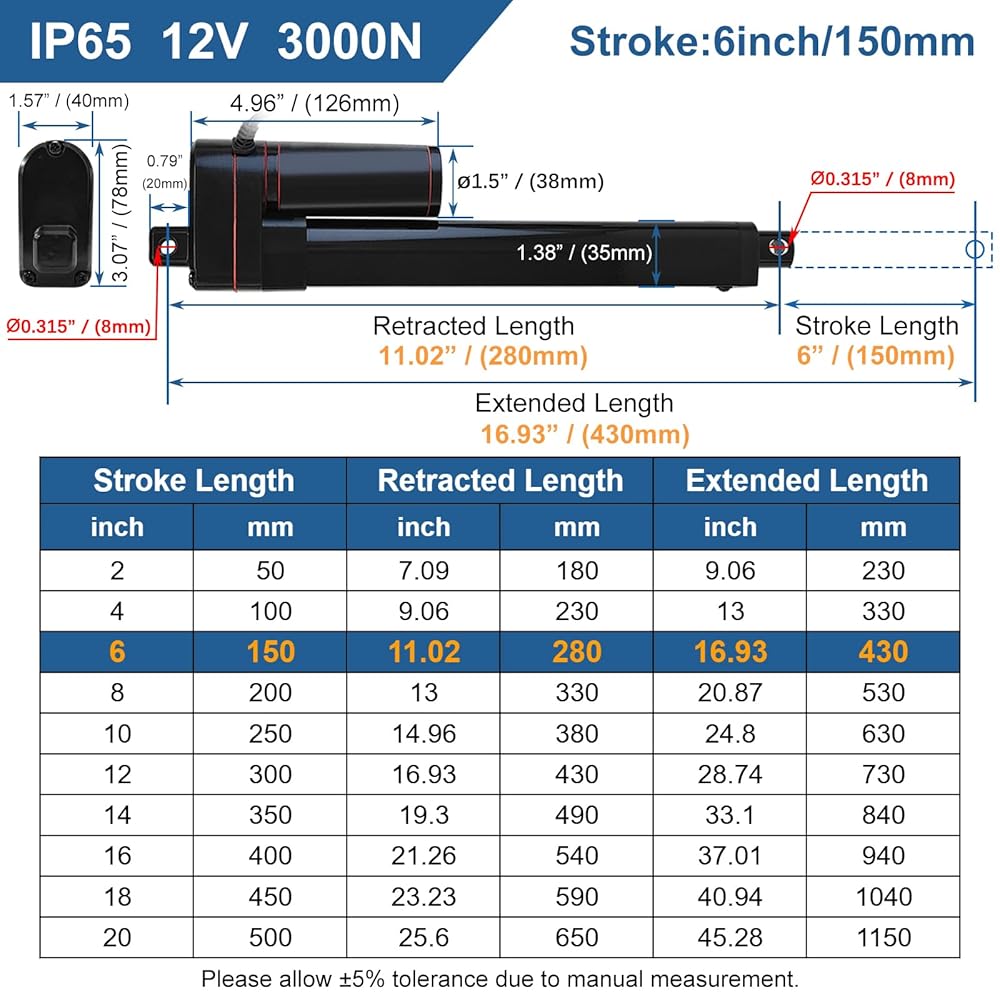

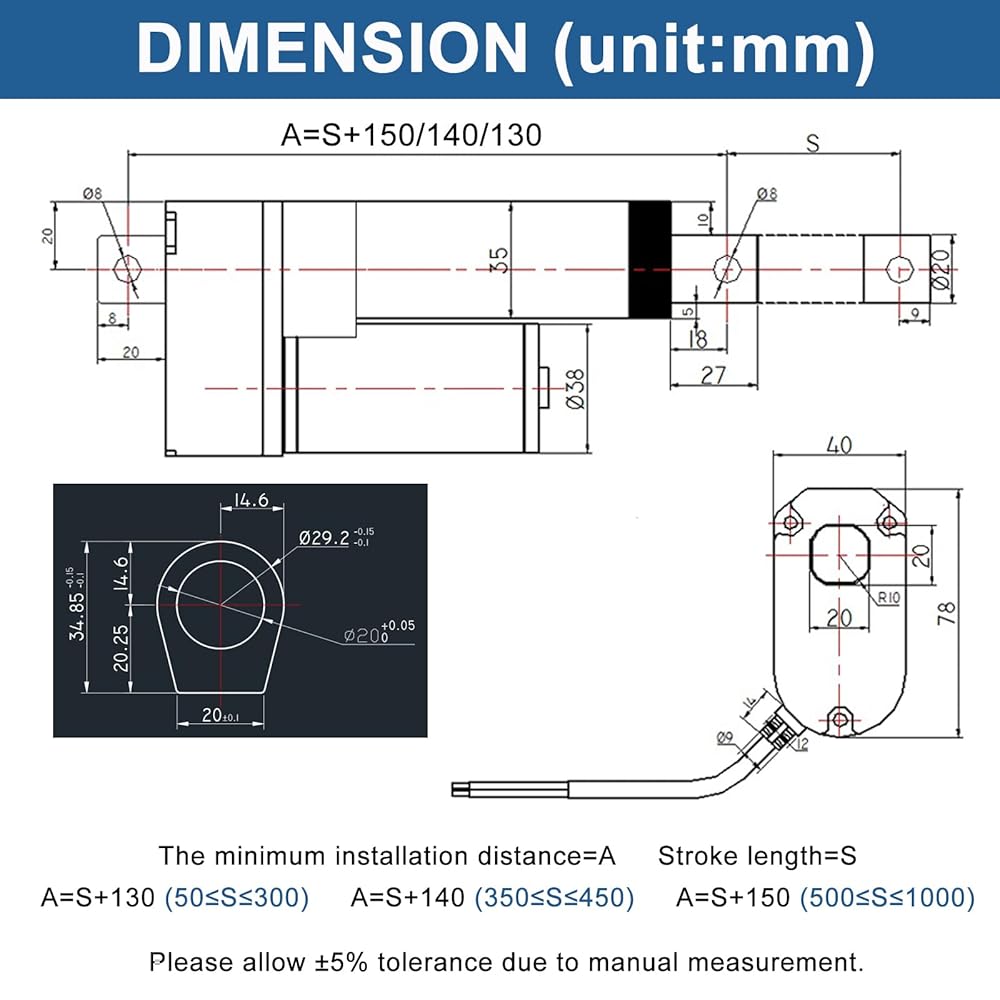

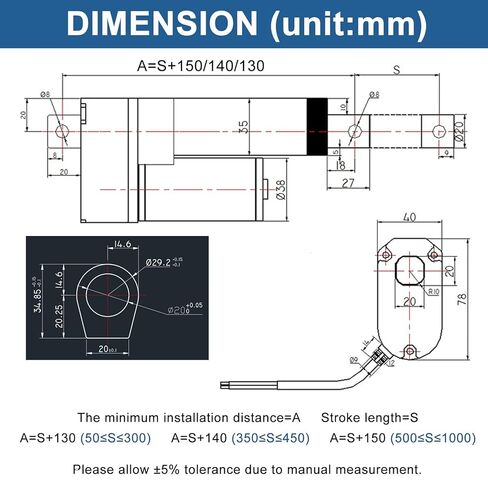

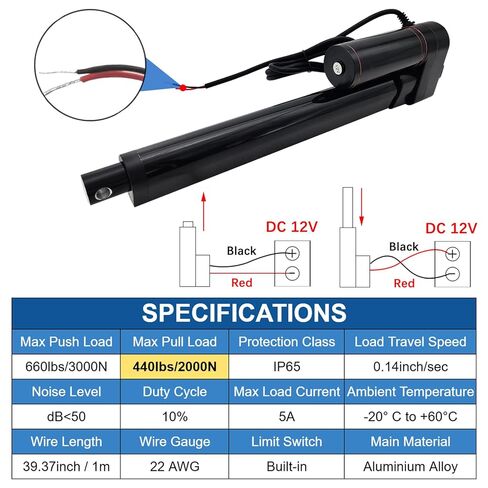

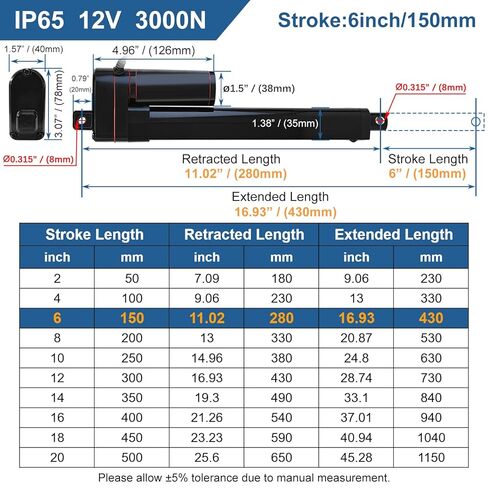

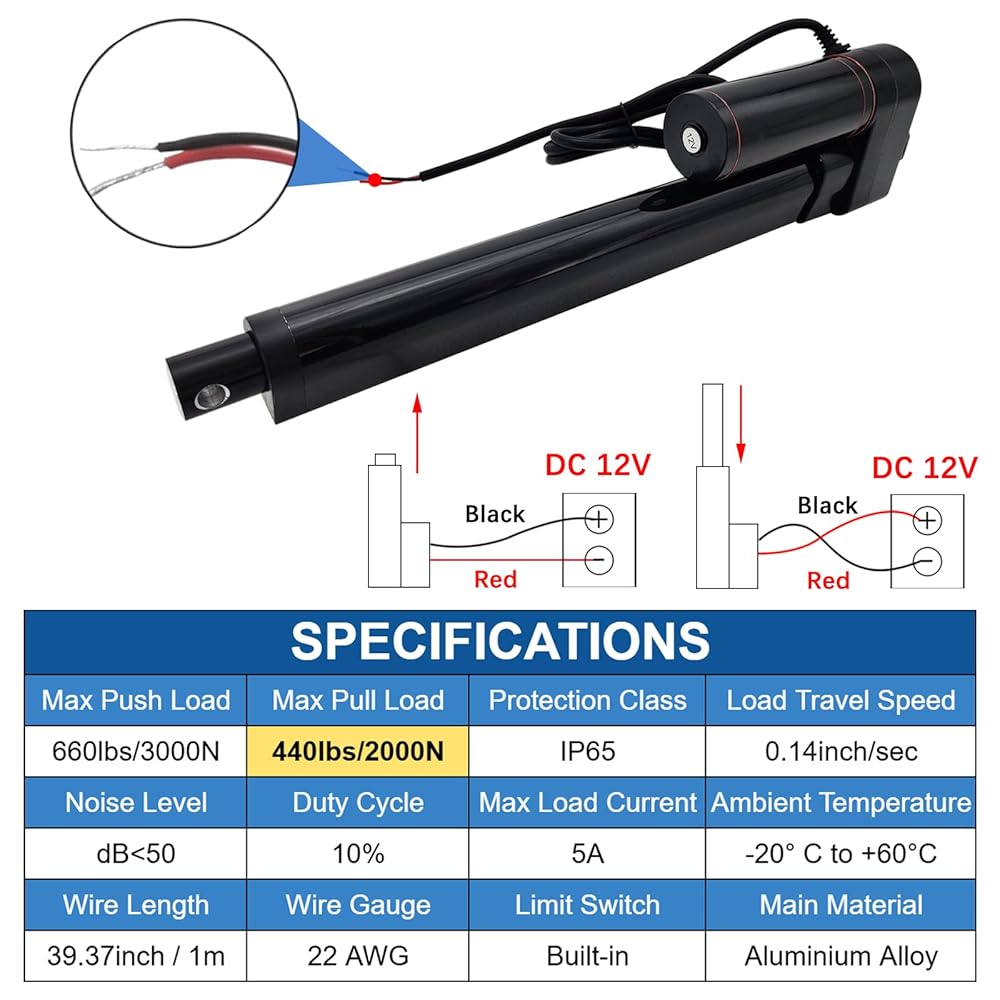

  • Specification：Voltage:12V DC; Stroke Length:6"(150mm), Retracted length: 11.02"(280mm), Extended Length:16.93"(430mm); No load speed: 0.2 "/sec (5mm/s), Maximum Load:660lbs(3000N); Maximum current draw:5A; Duty Cycle:10%, Working power should reach 40W-50W

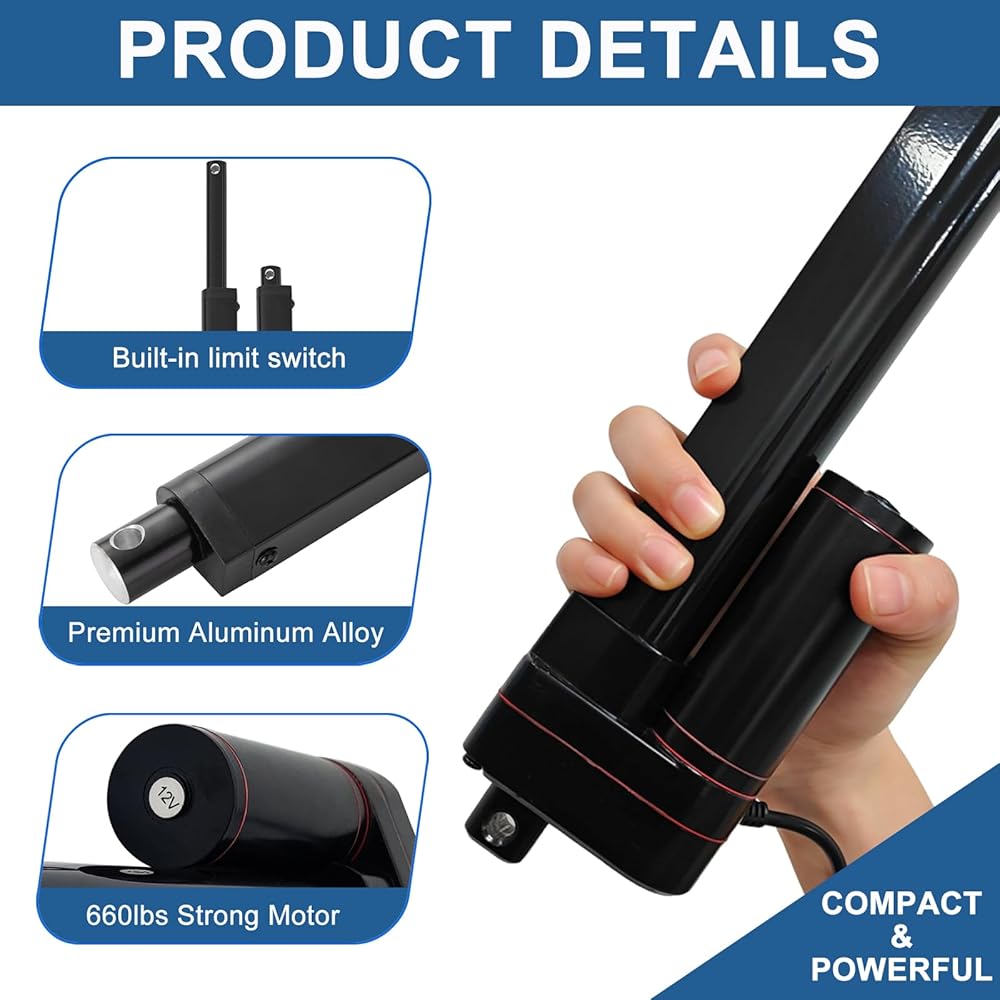

  • Durable & Robust Material：Crafted from high-quality aluminum alloy, this linear actuator with corrosion resistance,heat dissipation and high hardness,it can extend the service life,and the black powder-coated surface of the actuator can enhance corrosion resistance
  • Powerful & Long-Lasting Upgraded Motor：JQDML linear motion actuator with high-performance motor provides 660 lbs max thrust & 440 lbs max pull, ideal for heavy-duty use.Built-in screws ensure strong rustproof & waterproof performance, while reducing exposed fasteners and lowering maintenance difficulty

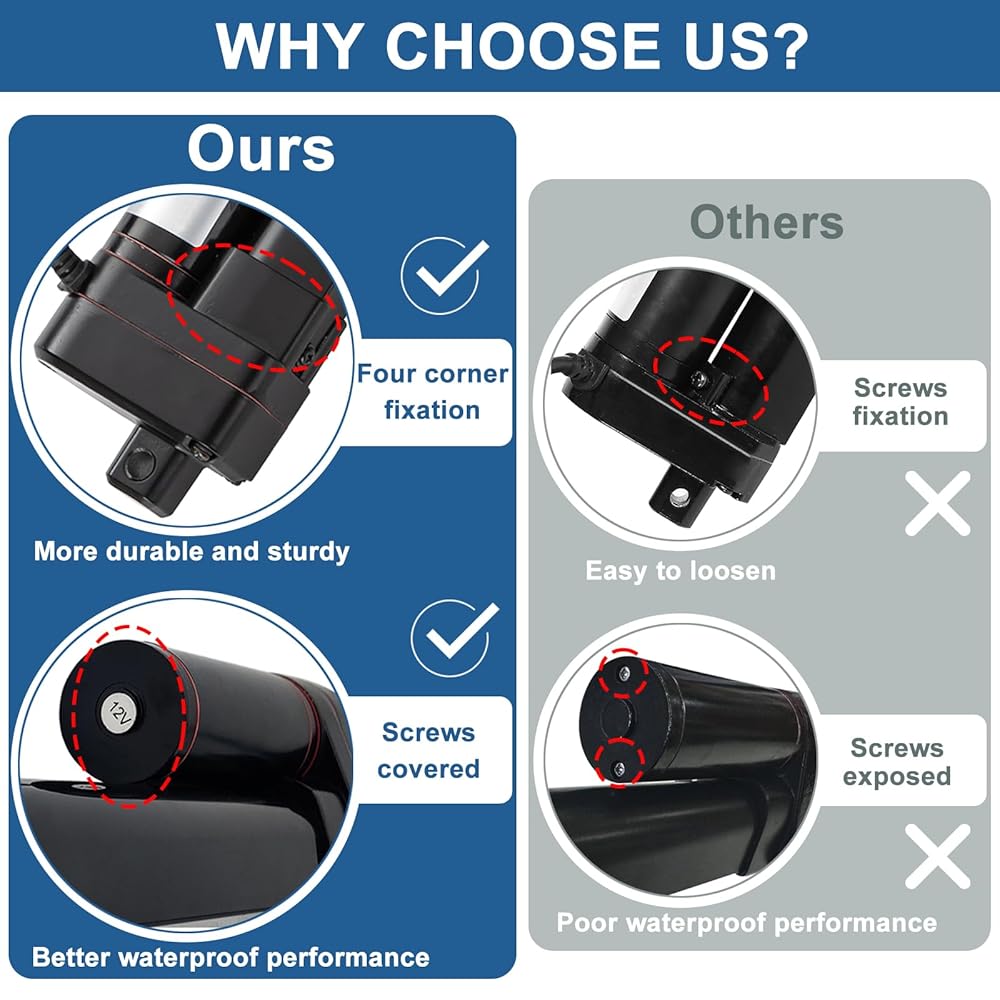

  • Quiet Operation & Stable Base Design：Low-noise design (≤50dB),with a premium plastic turbine that resists oxidation, extends service life, and ensures quiet movement.Upgraded four-corner fixed base, which resists loosening and breakage, enhances stability and ensures operational safety

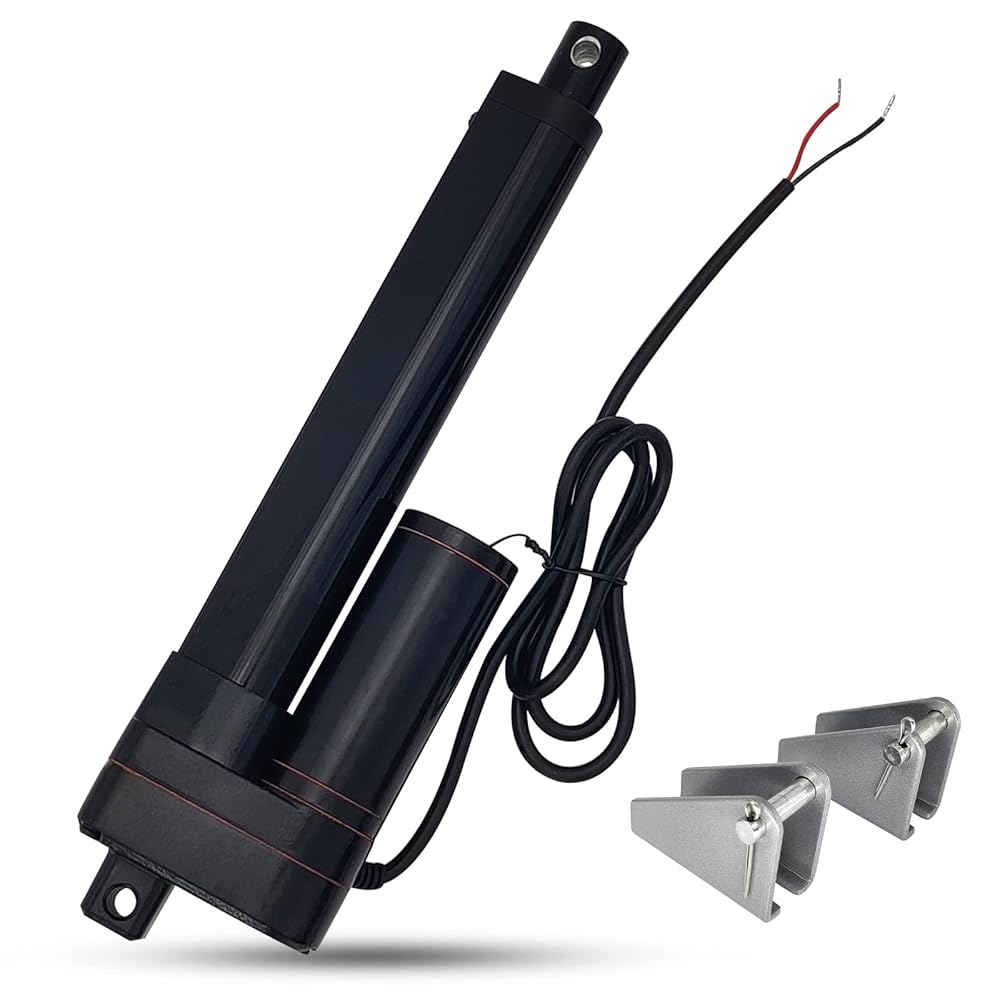

  • Reliable Operation & Easy to Install：Equipped with a limit switch,it can automatically stop the motor when reaching both ends, and its strong self-locking function allows it to stay in any position,preventing motor burnout and load slipping.The linear actuator comes with mounting brackets for quick, easy assembly. Suggestion: You can use a remote control and 12V 5A adapter (not included) for more convenient control
  • IP65 Waterproof Rating & Multi-Scene Applications：With an IP65 waterproof rating, this actuator is suitable for indoor & outdoor use, withstands dusty environments, splashing water, and lightly humidity (Note:Please take appropriate protective measures for long-term outdoor use). Ideal for industrial electric lifting systems, door openers, electric beds, sofas, sunroofs, solar trackers, and various marine and RV equipment
