SPECIFICATION
Model: 2C53P

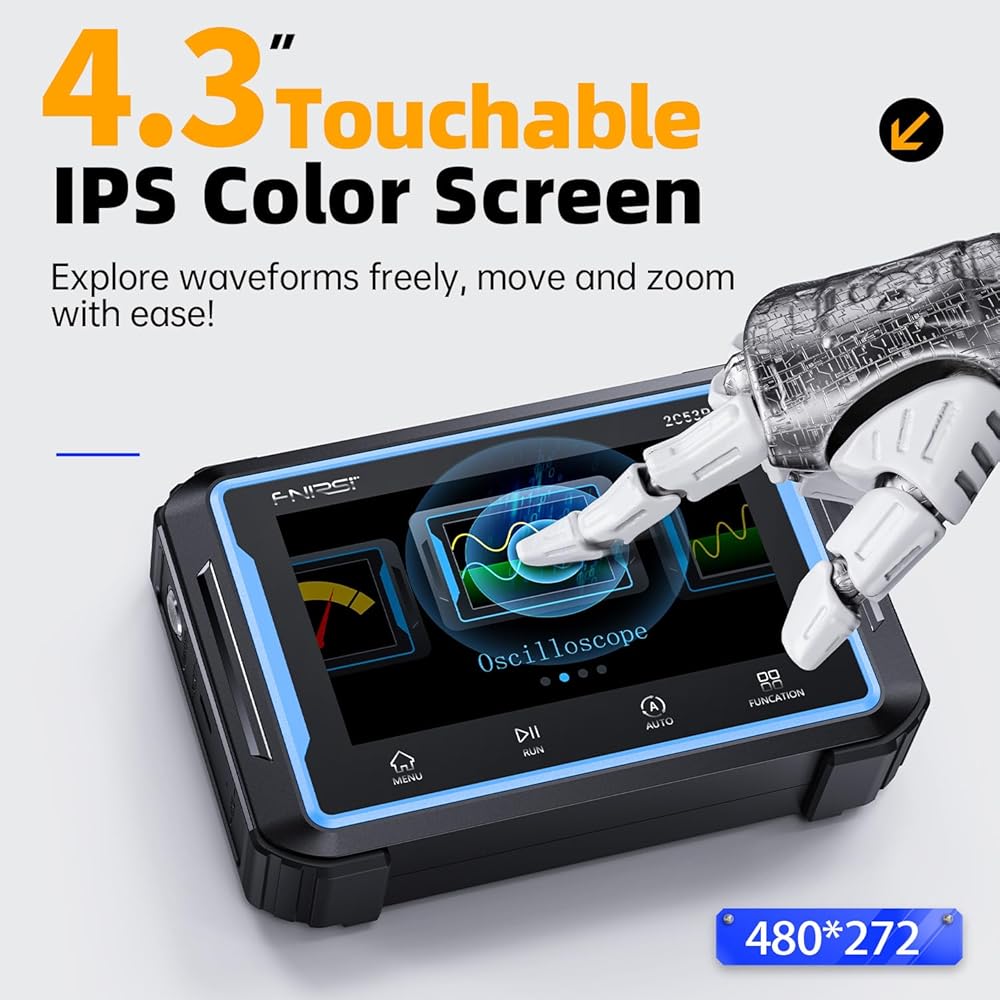

Display: 4.3 inch, 480*272 pixels, adjustable backlight brightness
Power supply: built-in 4000mAh lithium battery
Language: EN, ES, PT, DE, ZH, RU, JP, KR
Dimensions: 5.71 x 3.86 x 1.38 inches
Net weight: 0.79 lb.

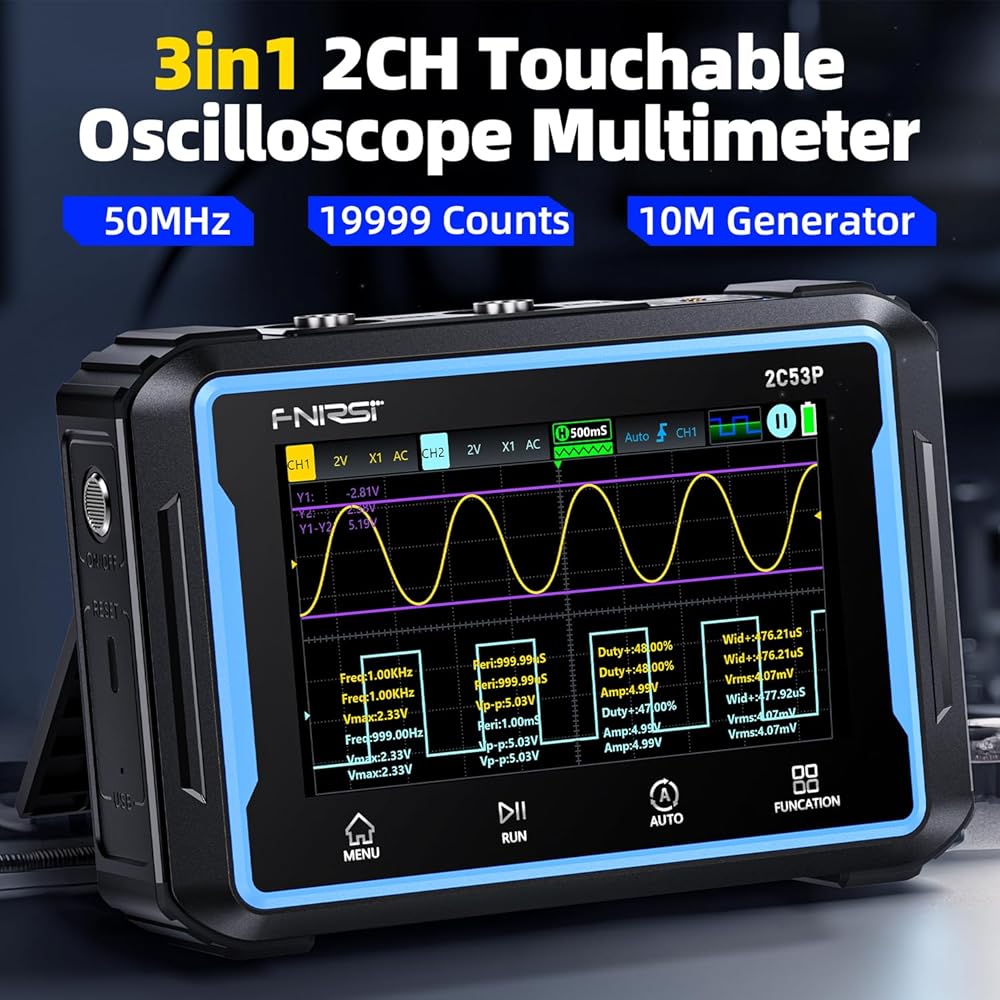

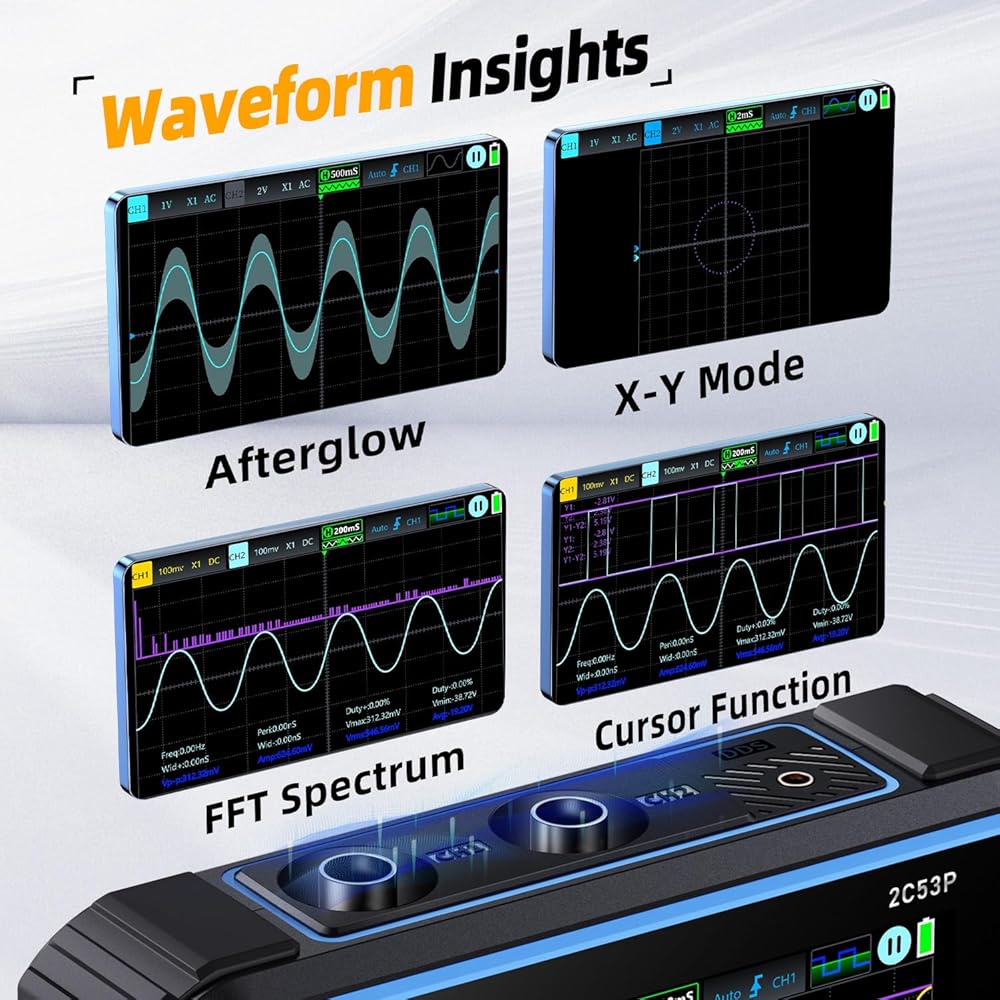

Oscilloscope
Channel: Dual channel
Analog bandwidth: 50MHz
Real-time sample rate: 250MSa/s
Storage depth: Up to 64kByte
Input impedance: 1MΩ
Time base range: 10ns/div - 10s/div
Vertical sensitivity: 10mv/div - 10v/div
Vertical resolution: 8 bits
Maximum measured voltage: ±400V
Probe: 1x/10x
Storage space: 13M

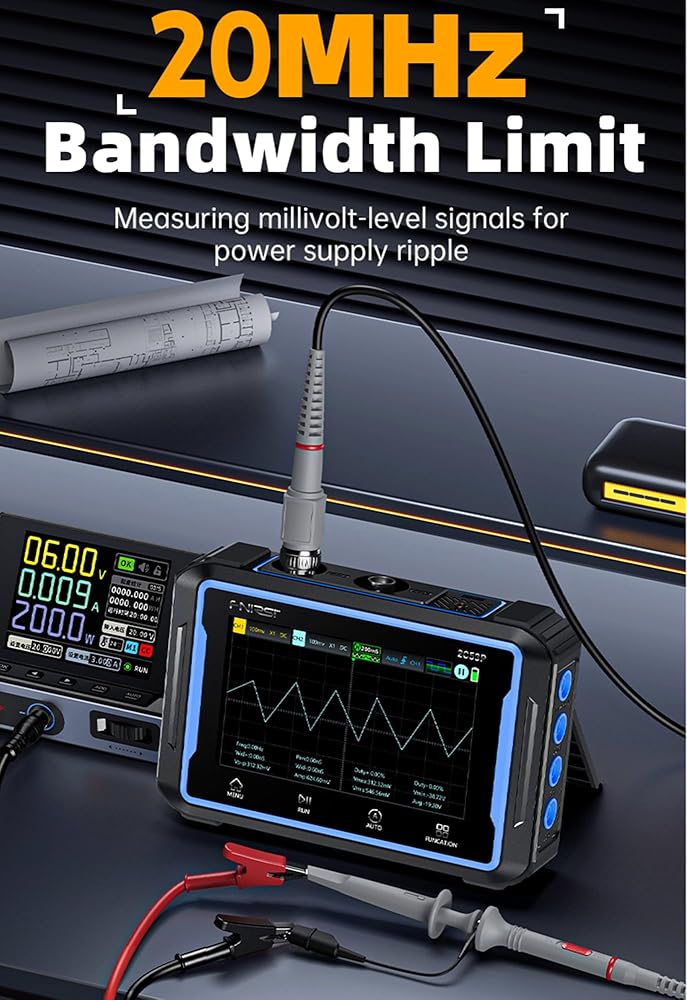

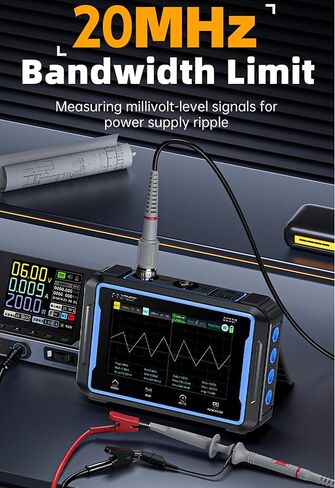

Bandwidth limit: Support 20MHz limit
Signal Generator
Channel: single channel
Frequency: 0-10MHz（Sine wave: 10MHz, other waveforms 5MHz）
Amplitude: 0.1V-3.0V
Square wave duty cycle: 0-100%

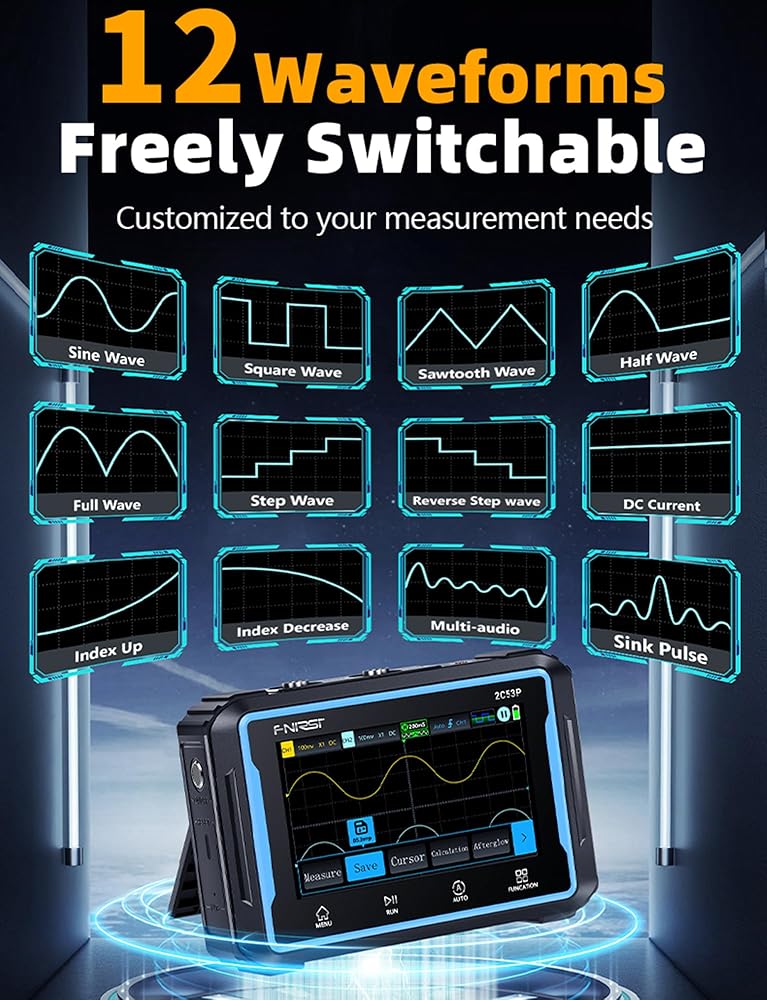

Signal type: sinusoidal wave, square wave, sawtooth wave, half wave, full wave, positive step wave, negative step wave, DC signal, exponential rise, exponential fall, multi-audio, and sync pulse

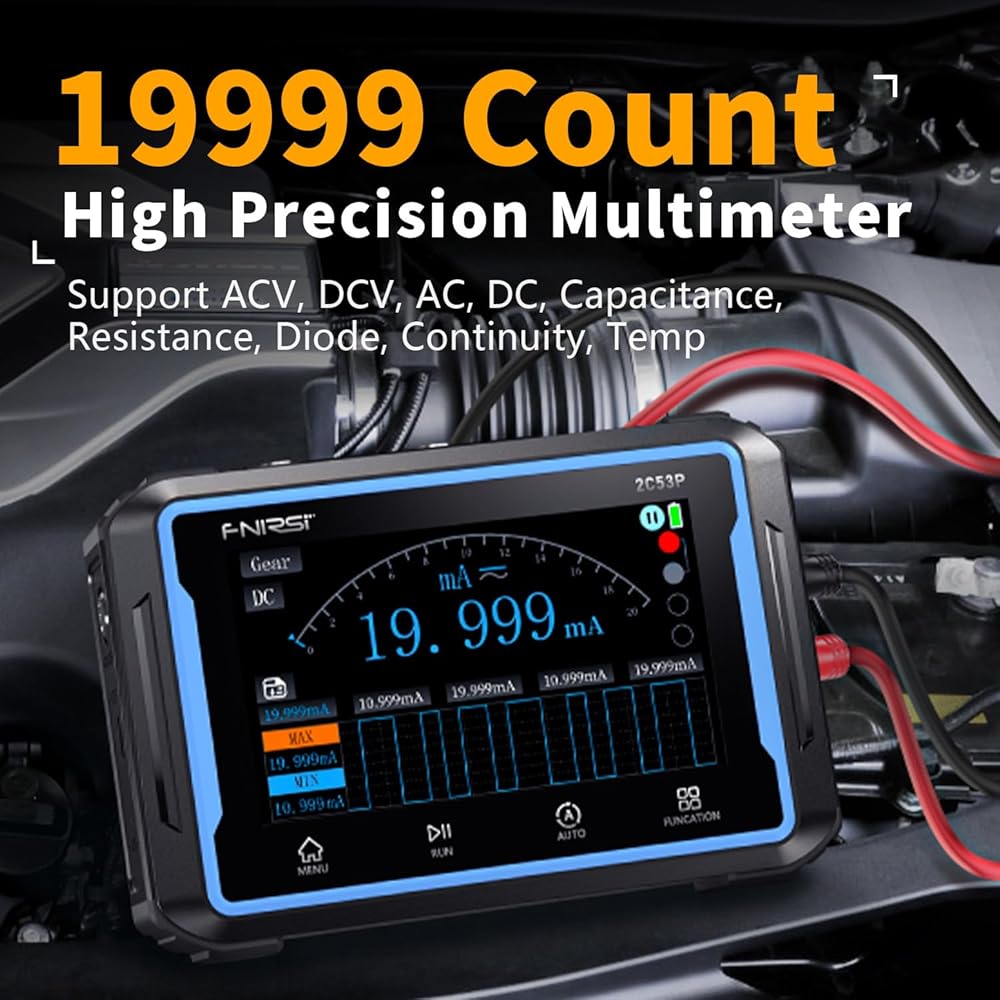

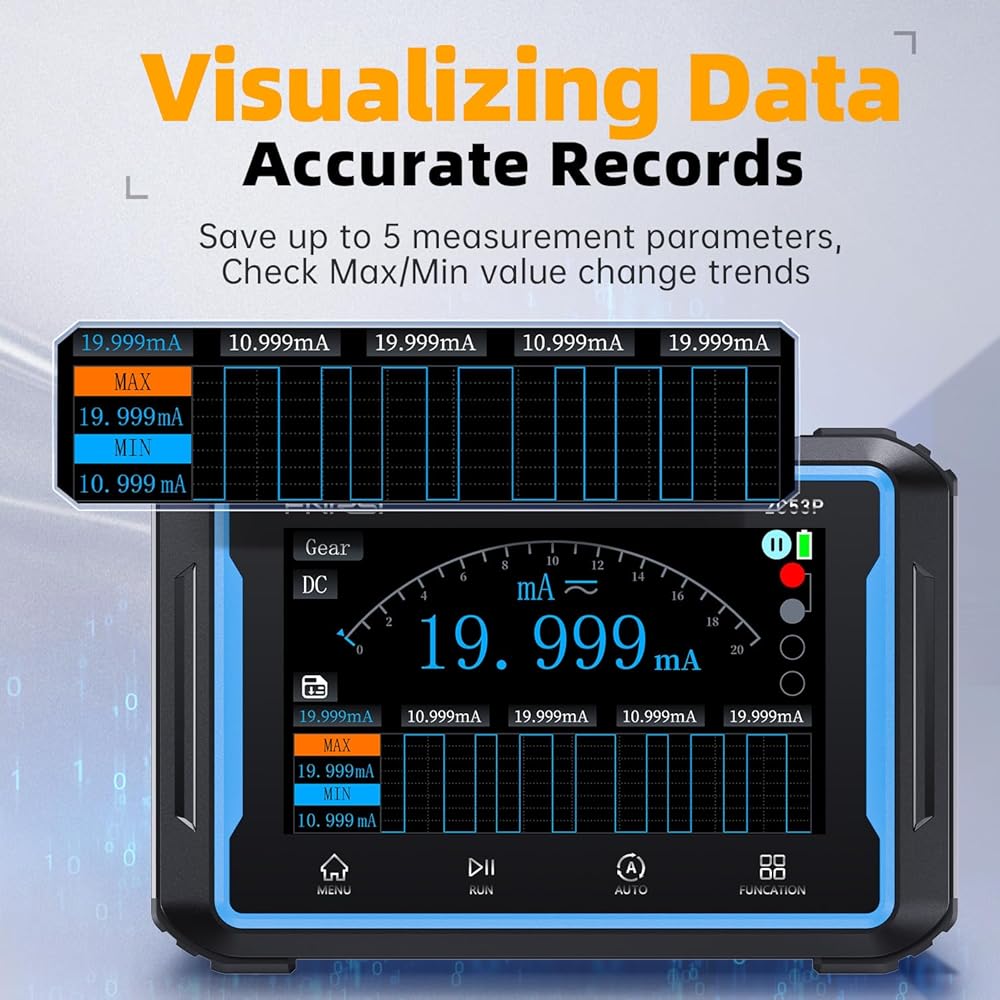

Multimeter
DC Voltage: 1.9999V/19.999V/199.99V/1000.0V
AC voltage: 1.9999V/19.999V/199.99V/750.0V
DC current: 19.999mA/199.99mA/1.9999A/9.999A
AC current: 19.999mA/199.99mA/1.9999A/9.999A
Resistance: 19.999MΩ/1.9999MΩ/199.99KΩ/19.999KΩ/1.9999KΩ/199.99Ω
Capacitance: 999.9uF/99.99uF/9.999uF/999.9nF/99.99nF/9.999nF/9.999mF/99.99mF
Temperature: -55~1300℃ (-67~2372℉)
Diode: Yes
Continuity test: Yes

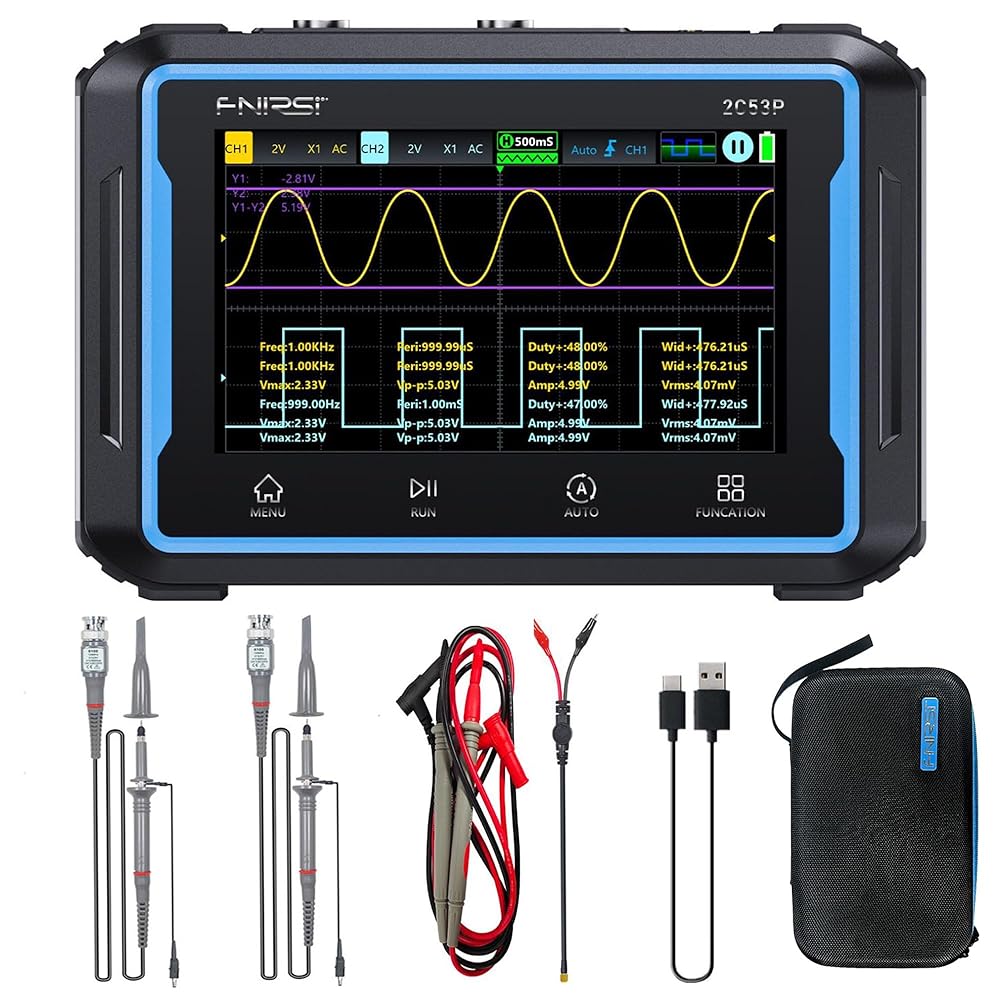

PACKAGE
1 x 3 in 1 Oscilloscope, Multimeter, DDS Signal Generator
2 x P6100 Probe
1 x Multimeter Probe
1 x Alligator Clips
1 x Data Cable
1 x Storage Case
1 x Manual
