Straight Fittings

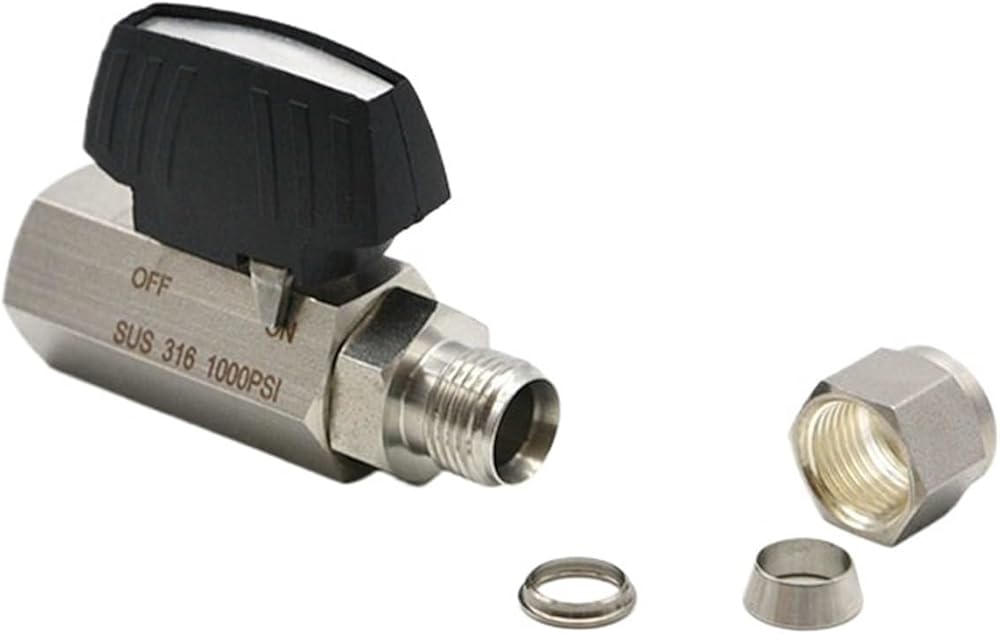

1 Pc BVJ - OD / F Middle And Low Pressure 1/4 3/8 1/2 Throttle Valve 1000 Psi Stainless Steel Ball Valve Stop Valve
Group
BVJ = Middle And Low Pressure Ball Valve
Termination Aperture Type
02=1/4" , 03=3/8" , 04=1/2" , 06=3/4" , 08 = 1"
6 = 6mm , 8 = 8mm , 10 = 10mm , 12 = 12mm
End Connection Type
OD = Tube End Type
F = ( Inlet ) Female
M = ( Inlet ) Male
Handle : Nylon
Bracket : SS304
Mandrel : SS316
Nut : 304
Washer : 304
Gland Bush : DELRIN
Gland Bush : DELRIN
Gland Bush : PTFE
Gland Bush : PTFE
Ball Core : 316
Side Lining : PTFE
Obturating Ring : FKM/FPM
Fitting Body : SS316
Capping : SS316
Tube End : SS316
: SS316
==========
High-concerned chemical : None
Structure : Ball
Port Size : 1/4 , 3/8 , 1/2
Media : Oil,Air,Water,Corrosive Medium
Material : Stainless steel
Temperature of Media : Normal Temperature
Power : Manual
Standard or Nonstandard : Standard
Pressure : Medium Pressure
Model Number : BVJ - OD / F
Pressure : 1000 Psi
Material : SS316L
Name : Stainless Steel Ball Valve
F : Female thread
OD : Tube O.D.
