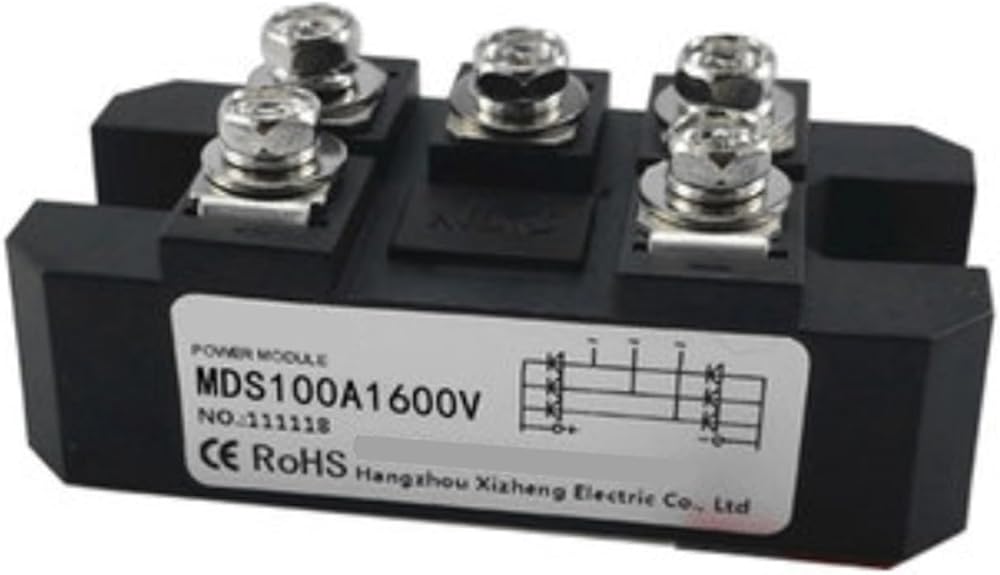

1PCS MDS100A Three phase rectifier bridge 12V 24V 36V 48V 60V 110V 200V Special for electric vehicle range extenders
Recommended for applications below 200V
Recommended for applications below 200V
Recommended for applications below 200V
reminder
1. About product selection
The marked current of the power module is the average value of the on state, not the actual effective value of long-term operation. When selecting, sufficient margin should be left based on the actual working environment and conditions.
(1) Pure resistive load 2-2.5 times margin: actual current (A) × 2 (~2.5)=Module nominal current (A) (2) Inductive load 6-7 Signal margin: Actual current (A) × 6 (~7)=Module nominal current (A)
2. Radiator configuration
When the actual working current of the device is greater than 5A, please be sure to configure a suitable heat sink for use
