Special Features

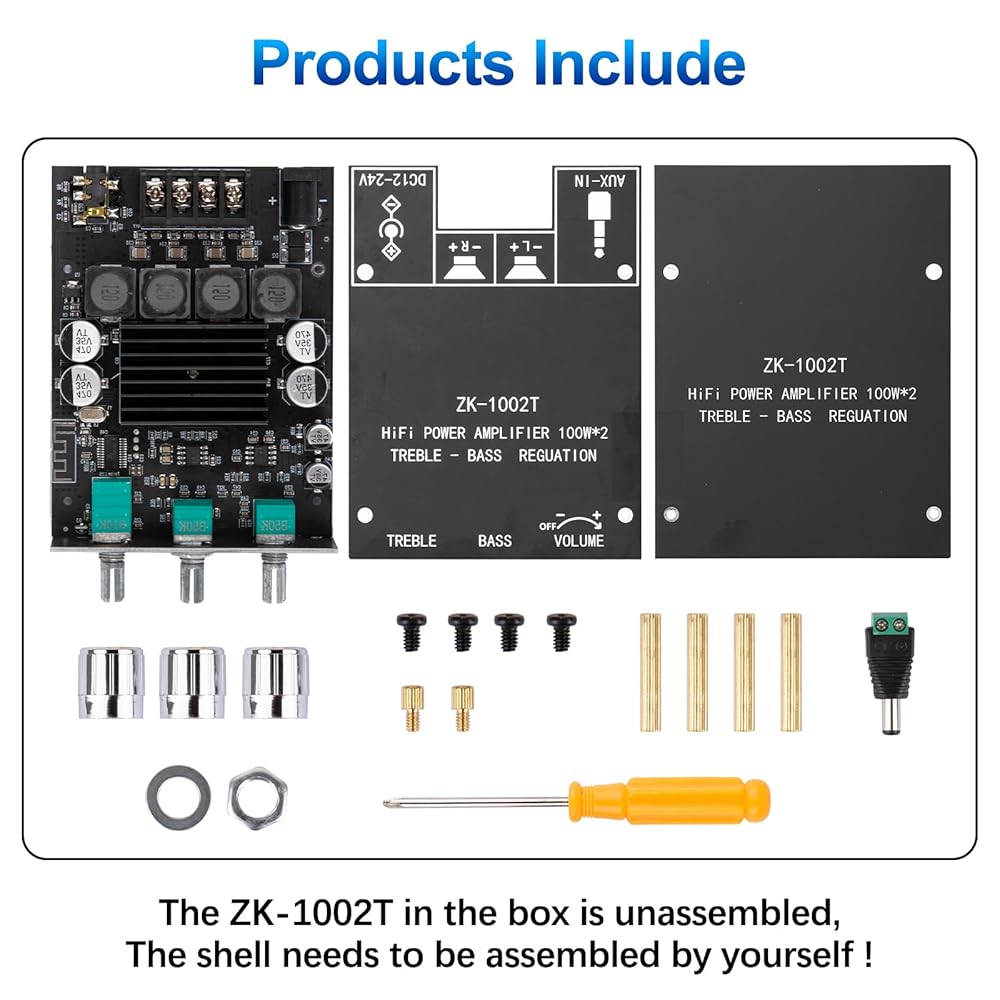

【Mini Powerful】 This subwoofer audio amplifier board outputs 100W+100W power, features Bluetooth 5.0 wireless connectivity, Bluetooth + AUX audio input, and 2.0 dual-channel stereo output. It includes a built-in low-noise amplifier and shielding interference for excellent sound quality. Compatible power supply: DC12~24V/5A or above, compatible speakers: 20~200W/4~8Ω. Note: The audio amplifier board kit requires self-assembly.
【Treble and Bass Control】 Equipped with independent treble and bass adjustment knobs, allowing direct adjustment of treble and bass through the module without using a player or speaker. This is perfect for DIY devices that are low in volume or cannot adjust treble and bass. If you're tired of fixed treble and bass levels, why not try the treble and bass control knobs!

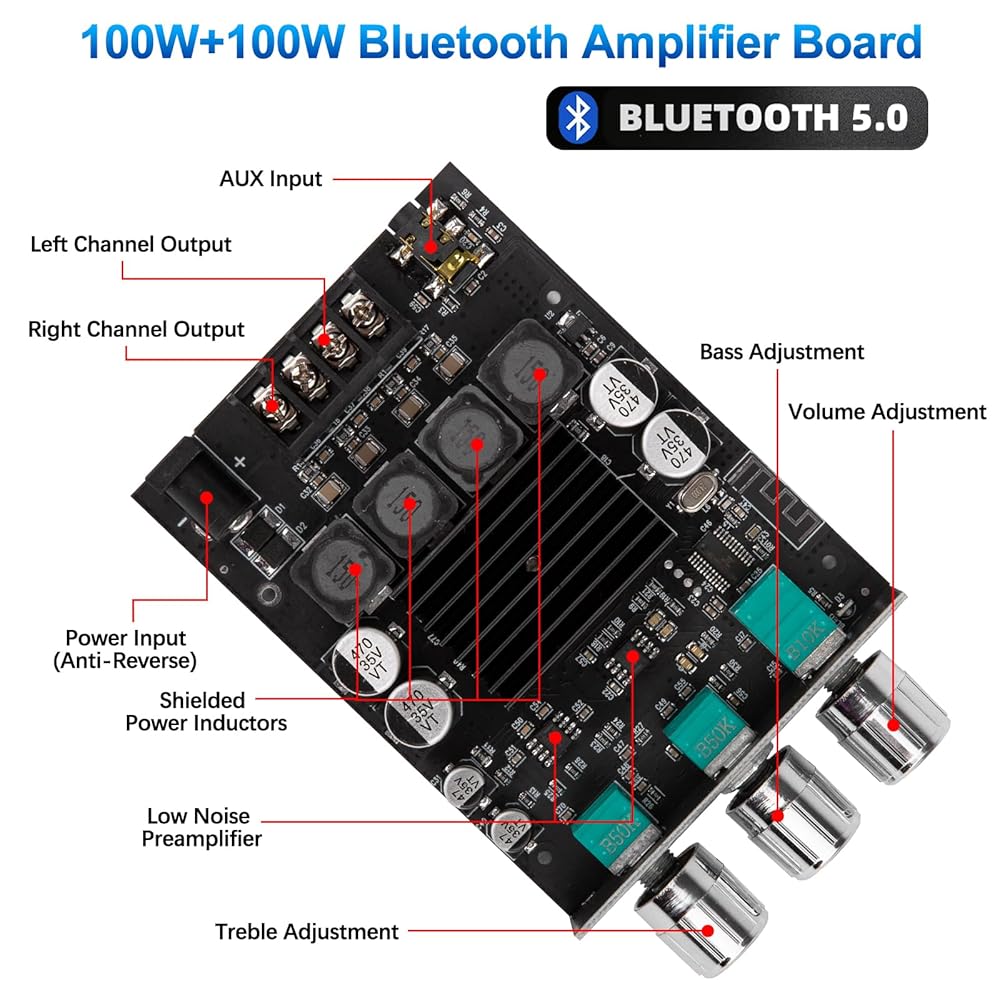

【Hi-Fi】 The audio power amplifier board uses the TPA3116D2 chip and has AM interference suppression capabilities, with a signal-to-noise ratio of >90 dB. It features a built-in shielded power inductor and low-noise front-end op-amp for superior sound quality. The left and right dual-channel stereo output lets you enjoy high-quality audio experiences.

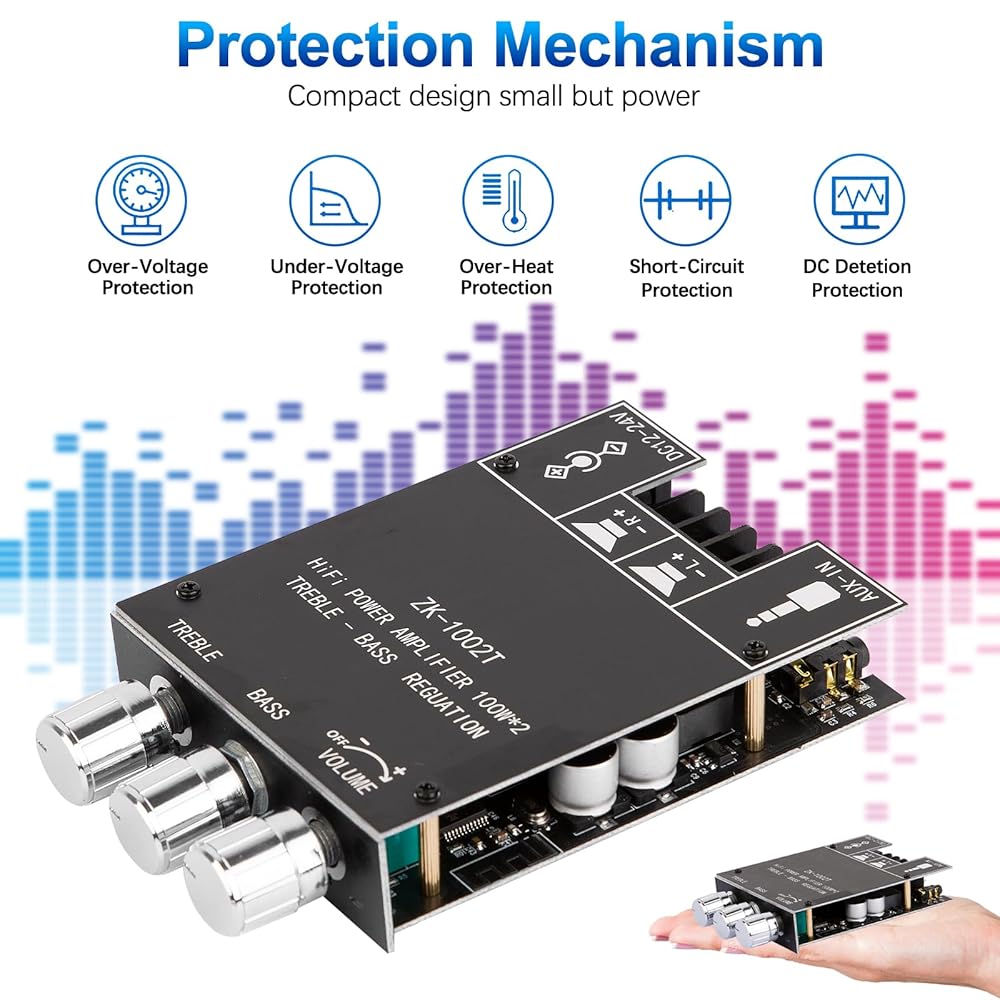

【Safety Protection】 This Bluetooth amplifier module is designed with over-voltage, under-voltage, over-temperature, DC detection, and short-circuit protection to ensure safe and stable operation. The module comes with a heat sink, preventing overheating during continuous output.
【BT and AUX Input】 Supports both AUX input and Bluetooth 5.0 as input methods for convenient connections with various devices. Bluetooth 5.0 offers longer wireless transmission distances, reaching up to 32 feet (about 10 meters) in open environments. It's compact and portable, easy to set up—ideal for DIY speaker players. Note: When using AUX mode, please ensure that the Bluetooth connection of this module is disconnected.

Description

Product parameters
Product Name :100W*2 Bluetooth Audio Power Amplifier Module
Product Model :ZK-1002T
Bluetooth version :5.0(Unobstructed,10 meters
Signal-to-noise ratio: >90 dB
Input method :AUX+ Bluetooth
Number of channels: Left and right dual channels (stereo)
Power amplifier chip :TPA3116(with AM interference suppression function)
Protection mechanisms: overvoltage, undervoltage, overheating, DC detection, short-circuit protection
Compatible power supply :DC12-24V/5A or above (the higher the voltage, the greater the output power)
Compatible speakers :20-200W/4-8Ω
Output power
40W @12V,8Ω
60W @19V,8Ω
60W @24V,8Ω
60W @12V,4Ω
80W @19V,4Ω
100W @24V,4Ω
Note: Only when the audio input is sufficient and the power supply voltage/current is adequate can there be sufficient output power!!
The higher the power supply voltage, the greater the output power; the smaller the speaker impedance, the greater the output power!!
Please ensure that the power of the power supply is greater than the actual working power of the power amplifier!!

Product dimensions :11cm*7cm*2.1cm(4.3*2.7*0.8 inches)
Product weight :175g(including packaging)
