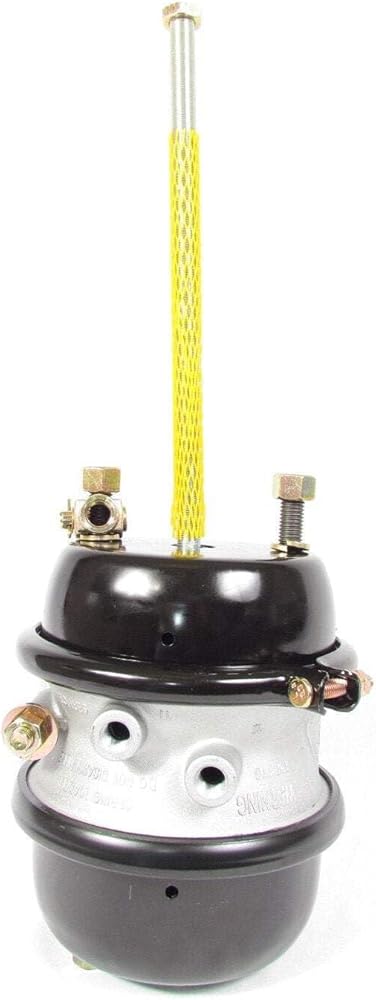

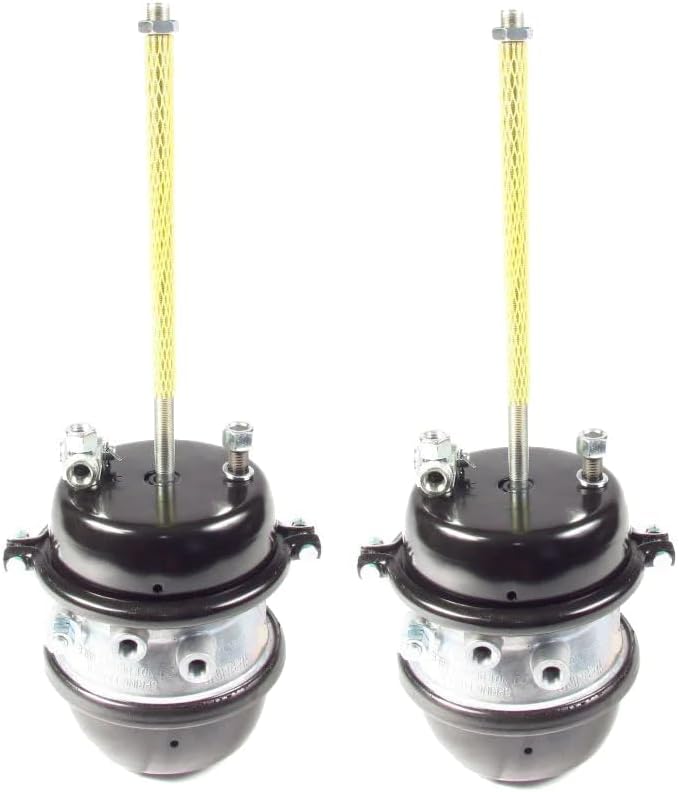

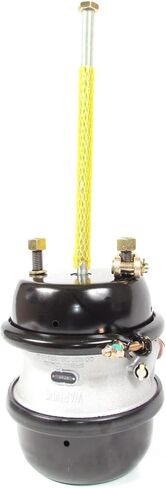

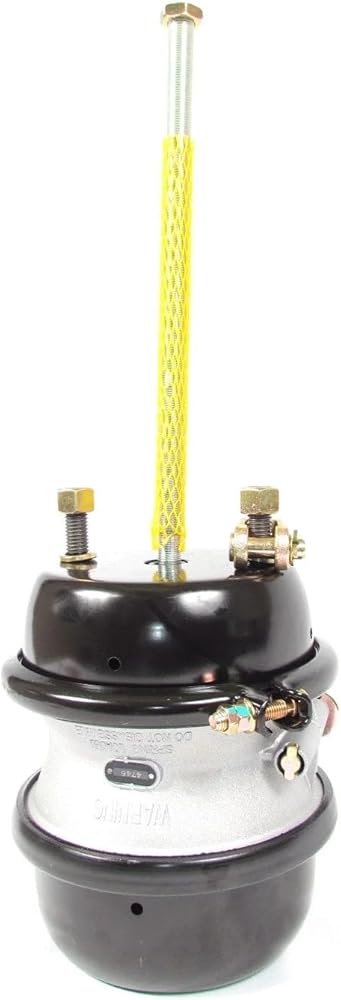

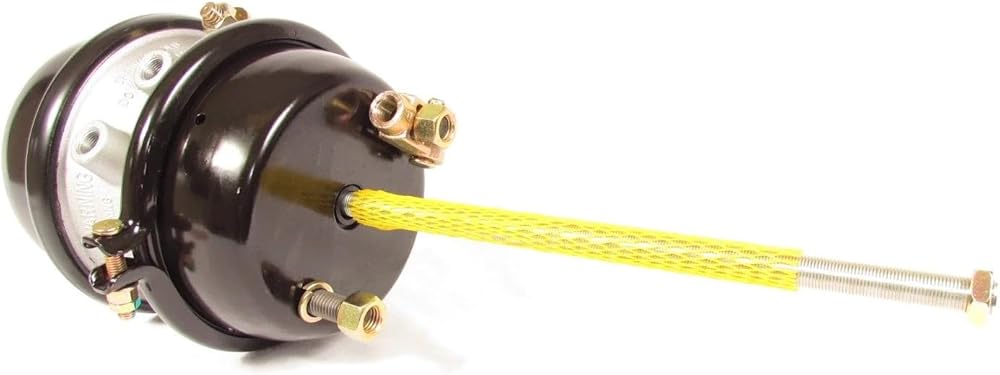

Fortpro Type 30/30 Sealed Air Spring Brake Chamber - 2 1/2" Stroke Threaded | F224746

KWD 45
Brand
FORTPRO
Weight
20 kg
– 1 +

Special Features

  • Rugged Service Housing. 9 Gauge Steel and Powder-coated Finish for High Resistance to Fatigue and Corrosion
  • Manufactured Under ISO/TS 16949:2009 Our Brake Components Meet and Exceed International Standards.
  • Our Air Brake Components have been Passed the Following Tests: Salt Spray Test, Leak Tightness, Endurance Test
  • Standard Stroke with Length: 2 1/2"
  • Type 30/30 - Push Rod Length: 13 1/4"

Description

Specifications:
Brand: Fortpro
Vehicle Type: Semi-Trucks / Heavy Trucks
Product Department: Brakes
Product category: Brake Chambers
Part Type: Air Brake Chamber
Also Known As: Brake Canister / Brake Can / Air Brake Canister / Brake Pod / Brake Pots
Chamber Type: Spring Brake Chamber
Model: Type 3030, T30/30, 3030, 30 30
Stroke: Standard Stroke / Short Stroke

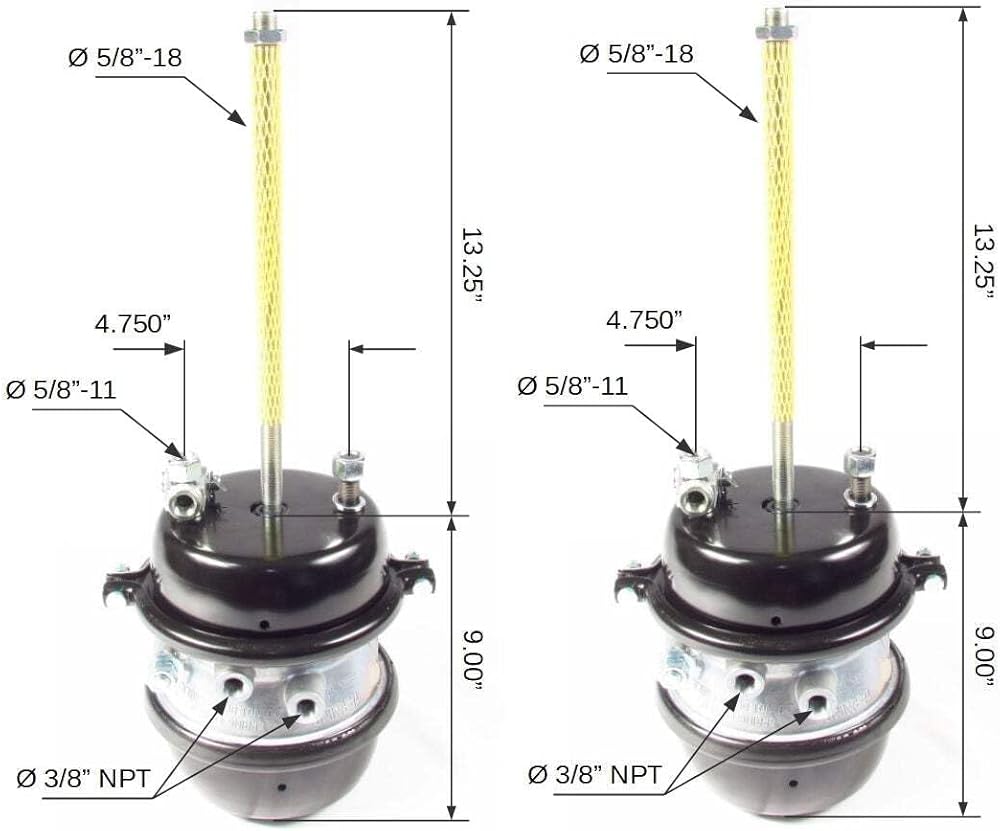

Stroke Length: 2.50 in. (63.5 MM)
Outside Diameter (O.D.): 8.30 in.
Brake Type Support: Drum
Serviceability: Sealed
Push Rod Thread : 5/8-18 UNF-2A
Push Rod Length: 12.00 in
Service Port: 3/8-18 NPTF
Emergency/Release Port: 3/8-18 NPTF
Port Angle: 90 °
Clevis Included: Yes
Clevis Mounting: Threaded
Maximum Pressure: 150 PSI
Mounting Bolt Thread: 5/8-11 UNC-2A
Mounting Bolt Length: 1.50 in. (38.1 MM)
Brake System Compatibility: S-Cam
Chamber Style: Double Diaphragm
Service Chamber Joint Type: Single Clamp Band

Cross-reference:
Automann: 179SB3030
Bendix: K049898, NT3030STD120
Euclid: E-BC3030C
MGM: 3232951, 3232951X
TRP: SB3030CC
OTR: OTR3030SB
WA: WA3030T
Haldex: 1393030051
