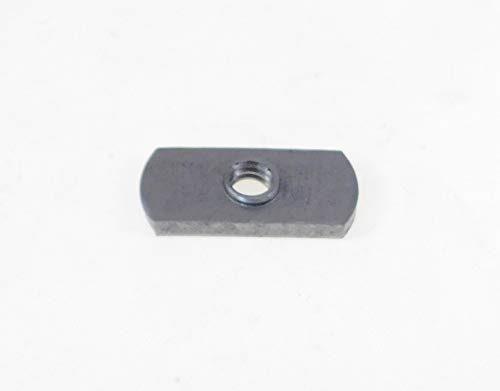

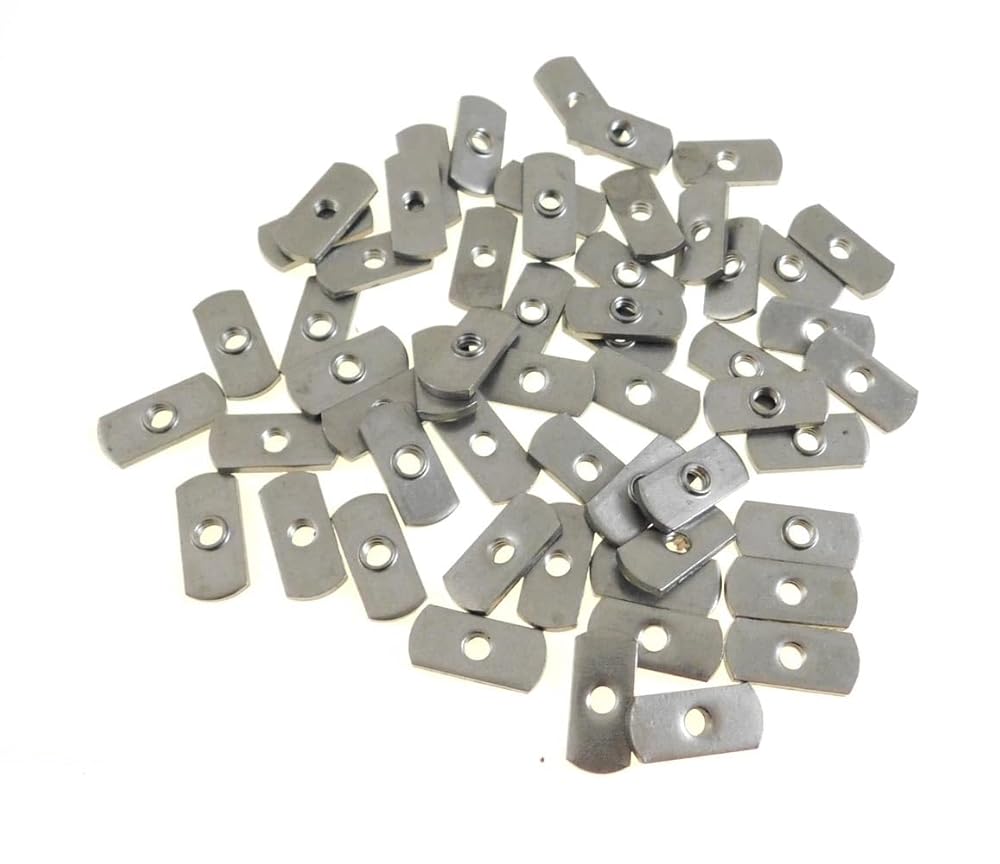

This listing is for fifty pieces. The ND weld nut is a dual-tab spot weld nut for applications requiring additional strength where tension is against the weld. Established as the standard slot fastener in the aluminum extrusion industry (economy t nut). The location of the twin-tabs enables the ND to be used in bridging corners and recessed areas. A precision pilot speeds location and provides a full thread engagement. The ND can use the same electrodes, equipment and settings used in production, thus eliminating setup and changeover time, thereby lowering in-place-fastener cost.
Thread Size 1/4-20 Width (in) 1/2 Thickness (in) 1/8 Length (in) 1-1/8 Hole In Sheet (in)0.312 Material C1010 High-Welding Quality, Low Carbon Steel Plain Finish Threads Unified Standard Class 2B ASME B 1.1-2003

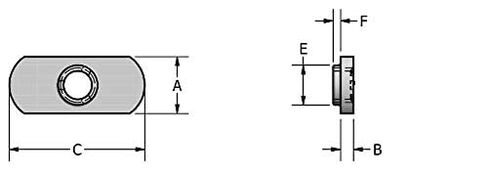

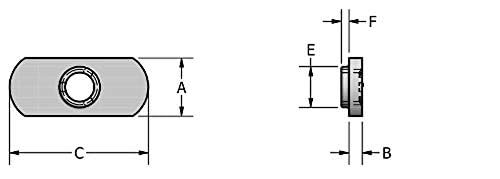

A 0.500" B 0.125" C 1.125" E 0.297" F 0.050"
Description
This listing is for fifty pieces. The ND weld nut is a dual-tab spot weld nut for applications requiring additional strength where tension is against the weld. Established as the standard slot fastener in the aluminum extrusion industry (economy t nut). The location of the twin-tabs enables the ND to be used in bridging corners and recessed areas. A precision pilot speeds location and provides a full thread engagement. The ND can use the same electrodes, equipment and settings used in production, thus eliminating setup and changeover time, thereby lowering in-place-fastener cost. Thread Size 1/4-20 Width (in) 1/2 Thickness (in) 1/8 Length (in) 1-1/8 Hole In Sheet (in)0.312 Material C1010 High-Welding Quality, Low Carbon Steel Plain Finish Threads Unified Standard Class 2B ASME B 1.1-2003 A 0.500" B 0.125" C 1.125" E 0.297" F 0.050"
