3.5 inch IPS Serial 320x480 Capacitive Touch Screen FT6336U Driver Touch Display Module Compatible with Arduino ESP32

KWD 9
Brand
Haldzemo
Weight
52 g
– 1 +

Special Features

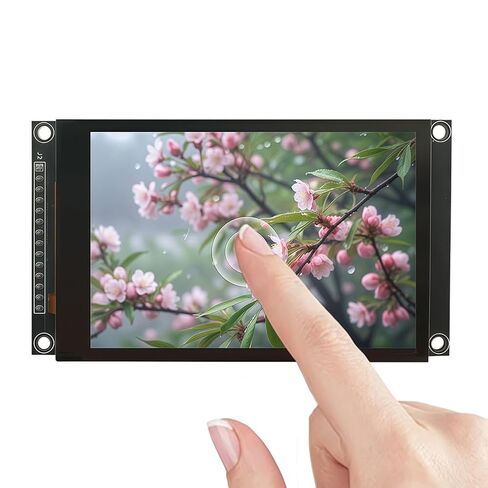

  • 3.5inch color screen with 320x480 resolution of 65K colors and rich display colors
  • The upgrade adopts IPS full view panel, with good visual angle. With capacitive touch function, supporting long-term stable work
  • On board level conversion circuit, compatible with 5V and 3.3V MCU. Adopting a 4-wire SPI serial bus to save I/O pins

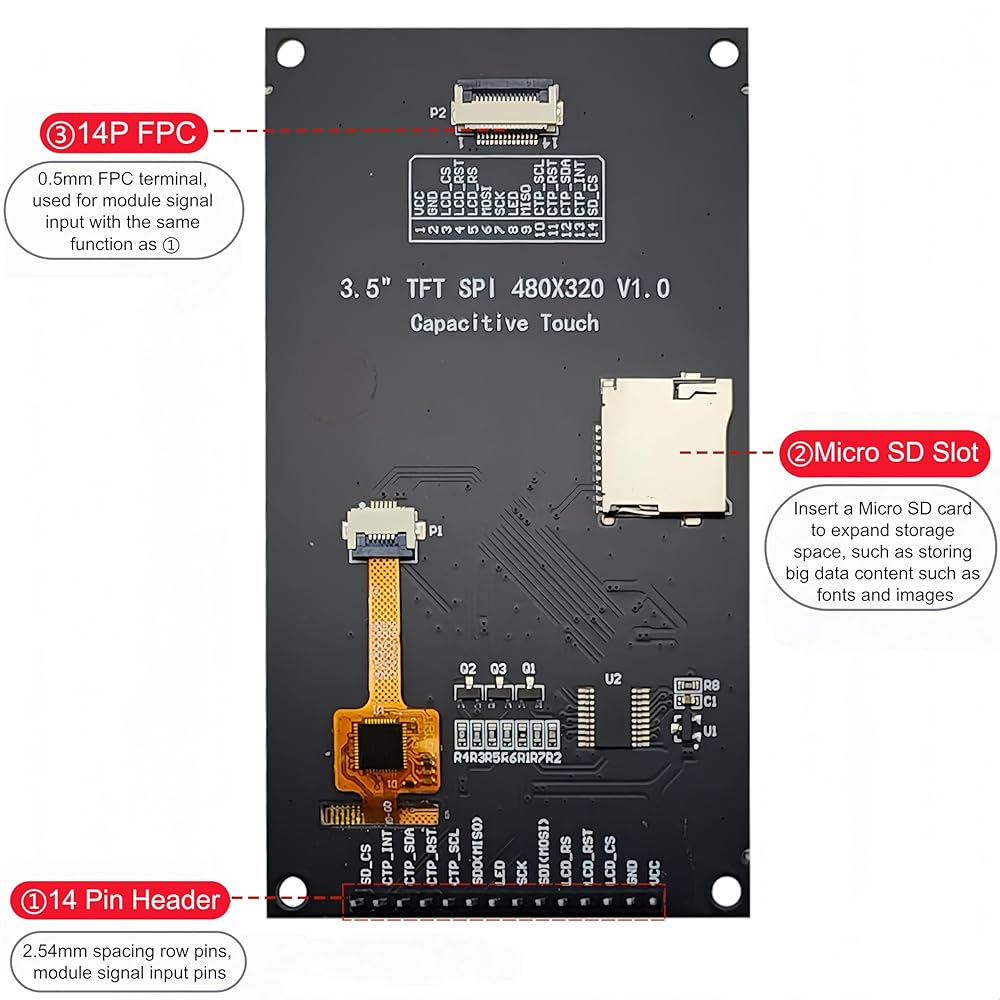

  • Module input supports 2.54 pin interface and FPC extension interface. Equipped with micro TF card slot for easy storage expansion
  • Provide rich example learning programs (Compatible ESP32/STM32/Arduino UNO&Mage2560/C51/CH32/Raspberry Pi)

Description

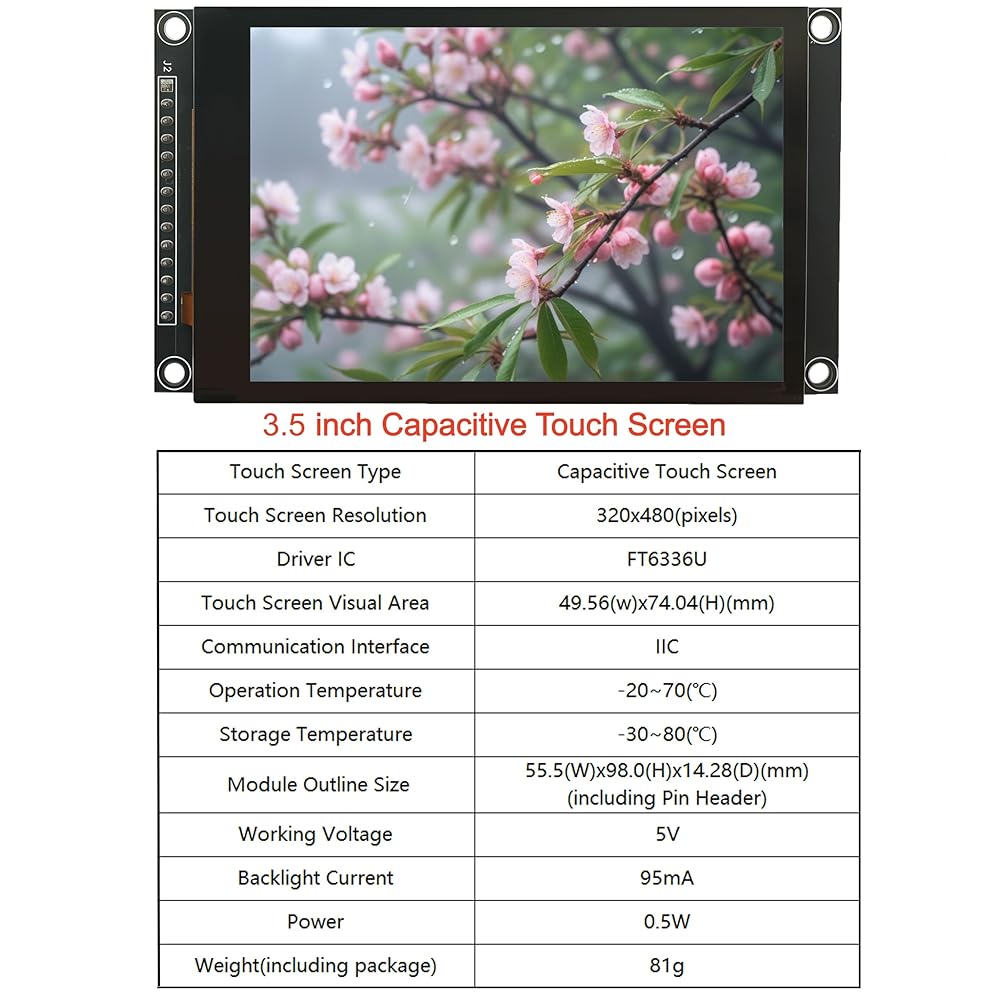

3.5" Touch Screen Parameters:
Touch Active Area: 3.5 inch
Touch Screen Type: Capacitive Touch Screen
Touch Screen Resolution: 320x480(pixels)
Driver IC: FT6336U
Touch Screen Visual Area: 49.56(w)x74.04(H)(mm)
Communication Interface: IIC
Operation Temperature: -20~70(℃)
Storage Temperature: -30~80(℃)

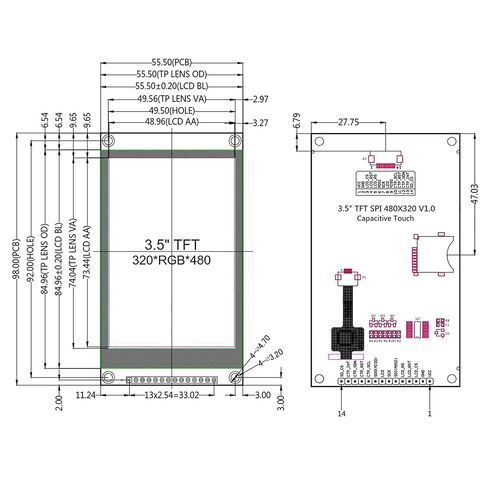

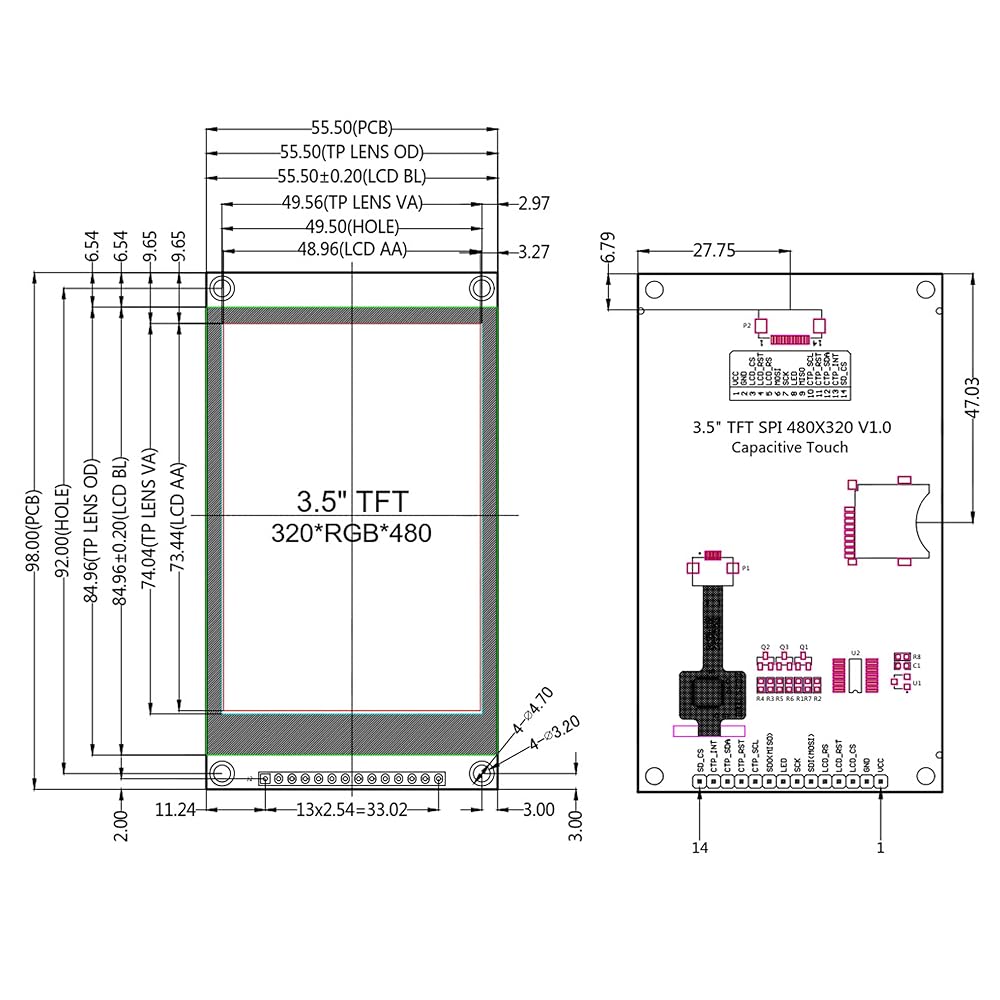

Touch Screen Outline Size: 55.50±0.2(W)x84.96±0.2(H)x0.8 (D)(mm)(Excluding cables and adhesive backing)
Module Outline Size: Have Touch Screen:55.5(W)x98.0(H)x14.28(D)(mm)(including Pin Header)
Working Voltage: 5V
Backlight Current: 95mA
Power: 0.5W

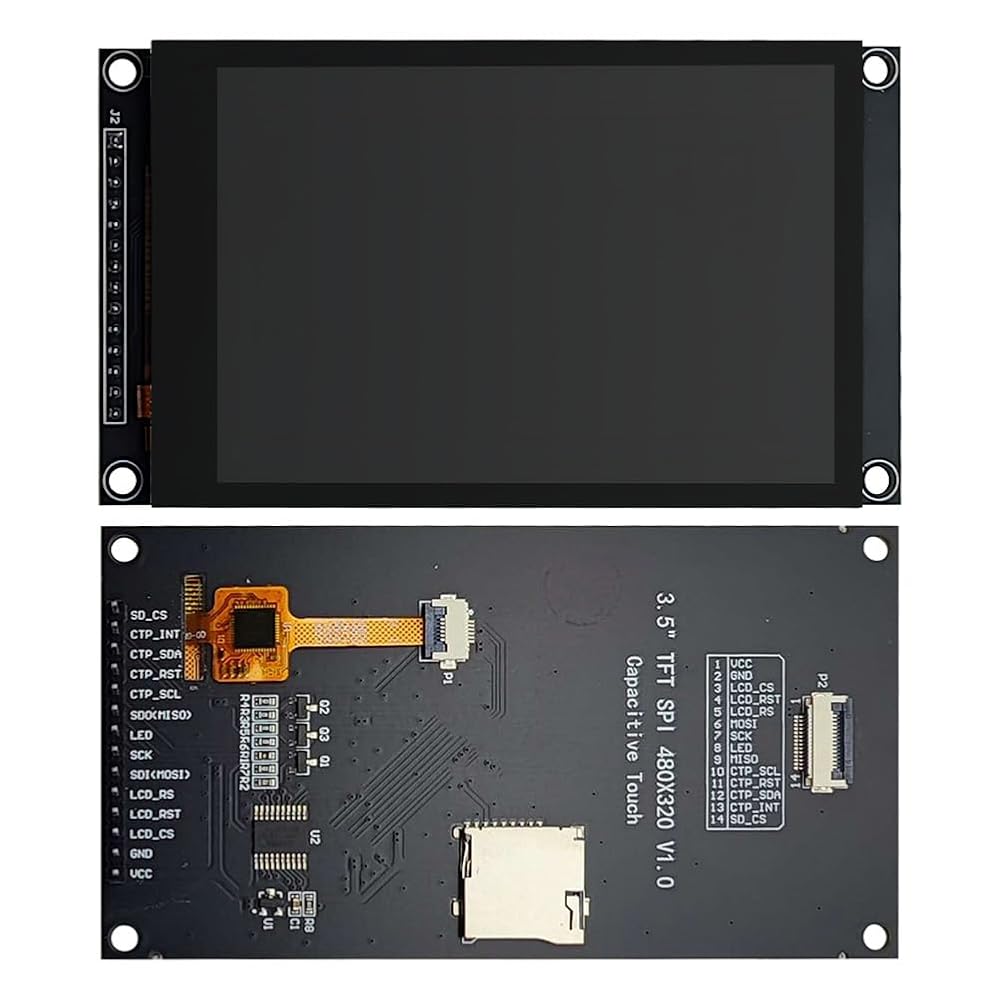

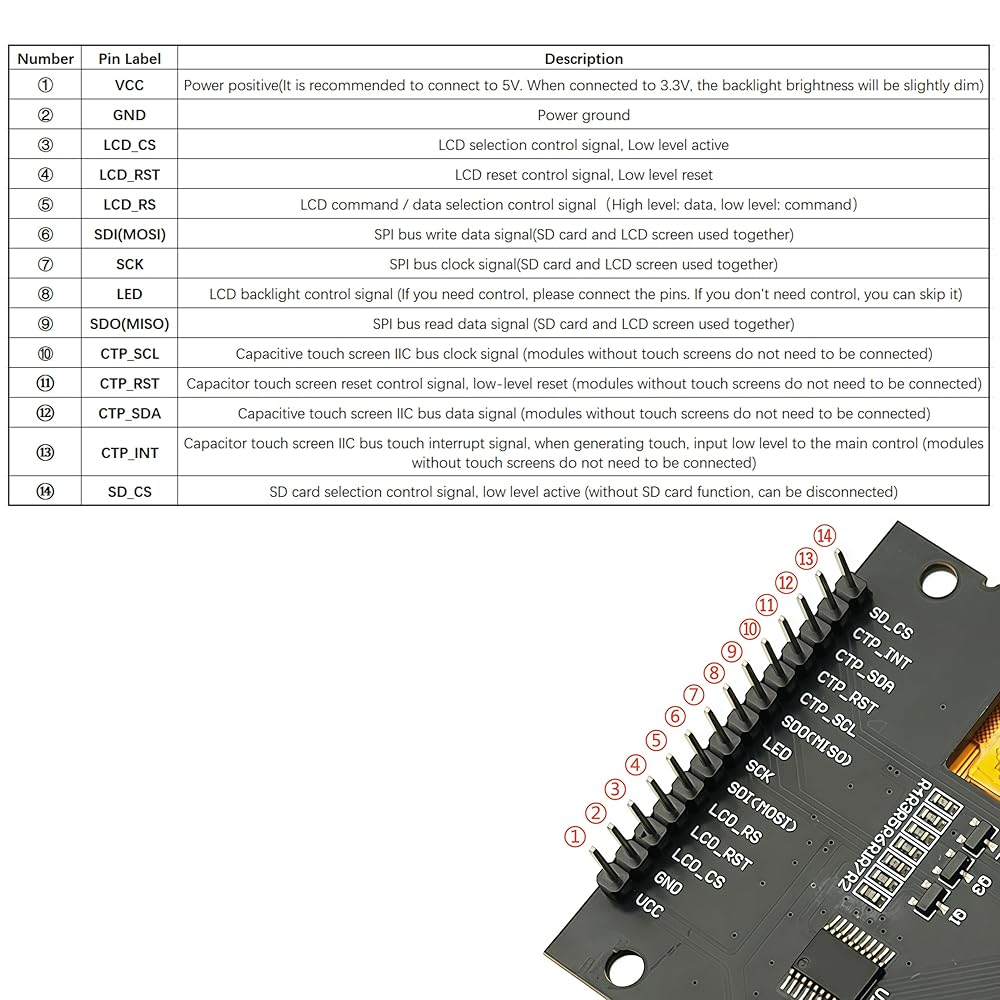

Interface: 14P 2.54mm spacing Header and 0.5mm spacing FPC seat
Weight(including package): 81g
