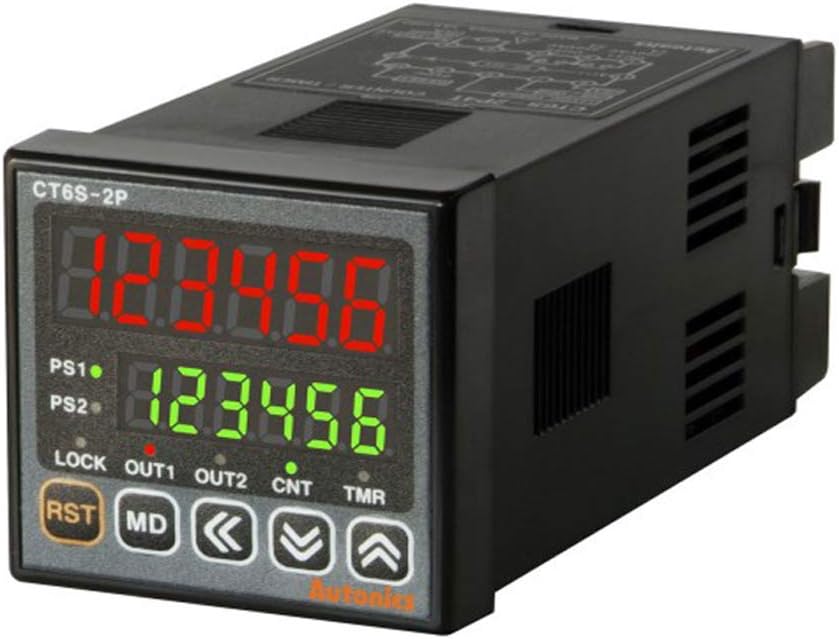

Display method: 6-digit 7-segment LED; Operation method: Counter: Count up, Count down, Count up/down; Timer: Count up, Count down; Terminal: Terminal block; Output Operation: SIGNAL ON DELAY, POWER ON DELAY, FLICKER, INTERVAL, SIGNAL OFF DELAY, ON-OFF DELAY, INTEGRATION TIME; Power supply: 100-240VAC~ 50/60Hz
Time operation: POWER ON START, SIGNAL ON START; External Power Supply: Max. 12VDC ±10%, 100mA; Signal Input Method: Voltage input(PNP), No-voltage input(NPN); Control output_Relay: SPST (1a): 2; Control output_NPN open collector: 1; Protection structure: IP65(front panel)
Operating Temperature: -10°C to 55°C, Relative Humidity: 35 to 85% RH; Storage Temperature: -25°C to 65°C; Relative Humidity: 35 to 85% RH
Max. Counting Speed: 1, 30, 1k, 5k, 10k [cps]; Min. signal Width: 1ms/20ms; Memory Protection: Approx. 10 years; Setting Range: 0.001 sec to 9.999 sec, 0.01 sec to 99.99 sec, 0.1 sec to 999.9 sec, 1 sec to 9999 sec, 1 sec to 99 min 59 sec, 0.1 min to 999.9 min, 1 min to 9999 min, 1 min to 99 hour 59 min, 1 hour to 9999 hour; Control output_Type: 2-stage preset
Counter_Counting Range: -99999 to 999999; Counter_Scale: Decimal point up to fifth digit; Counter_Min. input signal width: RESET: Selectable 1ms/20ms; Timer_Min. input signal width: INA, INH, RESET: Selectable 1ms/20ms
Autonics Temp Control, 1/16 Din, Analog, Pid Control, Relay Output, J Thermocouple, 32 to 752 F, 100-240 Vac - TAS-B4RJ4F
KWD 21
ATS8W-41, Twin Timer, 6-Mode, Multi-Range(0.1 Sec-10Hours), DPDT(2c) or 2 SPDT, 100-240VAC/24-240 VDC, 8Pin, (Socket req'd)
KWD 17
Autonics BEN10M-TFR Photoelectric Sensor, Rectangle, Thru-Beam
KWD 36
-29%
AUTONICS PRDL18-14DP2 INDUCTIVE Proximity Sensor, 10-30 VDC, 14 MM Sensing Distance, Long Body, PRD, Cylindrical, M18 Thread, 3 Wire, Cable Type, 10-30 VDC Supply, NPN Normally Closed, Long Distance,
KWD 16
