Home / Ace Instruments / Calibration
Multifunction Process calibrator Universal calibrator Loop calibrator for Process Control System Verification, Field Calibration | Model: BTH-C10 in Kuwait Multifunction Process calibrator Universal calibrator Loop calibrator for Process Control System Verification, Field Calibration | Model: BTH-C10 in Kuwait Multifunction Process calibrator Universal calibrator Loop calibrator for Process Control System Verification, Field Calibration | Model: BTH-C10 in Kuwait Multifunction Process calibrator Universal calibrator Loop calibrator for Process Control System Verification, Field Calibration | Model: BTH-C10 in Kuwait

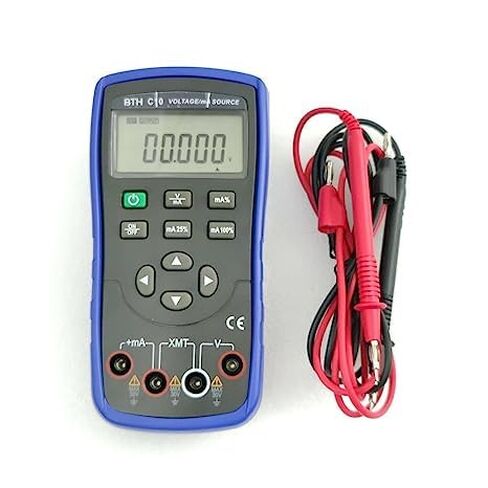

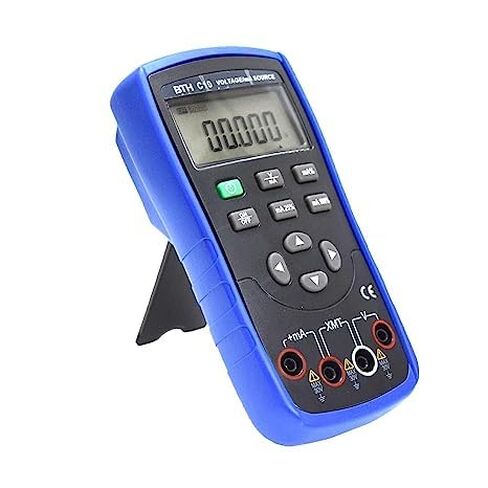

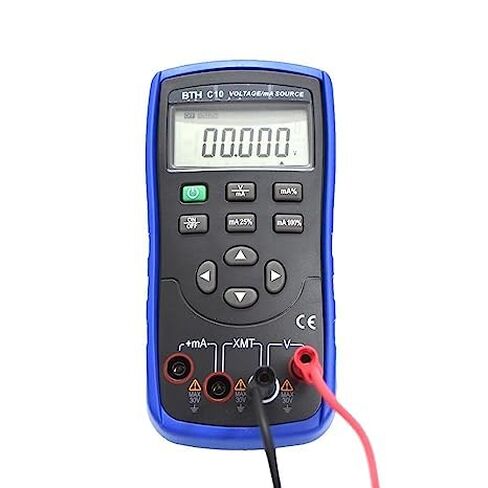

Multifunction Process calibrator Universal calibrator Loop calibrator for Process Control System Verification, Field Calibration | Model: BTH-C10

KWD 128.500
Category
Calibration
Weight
499 g
– 1 +

Special Features

  • DC voltage (DCV) Range: 10V; Output range: 0.000 11.000V; Resolution: 0.001V; Accuracy: 0.05%+2; Illustration: Max output current 5mA | Voltage (DCA) Range: 20mA; Output range: 0.000 22.000mA; Resolution: 0.001mA; Accuracy: 0.05%+4uA; Illustration: 20mA Max. load IKΩ
  • Simulate transmitter (sinking current): Range: -20mA; Output range: 0.000-22.000mA; Resolution: 0.001mA; Accuracy: 0.05%+4uA; Illustration: 20mA Max. Load IKΩ (Note: power supply range: 5-25VDC) | Loop power: Range: 24V; Accuracy: ±10%; Illustration: Max. output current
  • Operating Temperature: 0°C to 50°C | Operating Humidity: <80% RH | Storage Temperature: < -10°C to 55°C | Storage Humidity: < 90% RH | Coeddicient: 5°C to 18°C, 28°C to 40°C | Safety: Complies with IEC 1010 (Safety Standard issued by International Electrician Committee)
  • Power: Two 1.5V Alkaline batteries (LR6)(Not Included) | Power Consumption: 400mA/3V, in condition of 1K Q load and 20mA output | Maximum voltage: 30V (Within terminals or between terminal and earth ground)
  • Supply Scope: 1 Unit of BTH C-10 Process Calibrator, Instruction Manual, Industrial Testing Leads CS-36 (Clips for Probe) | Applications: Process Control Instruments, Temperature & Pressure Transmitters.
