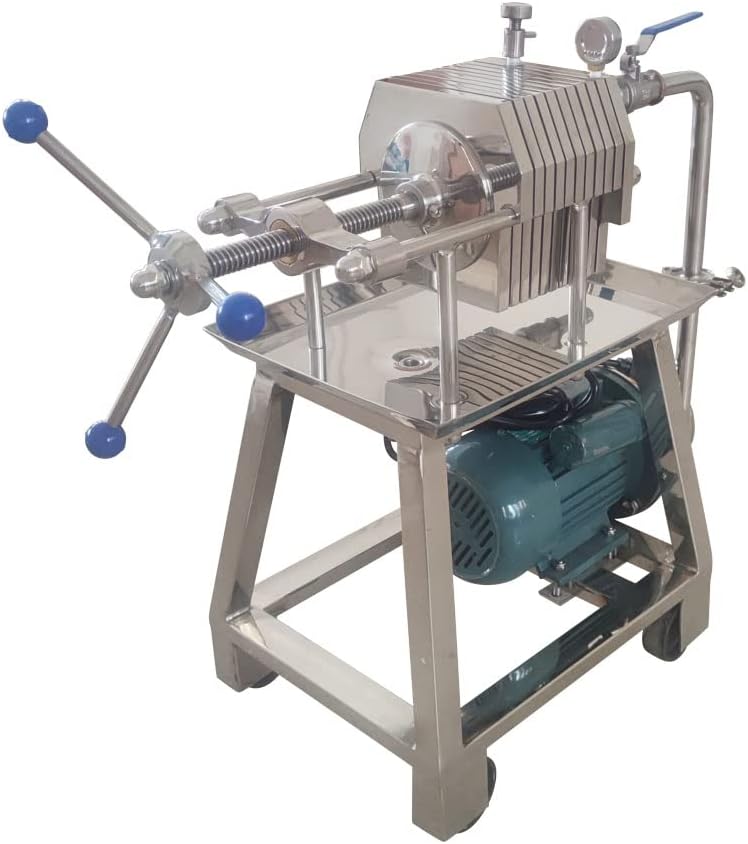

Stainless steel sandwich plate frame filter, apply to concentration below 50% viscosity is low, less fluid slag content as airtight filtering to achieve purification, clarification etc fine filtration, half fine filtration requirements, microporous membrane filter for use directly, not through the microporous membrane filter can achieve filtration purpose).
The filter has big filter area, byg flow, and the applicable scope is big, so in the food and other industries have extensive uses, it has particularly good effects.

Principle:
The pressure filtration. Slurry pump into each sealed filter material filter chamber, under the effect of pressure, the filtrate through filter layer and the filter cloth, filter cloth liquid outlet discharge, the filter residue is left in the filter box filter cake formation, so as to achieve the goal of solid-liquid separation.

Applicable object properties:
Low temperature material, high requirement on material etc.

Scope of application:
Used for all kinds of suspension of the solid-liquid separation, wide application scope. Used in food, water treatment, light industry, dyes, textile etc.

Product Parameters:
Model: WBG-200
Number layers: 10
Filter area: 0.34㎡
Filter material size: 200mm
Work pressure: 0.15Mpa
Maximum flow: 2m³/h
Power: 1.1Kw
Voltage: 110V
