LCR Meter, Digital Multimeter Tweezers, Mini Smart 10KHz SMD Tester with OLED Display, ESR Meter Capacitor Inductance Continuity Diode Tester, Auto Ranging Electronic Component Meters in Kuwait

Professional

KWD 14.500
KWD 18
Brand
SNAKOL
StyleProfessional
– 1 +

Special Features

  • 【Professional LCR/ESR Meter with Precise Multi-Frequency Measurement】- Go beyond basic testing. This LCR meter supports 3 test frequencies (100Hz, 1kHz, 10kHz) and 2 test voltages (0.3Vrms, 0.6Vrms) for accurate component analysis. It delivers a wide measurement range of Resistance: 1Ω to 10MΩ, Capacitance: 1nF to 1mF, and Inductance: 10μH to 60H, functioning as a precise ESR meter, capacitor tester, and inductance meter all in one.
  • 【Intelligent Auto-Identification & Comprehensive Parameter Display】- Simplify your workflow with smart automation. The component tester automatically identifies components and simultaneously displays primary and secondary parameters, including L, C, R, D, Q, and Rs (Equivalent Series Resistance). Featuring 100Hz, 1kHz, and 10kHz test frequencies. The 1.14-inch high-definition color OLED ensures clear readability of all data, eliminating guesswork.
  • 【Ergonomic Clamp Design for Ultimate One-Handed Operation】- Revolutionize your workflow! The unique tweezer shape allows you to probe tiny SMD components like 0402, 0603, and ICs with unparalleled ease using just one hand. The removable and replaceable tips ensure long-term durability. It's the perfect electric meter tester for cramped PCBs and high-density boards.
  • 【Designed for Convenience: Data Hold, Rotation & Type-C Charging】- Adapt to any testing scenario. Crucial features like Data Hold freeze readings in tight spaces. Powered by a 400mAh rechargeable battery with modern Type-C charging, it's built for efficiency in the workshop or in the field.

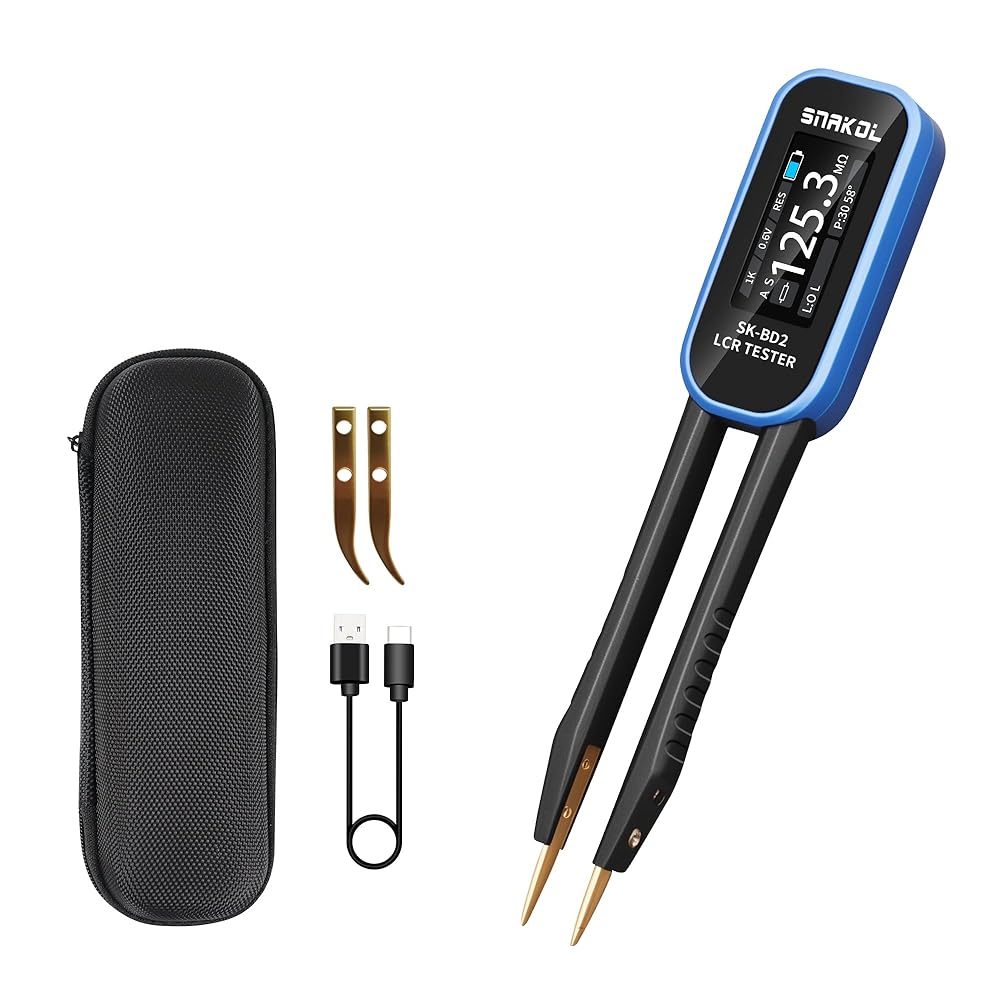

  • 【Complete Kit for Rapid Fault Finding & Component Salvage】- Your all-in-one solution for electronics repair. Quickly locate faulty resistors, capacitors, and inductors on PCBs, verify diodes and circuit continuity, and safely recover valuable components from used boards. This kit includes everything you need—tweezer bridge, replacement heads, and charging cable—to start working immediately.

Description

SK-BD1 Tweezers Bridge
Resistance: 1Ω~10MΩ
Capacitance: 1nF~1mF
Inductance: 10μH~60H
Parameters: L, C, R, D, Q, Rs
Ranges:
Auto range
Resistance range
Capacitance range
Inductance range
Diode range
Continuity range
Frequency: 100Hz, 1kHz, 10kHz
Voltage: 0.3V, 0.6V
Display: OLED (1.14 inch)
Range: Auto
Test Rate: 1 time/second
Data Hold: Yes
Language Selection: Chinese/English
Screen Orientation: Left, Right
Volume Setting: 0%~100%
Backlight Brightness: 10%~100%
Auto Power Off: Off, 5 minutes~120 minutes
Calibration Setting: 0Ω~10MΩ, OPEN
Factory Reset: Yes
Firmware Upgrade: Yes
Low Battery Warning: Yes
Material: ABS
Battery: Lithium polymer rechargeable battery 3.7V 400mAh
Single unit with packaging weight: 166g
Single unit with packaging dimensions: 200*70*50mm
Packing Quantity: 50 units/case
Packing Weight: 9.1KG
Packing Dimensions: 41×37.5×28CM
