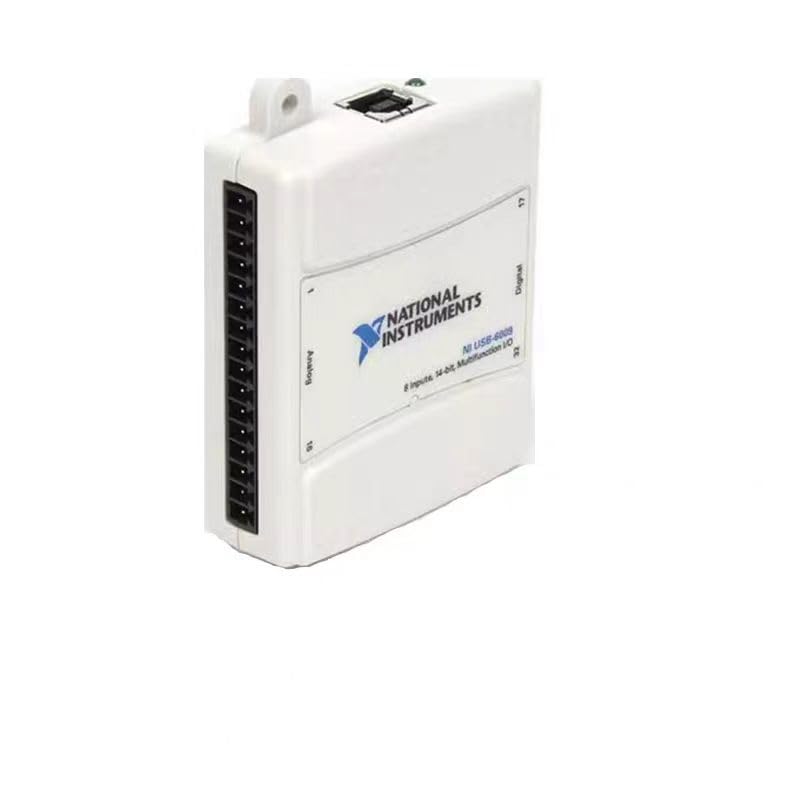

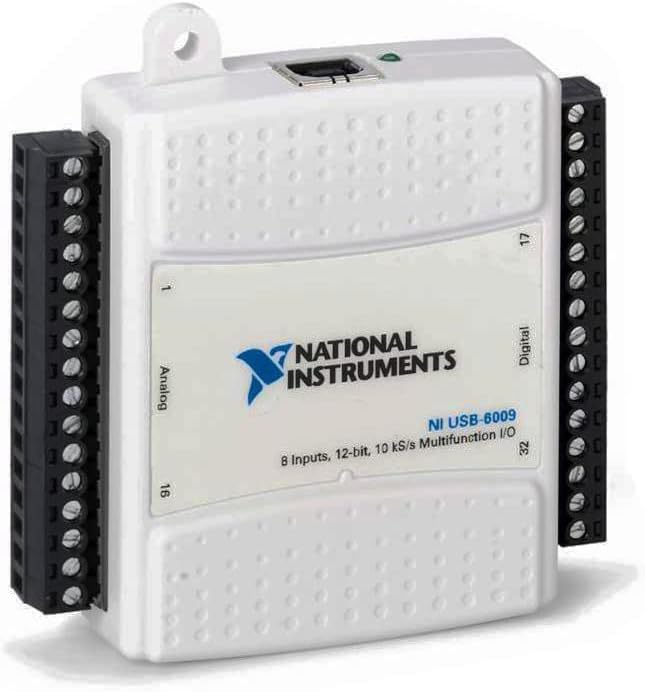

NI USB-6009 Multifunction Data Acquisition Module (779026-01 DAQ)

KWD 75.500
– 1 +

Special Features

  • High-Resolution Analog Input – 8 analog input channels (14-bit resolution, 48 kS/s), supporting ±10V range for accurate voltage measurement.
  • Analog Output Capability – 2 analog output channels (12-bit, 150 S/s), 0–5V range with 5 mA per channel drive.
  • Versatile Digital I/O – 12 bidirectional TTL digital I/O lines with 32-bit counter/timer (up to 5 MHz).
  • Portable & Easy to Use – USB bus-powered design with screw terminals for quick setup and reliable connections.
  • Cross-Platform Compatibility – Works with Windows, Mac OS, and Linux. Fully supported by NI-DAQmx drivers, LabVIEW, LabWindows/CVI, and Measurement Studio.

Description

Technical Specification Table (English) Category Specification Model NI USB-6009 Analog Input 8 SE / 4 DIFF channels, 14-bit, 48 kS/s, ±10V range Analog Output 2 channels, 12-bit, 150 S/s, 0–5V, 5 mA per channel (10 mA total) Digital I/O 12 TTL lines, 8.5 mA per channel, 102 mA total Counter/Timer 1 × 32-bit counter, up to 5 MHz, min. pulse width 100 ns Power Supply USB bus-powered Dimensions 8.51 × 8.18 × 2.31 cm Connector Screw terminal (Combicon) Driver & Software NI-DAQmx, NI-DAQmx Base, LabVIEW, LabWindows/CVI, Measurement Studio OS Support Windows, Mac OS X, Linux, Pocket PC
