Special Features

Intelligent 360 panoramic switcher can pair with various models and expands the video input options for your camera

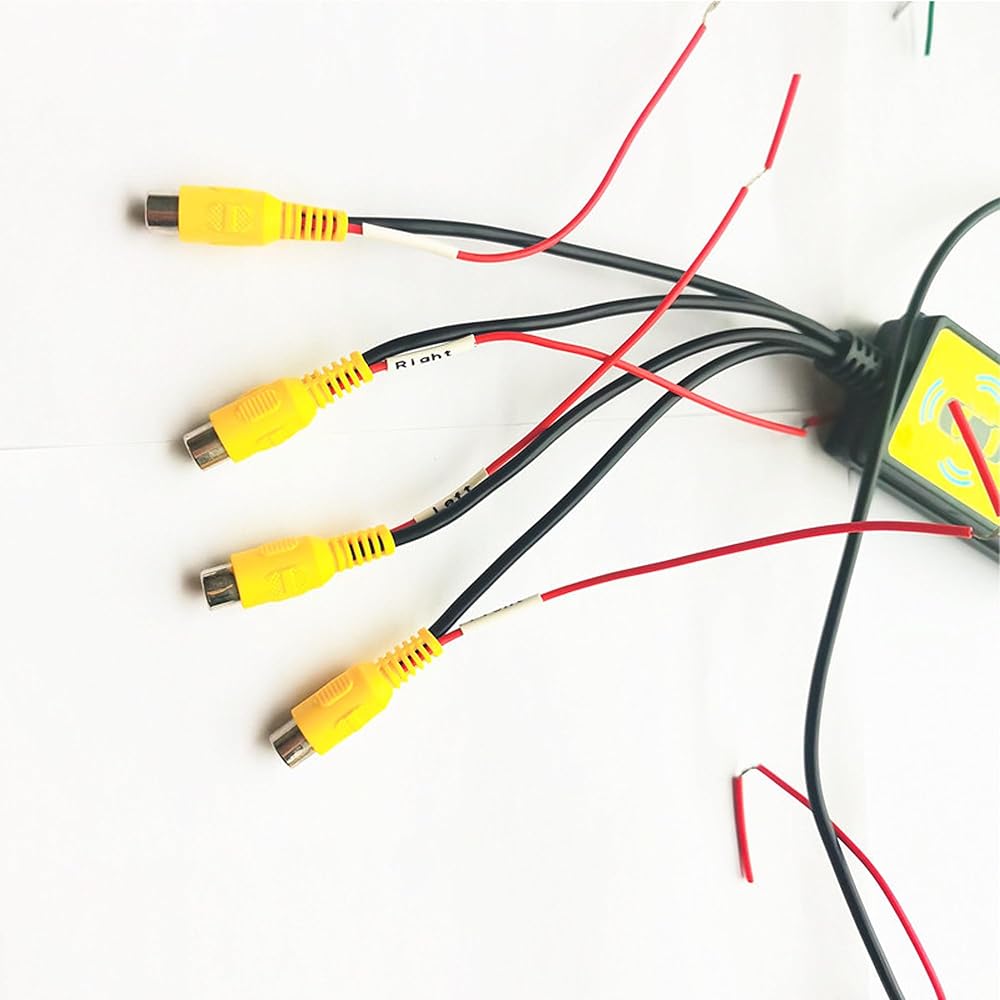

4 Video Inputs: left view / right view / rear view / front view, each with a camera, all outputs shared with one video channel with one power trigger line. Each input is powered by a DC+12V supply
Designed to add more video inputs for cameras when connected with video interface for different car models
Designed with protection circuits to protect the camera and on-board circuits, suitable for cars, trucks, SUVs, and more
When each camera gets power supply from the corresponding car lamp, the display could show the correct video channel by turn on left and right indicator or back up. When you turn “R” to other gear, the display will show front view for 7 seconds (optional)

Description

SPECIFICATION
- Wide Voltage Input: 8V-16V (use of a 4V to 12V transformer when used on truck)
- Material: premium ABS
PACKAGE

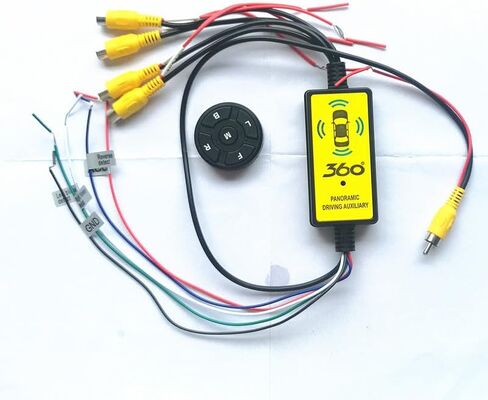

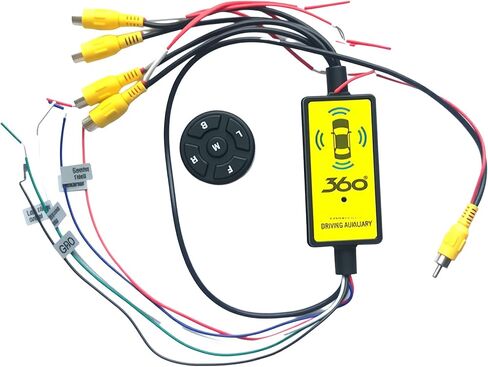

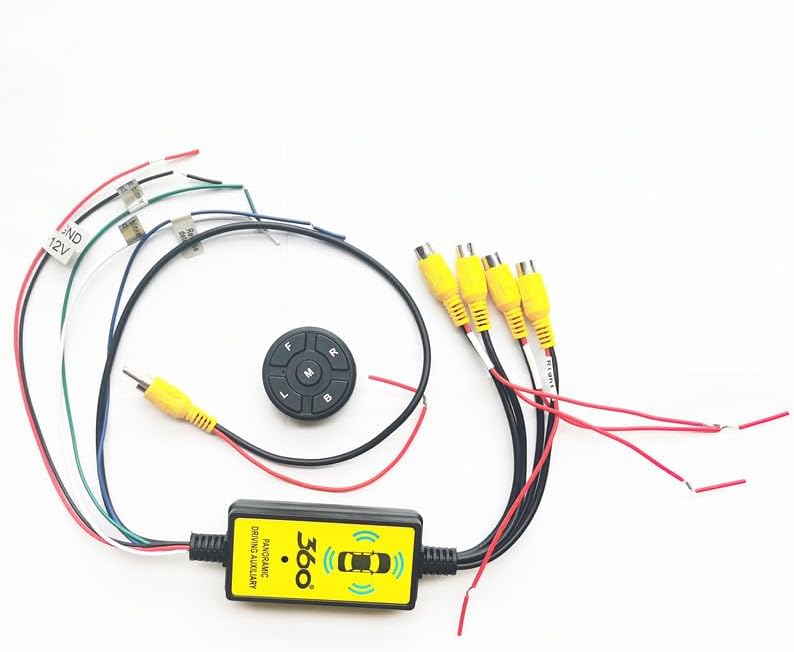

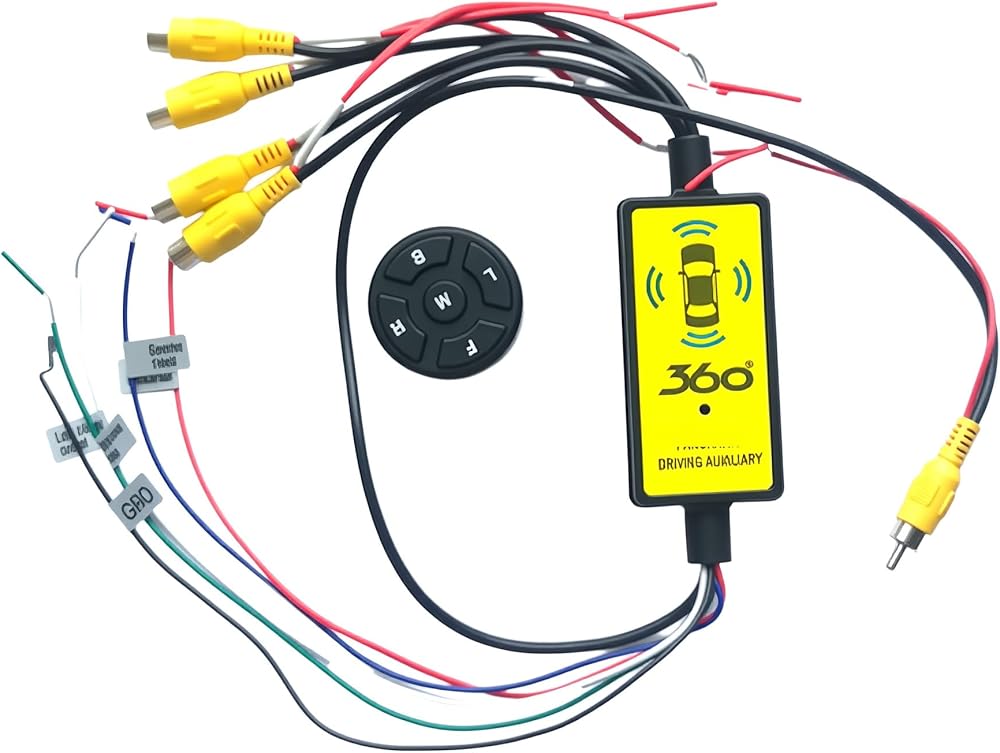

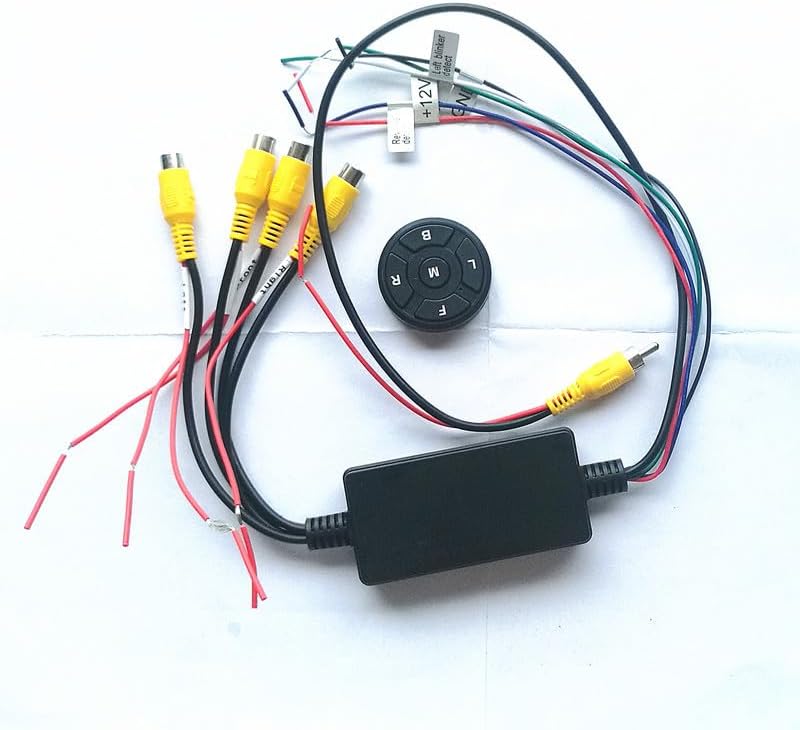

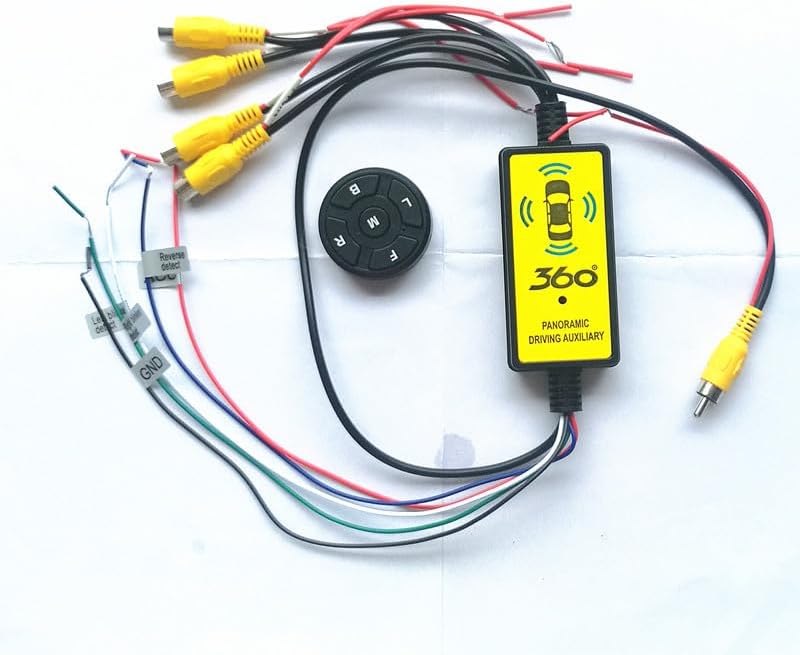

- 1 x Car Video Switcher
- 1 x Remote
- 1 x Instructions

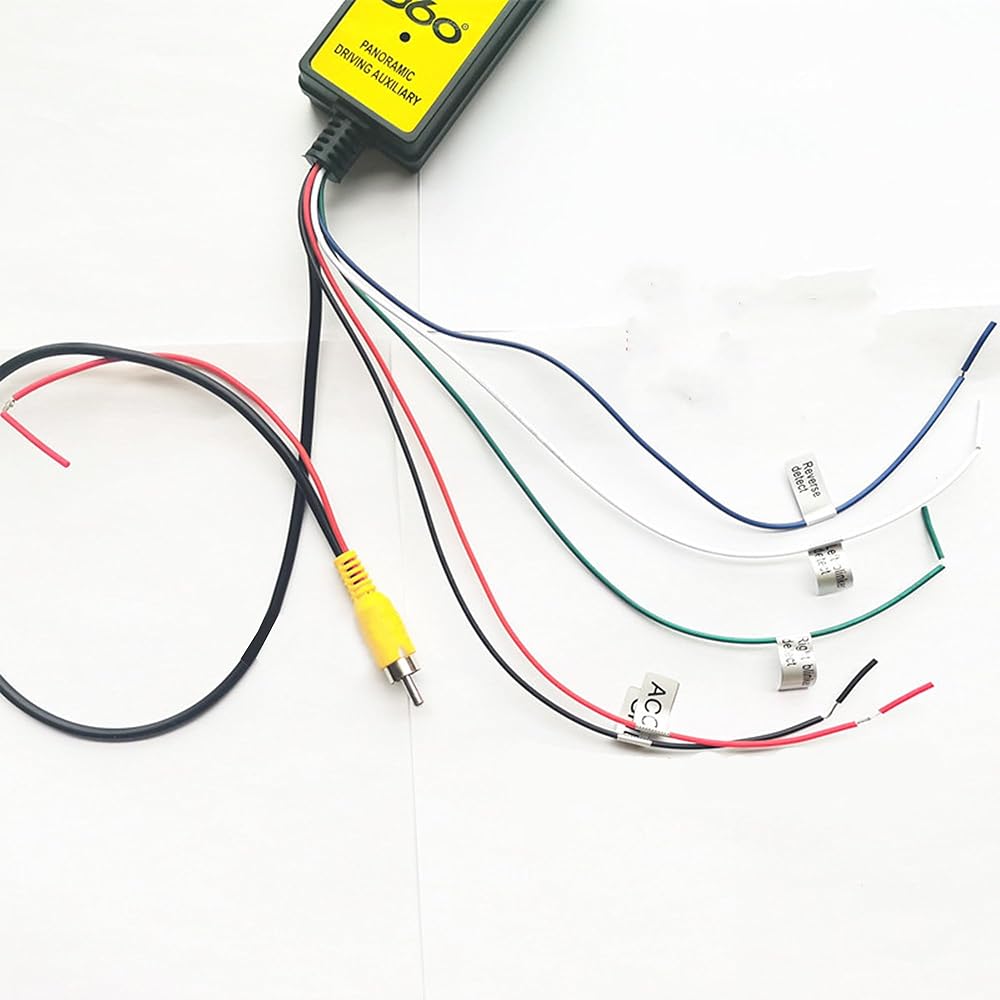

Instructions for Wiring
-Blue trigger line goes to the back-up lamp power;
-White trigger line goes to the left indicator power;
-Green trigger line tgoes to the right indicator power;
-Red and black line is +12V power input.
Instructions for Use of Remote Control
-M: Switch module and Exit from camera output
-B: Reverse camera
-R: Right camera
-L: Left camera
-F: Front camera
The display view could be switched by both power trigger line and remote control.

Hello,

Search

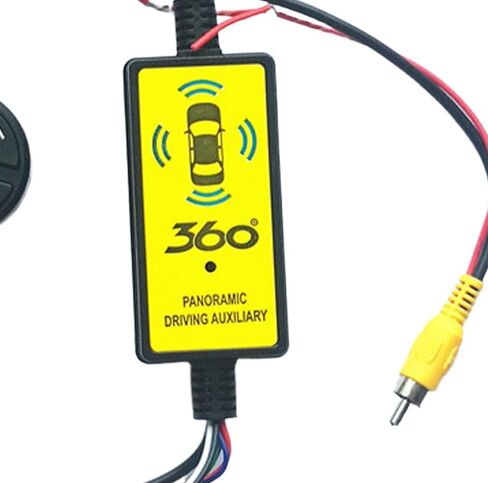

Video Camera Switcher, Intelligent Car Video Switcher Converter, Car Cameras Control System, Car Camera Splitter Switch, 4 Input 1 Output 360 Panoramic Switcher
