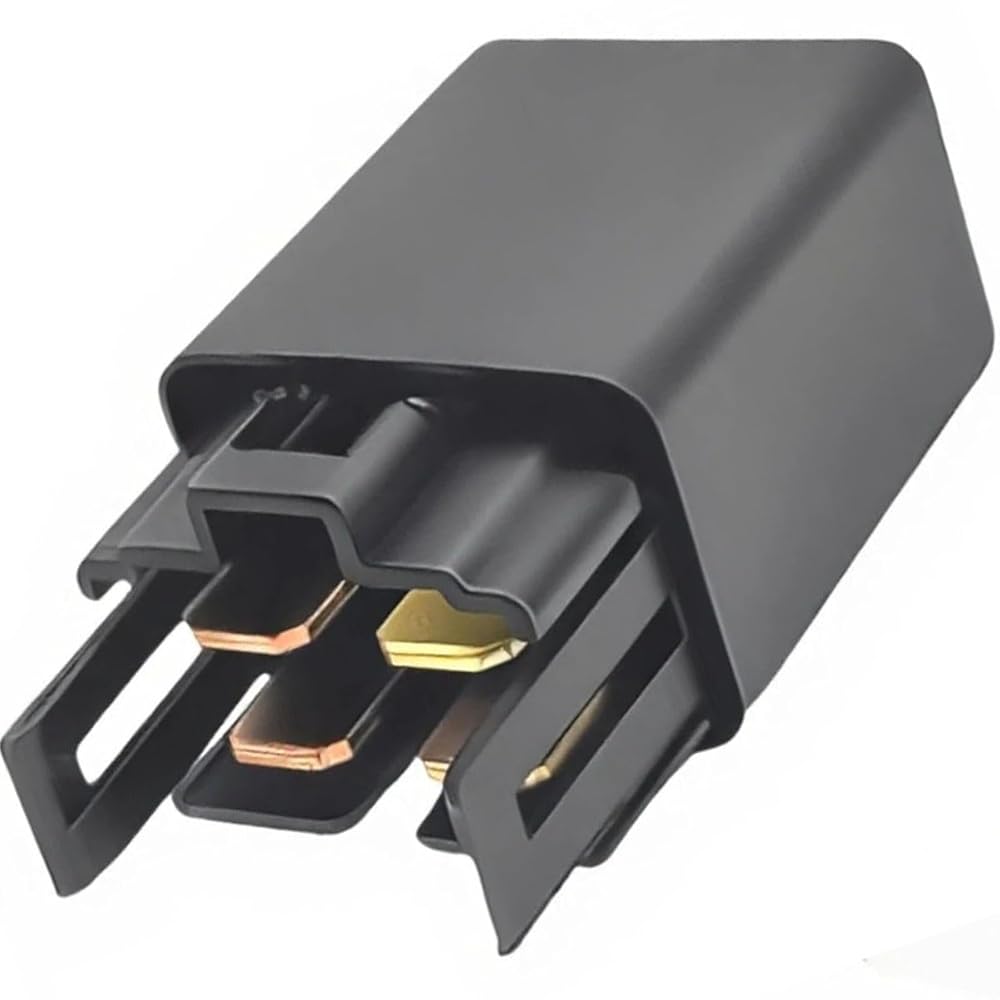

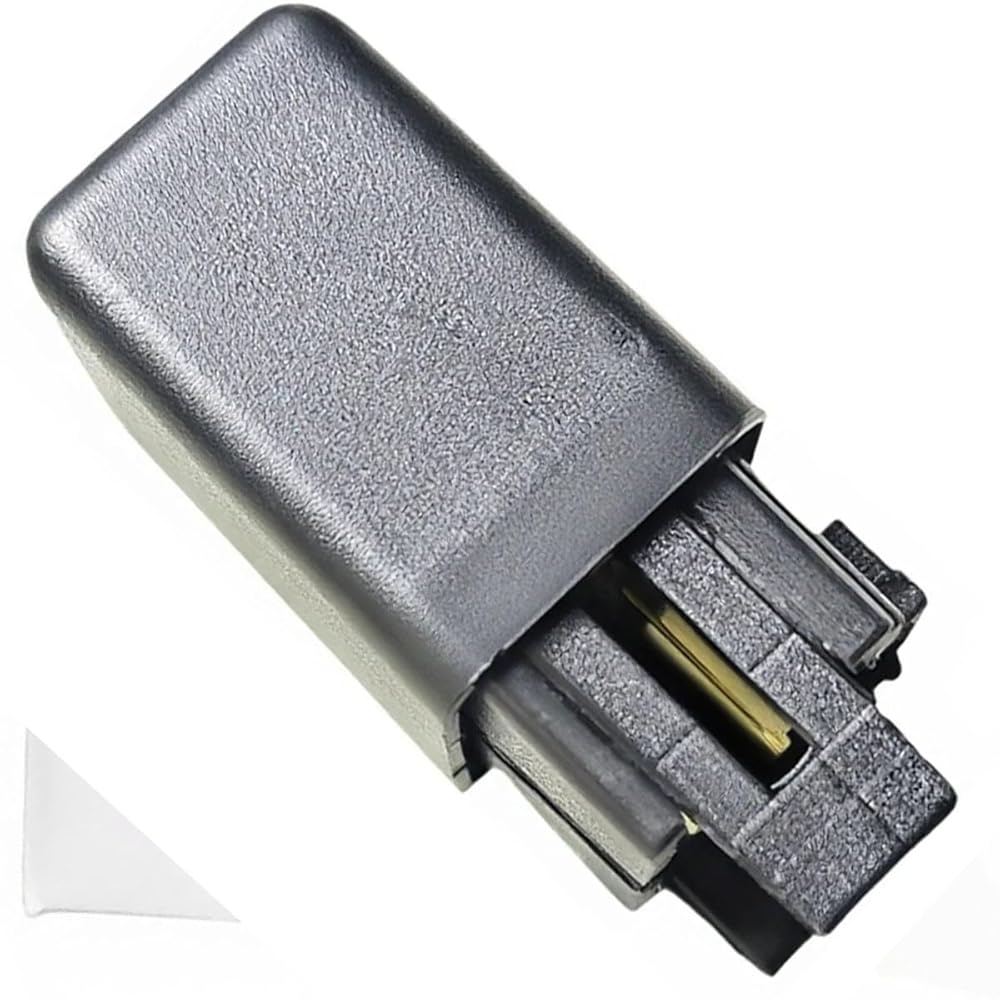

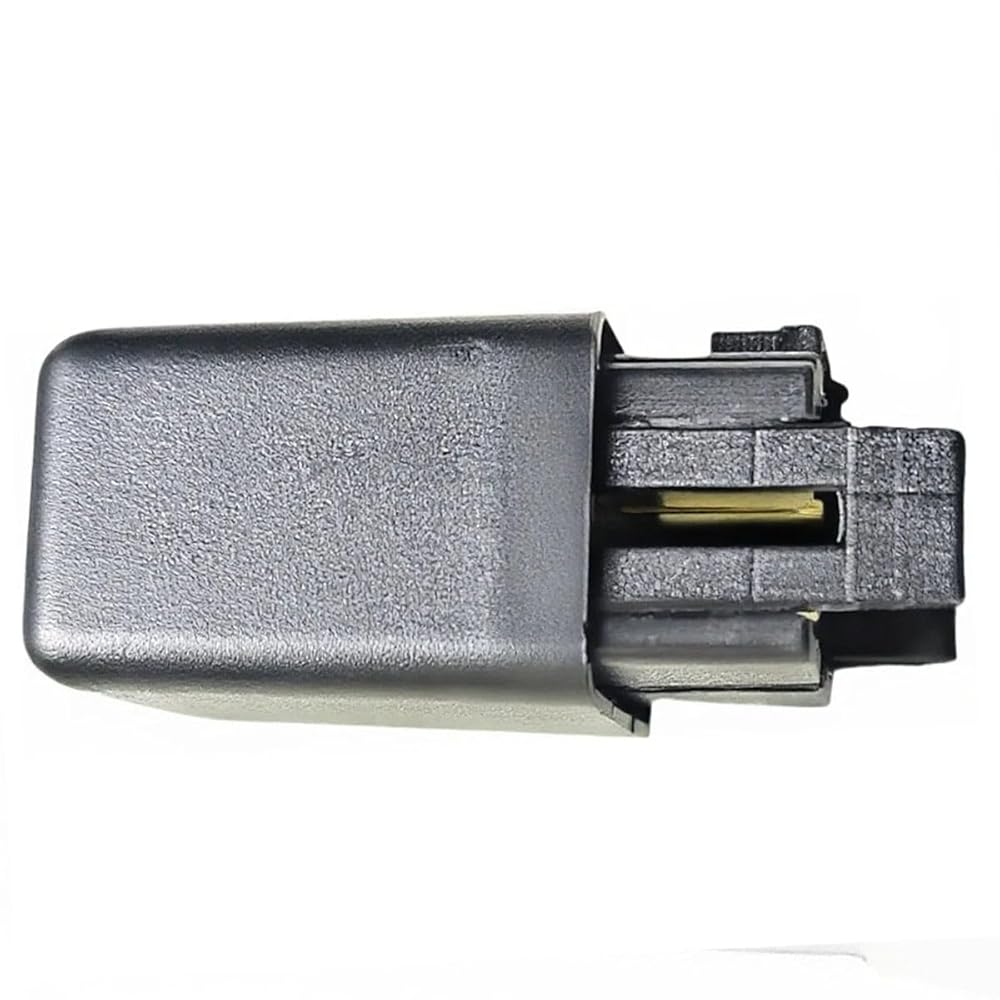

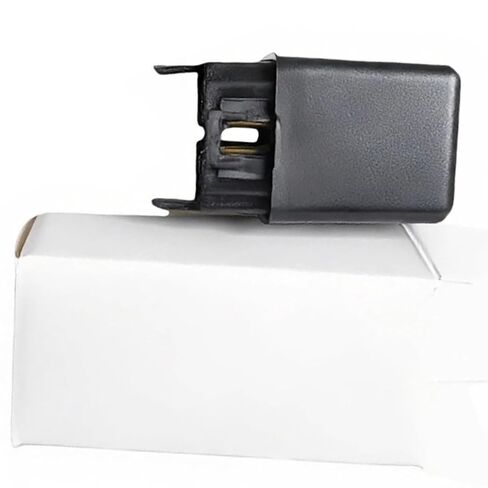

3001C.1 38380-MN5-003 12V 20A 4-Pin SPST Plug-in Power Relay Replacement for OE G8MS-H30 38370-MN5-003 38380-MN5-002, Terminal 85/86 30/87, Harness/Rear Fender/Battery Relay Box

KWD 7.500
Brand
Kwaich
– 1 +

Special Features

  • Specs (verify against your old relay markings): 12V coil, 20A rated load, SPST (1A) plug-in relay; 4-terminal layout (2 coil + 2 switched contacts). Replacement for OE 38380-MN5-003 (RELAY COMP (20A)) and also cross-used in some applications that call out OE 38370-MN5-003—confirm by OE number on your parts diagram. Keyword coverage: power relay, relay assembly, fuse box/relay box relay, wire-harness relay; circuit function varies by model.
  • Install tips: Disconnect the negative battery cable before service. Locate the relay using your parts diagram/service manual—common diagram sections include WIRE HARNESS, REAR FENDER, and BATTERY depending on model/year. Pull the old relay straight out, inspect the socket for heat/corrosion, then seat the new relay fully. Match the terminal layout/pinout before powering on (coil vs load terminals; typical markings 85/86 and 30/87). After install, verify the protected circuit and amperage rating before riding/driving.
  • Compatible with 1988 Honda GL1500 Gold Wing Rear Fender Relay; Compatible with 1989 Honda GL1500 Gold Wing Rear Fender Relay; Compatible with 1990 Honda GL1500 Gold Wing Rear Fender Relay; Compatible with 1990 Honda GL1500 Gold Wing Interstate Rear Fender Relay; Compatible with 1990 Honda GL1500 Gold Wing SE Rear Fender Relay.
  • Compatible with 1992 Honda GL1500 Gold Wing Aspencade Rear Fender Relay; Compatible with 1993 Honda GL1500 Gold Wing Aspencade Rear Fender Relay; Compatible with 1994 Honda GL1500 Gold Wing Aspencade Rear Fender Relay; Compatible with 1995 Honda GL1500 Gold Wing Aspencade Rear Fender Relay; Compatible with 1996 Honda GL1500 Gold Wing Aspencade Rear Fender Relay; Compatible with 1997 Honda GL1500 Gold Wing Aspencade Rear Fender Relay.
  • Compatible with 1998 Honda GL1500 Gold Wing Aspencade Wire Harness Relay; Compatible with 1999 Honda GL1500 Gold Wing Aspencade Wire Harness Relay; Compatible with 2000 Honda GL1500 Gold Wing Aspencade Wire Harness Relay; Compatible with 1992 Honda GL1500 Gold Wing SE Rear Fender Relay; Compatible with 1993 Honda GL1500 Gold Wing SE Rear Fender Relay; Compatible with 1998 Honda GL1500 Gold Wing SE Wire Harness Relay; Compatible with 1999 Honda GL1500 Gold Wing SE Wire Harness Relay; Compatible with 2000 Honda GL1500 Gold Wing SE Wire Harness Relay.
  • Compatible with 2003 Honda CBR600RR Wire Harness Relay; Compatible with 2004 Honda CBR600RR Wire Harness Relay; Compatible with 2005 Honda CBR600RR Wire Harness Relay; Compatible with 2006 Honda CBR600RR Wire Harness Relay; Compatible with 2001 Honda GL1500CD Valkyrie 1500 F6C Deluxe Reverse Switch Relay; Compatible with 1988 Honda CH250 Elite 250 Battery Relay. Related relays sometimes listed in the same harness/relay bank: OE 38360-MN5-003 (10A) and OE 38370-MN5-003 (20A)—confirm by parts diagram.

Description

This is a plug-in power relay intended as a replacement option when your vehicle's parts diagram/service manual calls out OE 38380-MN5-003 (RELAY COMP 20A). Circuit function varies by model (starter/ignition/accessory, etc.), so always confirm by OE number and manual.
OE reference: 38380-MN5-003 (RELAY COMP 20A); related OE often listed: 38370-MN5-003 (confirm by diagram)
Electrical class: 12V coil, 20A rated load (verify by relay markings/spec sheet for your application)
Contact form: SPST (1A)

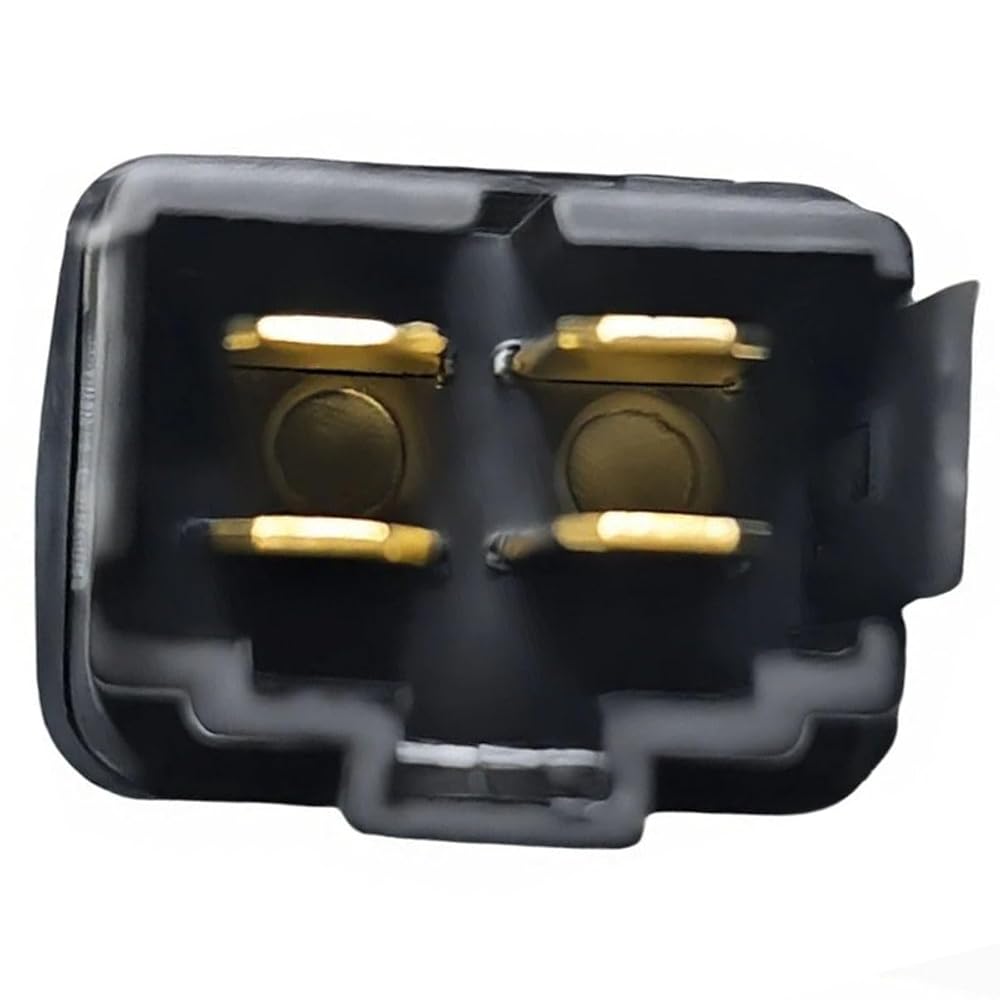

Terminal layout: 4 terminals (coil + load); verify pinout/orientation before powering on (typical marks 85/86 and 30/87)
Intermittent or no power to a relay-controlled circuit
No relay “click” or no output when the circuit is commanded on
Heat-discolored, loose, or corroded relay/socket terminals
Confirm fitment by OE number on the old relay and by your vehicle's parts diagram/service manual. Common diagram locations for this OE include Wire Harness, Rear Fender, and Battery (varies by model/year).
Disconnect the negative battery terminal before service. Pull straight out, inspect the socket, then press the new relay in fully and test the circuit.
