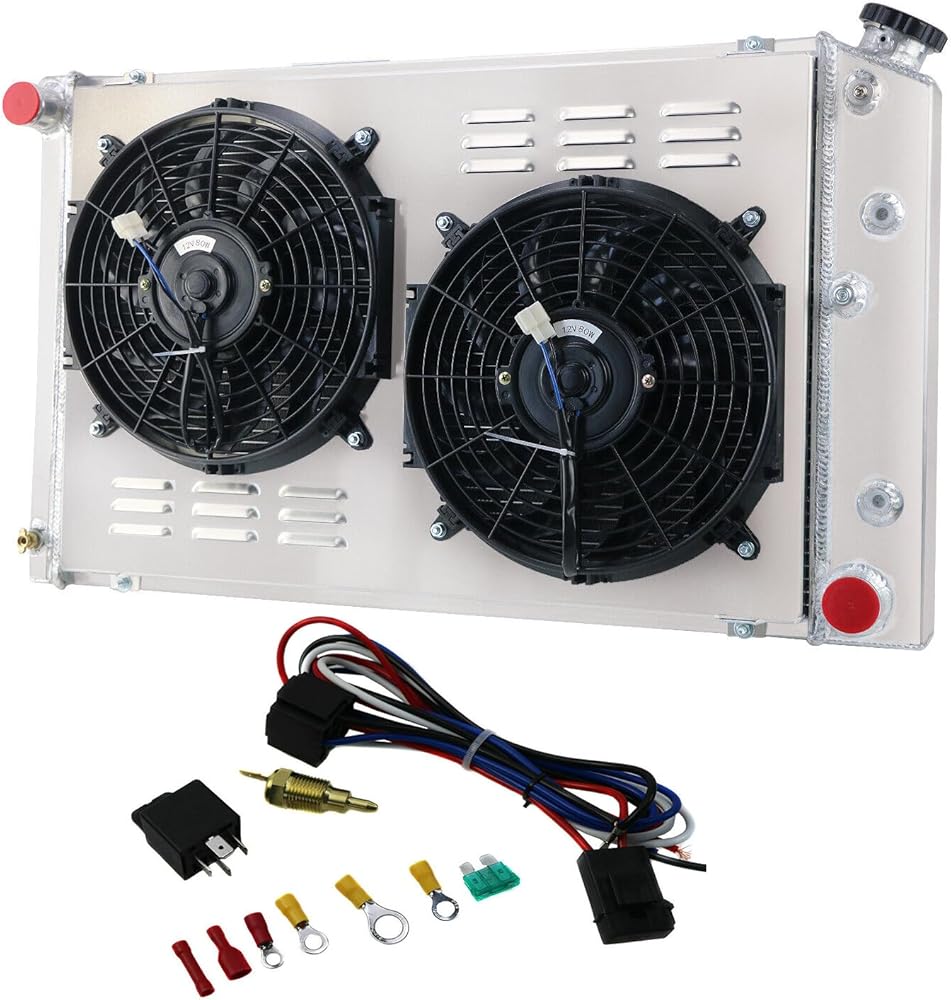

Package Include:

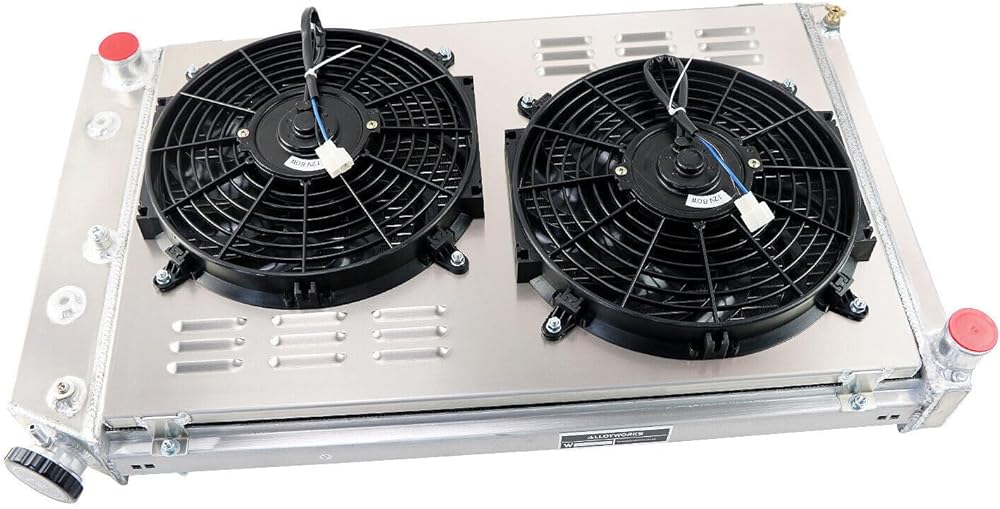

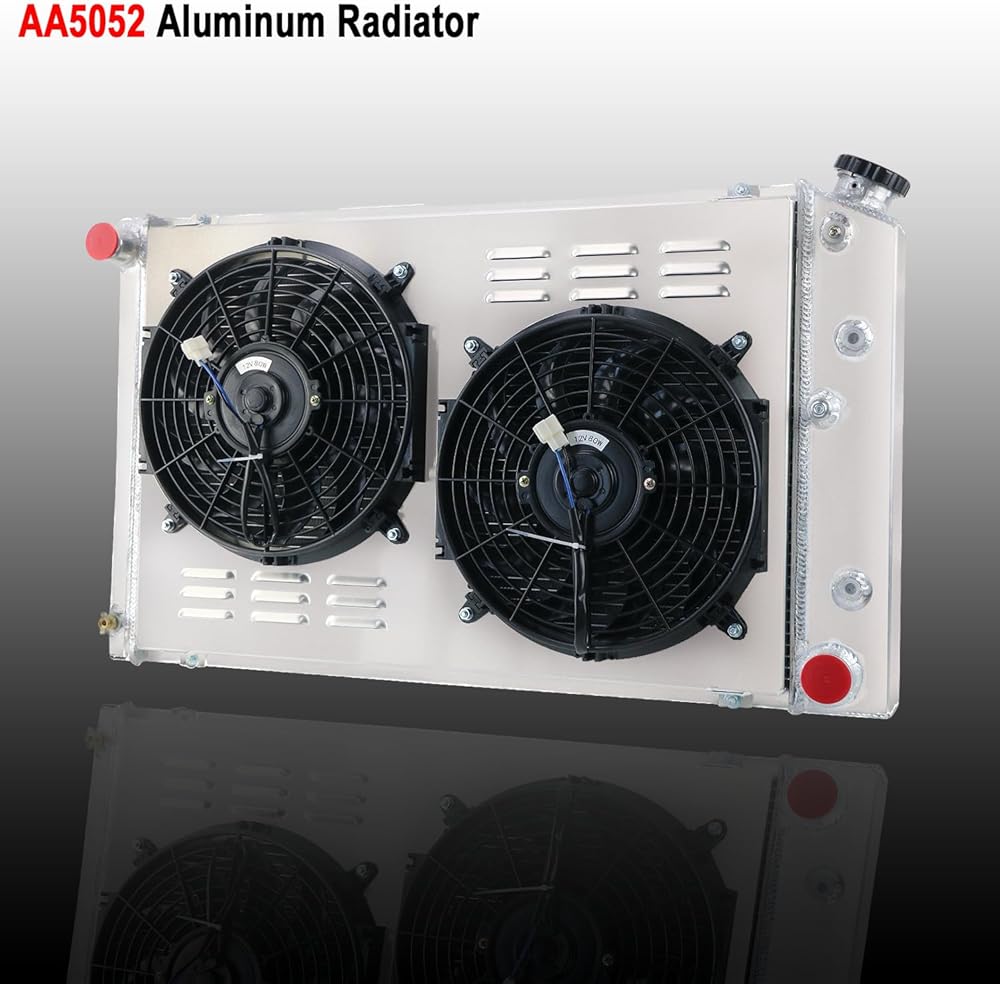

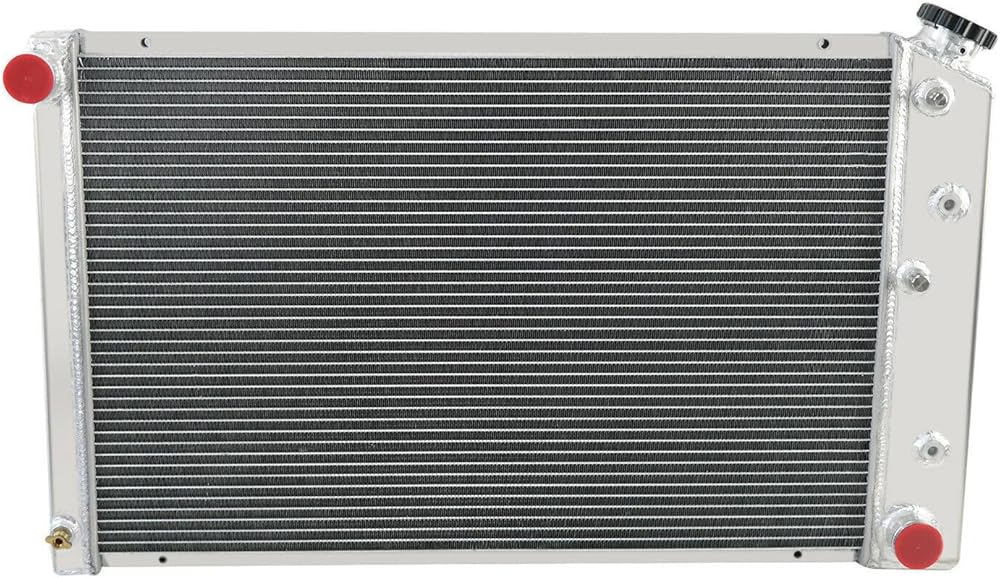

1 X 3-Row AA5052 Aluminum Radiator
1 X CNC Machined Radiator Cap
1 X AA5052 Aluminum Shroud
2 X 12" Fans (Includes mounting kits)
1 X Thermostat Relay Kit

Radiator Size:
Condition:New

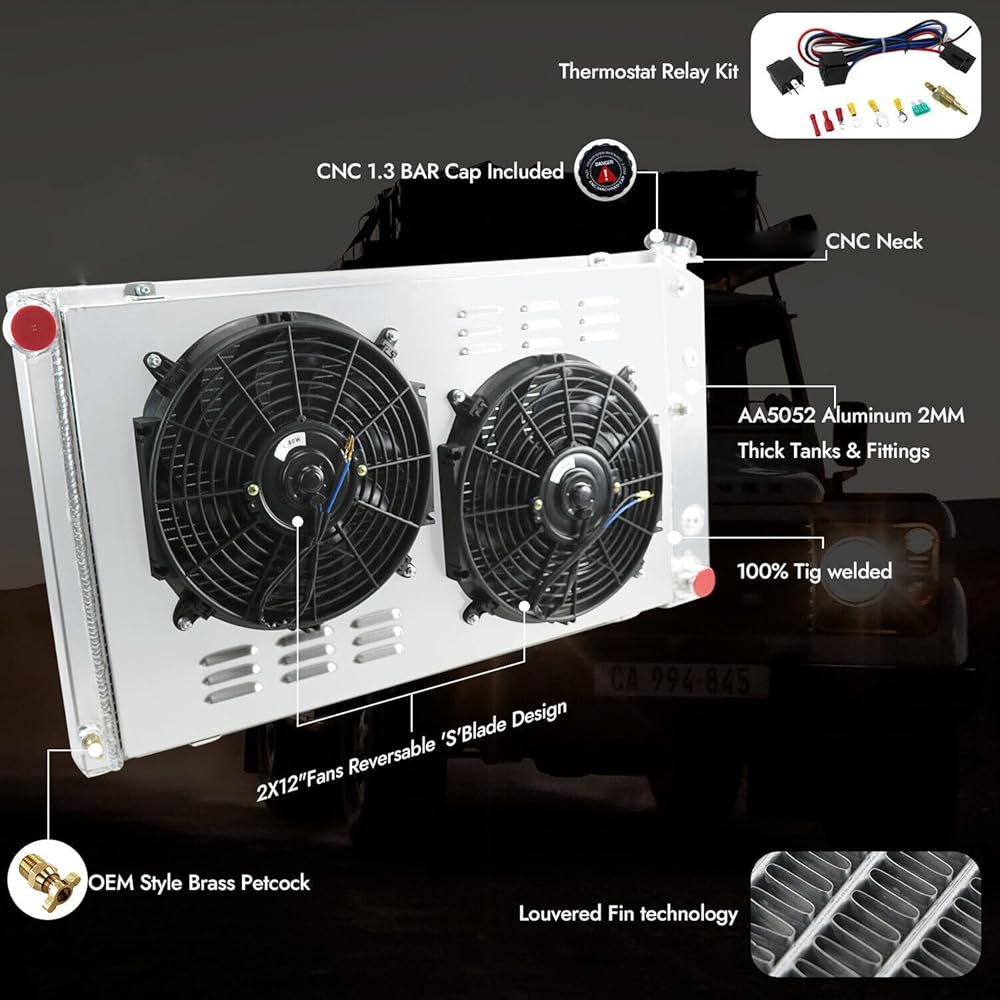

High Performance Racing Spec.
3-Row of tubes Core Racing Design
Petcock Drain:OEM style brass petcock drain
Core Dimensions: 17" H x 28 1/4" W
Overall Dimensions: 18 5/8" H x 33" W
Inlet Diameter: 1-1/2"
Outlet Diameter: 1-1/2"
Transmission Oilcooler: include
Mounting Type : saddle
Transmission: Automatic and Manual.

FANS:
Volt :12v
Maximum Fan CFM: 1730 cfm
Fan Diameter (in): 12.050”
Thickness (in): 2.500”
Number of Blades: 10 S-Type blade
Maximum Fan RPM: 2,250 rpm
Blade Material: Plastic
Amp Draw: 12.70 amps
Includes the Mounting Tabs for an Easy Zip Tie Installation

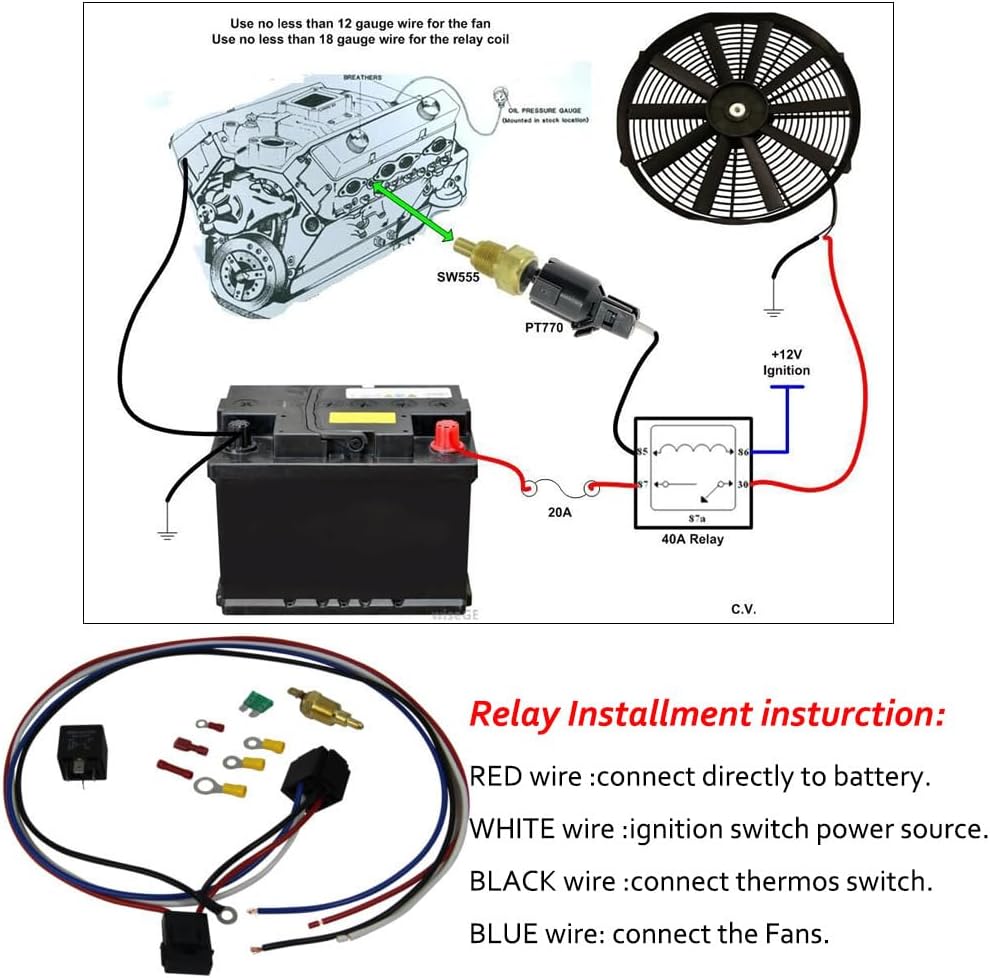

Thermostat Kit Installation:
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
180'F turn-on temperature, 165'F turn-off temperature.
Probe typically threads into radiator, water outlet or manifold.
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.

Vehicle Fitment
For 1971-1990 Chevy Caprice
For 1968-1973 Chevy Chevelle
For CHEVY GM CARS 28" WIDE CORE
For 1973 -77 Chevy Truck (28" Wide x 17" Tall Core)
For Chevy Cars Caprice (fits 28" wide core)
For 68-77 Chevy El Camino
For 68-77 For Chevy Chevelle Malibu
For 1971 1972 Chevy Biscayne
For 67 - 69 Buick Riviera
For 66-77 Olds Cutlass
For CADILLAC OLDSMOBILE GM CARS 28" WIDE CORE
For 1973-1980 K5 Blazer / Blazer
For 72-80 Chevy / GMC G & P-Series Vans
For 70-77 Chevy Monte Carlo
For 73-80 Blazer / Jimmy
For 68-85 GM 28" Core
For 73-80 Chevy C/K Series
For 73-80 Chevy K Series
For 65-74 Cadillac DeVille
For 67 68 69 70 71 72 Buick Skylark
For 71-79 Chevy Impala
For 67-85 Buick Riviera
For 68-73 Pontiac GTO
For 1971 1972 Chevy Brookwood
For Buick Century 1973-1976 350ci 455 ci - 3.8
For 1973 Chevy C15//C20/C30 Pick-Up
For 65-90 Buick LeSabre
For 1971 1972 Chevy Kingswood
For 1974 1975 Pontiac LeMans
For Chevy GMC Trucks Suburban
For 68-85 84 83 Chevy Many Cars Trucks Suburban GMC
