Application:

For 2006-2010 Ford Explorer 4.0L

For 2006-2010 Ford Explorer 4.6L

For 2006-2010 Mercury Mountaineer 4.0L

For 2006-2010 Mercury Mountaineer 4.6L

For 2007-2010 Ford Explorer Sport Trac 4.6L

For 2007-2010 Ford Explorer Sport Trac 4.0L

OE/OEM Part Number: 2816, CU2816, RAD2816, DPI2816, KKS2816, SBR2816, AE2816, EC2816

Radiator Specifics:

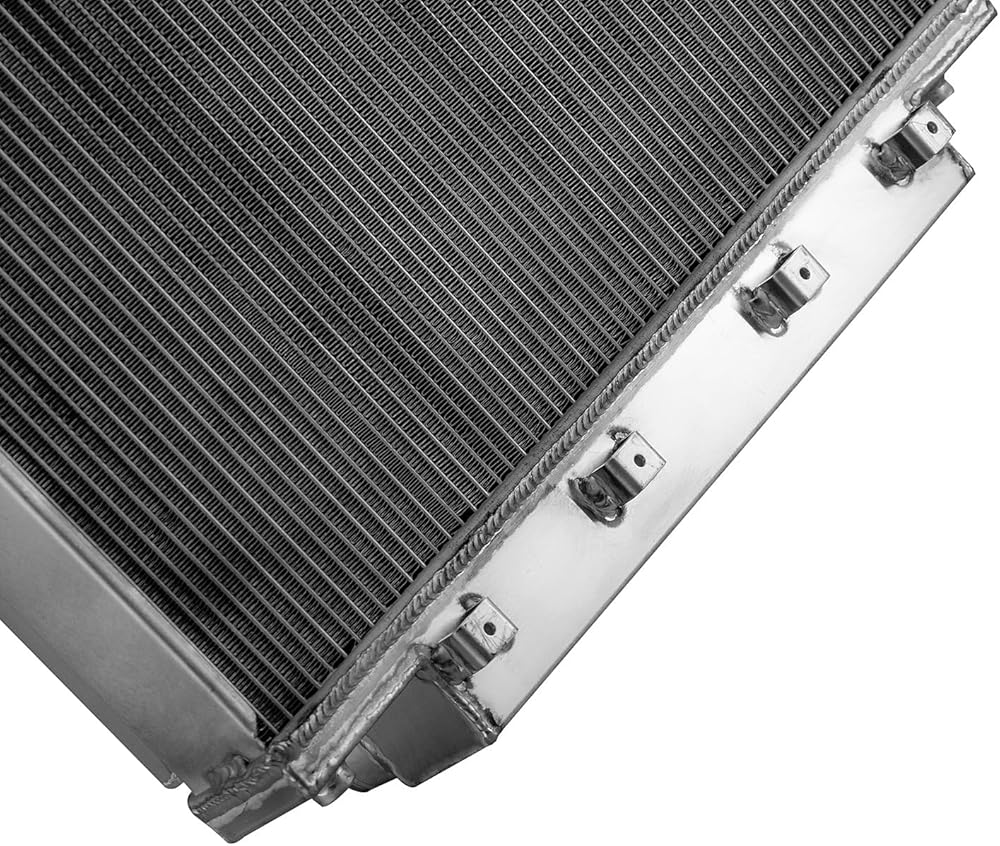

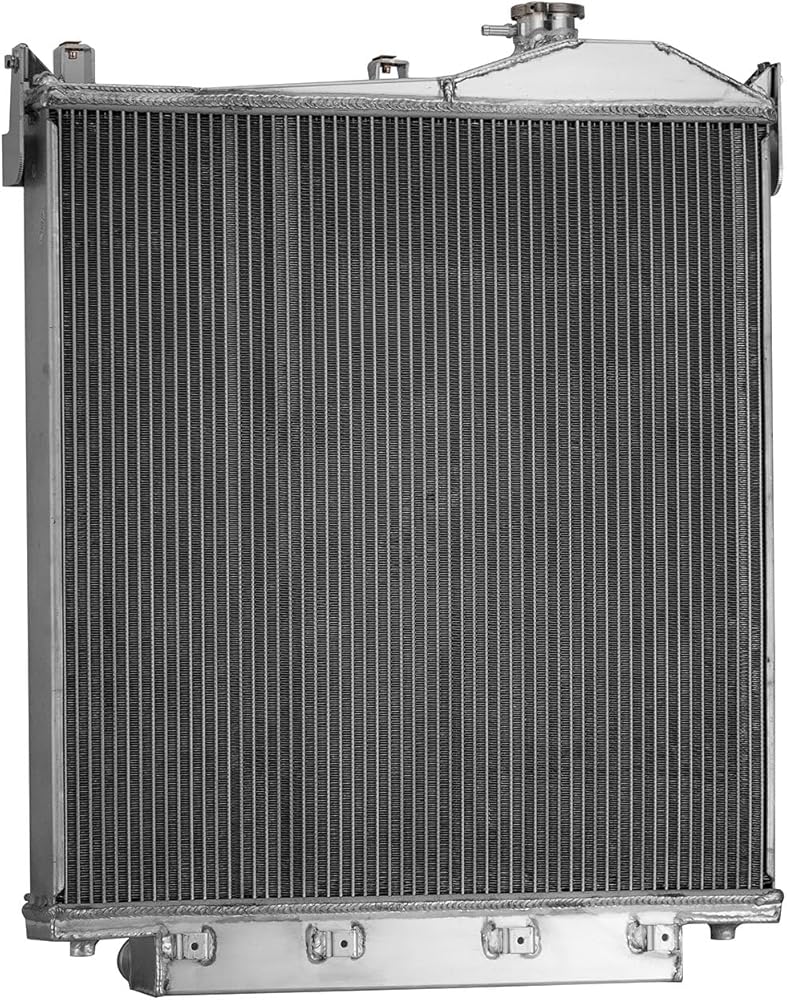

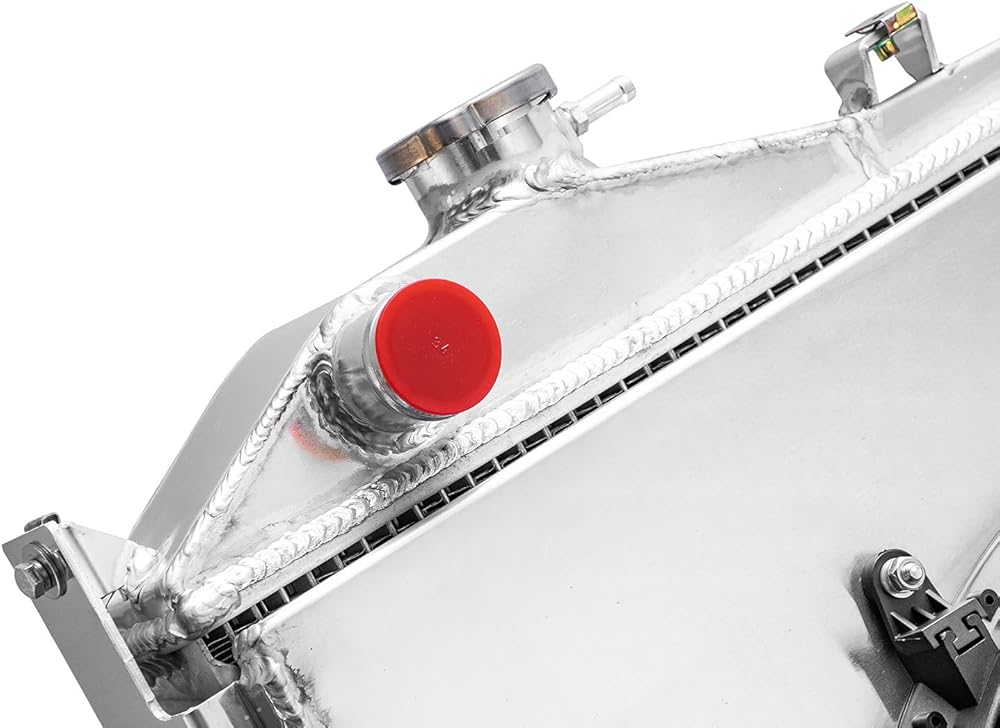

Aluminum Core & Tank

100% welded by TIG, no epoxy

4-Row of tubes Core Racing Design

Core Dimensions: 23 1/7 "H X 23 5/6" W

Overall Dimensions: 31 "H X 24 1/6" W

Inlet Hose Diameter: 1-1/2"

Outlet Hose Diameter: 1-1/2"

Top Inlet：On Driver Side

Low Outlet：On Passenger Side

Transmission Oil Cooler：Yes

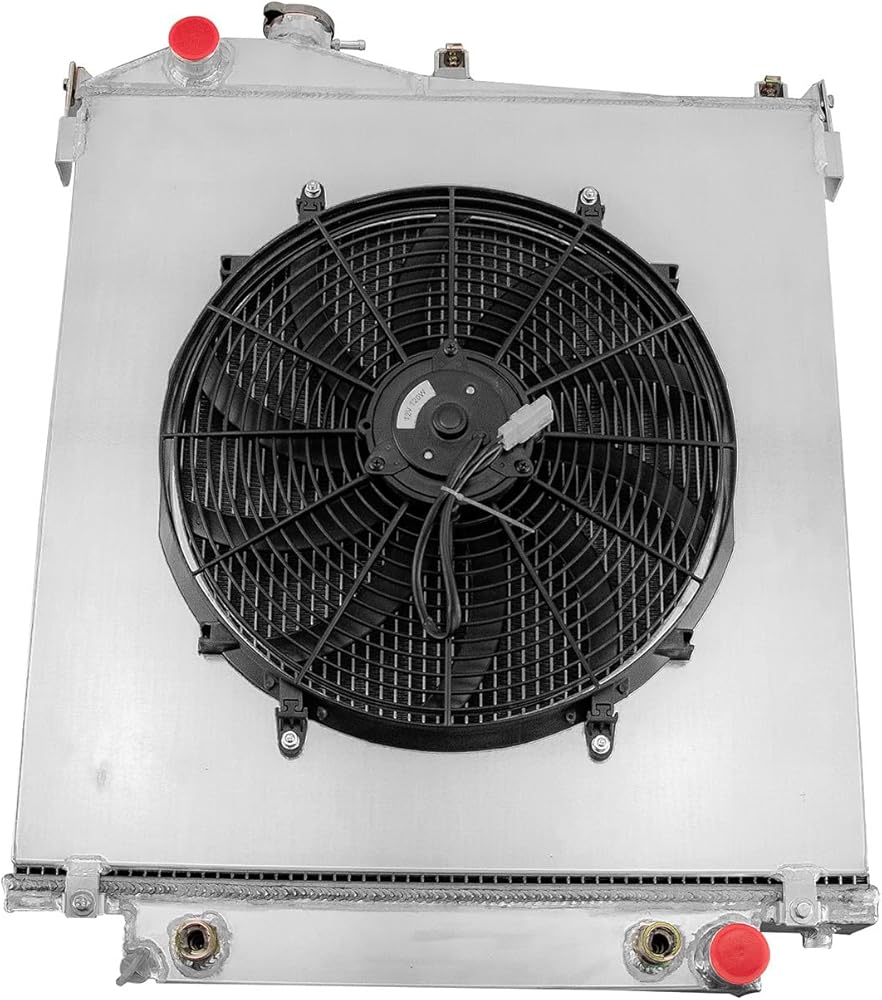

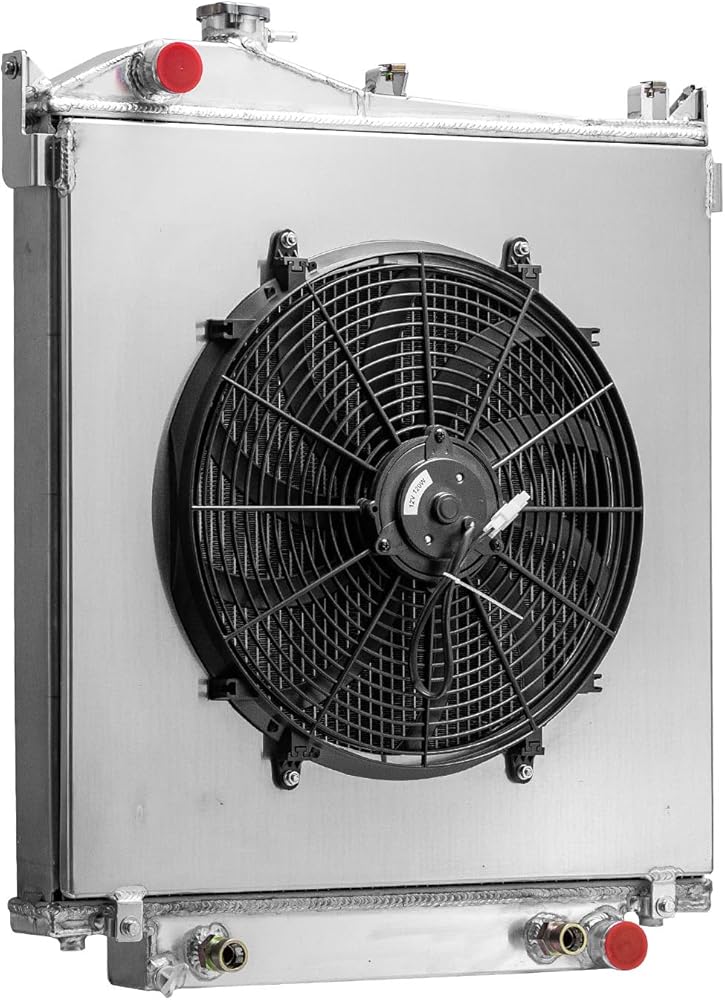

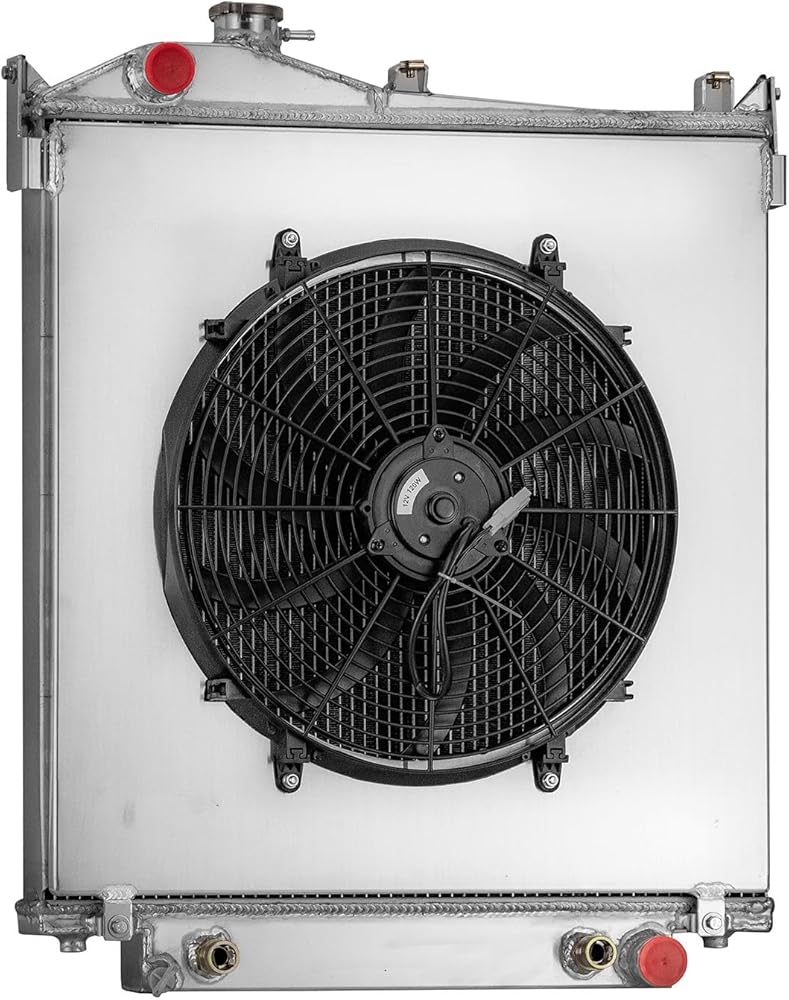

Fan Specifics:

Diameter : 16'' (Blade to Blade)

Voltage: DC 12 Volts

Wattage: 120W

Number of Blades: 10 S-Type blades

Maximum Fan CFM（Cubic Feet per Minute）: 3,000 cfm

Maximum Fan RPM（Revolution(s) Per Minute）: 2000±10%

Amp Draw: 10amp

Fan Thickness: 2.95"

Package Include:

1 X 4-Row Aluminum Radiator

1 X Radiator Cap

1 X Aluminum Shroud

1 X 16" Fan

Description:

This aluminum radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This Aluminum Radiator is at least 40% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
