Specs & OE match: 12 VDC coil; 70A contact rating; 1 Form A (SPST-NO); coil resistance ~90 Ω (~133 mA); AgSnO contacts; steel bracket; 4 blades (two 3/8", two 1/4"); resistor-suppressed coil (C1S). Compatible with OE 2MR2146 and 25171096; cross-references include Compatible with VF7-41F11-S01 and Compatible with PAI 804123.
Install & location: On vehicles using OE 25171096, this is the Electrical Equipment Panel Assembly relay. Bracket-mount near the panel; verify 4-blade layout (2 large/2 small) and SPST-NO pinout. Basic steps: disconnect battery, swap relay, confirm orientation/seating, reconnect, and test the controlled circuit(s). Not a micro-ISO cube; this is a high-amp “maxi” form factor.
Fitment — Peterbilt: Compatible with 2010 Peterbilt 320 Electrical Equipment Panel Relay; Compatible with 2011 Peterbilt 320 Electrical Equipment Panel Relay; Compatible with 2012 Peterbilt 320 Electrical Equipment Panel Relay; Compatible with 2013 Peterbilt 320 Electrical Equipment Panel Relay; Compatible with 2014 Peterbilt 320 Electrical Equipment Panel Relay; Compatible with 2015 Peterbilt 320 Electrical Equipment Panel Relay.
Fitment — Mack: Compatible with 2011 Mack GU813 Electrical Equipment Panel Relay; Compatible with 2012 Mack GU813 Electrical Equipment Panel Relay; Compatible with 2013 Mack GU813 Electrical Equipment Panel Relay; Compatible with 2014 Mack GU813 Electrical Equipment Panel Relay; Compatible with 2015 Mack GU813 Electrical Equipment Panel Relay; Compatible with 2013 Mack MRU613 Electrical Equipment Panel Relay; Compatible with 2014 Mack MRU613 Electrical Equipment Panel Relay; Compatible with 2015 Mack MRU613 Electrical Equipment Panel Relay; Compatible with 2006 Mack CXN612 Electrical Equipment Panel Relay; Compatible with 2006 Mack CXN613 Electrical Equipment Panel Relay.
Complementary parts (for related traffic): Pair with Compatible with 2MR2146P2 / PAI 804124 (panel-mount version without bracket) when stocking both bracketed and in-panel spares; keep a Compatible with VF7-41F11-S01 on hand as an alternate cross. Use with a maxi-relay 4-blade holder/pigtail when repairing damaged sockets. Vehicle names and OEs are for fitment reference only—match OE number, form factor, and terminal layout before purchase.
Description

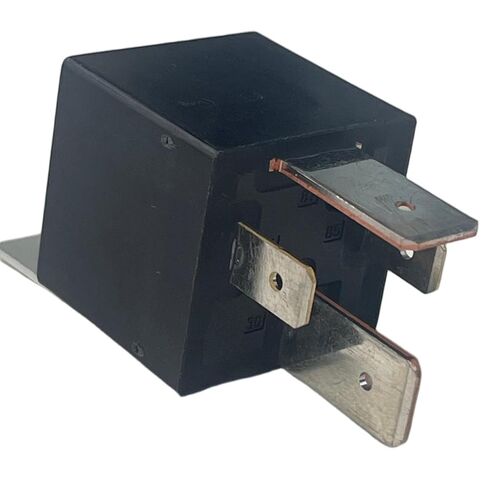

Function: High-current power relay that restores switching for circuits driven by the OE 2MR2146 / 25171096 relay in the electrical equipment panel.

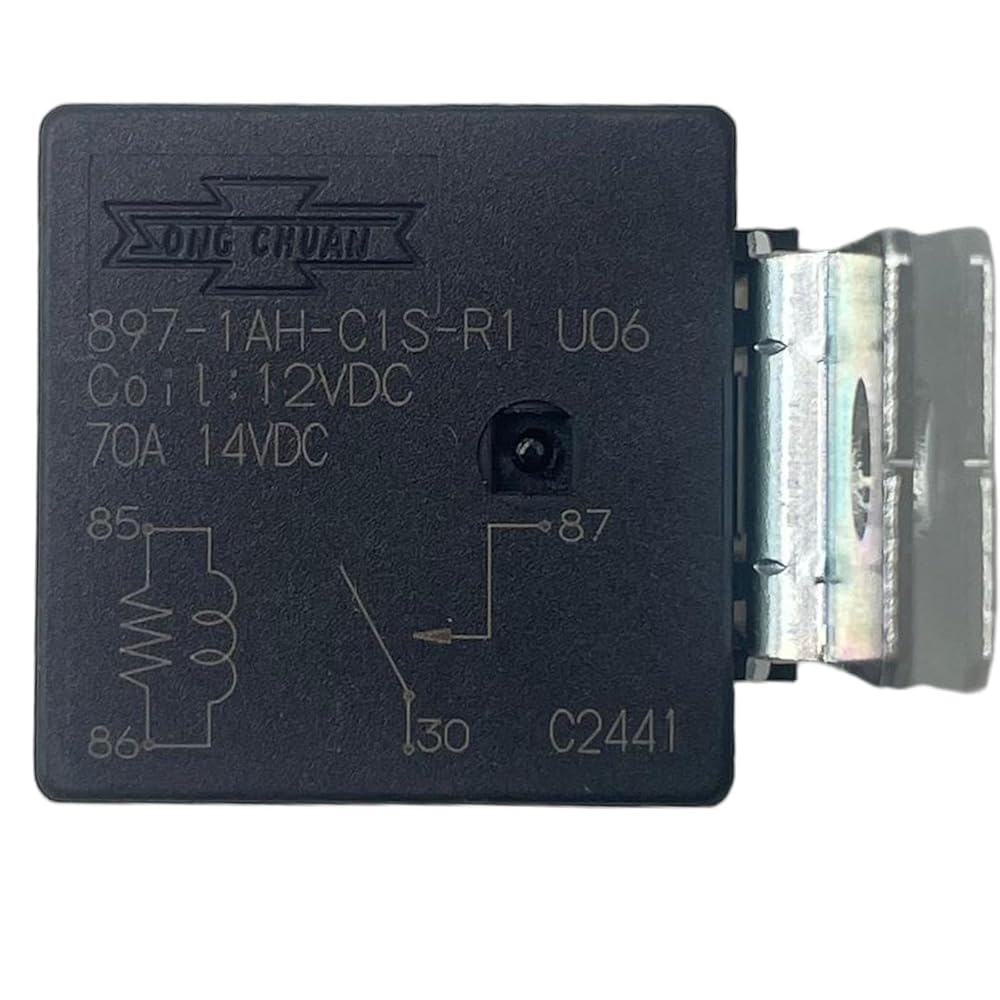

Electrical: 12 VDC coil; 70 A contact rating; 1 Form A (SPST-NO); coil ~90 Ω (~133 mA); silver-tin-oxide contacts; resistor-suppressed coil (C1S).

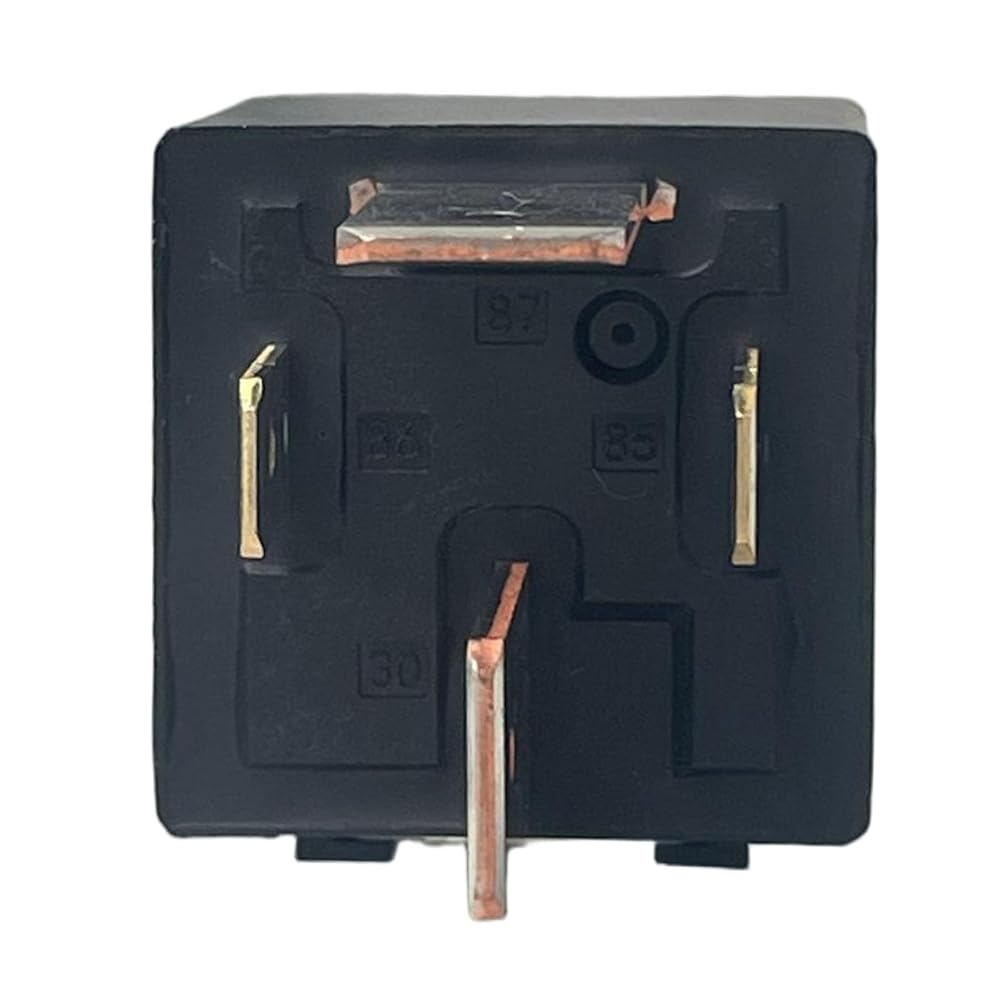

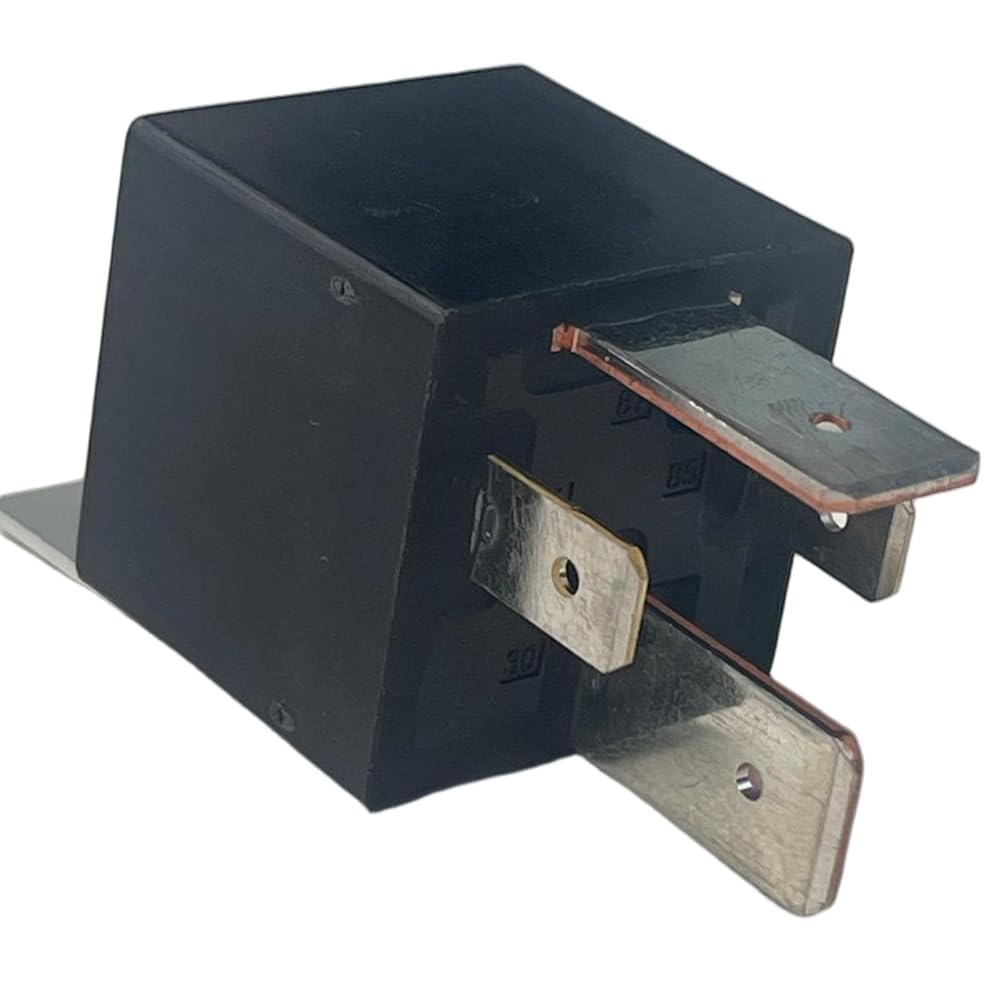

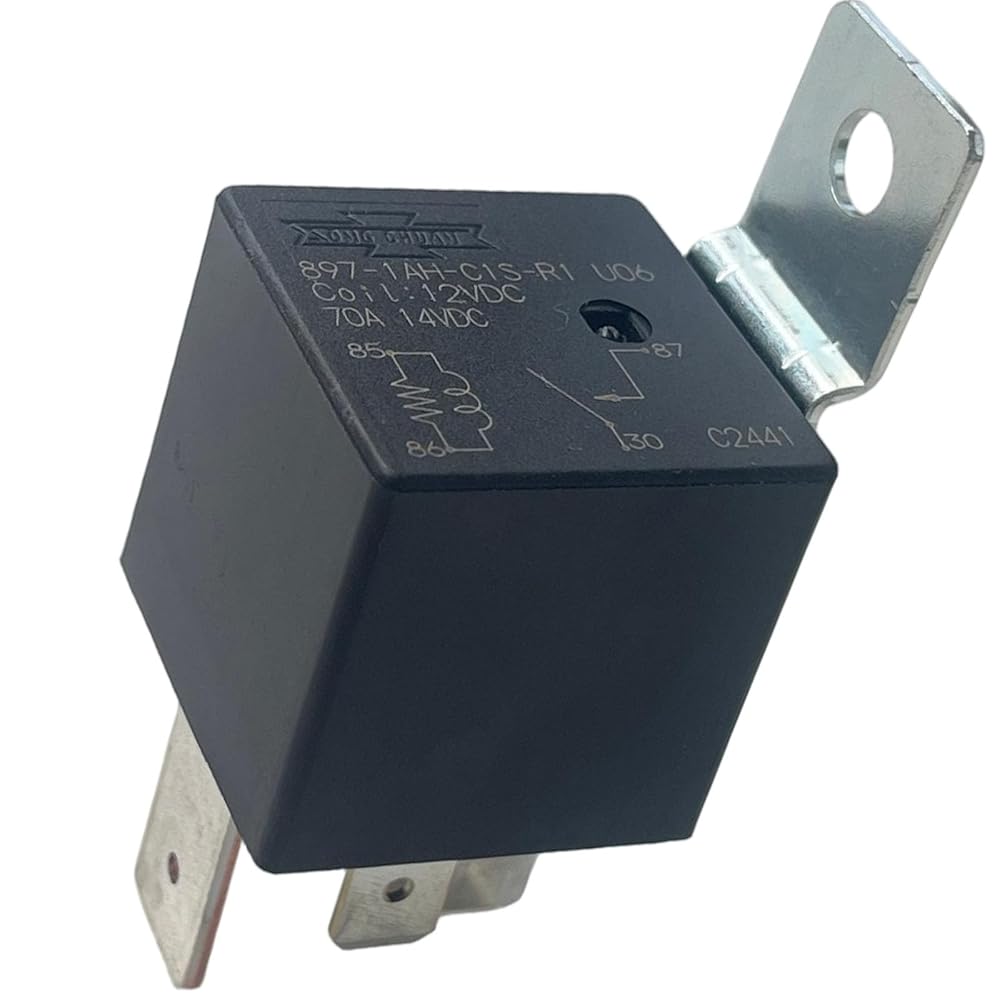

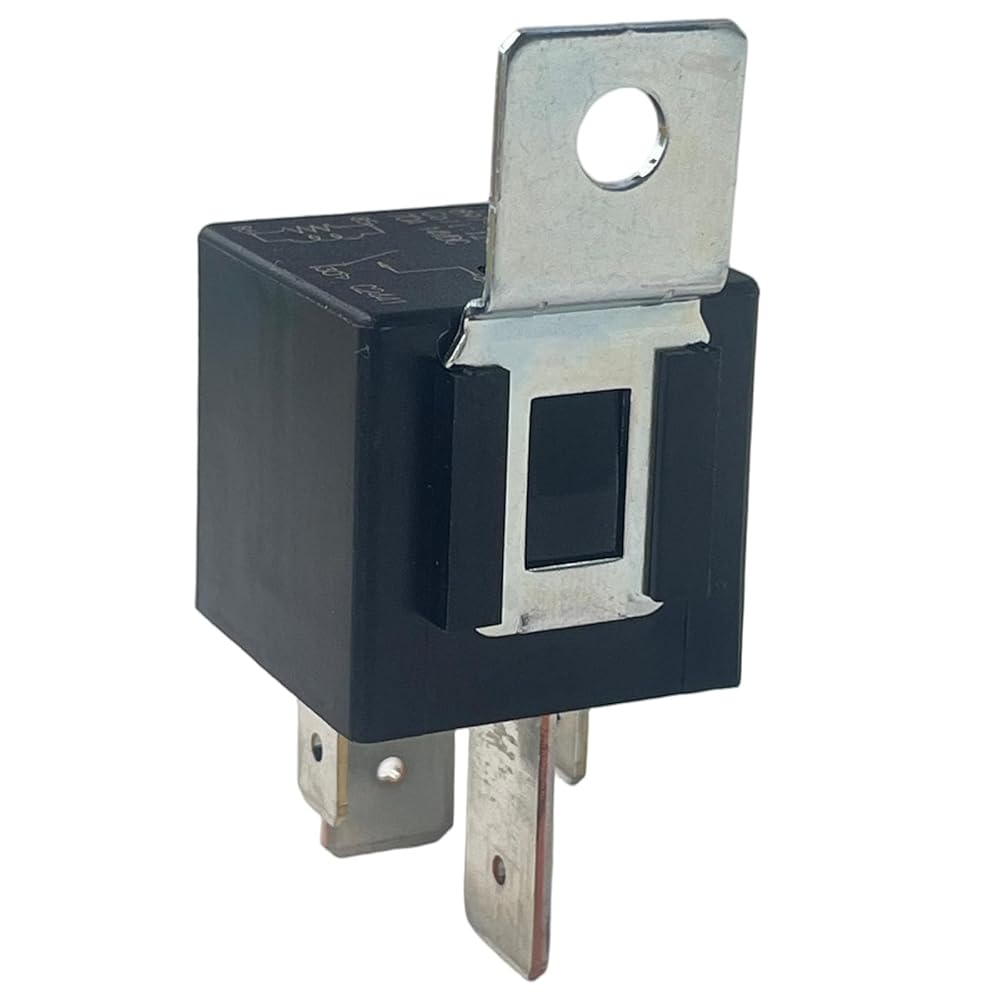

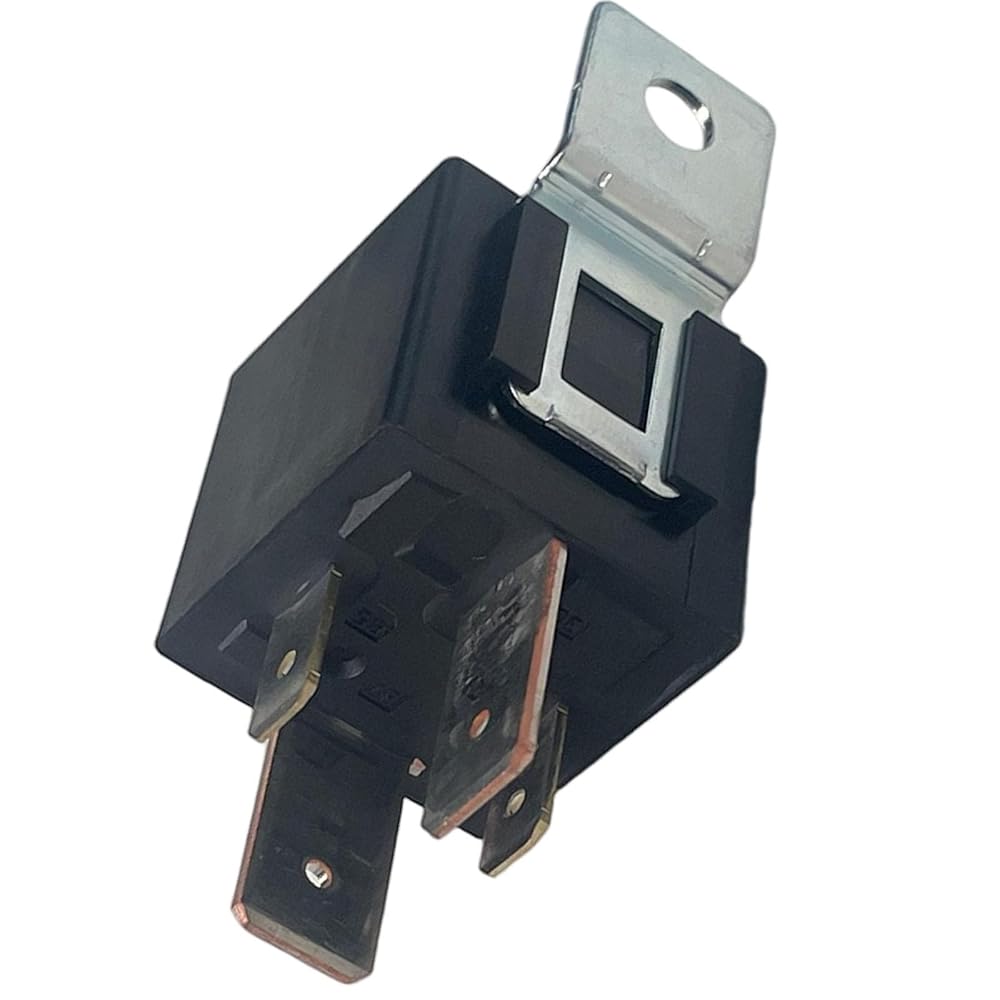

Form Factor: Maxi relay with steel bracket; 4 blades (two 3/8" + two 1/4"). Not a micro-ISO cube relay.
Typical Uses: Power distribution panel functions; may be specified by OEMs for ignition/battery-disconnect/hazard/lighting circuits depending on model.
Dimensions (body): ~25.8 × 25.8 × 25 mm (relay body; overall height greater with bracket).
OE & Cross: Compatible with 2MR2146, 25171096; cross references include VF7-41F11-S01 and PAI 804123. A panel-mount variant is Compatible with 2MR2146P2 / PAI 804124.
Package Includes: 1 × 897-1AH-C1S-R1-U06 relay.
Fitment Note: Match OE number and terminal layout (4-blade, 2 large/2 small). Vehicle names are for reference to systems that specify these OEs.
