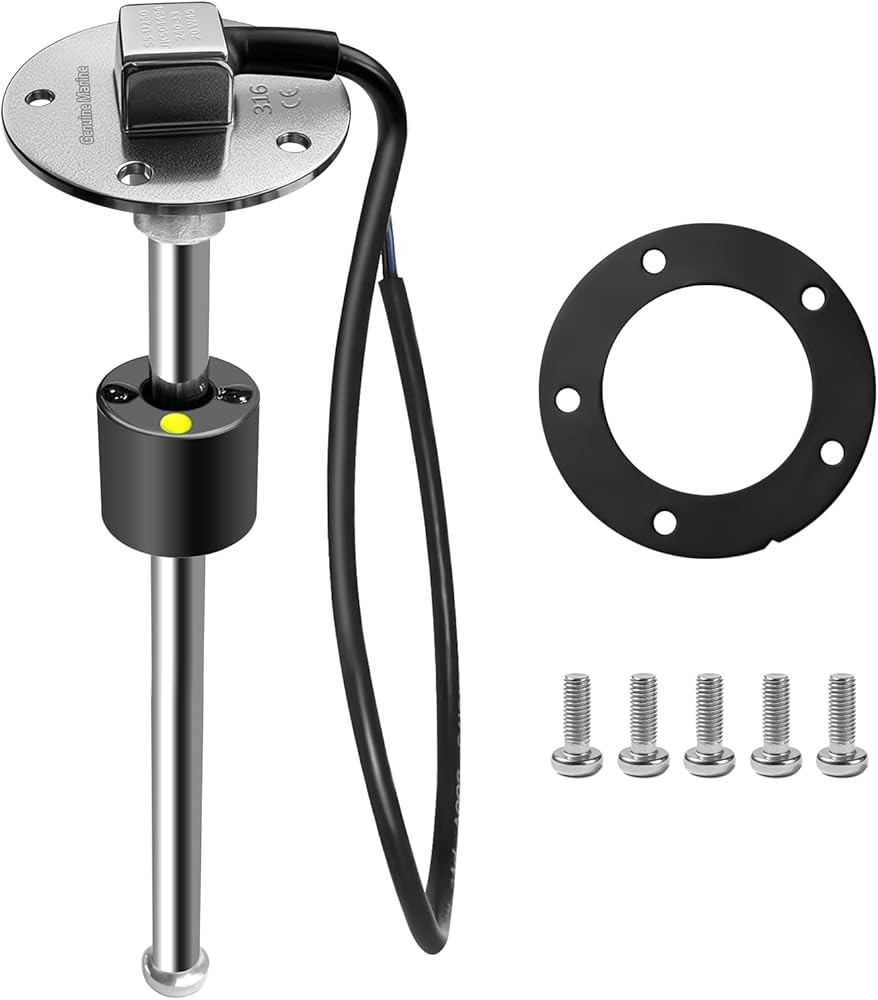

10" Fuel Tank Sending Unit 316 Stainless Steel 240-33 ohms Boat 10 inch Tank Level Sensor 250mm Water Level Sender Unit for Truck RV Car Universal Standard 5-Hole Mounting in Kuwait

10" Fuel Tank Sending Unit 316 Stainless Steel 240-33 ohms Boat 10 inch Tank Level Sensor 250mm Water Level Sender Unit for Truck RV Car Universal Standard 5-Hole Mounting

KWD 11
Brand
THALASSA
Weight
68 g
Size240-33Ω Sending Unit S5 250MM
– 1 +

Special Features

  • [Attention] - The length of the entire probe rod is 250mm (10inch), so we recommendotion tank size is 10.2”（260mm）up to 10.8“(275mm). Please check the length you need when purchasing to avoid being too long and unusable. The pole length needs to be at least 0.2inches shorter than the barrel, as reserved. For example, the height of liquid barrel is 10.5 inches, then you need to choose about 10 inches of rod length.
  • [THALASSA 10-inch (250mm) Liquid Level Sensor] - Features US-spec 240-33 ohms resistance and 316 stainless steel construction, ensuring seamless compatibility with our marine instruments such as fuel gauges. Rated power: 125mW. Accuracy: ±21mm.
  • Universal Liquid Level Sensors: The 250mm sensor is primarily installed on boats, trucks, and off-road machinery. Liquid level measurement is achieved through a series of reed switches within an electronic tube. The float is the sensor's only moving component, thereby minimizing potential mechanical failures. Protection Rating: IP67 Operating Temperature: -40°C to +85°C These features collectively contribute to the sensor's precise liquid level measurement.
  • [Mounting Methods] - Standard SAE 5 hole pattern. Please choose one length range & signal you need when placing the order.
  • [Widely used] - Suitable for fuel, water, kerosene, chemical tanks and any kinds of liquids without impurities.

Description

Output signal: Resistance control signal, 240-33Ω
Mounting Methods: Standard SAE 5 hole pattern
Mounting: 5 pieces of M5 screws and 2 mm thick gasket
Rated current for alarm switch: 500mA
Output signal: 240~33 ohm
Operating temperatures: - 40 to 85°C
Protection rank: IP67
Length range: 10inch / 250 mm.
Package:1* level sensor
