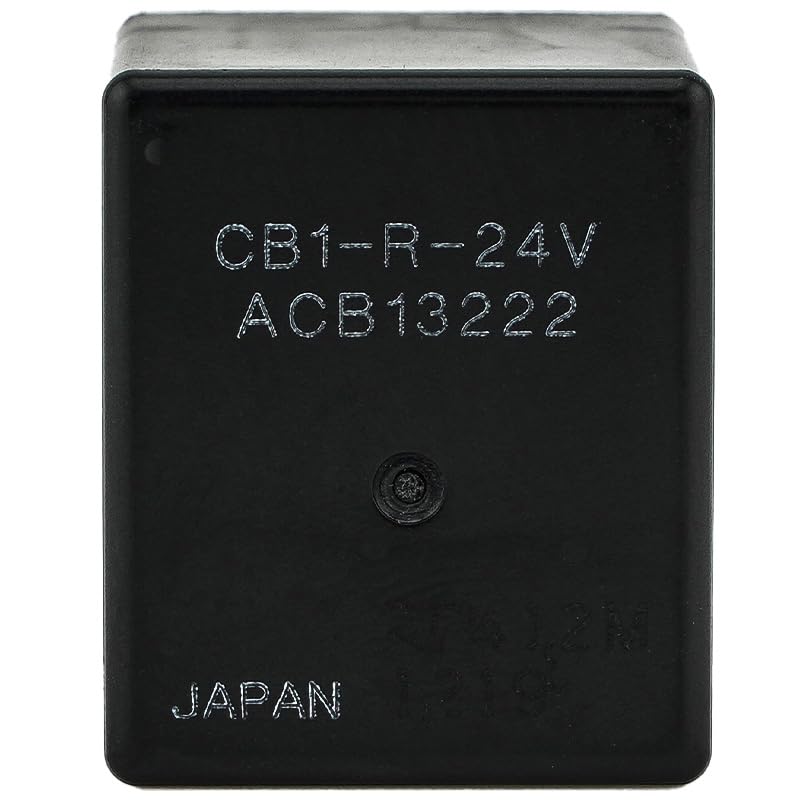

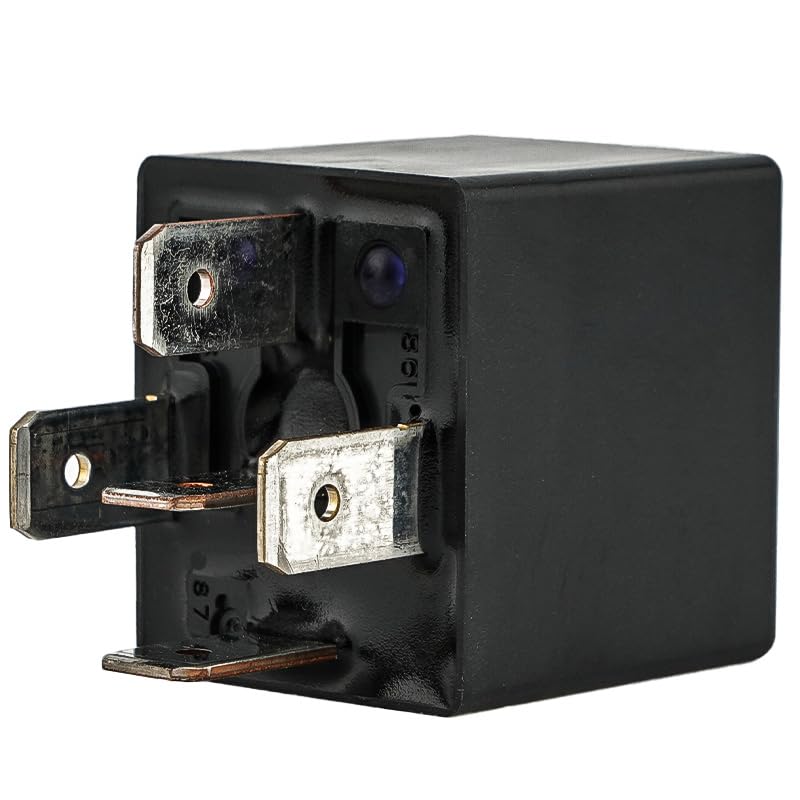

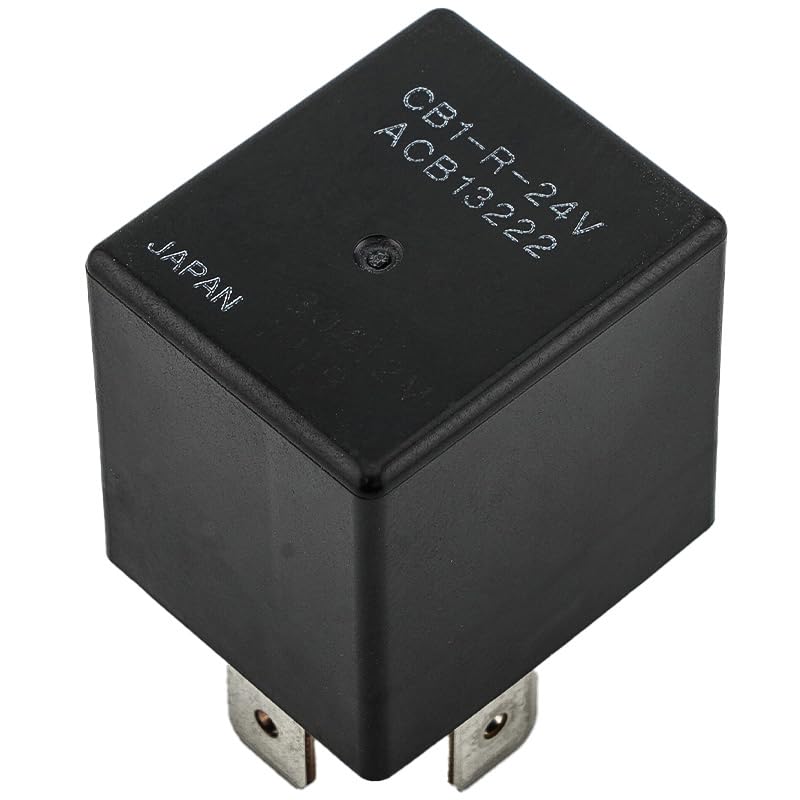

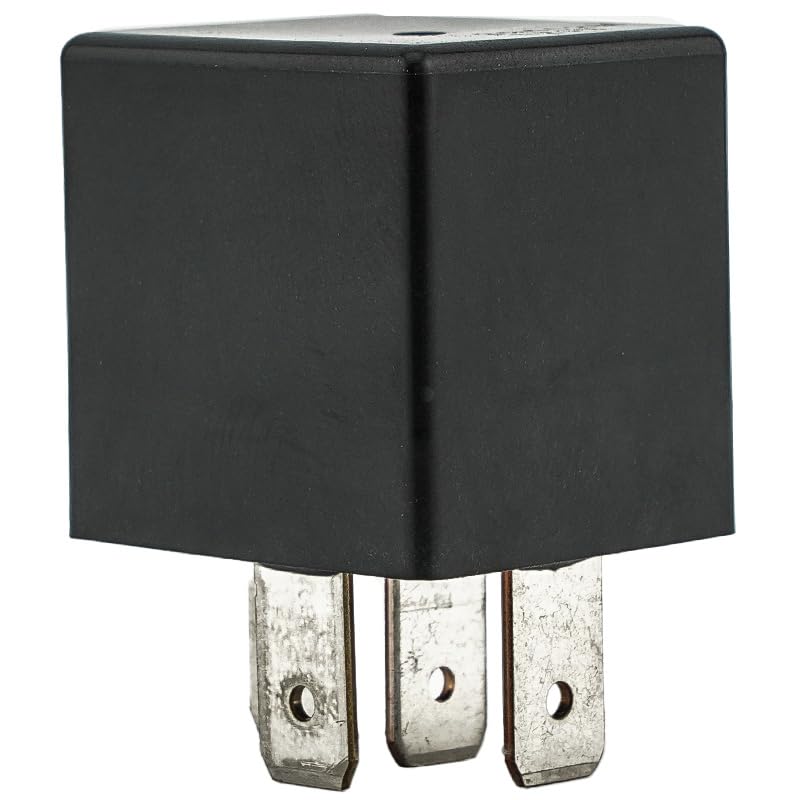

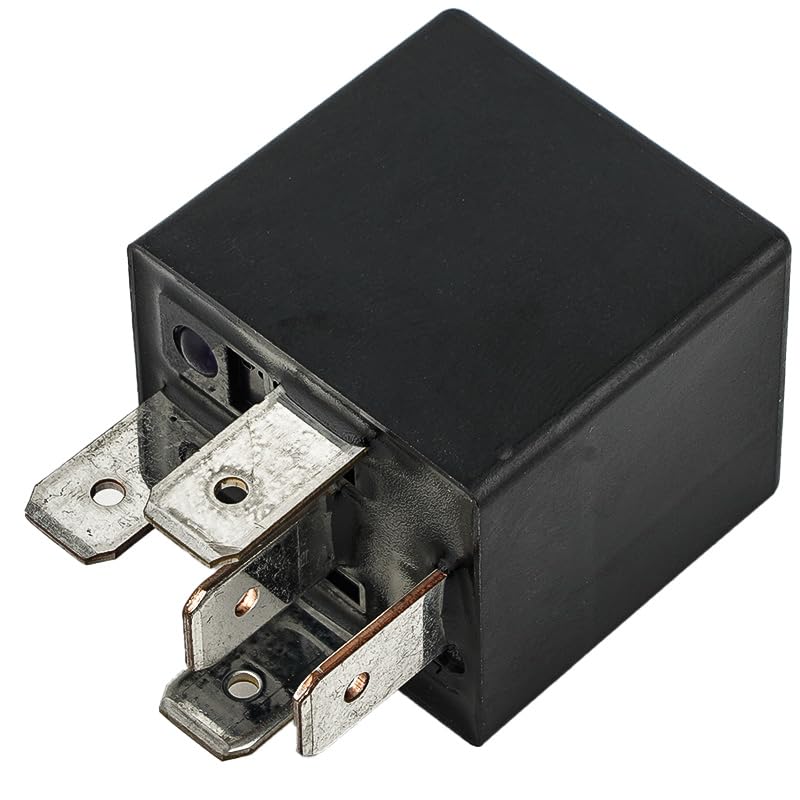

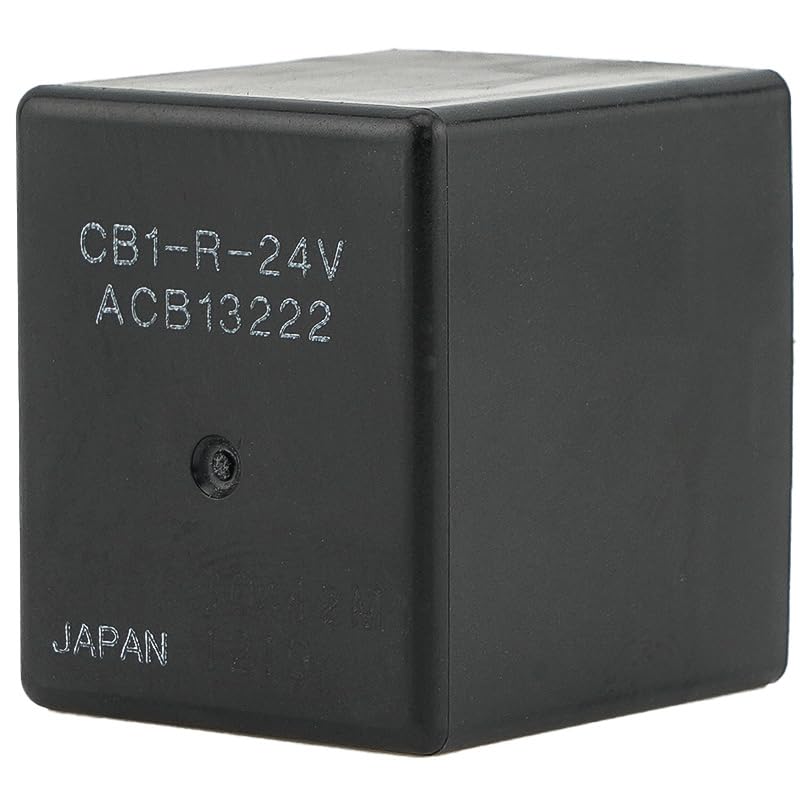

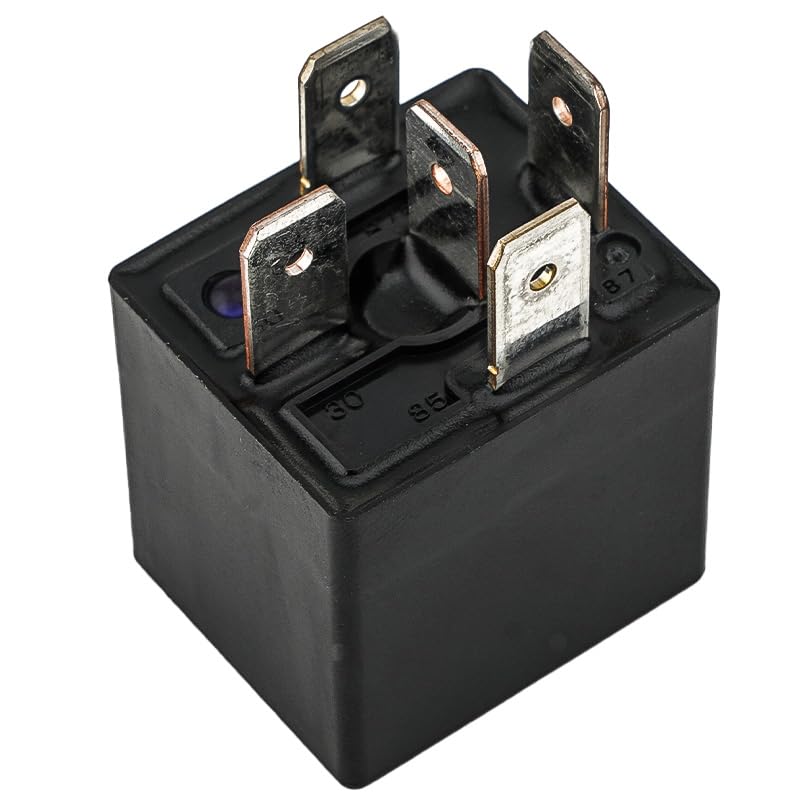

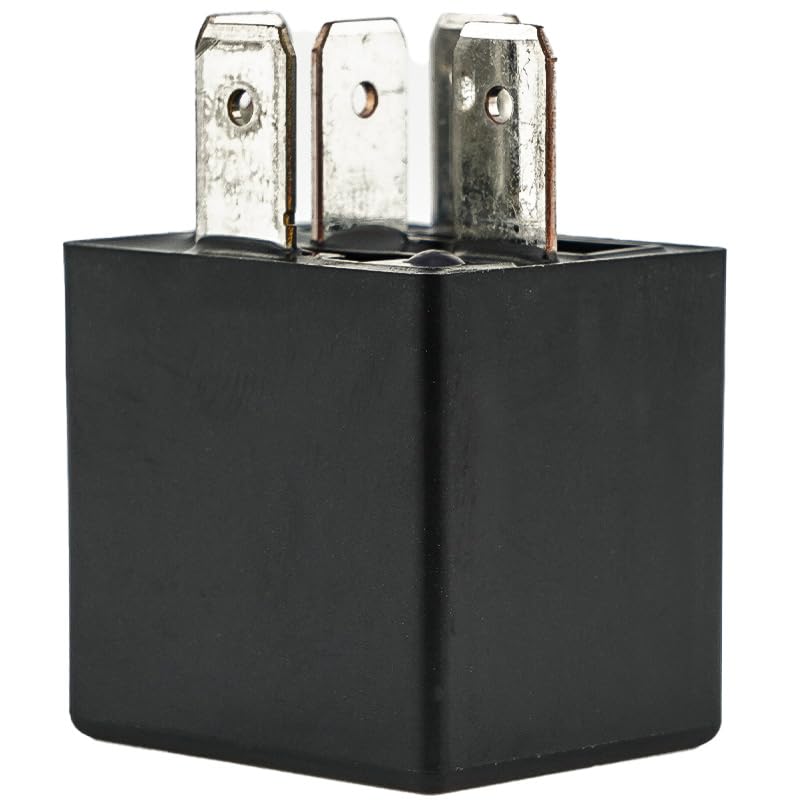

CB1-R-24V ACB13222 M01 24VDC 20A 1 Form C Quick Connect 5Pins Plug in Mini-ISO Automotive Relays Cell Motors, Air Compressor, ABS, EPS, etc with Resistor

KWD 5.500
Brand
SALLSFRIK
Weight
23 g
– 1 +

Special Features

  • Built-in Resistor Protection:Integrated resistor suppresses voltage spikes when switching inductive loads like motors and compressors, preventing ECU damage.
  • 20A Heavy-Duty Switching:Handles 20A resistive loads with silver alloy contacts for air compressors, ABS pumps, and EPS systems in 24V vehicles.
  • Quick-Connect 5-Pin Design:Plug-and-play installation compatible with standard Mini-ISO sockets—replace relays in under 10 seconds.
  • Fail-Safe SPDT Operation:1 Form C configuration with normally closed (NC) default state for critical safety circuits (e.g., ABS brake release).
  • Vibration/Heat Resistant:Sealed Mini-ISO housing withstands engine bay temperatures (-40°C to +125°C) and road vibrations.

Description

"
Coil Voltage: 24VDC
Contact Rating: 20A 14VDC (resistive)
Contact Form: SPDT (1 Form C)
Default State: Normally Closed (NC)
Terminal Type: Quick-connect 5-pin
Resistor Protection: Absorbs back-EMF from motors/coils
Contact Material: Silver-cadmium alloy (arc-resistant)
Package Includes:1 × CB1-R-24V ACB13222 M01 Relay
Critical Applications:Air compressor clutch engagement,ABS hydraulic valve control,Electric power steering (EPS) backup circuits,Fuel cell coolant pumps,Industrial motor starters,24VDC Automotive Relay with Resistor Protection Engineered for demanding vehicle systems, the CB1-R-24V ACB13222 M01 combines 20A switching power with built-in resistor technology to safely control inductive loads like cell motors, air compressors, ABS modules, and EPS units.
Attention:
Do not switch the contactswithout any load as the contact resistance may become increased rapidly.
Do not use relays that exceedcoil ratings, contact ratings, and life expectancy, as doing so may result inRisk of overheating.
"
