2/5/10pcs ID16mm NBR Oil Seals TC-16 * 22/24/25/26/28/30/32/35/36*4/5/7/8/10mm Nitrile Rubber Shaft Double Lip Oil Seal Gaskets Product Name: TC NBR Skeleton Oil Seal

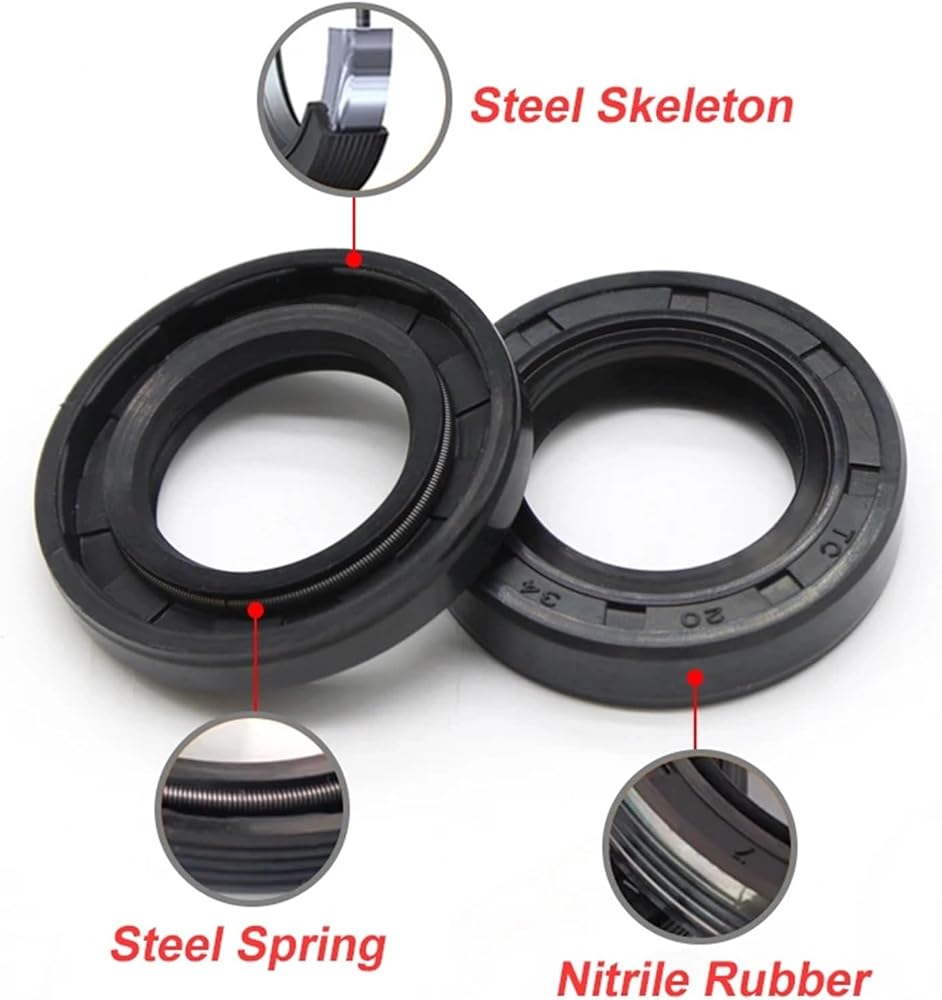

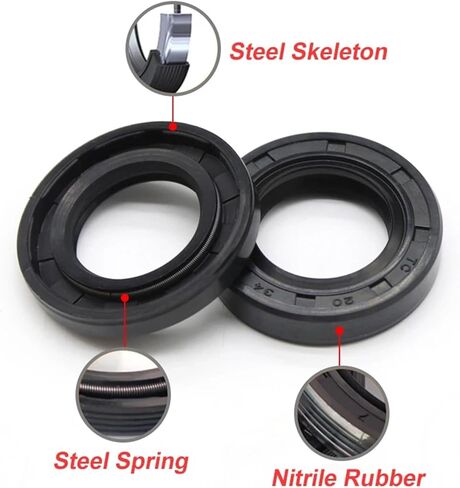

Material: Nitrile Rubber (NBR)+ Metal frame + Steel Spring
Working pressure: 0.3bar
Working Temperature: -25 - 100
Material hardness: 70 degrees

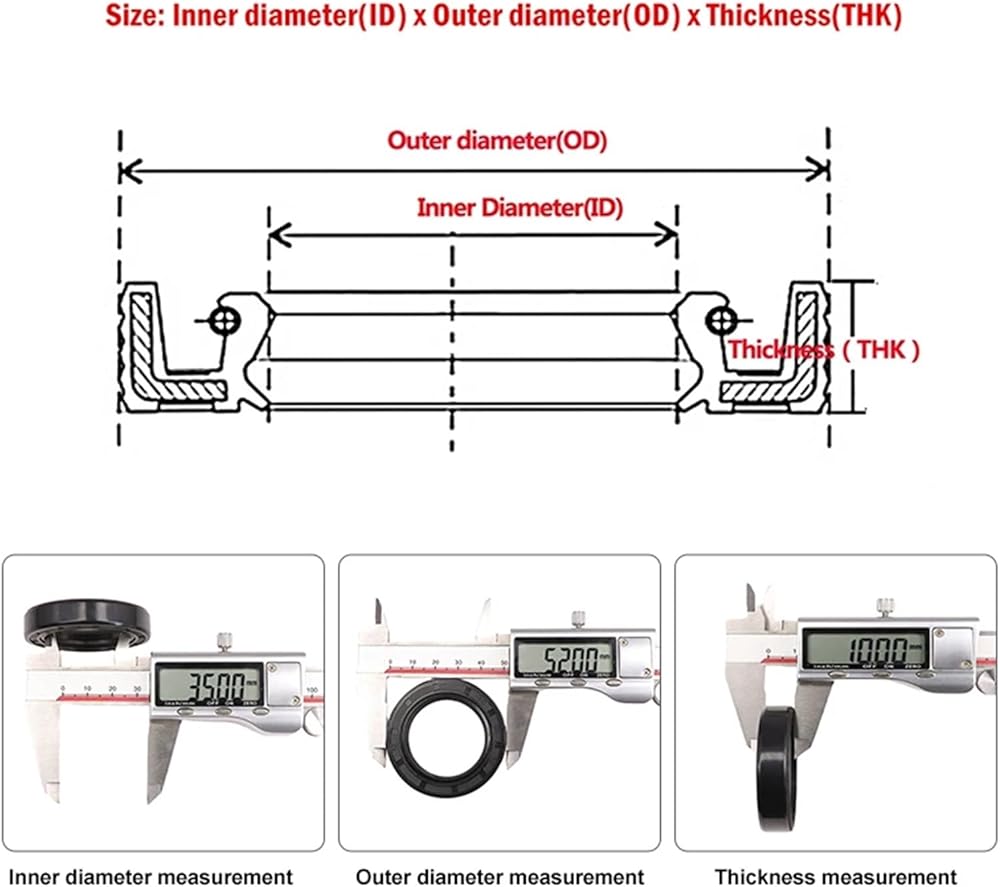

Size: inner diameter x outer diameter x Thickness, unit: mm (mm)
Features:wear resistance, oil resistance, aging resistance
Function and application: Prevent the intrusion of sand, dust, moisture, etc. Into the bearing from outside, and limit the leakage of lubricating oil in the bearing. Widely used in machine tool spindles, crankshafts of automobiles, motorcycles, camshafts, differentials, shock absorbers, engines, axles, front and rear wheels, etc.
==========
High-concerned chemical : None
Standard or Nonstandard : Standard
Model Number : TC-16
Material : Rubber

Shape : Grooved Gasket

Model Number : TC NBR Skeleton Oil Seal
Material : Nitrile Rubber (NBR)+ Metal frame + Steel Spring
Operating Temperature : -25 - 100
Material hardness : 70 degrees
Oil and Fuel Resistance : GOOD
Animal and Vegetable Oil Resistance : Excellent
