Vehicle Fitment:
For 1967-1969 Chevy BB Camaro/Firebird/Trams Am 1968
For 1967-1969 Camaro Big Block 23"core
For 1967-1969 Camaro/Firebird
For Pontiac Firebird Big Block
For 1967-1969 Pontiac Firebird / Trans Am
For 1967-1969 Chevy Camaro Big Block / Firebird/Trans AM
For 1967-1969 Chevy Camaro/Firebird T/A 5.7L V8

Radiator Size:
High Performance Racing Spec.

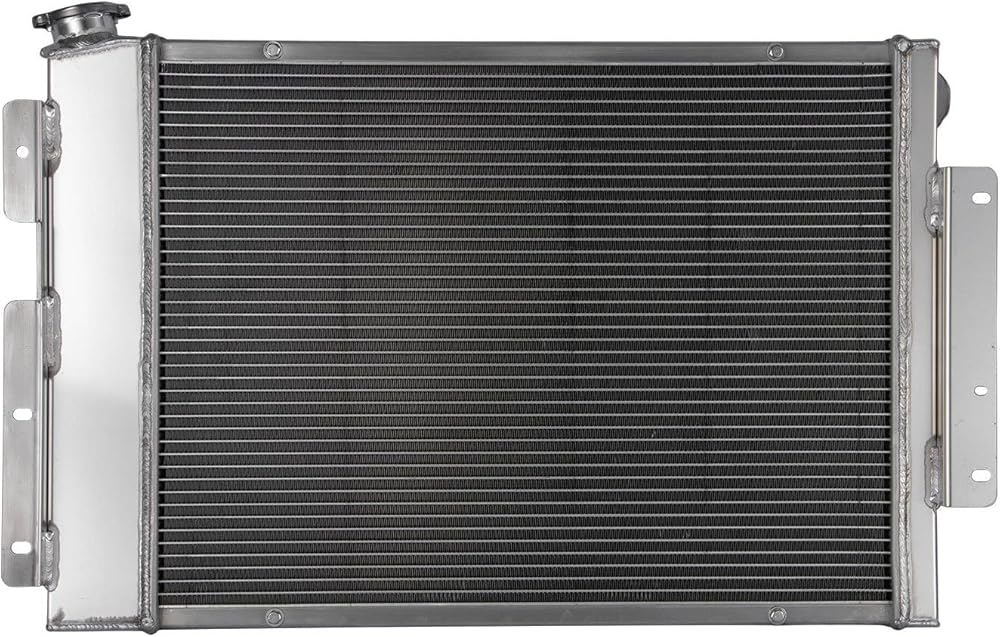

3-Row of tubes Core Racing Design
Petock Drain:Plastic
Core Size: 17'' H x 23'' W
Overall Size: 19.3''H x30.1''W

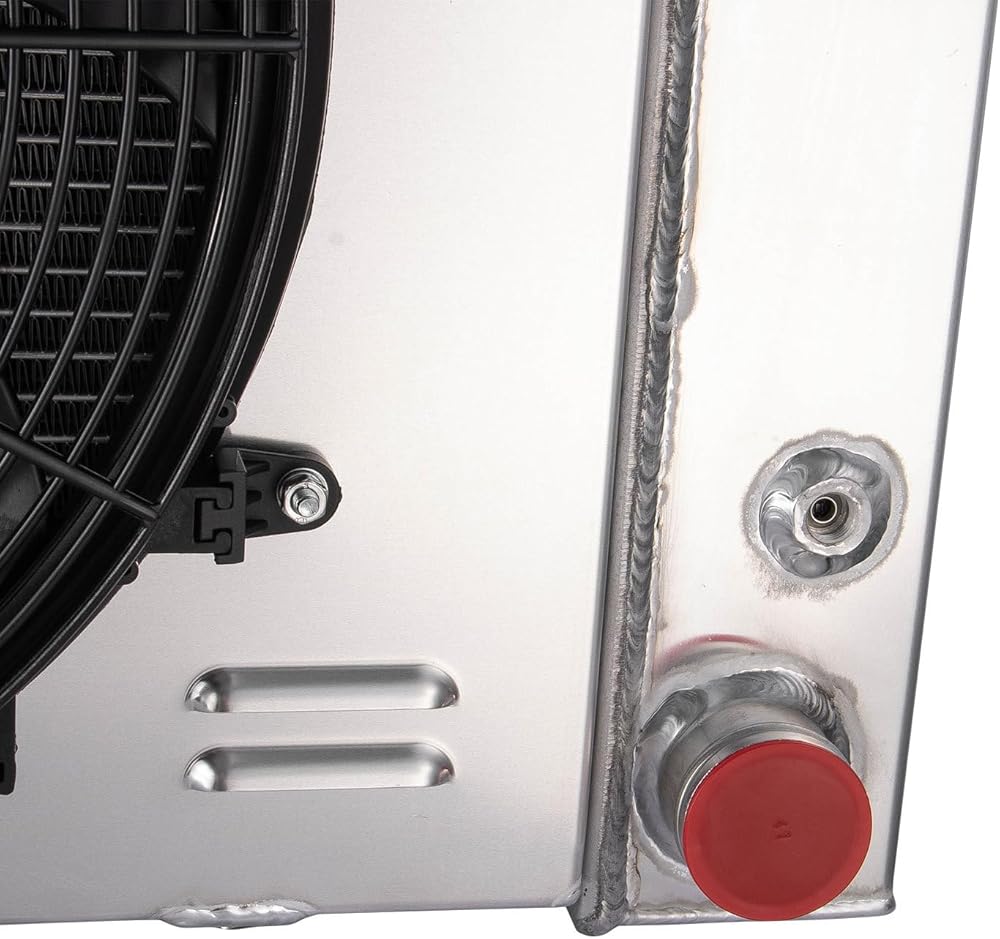

Inlet Size：1-1/2"
Outlet Size: 1-3/4"
Transmission Oil Cooler: ￠26×315×G1/4（Z）

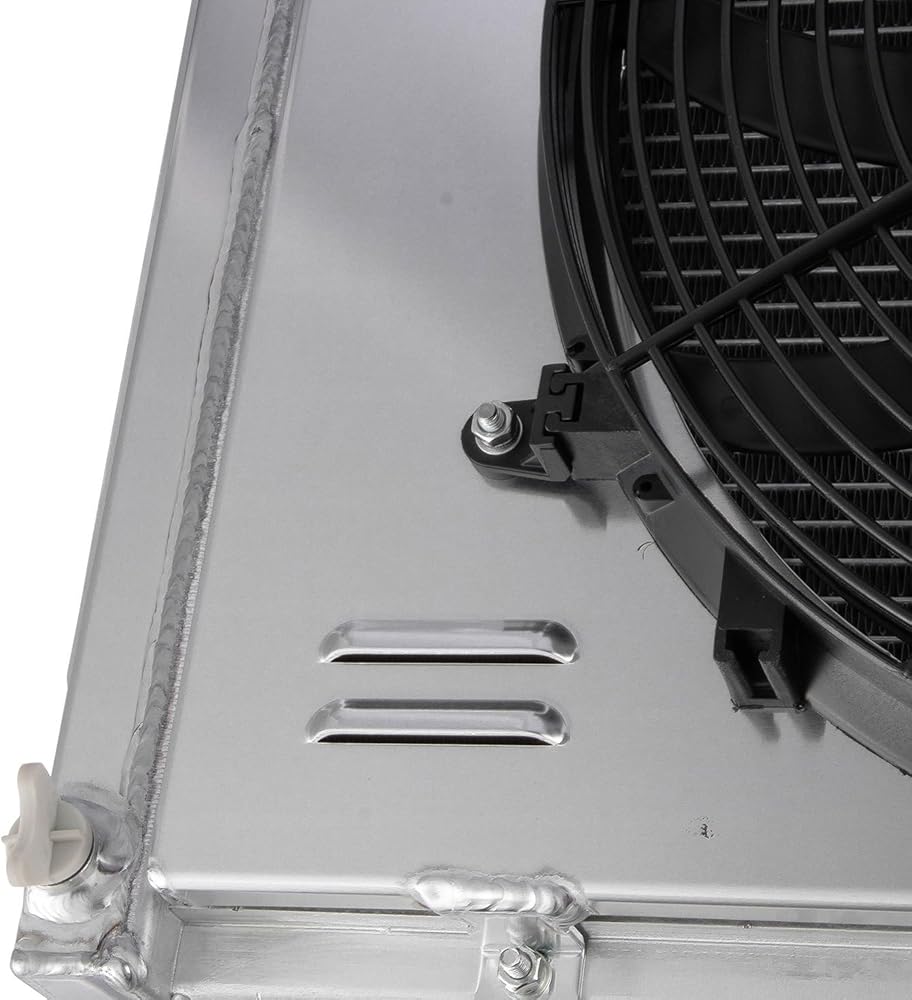

All TIG Welded, No Epoxy

Fans:
Maximum Fan CFM: 1730 cfm
Fan Diameter (in): 16.050”
Thickness (in): 2.500”
Number of Blades: 10 blades
Maximum Fan RPM: 2,250 rpm
Blade Material: Plastic
Amp Draw: 12.70 amps
Includes the Mounting Tabs for an Easy Zip Tie Installation

Thermostat Kit:
Activates by grounding electric fans at preset temperature.
180'F turn-on temperature, 165'F turn-off temperature.
Probe typically threads into radiator, water outlet or manifold.
Thermostat Relay Kit Instructions：
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.

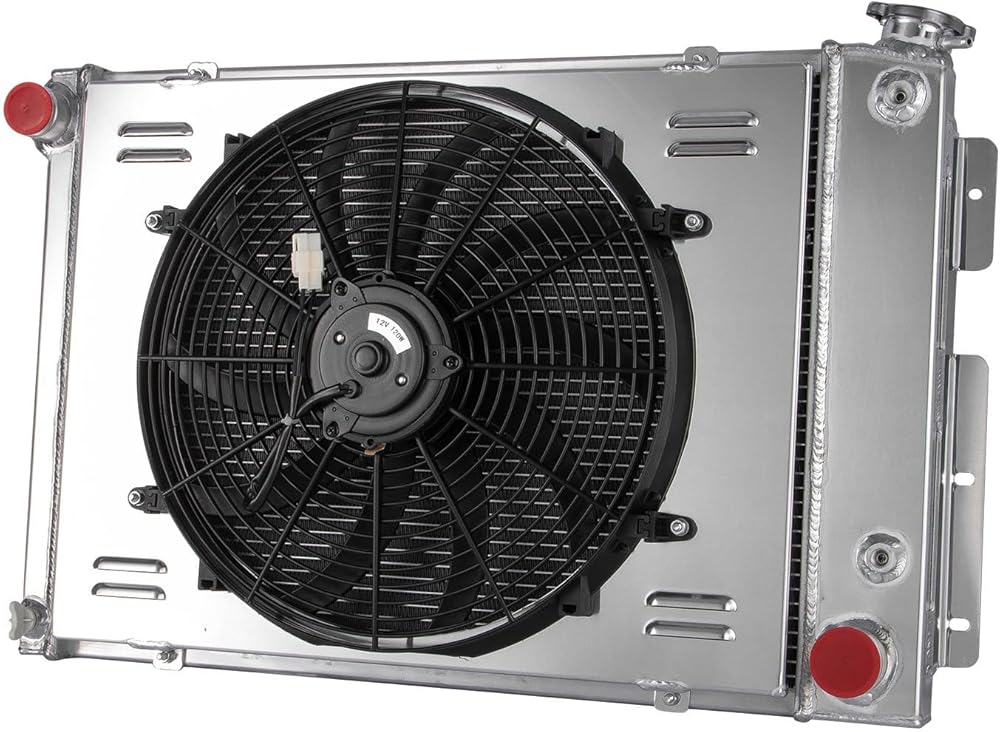

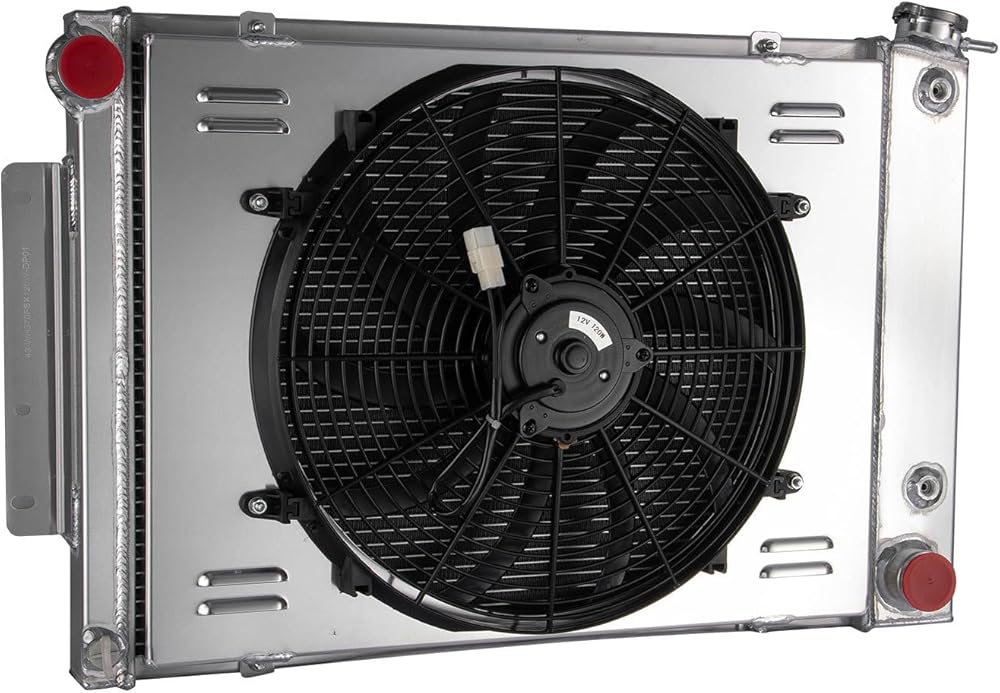

Package Included:

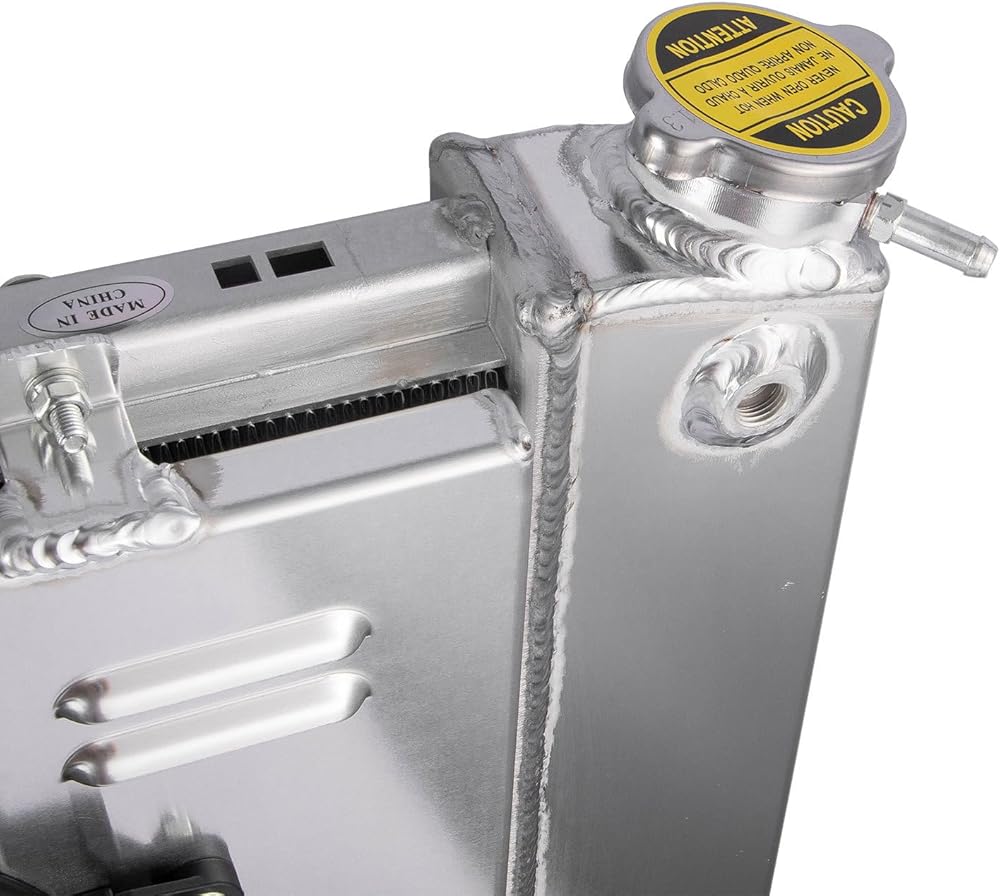

1 X 3-Row Aluminum Radiator (Includes Radiator Cap)
1 X Aluminum Shroud
1 X 16" Fans(Includes mounting kits)
1 X Thermostat Relay Kit
