Fuel Sending Unit, 10in/250mm Marine Fuel Tank Sending Unit with IP67 Boat Fuel Gauge & Stainless Steel Water Level Sensor for Boat RV Truck 10.3-10.8in/260-275mm Tank

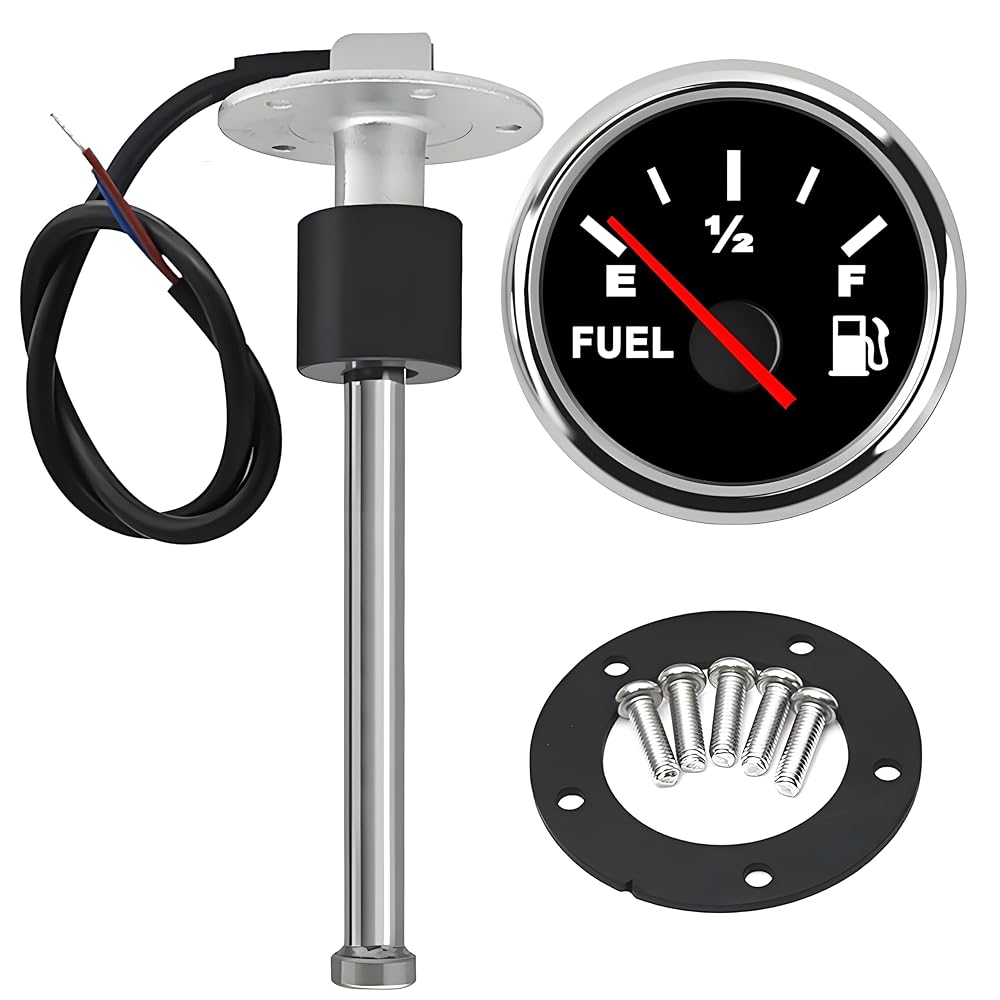

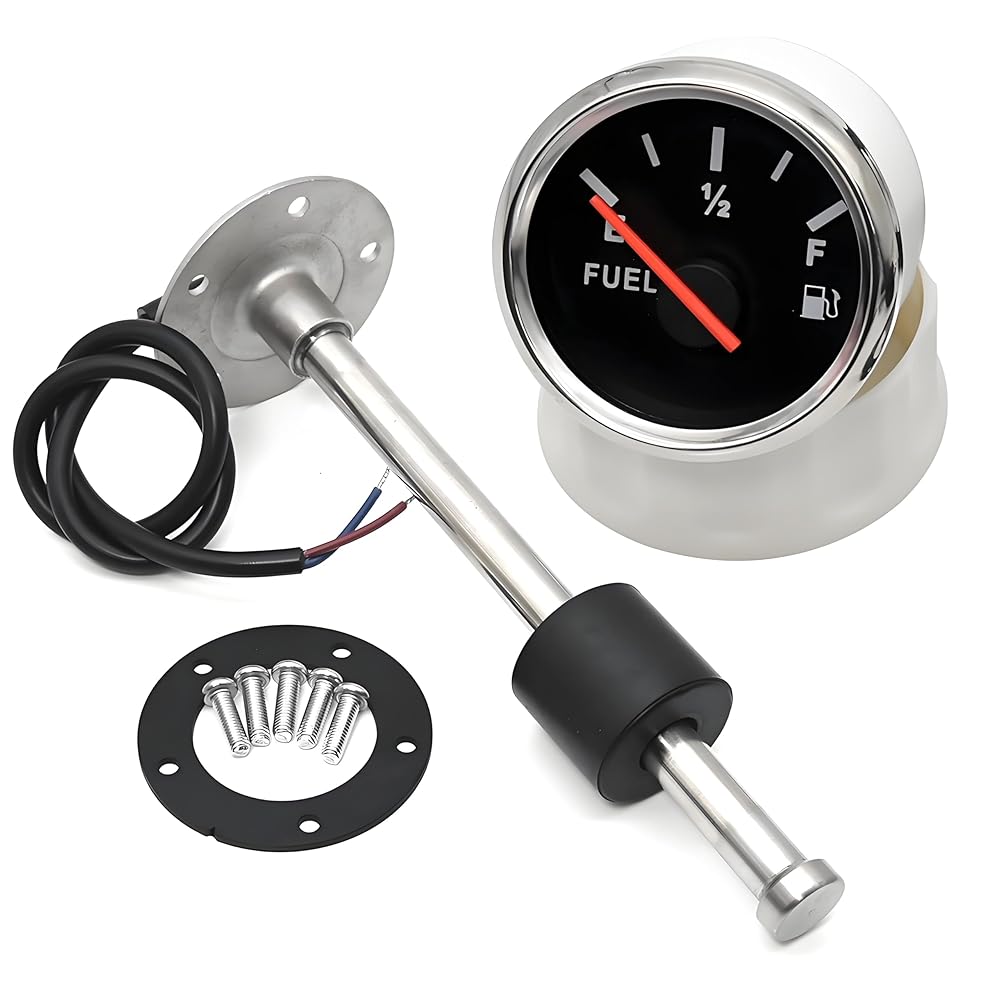

Complete boat fuel sending unit includes a 10" (250mm) stainless steel fuel water level sensor and a 2" (52mm) backlit fuel gauge — everything needed to replace or upgrade tank-level monitoring on boats, RVs, trucks and more
Marine fuel sending unit works with gasoline, diesel, water, methanol and other fluids free of large impurities, fit for tanks with internal depth 10.3-10.8in (260-275mm)

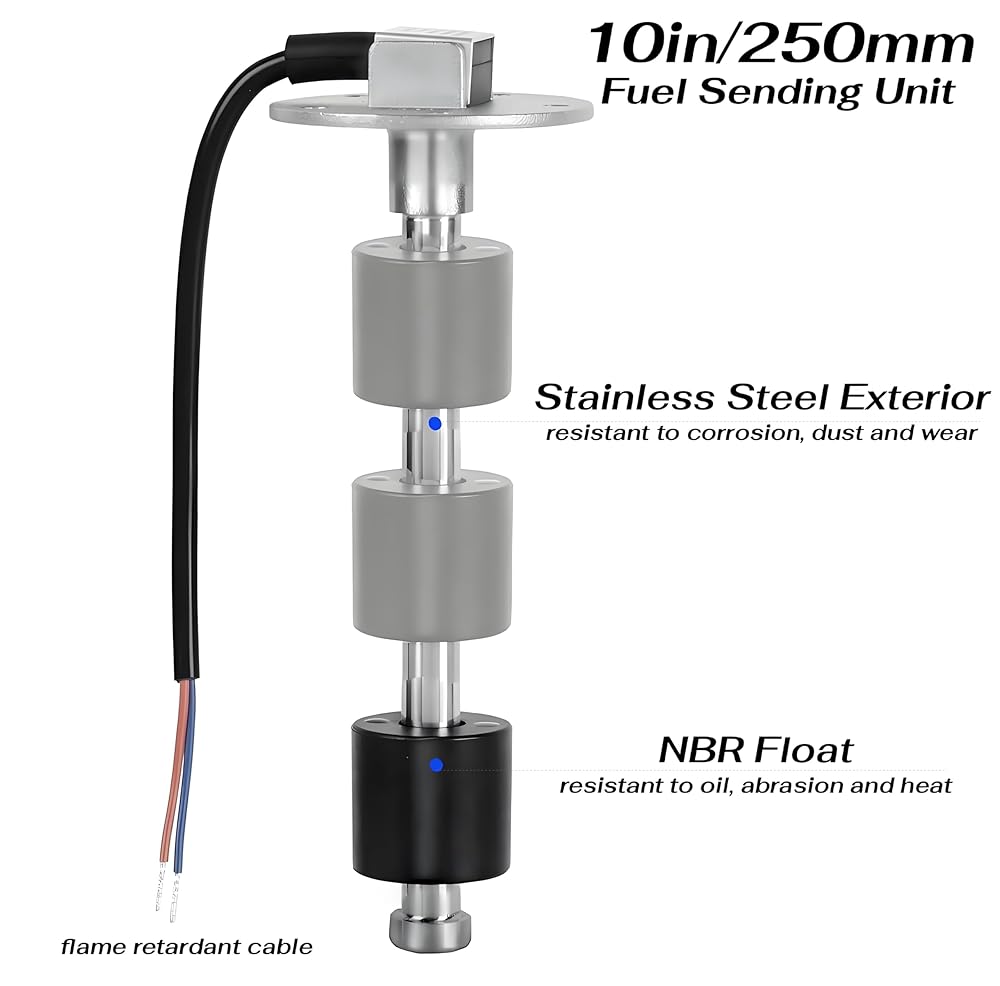

Reed-switch controlled stainless steel water level sensor resists corrosion, dust and wear; NBR float resists oil, abrasion and heat; flame-retardant power cord increases safety, ideal for marine boat, yacht, automotive, RV, van, truck, etc

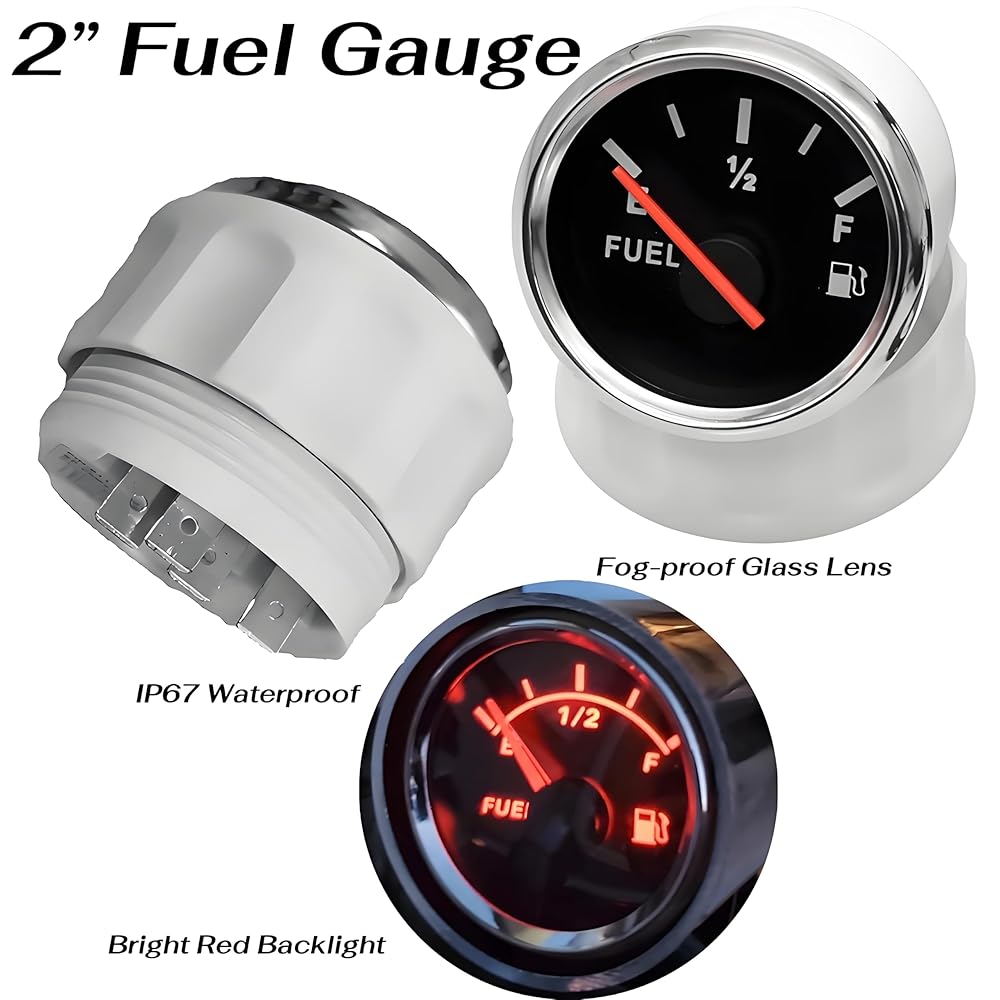

Stainless steel framed fuel gauge features IP67 waterproof rating, fog-proof glass lens, and bright red backlight for clear daytime/night viewing

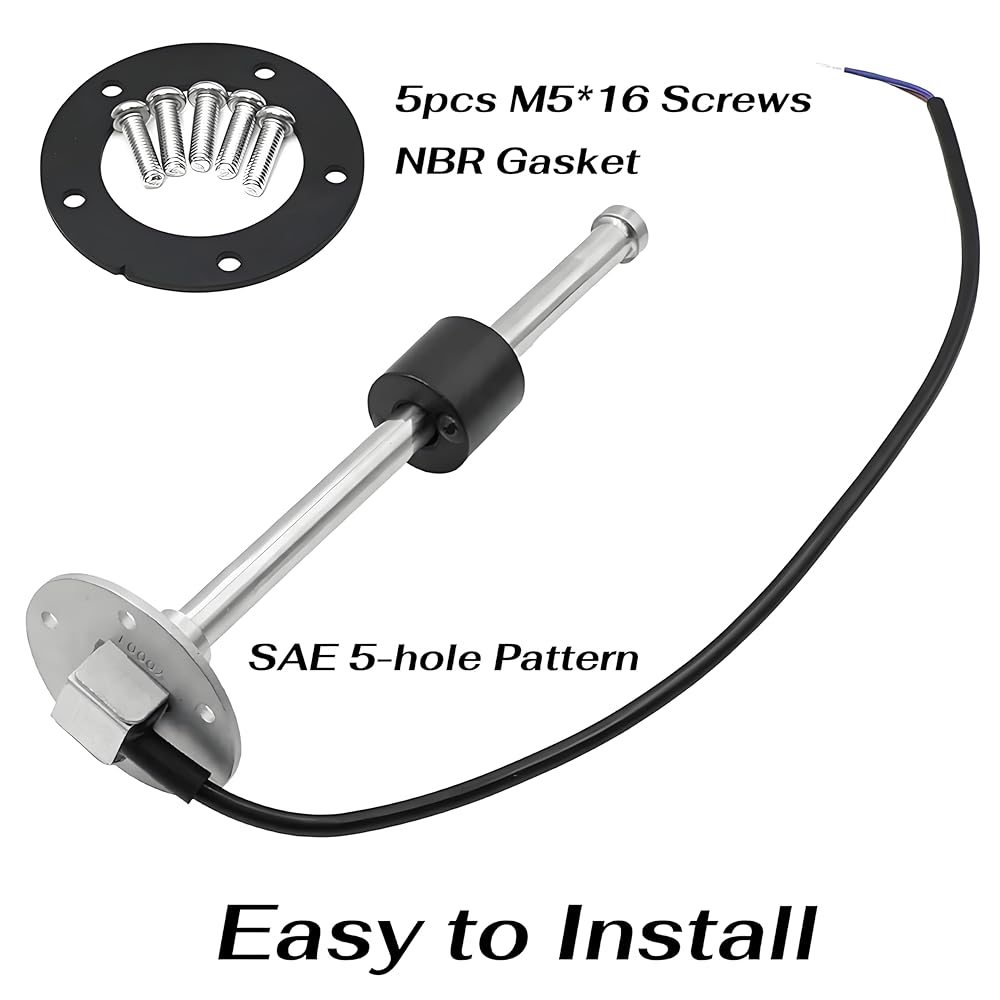

Marine fuel sending unit designed with SAE 5-hole pattern, coming with M5×16 screws and NBR gasket for easy, sealed installation
SPECIFICATION

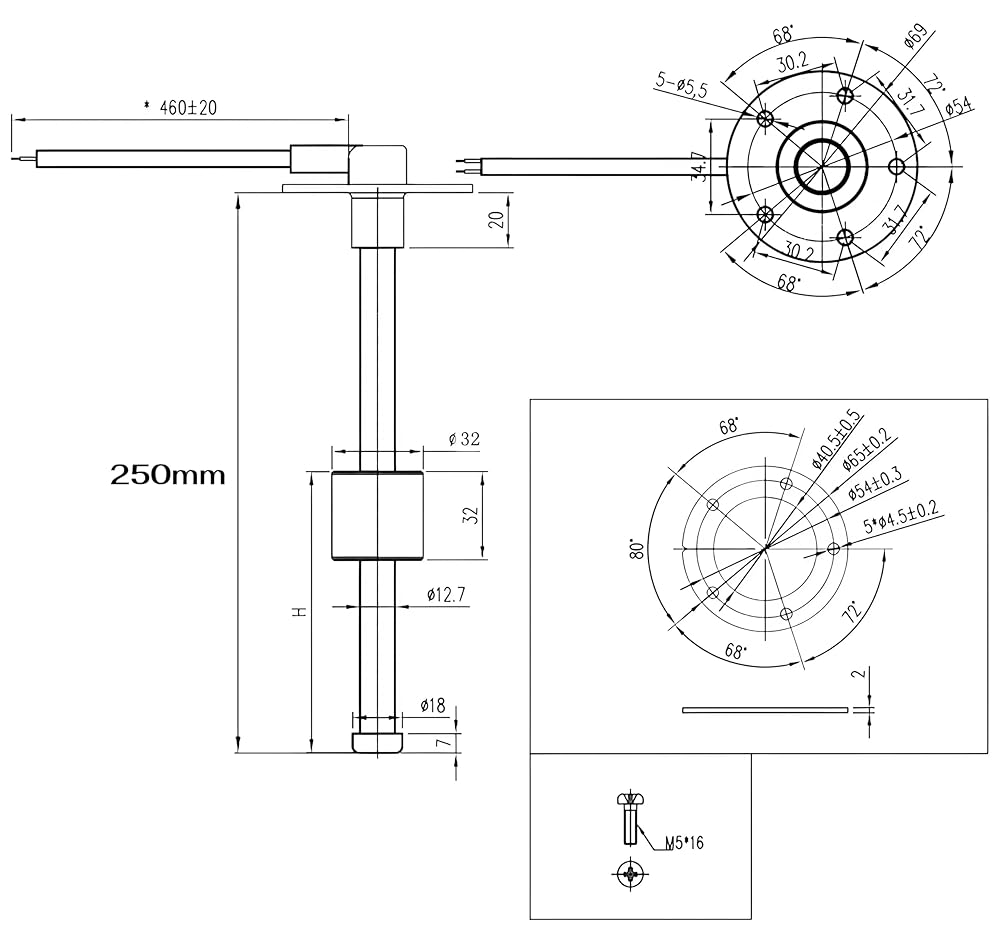

Sender Length: 10in / 250mm
Suitable Tank Depth: 10.3-10.8in / 260-275mm
Fuel Gauge: 2in / 52mm
Default Output: 0-190Ω

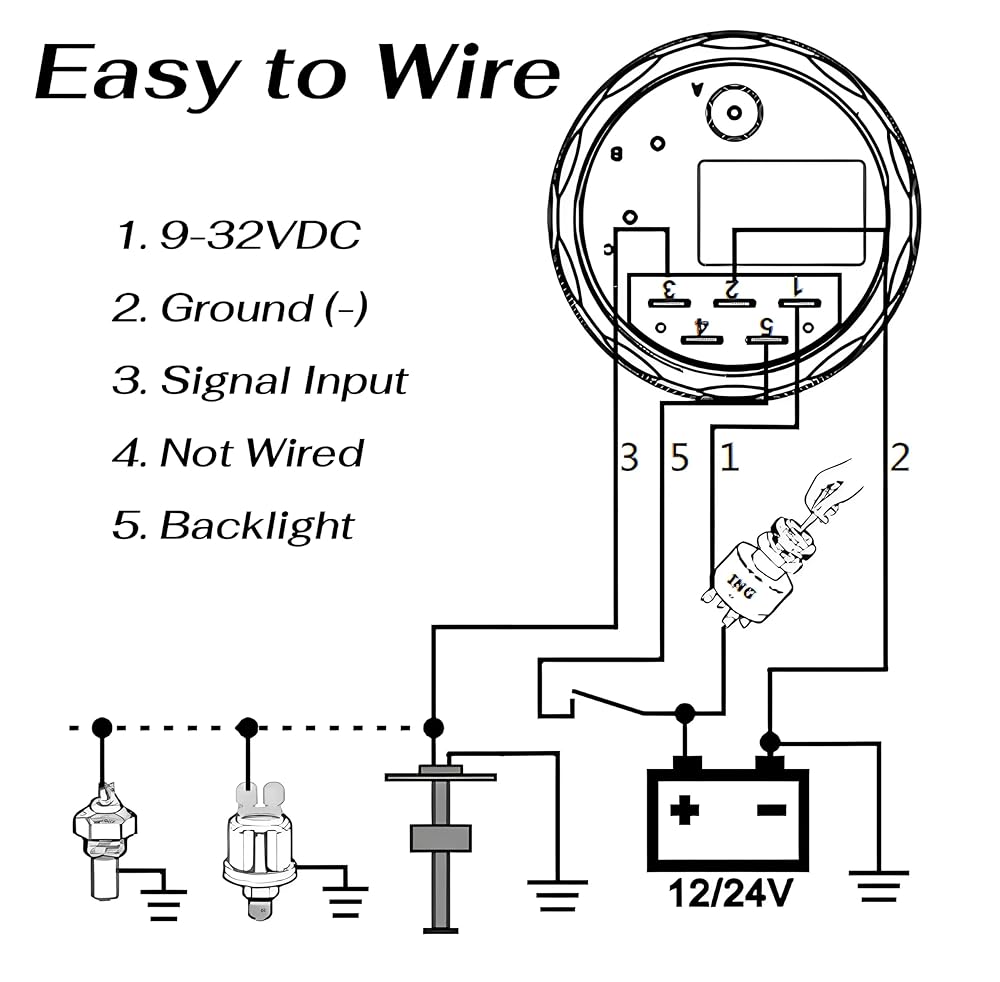

Working Voltage: 9-32V DC (12V-24V engines/vehicles)
Working Temperature: -40℃~+85℃
Mounting: SAE 5-hole
PACKAGE
1 x Fuel Gauge
1 x Boat Fuel Sending Unit
1 x NBR Gasket
5 x M5*16 Screw
