55kg Low-Profile Servo Programmable Brushless Digital Servo 0.09Sec High Speed Full Metal Gear Steering servo 1/10 Drift Car with servo Motor kit (180 Degree) in Kuwait

270 Degree

KWD 24.500
Brand
ZOSKAY
Weight
59 g
Edition270 Degree
– 1 +

Special Features

  • NEW Low profile servo & Programmable - The upgrade high speed servo is programmable by servo programmer (not include) to change the torque, speed, angle, inversion, neutral position, etc.
  • High-Efficiency Cooling Design for Long-Lasting Durability Built with a stainless steel gear and aluminum mid-case and top cover for superior heat dissipation. This design reduces power consumption, minimizes overheating, and significantly extends service life—perfect for extended, high-intensity use.
  • High torque servo - 55KG high torque brushless motor digital servo. The maximum torque is up to 61 kg-cm (847 oz-in) @ 8.4V. Operating Voltage: 4.8V ~ 8.4V

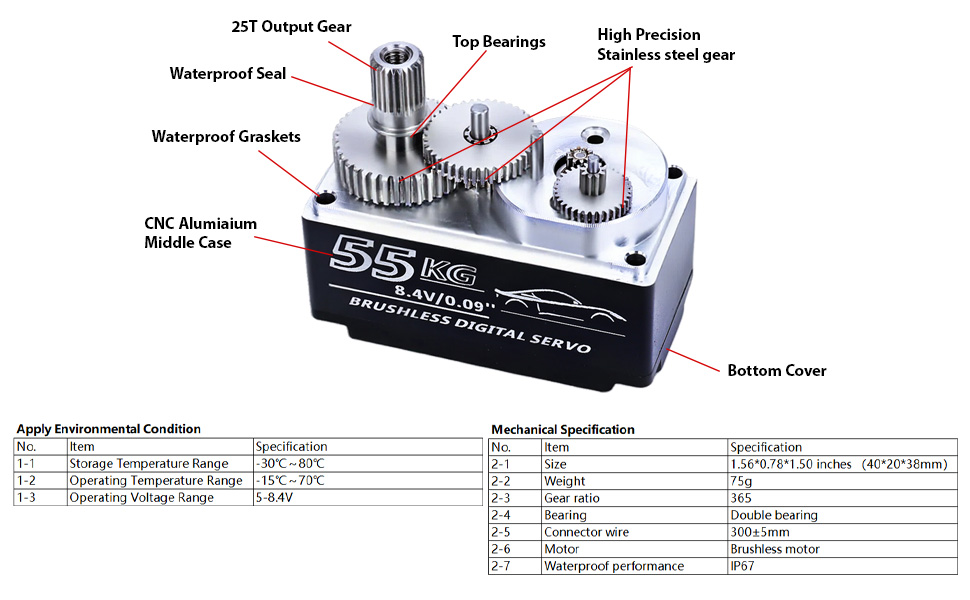

  • Precision Engineered for Quiet, Waterproof Performance Designed with an advanced linearity system and precision potentiometer for exceptional accuracy and smooth, low-noise operation. Rated IP67 waterproof and dust-proof, and supported by dual ball bearings, it achieves a speed of 0.09 sec/60° at 8.4V for reliable performance in varied conditions. Dimension: 1.56*0.78*1.50 inches （40*20*38mm）
  • 1/10 servo Application - Ideal for 1/10 scale on road, RC drifting car, racing car, touring car, on road, truck, small planes, helicopter, etc.

Description

Electrical Specification： Operating voltage range: 4.8-8.4 Volts Operating speed at no load ( 4.8V ): 0.14 sec/60° Operating speed at no load ( 6V ): 0.12 sec/60° Operating speed at no load ( 7.4V ): 0.1 sec/60° Operating speed at no load ( 8.4V ): 0.09 sec/60° Stall torque at locked ( 4.8V ): 39kg.cm(542oz-in) Stall torque at locked ( 6V ): 47kg.cm(653oz-in) Stall torque at locked ( 7.4V ): 55kg.cm(764oz-in) Stall torque at locked ( 8.4V ): 61kg.cm(847oz-in) Stall current at locked ( 4.8V ): 3.2A Stall current at locked ( 6V ): 4A Stall current at locked ( 7.4V ): 5.2A Stall current at locked ( 8.4V ): 6.2A Idle current at stopped (5/6/7.4/8.4V): 5mA Control Specification: Control System: PWM (Pulse width modification) Pulse width range: 500-2500μsec Neutral position: 1500μsec Running degree: 270° (when 500-2500μsec) Dead band width: 2μsec Operating frequency: 50-330Hz Rotating direction: Counterclockwise (When 1500-2500μsec) Product Specification: Suitable for: for 1/10 1/12 Scale RC Cars, Trucks Motor Type：Coreless Motor Gear Type: Stainless Steel Spline:25 Tooth Gear ratio: 365 Bearing：Double Bearing Waterproof Performance：IP67 Connector Wire: 11.8in (300mm) Size: 1.56*0.78*1.50 inches （40*20.2*38mm） Weight: 2.65oz (75g) CE /RoHs: Yes Apply Environmental Conditon: Storage Temperature Range:-30°C~80°C Operating Temperature Range:-15°C~70°C Packing List: 1 x BLS4355kg Low-Profile Servo 1 x 25T Adjustable Metal Servo Arm 1 x servo motor kit (As Shown on The Picture)
