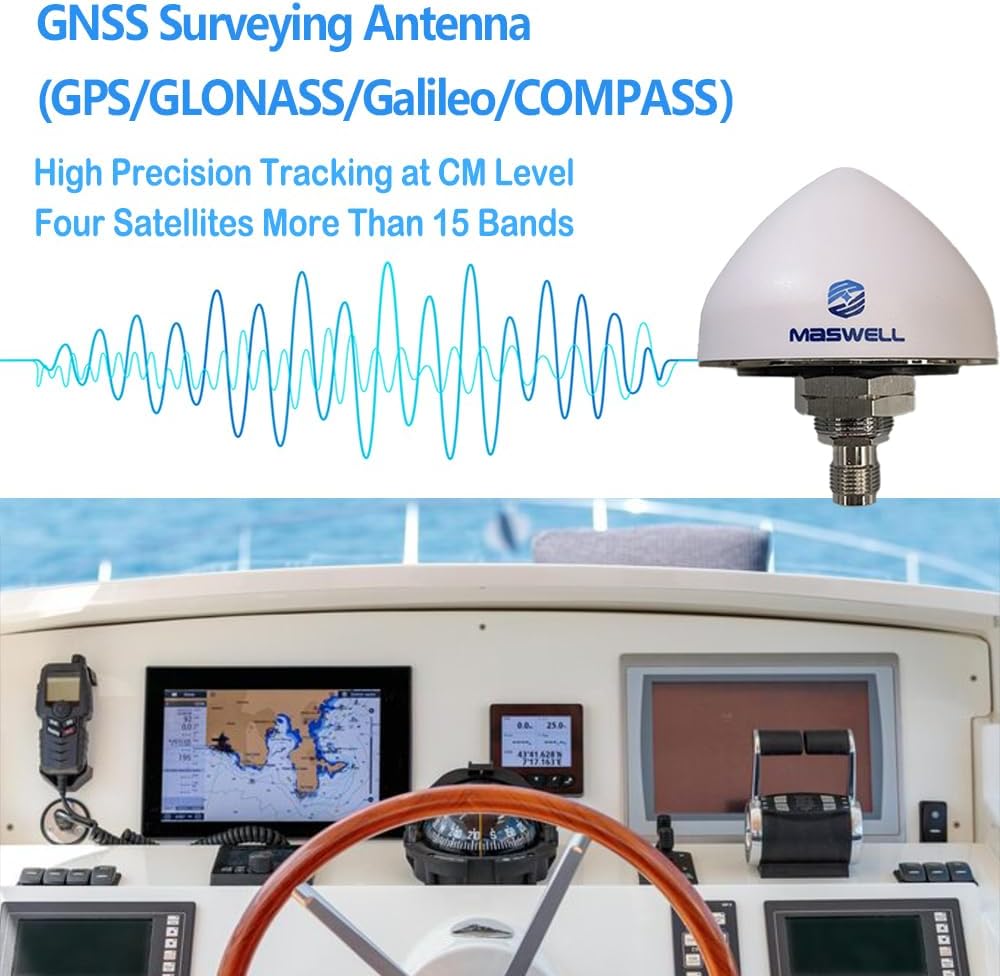

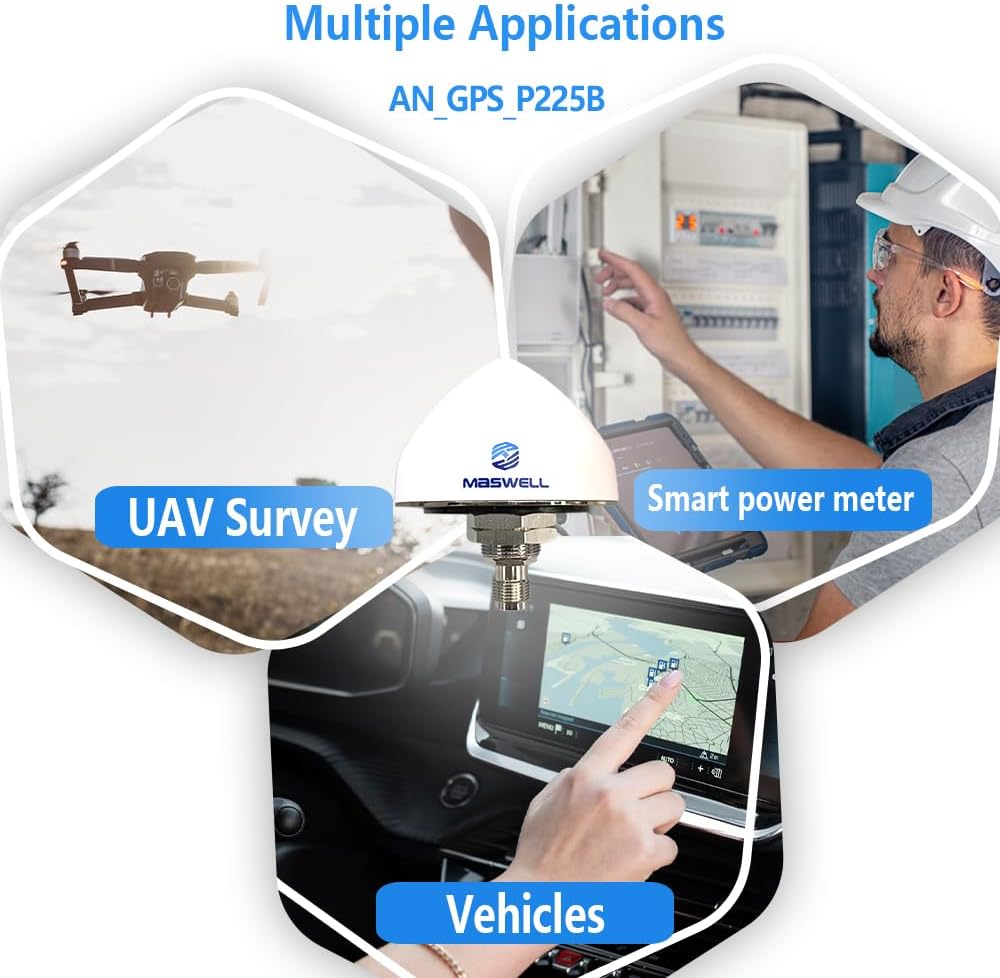

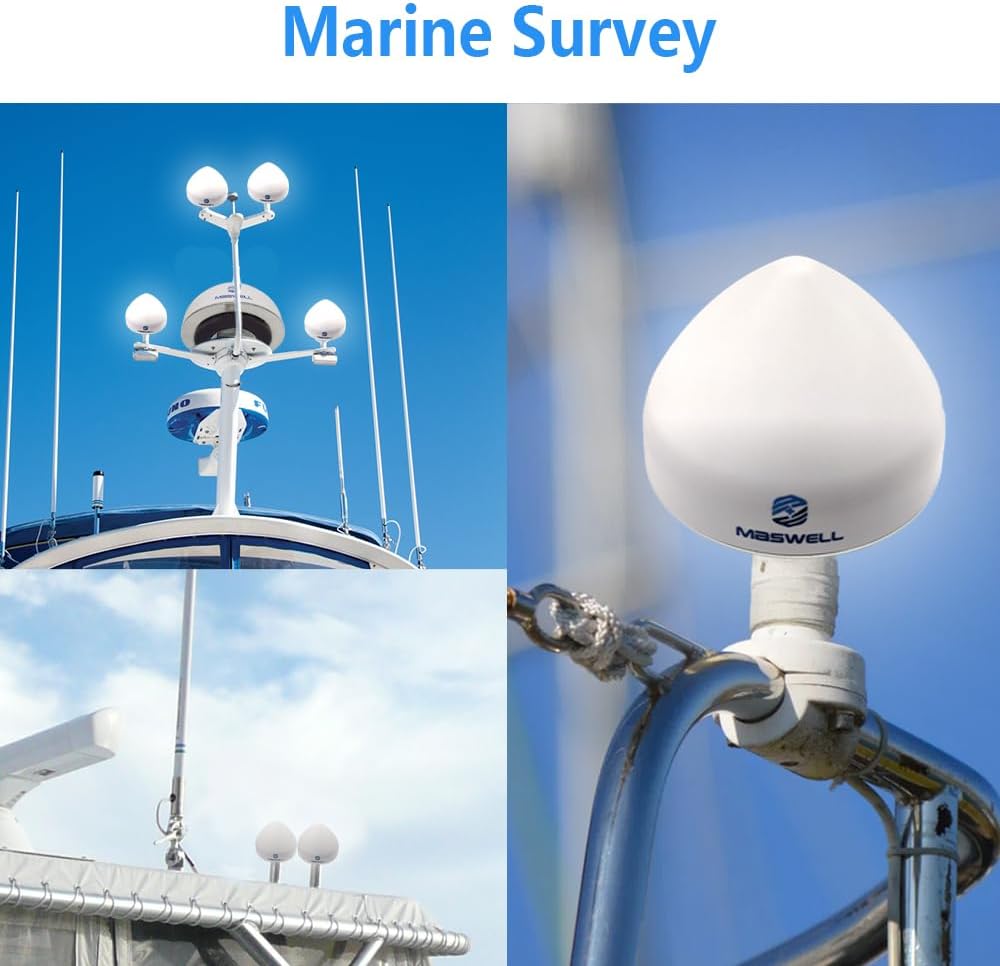

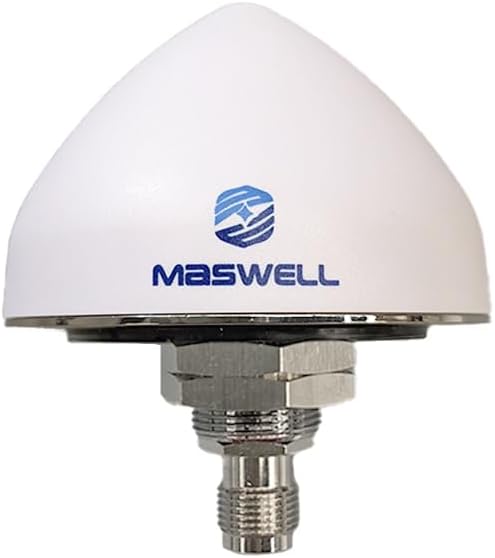

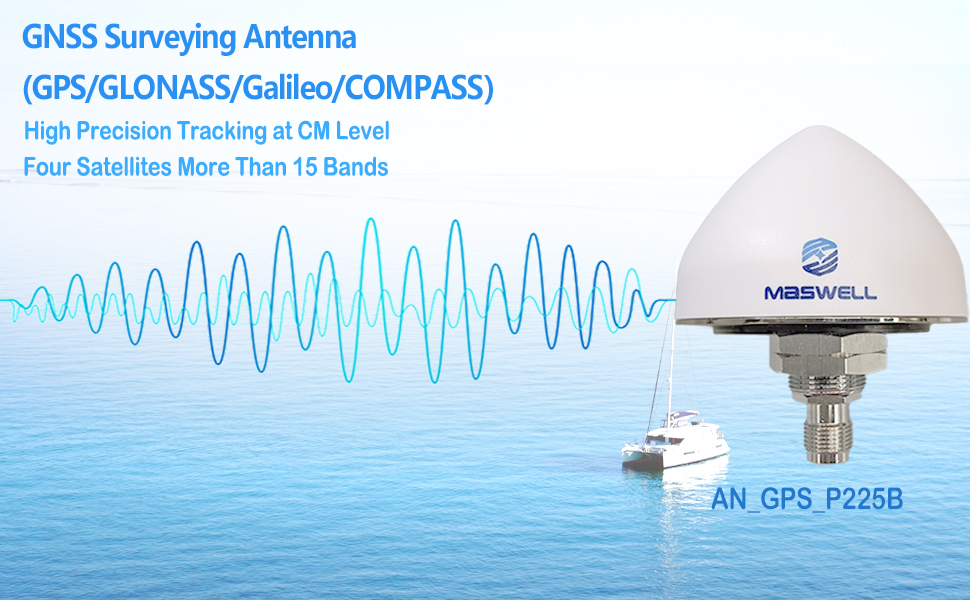

Maswell GNSS Navigation Surveying Antenna, High Precision CM Level GPS (L1/L2/L5), GLONASS (G1/G3), Galileo (E1/E5a/E5b), Beidou (B1/B2), and QZSS (L1/L2/L5) for Vehicle Marine Boat Drone

KWD 60
Brand
Maswell
Weight
101 g
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

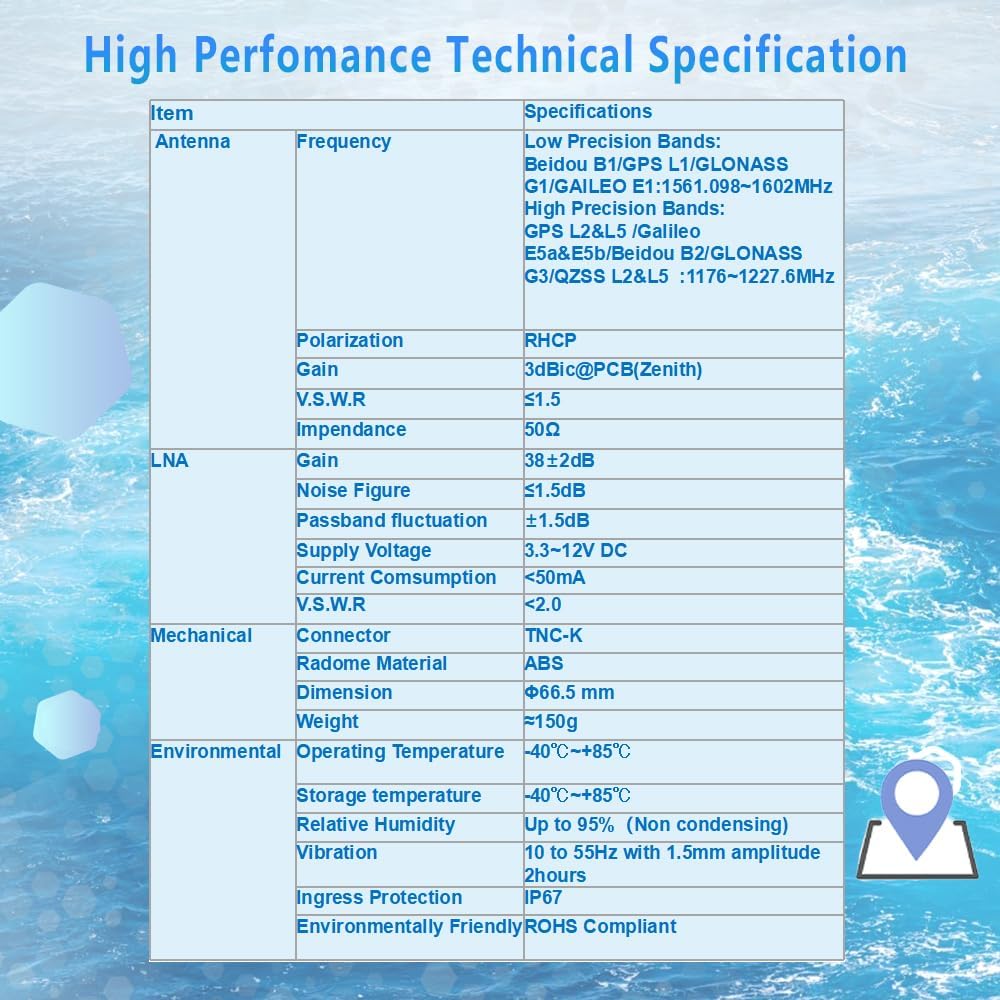

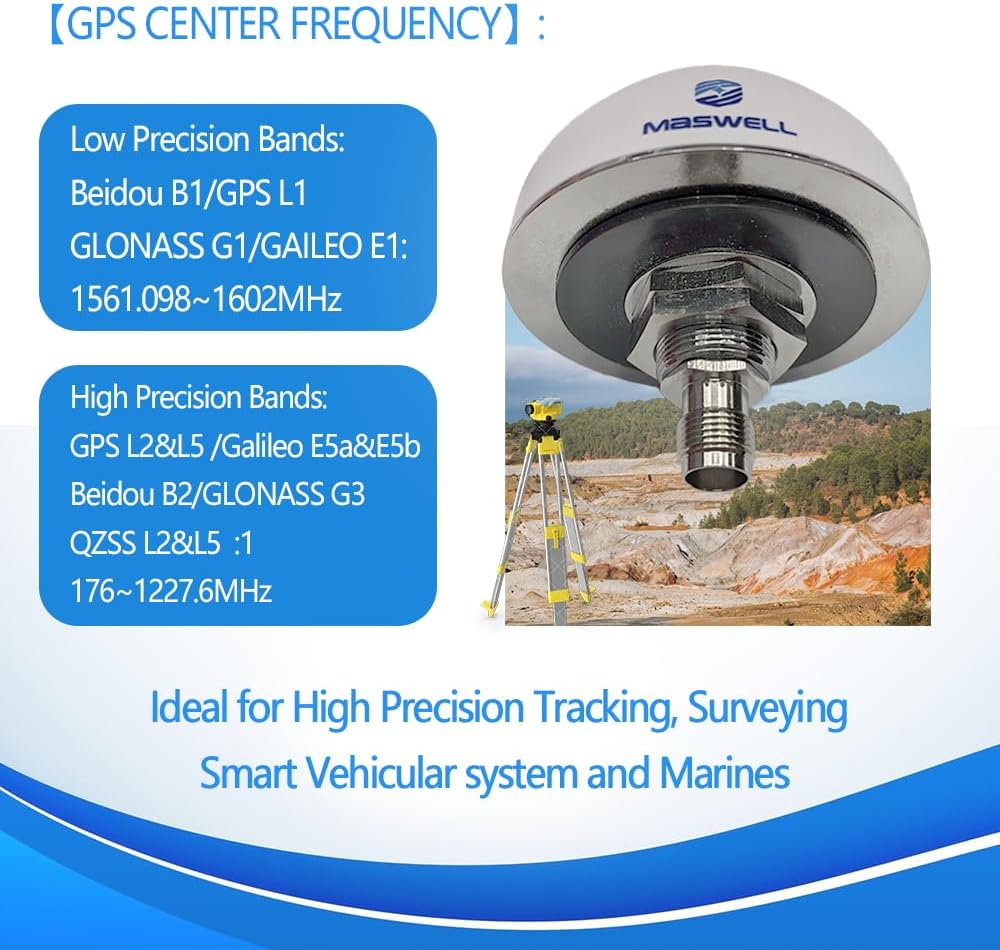

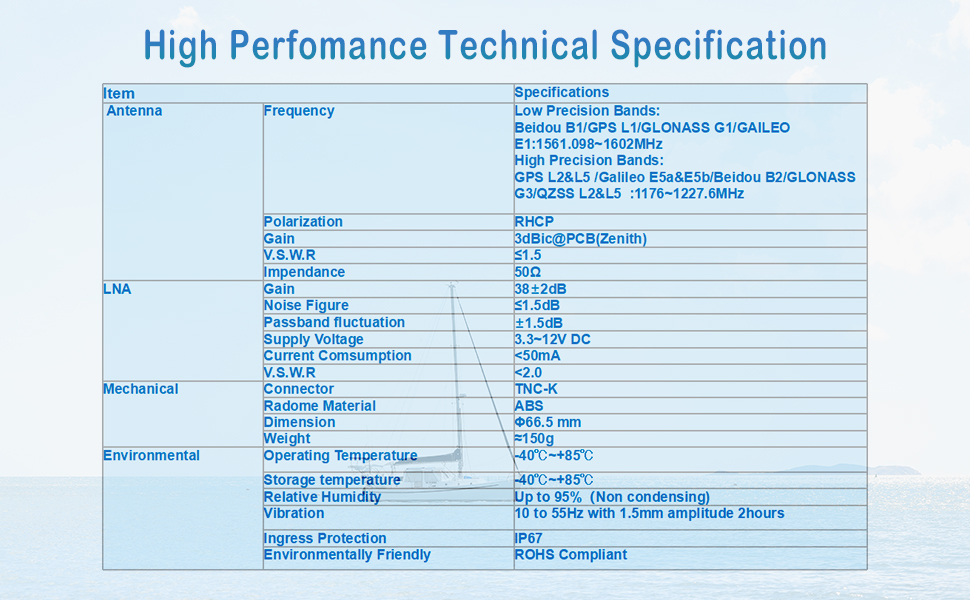

  • Multi-System & Multi-Band GNSS Support: Supports all major global navigation systems including GPS (L1/L2/L5), GLONASS (G1/G3), Galileo (E1/E5a/E5b), Beidou (B1/B2), and QZSS (L1/L2/L5). Covers both low-precision (1561–1602 MHz) and high-precision bands (1176–1227.6 MHz), ensuring reliable and accurate positioning
  • High-Performance LNA with Low Noise Figure: Equipped with a built-in Low Noise Amplifier (LNA) offering 38±2 dB gain and a noise figure of ≤1.5 dB. Ensures clear signal reception even in weak signal environments, ideal for surveying, mapping, and precision navigation

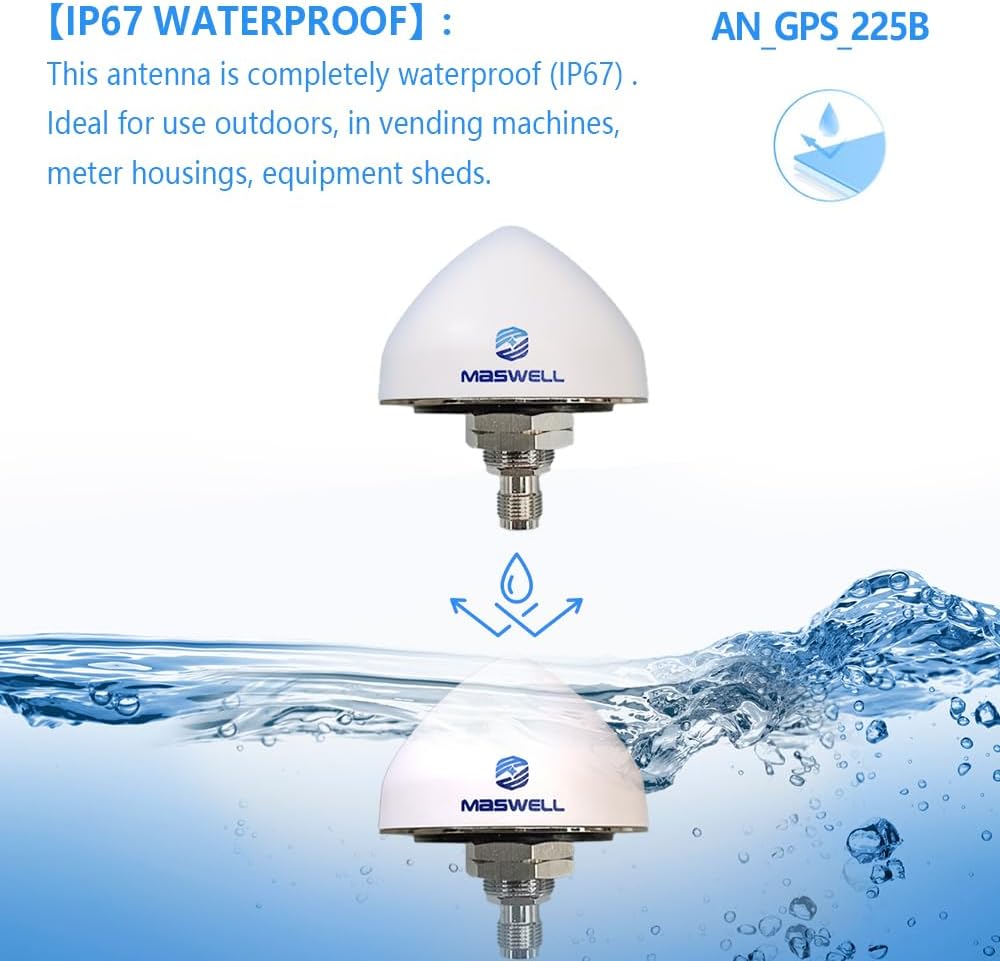

  • Robust Mechanical & Environmental Protection: Features an ABS radome, compact dimensions (D66.5×66.5 mm), and an IP67 rating for dust and water resistance. Operates in extreme temperatures from -40°C to +85°C and up to 95% humidity, built for challenging outdoor use
  • Stable Electrical Performance: Provides excellent impedance matching (50Ω), voltage standing wave ratio (V.S.W.R) ≤1.5, and passive gain ≥3 dBi. RHCP polarization enhances multipath rejection, delivering consistent and high-quality signal acquisition

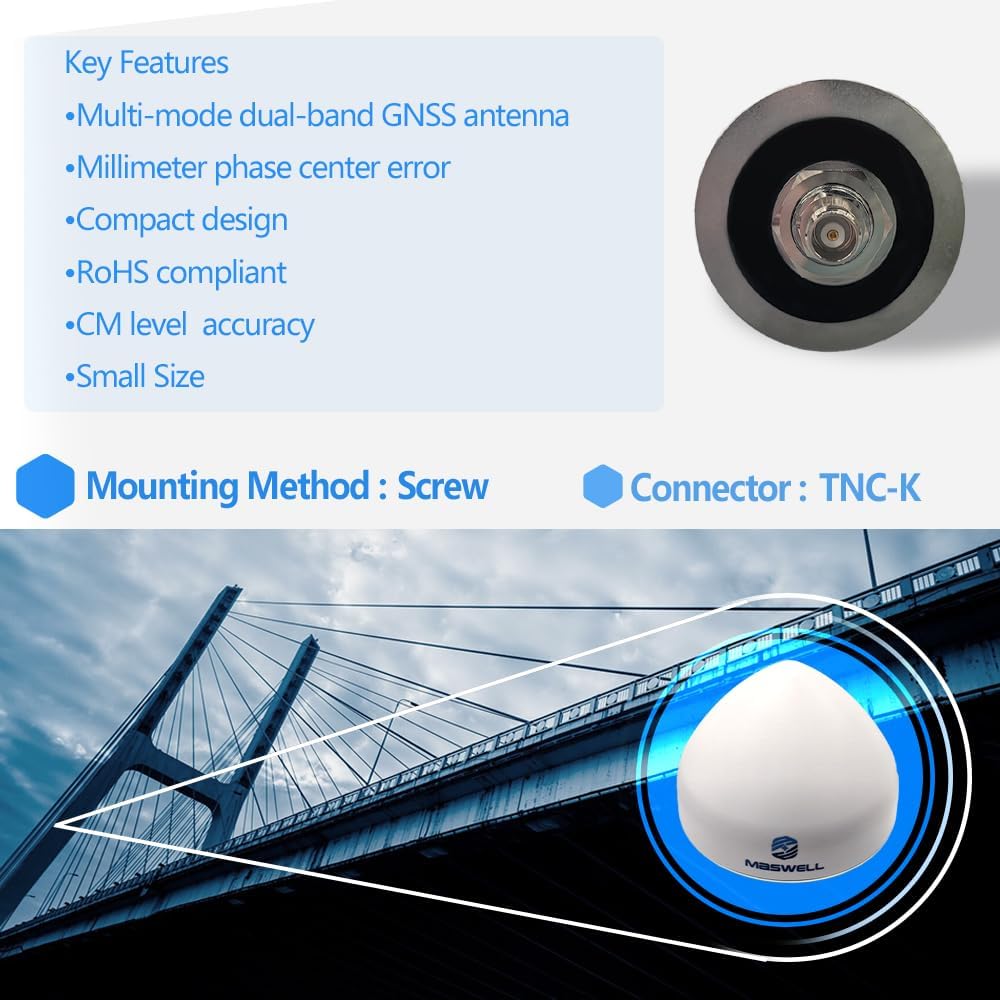

  • Wide Voltage Range & Easy Integration: Supports a DC supply voltage from 3.3V to 12V with low current consumption (≤50 mA). Comes with a TNC-K connector for secure and easy installation on a variety of GNSS receivers and surveying equipment
