Product Description:

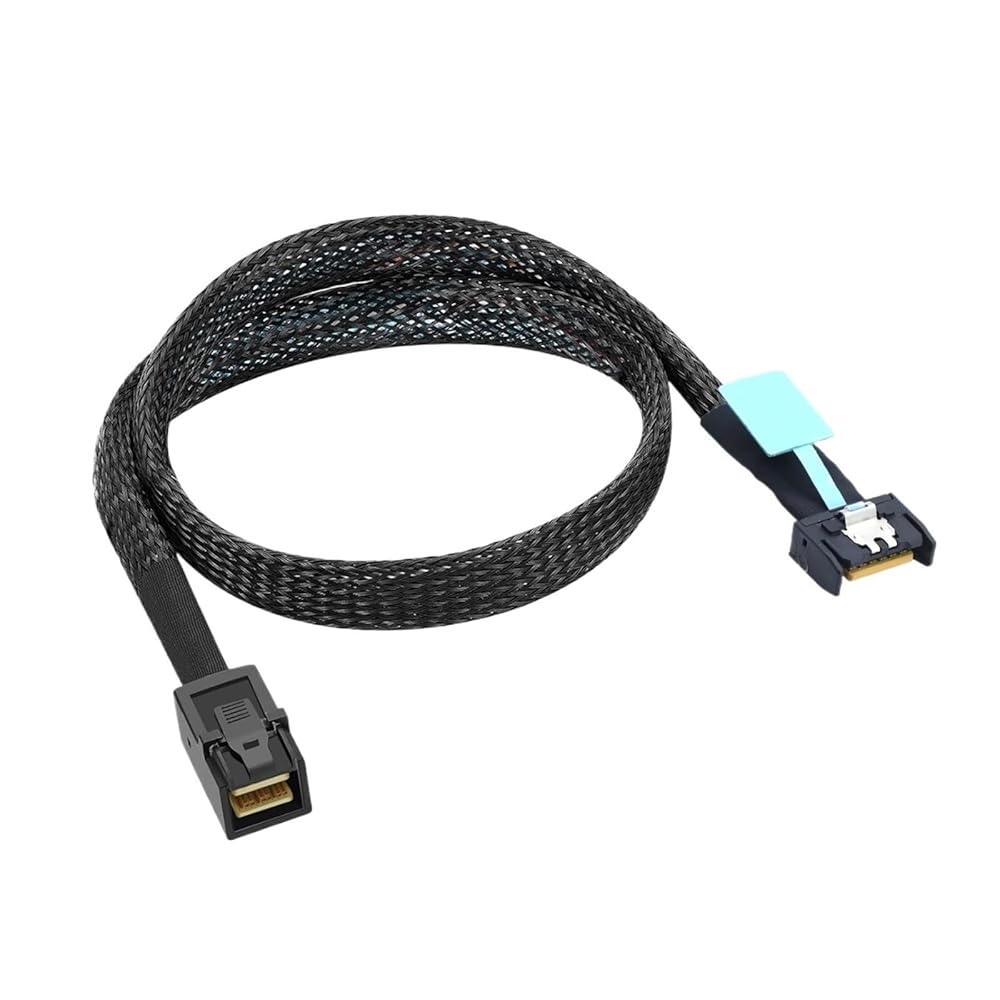

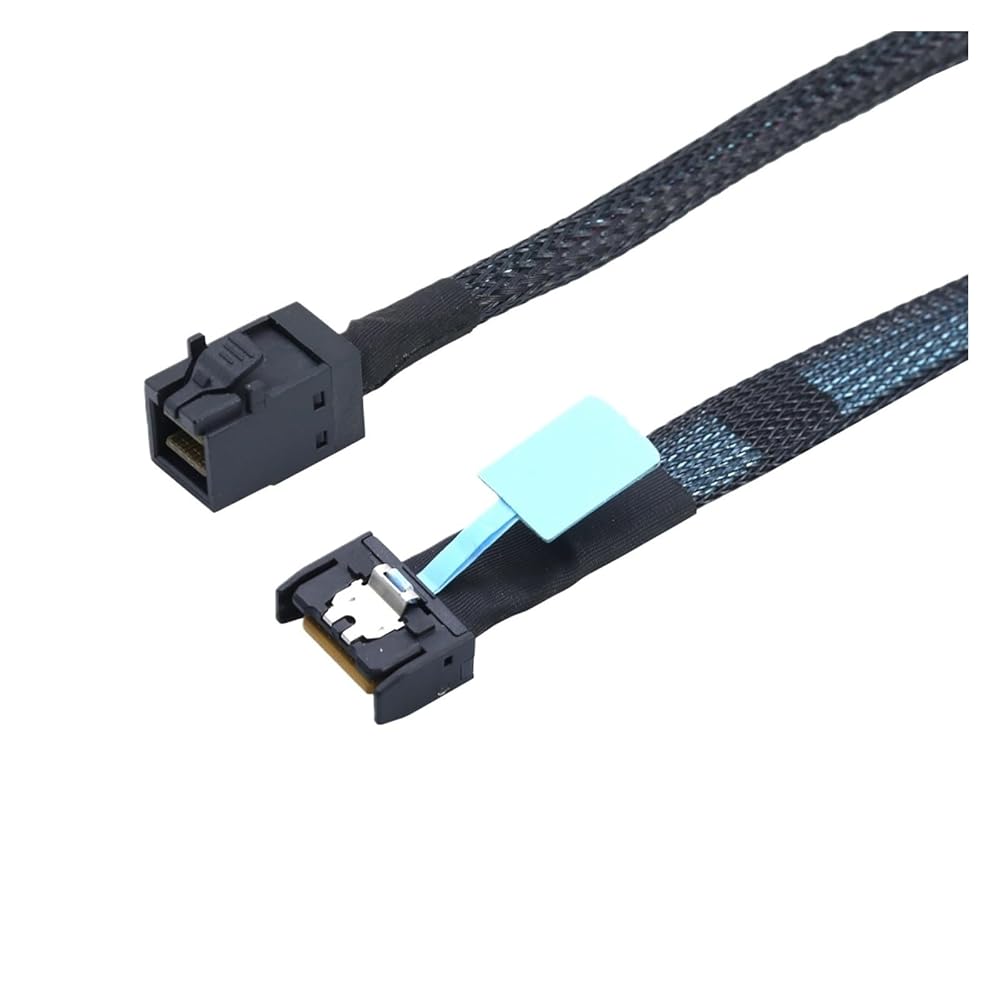

PCIE Slimline SFF-8654 MCIO 4I 4X 38-Pin to S1A1S HD SFF-8643 Support PCIe Gen5 server adapter Cable
Series: MI NI S1A1S
Cable Length: 0.5M/0.8M/1M
Wire Size: 30AWG/32AWG. Tinned Copper, OD: 0. 65*1.48MM
Lock to Mating Part: With Latch
Plating: 30u' min over Ni 100u' min
Color: Cable , Over Black
Environmental Compliance:
Flammability: Cable Horizontal flame, PCB 94V-0, PBT 94V-0
Applications
Data/Communications
1.Ra*/id (Redundant Array of Independent Disks)
2.Workstations
3.Rack-mount server
4.Servers
5.Storage rack
Features and Benefits
1.Transmission rate 24Gbps.
2. Meet SAS4.0 specification.
Mechanical Performance
Mating Force and Unmating Force
Condition: EIA 364-13. Insert and extract at a speed of
25mm/minute.
Mating Force: 55 N maximum for MI NI S1A1S.
Unmating Force: 49 N maximum for MI NI S1A1S.
Electrical Performance
1.Contact Current Rating
0.5Amperes maximum per pin when mated.
2.Voltage Rating
30VAC per contact when mated or unmated.
3.Contact Resistance
30mohm max. initial, 15mohm maximum after stress test.
4.Dielectric Withstanding Voltage
500 VAC for 1 minute no breakdown.
5.Insulation Resistance
1000 Mohm minimum.
Signal Integrity
1. Mated Connector Impedance: 85 Ω±15%
2. Cable Absolute Impedance: 85 Ω±10%
3. Cable Pair Matching:±5 Ω
4. Common Impedance: 25 to 40 ohms
5. Insertion loss: -6dB maximum up to 4.5Ghz;
6. Crosstalk: -26 dBup to 24Ghz;
Product Environmental Compliance
RoHS2.0:Compliant
ChinaRoHS:Yes
REACH SVHC:Yes
Low-Halogen Status:Not Reviewed
